1. Úvod
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Sterling Sihi Gmbh Lemb 91 Az, Aae 0A 0 Jw, D-00-52213-01 Pump. Please read this manual thoroughly before attempting to install or operate the pump. Retain this manual for future reference.
2. Bezpečnostní informace
VAROVÁNÍ: Nedodržení těchto bezpečnostních pokynů může vést k vážnému zranění, smrti nebo poškození majetku.
- Always disconnect power before performing any installation, maintenance, or repair work on the pump.
- Ujistěte se, že veškeré elektrické připojení provádí kvalifikovaný elektrikář a že splňují místní předpisy a předpisy.
- Wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and protective footwear.
- Do not operate the pump if it is damaged or if any safety guards are removed.
- Ensure the pump is securely mounted to prevent movement during operation.
- Zabraňte kontaktu s pohyblivými částmi během provozu.
- Do not exceed the maximum operating pressure or temperature specified for the pump.
3. Konec produktuview
The Sterling Sihi Gmbh Lemb 91 Az, Aae 0A 0 Jw, D-00-52213-01 is a robust industrial pump designed for various applications. This section provides a general overview of the pump's components and identification.

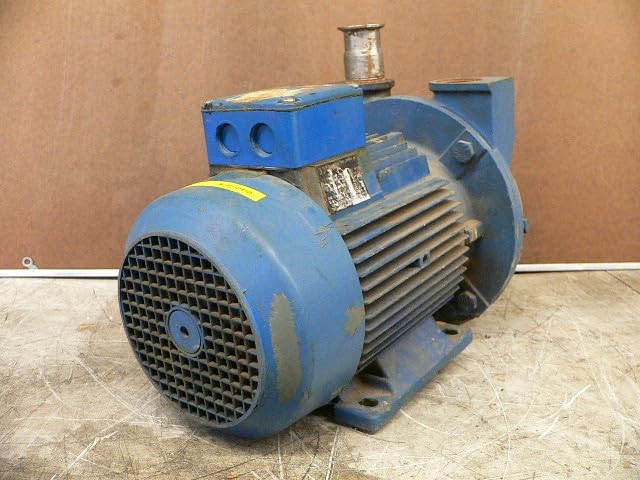

Obrázek 1: Obecné informace view of the Sterling Sihi Gmbh Lemb 91 Az pump. This image shows the overall structure of the pump, including the motor housing, cooling fins, and inlet/outlet ports.
Figure 2: Close-up of the pump's nameplate. This label provides critical information such as the model number (LEMB 91 AZ, AAE 0A 0 JW, D-00-52213-01), manufacturer (Sterling Sihi GmbH), and various operational specifications.
4. Nastavení a instalace
Správná instalace je zásadní pro výkon a životnost čerpadla. Dodržujte tyto obecné pokyny:
- Montáž: Securely mount the pump on a stable, level surface capable of supporting its weight (approximately 68.4 pounds). Use appropriate fasteners to prevent vibration and movement.
- Připojení potrubí: Connect the inlet and outlet piping. Ensure all connections are leak-free and that the piping is adequately supported to avoid strain on the pump. Use flexible connectors if necessary to absorb vibration.
- Elektrické připojení: Have a qualified electrician connect the pump to the power supply. Verify that the voltage and frequency match the pump's requirements as specified on the nameplate. Ensure proper grounding.
- Priming (if applicable): For self-priming pumps, ensure the casing is filled with liquid before initial startup. For non-self-priming pumps, ensure the suction line and pump casing are completely filled with liquid and free of air.
- Počáteční kontrola: Before starting, check all connections, ensure no tools or debris are near moving parts, and confirm all safety guards are in place.
5. Návod k obsluze
Follow these steps for safe and effective operation of your pump:
- Kontrola před spuštěním: Verify that the pump is properly primed (if required) and that all valves in the suction and discharge lines are open.
- Spuštění: Energize the pump's power supply. The pump should start smoothly. Listen for any unusual noises or vibrations.
- Sledování: During operation, regularly monitor the pump's pressure gauges, flow rates, and temperature. Ensure it operates within its specified parameters.
- Vypnout: To stop the pump, de-energize the power supply. Close any necessary valves in the discharge or suction lines as per system requirements.
- Nouzové zastavení: In case of an emergency, immediately cut power to the pump using the designated emergency stop mechanism.
6. Údržba
Regular maintenance ensures optimal performance and extends the lifespan of your pump. Always disconnect power before performing maintenance.
- Rutinní kontrola: Periodically inspect the pump for leaks, unusual noises, vibrations, or signs of wear. Check electrical connections for tightness and corrosion.
- Čištění: Keep the pump exterior clean, especially cooling fins, to ensure proper heat dissipation.
- Mazání: If the pump has grease fittings, lubricate bearings according to the manufacturer's recommendations (refer to specific pump documentation if available).
- Kontrola těsnění: Check mechanical seals or packing for leaks. Address minor leaks promptly to prevent further damage.
- Kontrola oběžného kola: If performance degrades, inspect the impeller for clogging or wear. This may require disassembling part of the pump.
7. Řešení problémů
This section provides solutions to common pump issues. For complex problems, consult a qualified technician.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Čerpadlo se nespustí | No power; Motor overload; Seized impeller | Check power supply and circuit breaker; Reset overload; Inspect and free impeller |
| Nízký průtok nebo tlak | Air in system; Clogged impeller/piping; Worn impeller/seals | Prime pump/bleed air; Clean impeller/piping; Inspect and replace worn parts |
| Nadměrný hluk/vibrace | Cavitation; Misalignment; Worn bearings; Loose mounting | Check suction conditions; Align pump/motor; Replace bearings; Tighten mounting bolts |
| Čerpadlo netěsní | Worn mechanical seal/packing; Loose connections | Replace seal/packing; Tighten connections |
8. Specifikace
The following specifications are provided for the Sterling Sihi Gmbh Lemb 91 Az, Aae 0A 0 Jw, D-00-52213-01 Pump:
- Číslo modelu: LEMB 91 AZ, AAE 0A 0 JW, D-00-52213-01
- Výrobce: Generic (Sterling Sihi GmbH)
- Materiál: Měď
- Hmotnost položky: Přibližně 68.4 libry (31 kg)
- Rozměry produktu: 16.93 x 10.24 x 12.2 palce (43 x 26 x 31 cm)
- Číslo dílu: LEMB 91 AZ, AAE 0A 0 JW, D-00-52213-01
- ASIN: B0D381QGKZ
9. Záruka a podpora
For warranty information and technical support regarding your Sterling Sihi Gmbh Lemb 91 Az, Aae 0A 0 Jw, D-00-52213-01 Pump, please refer to the documentation provided at the time of purchase or contact the seller directly. As this item is listed as used, specific warranty terms may vary.
