Hormann Ecostar Liftronic 500-2 Garage Door Opener

1. Úvod

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Hormann Ecostar Liftronic 500-2 Special Edition garage door opener. Please read these instructions carefully before beginning installation or operation to ensure proper function and to prevent injury or damage.

The Hormann Ecostar Liftronic 500-2 is designed for garage doors up to 7 m², offering a pulling force of 500 N. It is suitable for both up-and-over and sectional garage doors. This special edition includes a PB 1 interior button and two RSC 2 handheld transmitters for convenient control.

2. Bezpečnostní informace

VAROVÁNÍ: Nedodržení těchto bezpečnostních pokynů může vést k vážnému zranění nebo smrti.

• Ensure all installation steps are performed by qualified personnel or with strict adherence to these instructions.
• Udržujte děti a domácí zvířata mimo dosah garážových vrat, zejména během jejich provozu.
• Do not operate the opener if the garage door is obstructed or damaged.
• Pravidelně kontrolujte garážová vrata a pohon, zda nevykazují známky opotřebení nebo poškození.
• The automatic stop feature provides safety by stopping the door if an obstacle is detected during opening or closing. Test this feature periodically.
• In case of power failure, use the emergency release to manually open the garage door from the inside.

3. Obsah balení

Your Hormann Ecostar Liftronic 500-2 Special Edition package includes the following components:

• 1x Pohon garážových vrat Hormann Ecostar Liftronic 500-2
• 2x RSC 2 Handheld Transmitters (2-button remote controls)
• 1x PB 1 Interior Button
• Montážní příslušenství (šrouby, hmoždinky atd.)
• Guide rails (flat, 30 mm)

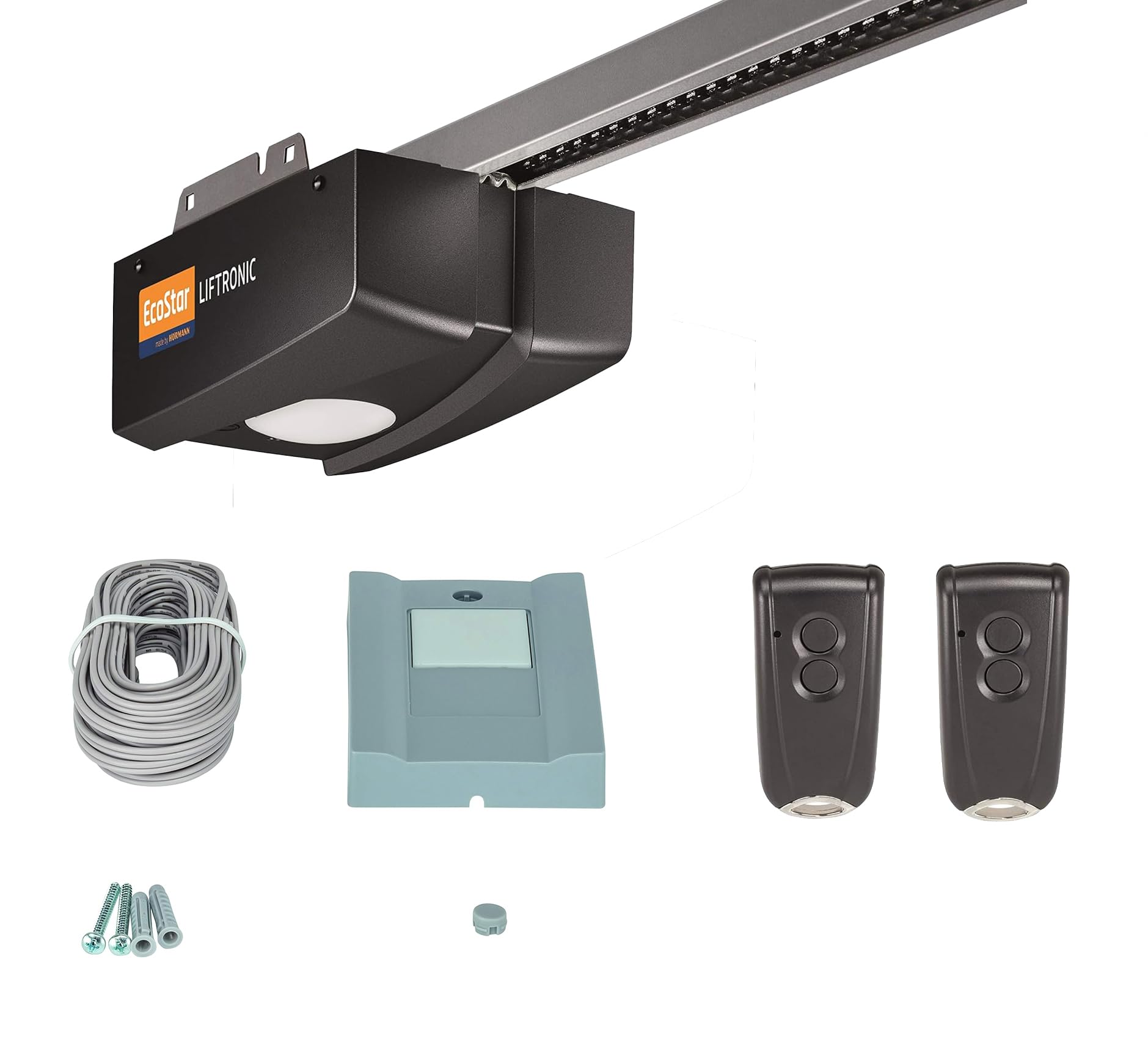

Image 1: The main Hormann Ecostar Liftronic 500-2 garage door opener unit.

Image 2: Two RSC 2 handheld transmitters for remote control of the garage door.

Image 3: The PB 1 interior button with connecting wire for wall-mounted operation.

Image 4: The flat guide rails (30 mm) and various mounting accessories included for installation.

4. Nastavení a instalace

The Liftronic 500-2 is designed for straightforward installation. It comes fully ready to mount, including all necessary accessories and guide rails. The flat 30 mm guide rails are compatible with most common garage doors, making it suitable for new installations and renovations.

4.1 Mounting the Guide Rails

1. Attach the guide rails securely to the garage ceiling and the header above the garage door opening. Ensure they are level and properly aligned.
2. Refer to the detailed diagrams in the separate installation guide for precise measurements and mounting points.

4.2 Installing the Opener Unit

1. Mount the opener unit to the guide rails according to the instructions.
2. Connect the opener unit to a suitable power supply. Ensure the power outlet is easily accessible.

4.3 Connecting the Interior Button

1. Install the PB 1 interior button in a convenient and safe location inside the garage, away from moving parts of the door.
2. Connect the button to the opener unit using the provided wiring.

4.4 Nouzové uvolnění

The emergency release mechanism allows manual operation of the garage door during a power outage. Ensure you understand how to activate it and can access it easily from inside the garage.

5. Návod k obsluze

5.1 Using the Handheld Transmitters (RSC 2)

The two RSC 2 handheld transmitters allow you to open and close your garage door remotely. Each transmitter has two buttons.

• Press one of the buttons on the transmitter to activate the garage door opener.
• Pressing the button again will stop the door's movement. A third press will reverse the direction.
• Ensure a clear line of sight to the garage door and that no obstacles are present before operating.

5.2 Using the Interior Button (PB 1)

The PB 1 interior button provides a convenient wired control inside your garage.

• Press the button to initiate opening or closing of the garage door.
• Similar to the remote, pressing the button again will stop the door, and a subsequent press will reverse its direction.

5.3 Funkce automatického zastavení

The EcoStar opener is equipped with a secure automatic stop feature. If the door encounters an obstacle during its travel, it will automatically stop and reverse direction to prevent damage or injury. Regularly test this safety feature by placing a soft object (e.g., a cardboard box) in the door's path.

6. Údržba

Pravidelná údržba zajistí dlouhou životnost a bezpečný provoz vašeho garážového pohonu.

• Měsíční: Inspect the garage door springs, cables, rollers, and hinges for signs of wear or damage. Lubricate moving parts as recommended by the garage door manufacturer.
• Čtvrtletní: Test the automatic stop safety feature. Ensure the door reverses upon contact with an obstacle. Adjust if necessary according to the separate installation guide.
• Každoročně: Have a qualified technician perform a comprehensive inspection and service of your garage door and opener system.
• Keep the guide rails clean and free from debris.

7. Řešení problémů

Pokud narazíte na problémy s otvíračem garážových vrat, postupujte podle následujících běžných kroků pro řešení problémů:

• Otvírák nereaguje: Check the power supply to the unit. Ensure the handheld transmitter batteries are not depleted.
• Door stops or reverses unexpectedly: Check for obstructions in the door's path. Ensure the safety sensors (if installed) are clean and aligned.
• Door is noisy: Lubricate moving parts of the garage door (springs, rollers, hinges). Ensure all mounting hardware is tight.
• Dosah dálkového ovládání je špatný: Replace the batteries in the handheld transmitter. Ensure there are no large metal objects obstructing the signal path.

For persistent issues, consult a qualified garage door technician.

8. Specifikace

9. Záruka a podpora

For warranty information, please refer to the documentation provided with your purchase or contact Hormann customer support directly. Keep your proof of purchase for warranty claims.

If you require technical assistance or have questions not covered in this manual, please contact Hormann customer service through their official webwebu nebo kontaktních údajů uvedených na obalu produktu.
