COSTWAY Double Parasol Instruction Manual

1. Úvod

Thank you for choosing the COSTWAY Double Parasol. This manual provides essential information for the safe assembly, operation, and maintenance of your new parasol. Please read these instructions carefully before use and retain them for future reference.

This large double-sided parasol is designed to provide extensive shade for your garden, balcony, or terrace. It features a robust construction, a convenient crank mechanism for easy opening and closing, and a stable base system.

Image: The COSTWAY Double Parasol providing shade over an outdoor dining set on a wooden deck.

2. Bezpečnostní pokyny

• Stabilita: Always ensure the parasol base is adequately weighted. The included sandbags must be filled to their maximum capacity (up to 81 kg total) to prevent tipping.
• Povětrnostní podmínky: Do not use the parasol in strong winds, heavy rain, or severe weather conditions. Always close and secure the parasol when not in use or during adverse weather.
• Shromáždění: Follow all assembly instructions carefully. Ensure all parts are securely fastened before use.
• Děti a domácí mazlíčci: Keep children and pets away from the parasol during assembly and operation to prevent accidents.
• Odbavení: Ensure there is sufficient clearance around the parasol when opening and closing to avoid obstructions or damage.
• Údržba: Regularly inspect the parasol for any signs of wear, damage, or loose parts. Address any issues promptly.

3. Obsah balení

Před montáží se prosím ujistěte, že jsou všechny níže uvedené komponenty přítomny a nepoškozené:

• Parasol Canopy (Double-sided)
• Main Pole with Crank Mechanism
• Base Metal Frame
• 2 x Weighted Sandbags (empty)
• Outer Base Cover
• Montážní materiál (šrouby, matice, podložky)
• Návod k použití

If any parts are missing or damaged, please contact COSTWAY customer service for assistance.

4. Nastavení a montáž

Follow these steps to assemble your COSTWAY Double Parasol:

1. Sestavte základní rám: Begin by assembling the metal frame of the parasol base. Secure all connections with the provided hardware.
2. Fill Sandbags: Fill the two included sandbags with sand. Each sandbag should be filled to its maximum capacity to ensure optimal stability.
3. Pozice pytlů s pískem: Place the filled sandbags into the designated positions within the assembled base frame.
4. Attach Outer Cover: Carefully place the outer cover over the base frame and sandbags, ensuring a snug fit.
5. Insert Main Pole: Insert the main pole of the parasol into the central opening of the assembled base. Secure it firmly according to the instructions.
6. Připevněte stříšku: Carefully attach the parasol canopy to the top of the main pole. Ensure it is securely fastened.

Image: Visual guide for assembling the parasol base, including the metal frame, weighted sandbags, and outer cover.

5. Návod k obsluze

The COSTWAY Double Parasol features a user-friendly crank mechanism for easy operation.

• Opening the Parasol: Locate the crank handle on the main pole. Turn the handle clockwise to slowly extend and open the parasol canopy. Continue turning until the canopy is fully open and taut.
• Closing the Parasol: To close the parasol, turn the crank handle counter-clockwise. The canopy will retract and fold downwards. Once fully closed, use the integrated fastening strap to secure the canopy tightly around the pole. This prevents the canopy from unfurling unexpectedly and protects it from wind damage.

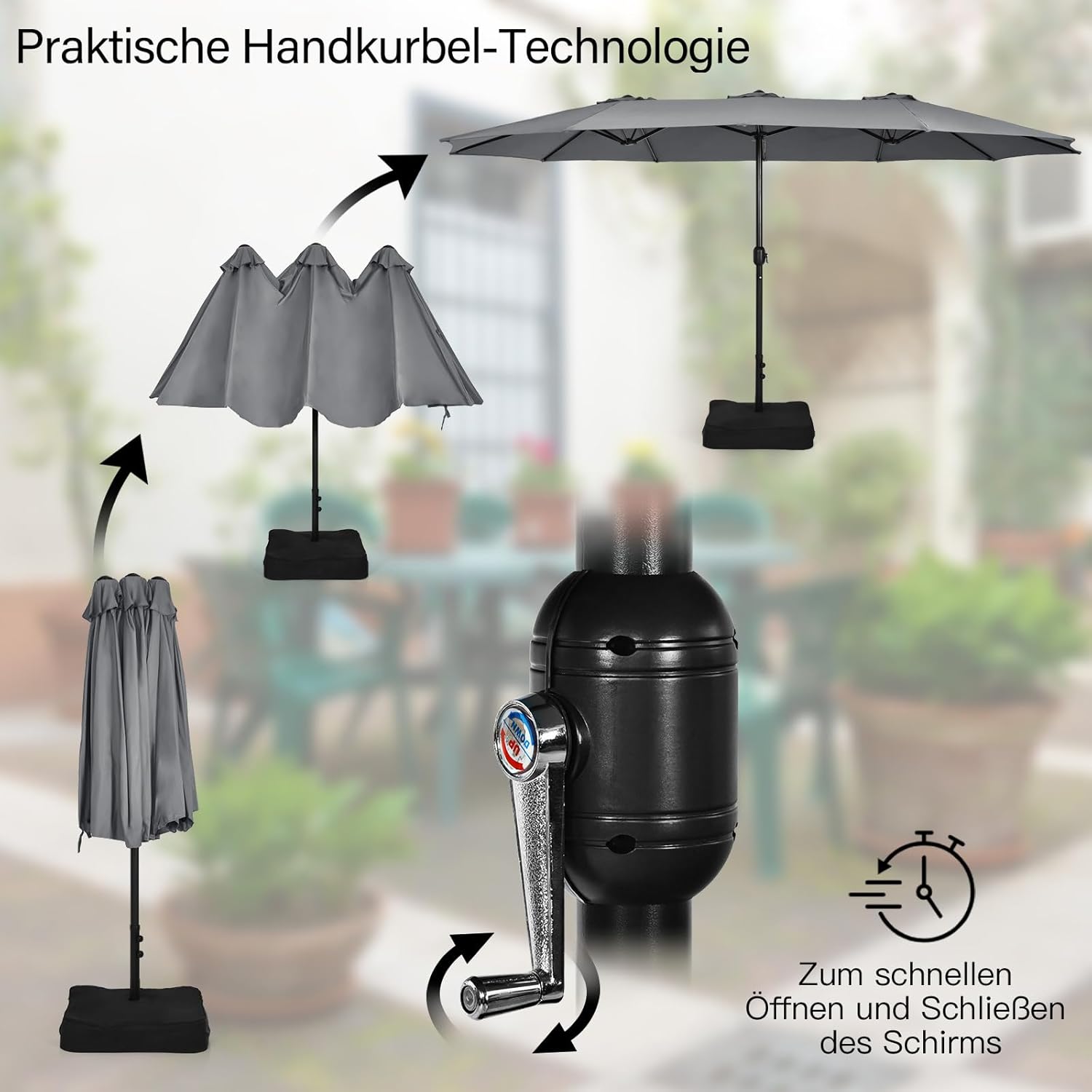

Image: Illustration of the practical crank technology for quick opening and closing of the parasol.

6. Údržba

Proper maintenance will extend the lifespan of your parasol.

• Čištění vrchlíku: Wipe the canopy fabric with a dry cloth to remove dust. For more stubborn dirt, use a damp cloth with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing.
• Čištění rámu: Otřete kovový rám reklamouamp hadříkem. Vyhněte se abrazivním čisticím prostředkům, které by mohly poškodit práškový lak.
• Skladování: When not in use for extended periods, especially during off-season or severe weather, close the parasol, secure it with the strap, and store it in a dry, protected area. A protective cover (not included) is recommended.
• Inspekce: Periodically check all bolts and connections to ensure they remain tight. Inspect the canopy fabric for any tears or damage.

7. Řešení problémů

• Parasol is unstable: Ensure the sandbags in the base are fully filled and correctly positioned. Check that the main pole is securely inserted into the base and all base frame connections are tightened.
• Crank mechanism is stiff or not working: Check for any obstructions in the mechanism. Ensure the canopy is not caught on any part of the frame. Apply a silicone-based lubricant to moving parts if necessary.
• Canopy not opening/closing smoothly: Verify that the canopy fabric is not tangled or caught. Ensure the crank mechanism is operating freely.
• Parasol damaged by wind: Always close and secure the parasol in windy conditions. Damage due to improper use in high winds is not covered by warranty.

8. Specifikace

Image: Detailed dimensions of the parasol, including canopy width, height, and pole measurements.

Image: Specific details highlighting the 12-rib iron structure, secure metal stopper, double-stitched rib protection, sun-resistant durable fabric, and practical fastening strap.

9. Záruka a podpora

For warranty information, technical support, or to order replacement parts, please contact COSTWAY customer service. Refer to your purchase documentation for specific contact details or visit the official COSTWAY webmísto.
