lightmaXX Slim Spot ARC 18x 10W RGBW, IP65 - LED PAR Spot

1. Úvod

Thank you for choosing the lightmaXX Slim Spot ARC 18x 10W RGBW, IP65 LED PAR Spot. This professional lighting fixture is designed for stage, event, and architectural lighting applications, offering robust construction and versatile color mixing capabilities. Its IP65 rating ensures suitability for outdoor use. This manual provides essential information for safe installation, operation, and maintenance of your device. Please read it thoroughly before first use.

2. Bezpečnostní pokyny

• Elektrická bezpečnost: Zařízení vždy připojujte k uzemněné elektrické zásuvce. Ujistěte se, že hlasitosttage matches the specifications. Disconnect power before any service or maintenance.
• Instalace: Mount the fixture securely using appropriate hardware. Ensure the mounting surface can support the weight of the fixture. Avoid mounting near flammable materials.
• Teplota: The fixture can become hot during operation. Allow sufficient cooling time before handling. Ensure adequate ventilation around the unit.
• Ochrana očí: Do not stare directly into the light source, as it can cause eye damage.
• Stupeň krytí IP65: While rated for outdoor use, ensure all connections are properly sealed and protected from direct water jets or prolonged submersion.
• Údržba: Refer to the maintenance section for cleaning and care. Do not attempt to repair the unit yourself; contact qualified service personnel.

3. Obsah balení

Po vybalení prosím zkontrolujte, zda jsou všechny položky přítomny a v dobrém stavu:

• lightmaXX Slim Spot ARC 18x 10W RGBW, IP65 LED PAR Spot
• Montážní konzola
• Napájecí kabel
• Návod k použití (tento dokument)

4. Konec produktuview

The lightmaXX Slim Spot ARC features 18 powerful 10W RGBW LEDs, providing a wide range of color mixing options. Its robust housing and IP65 rating make it suitable for various environments.

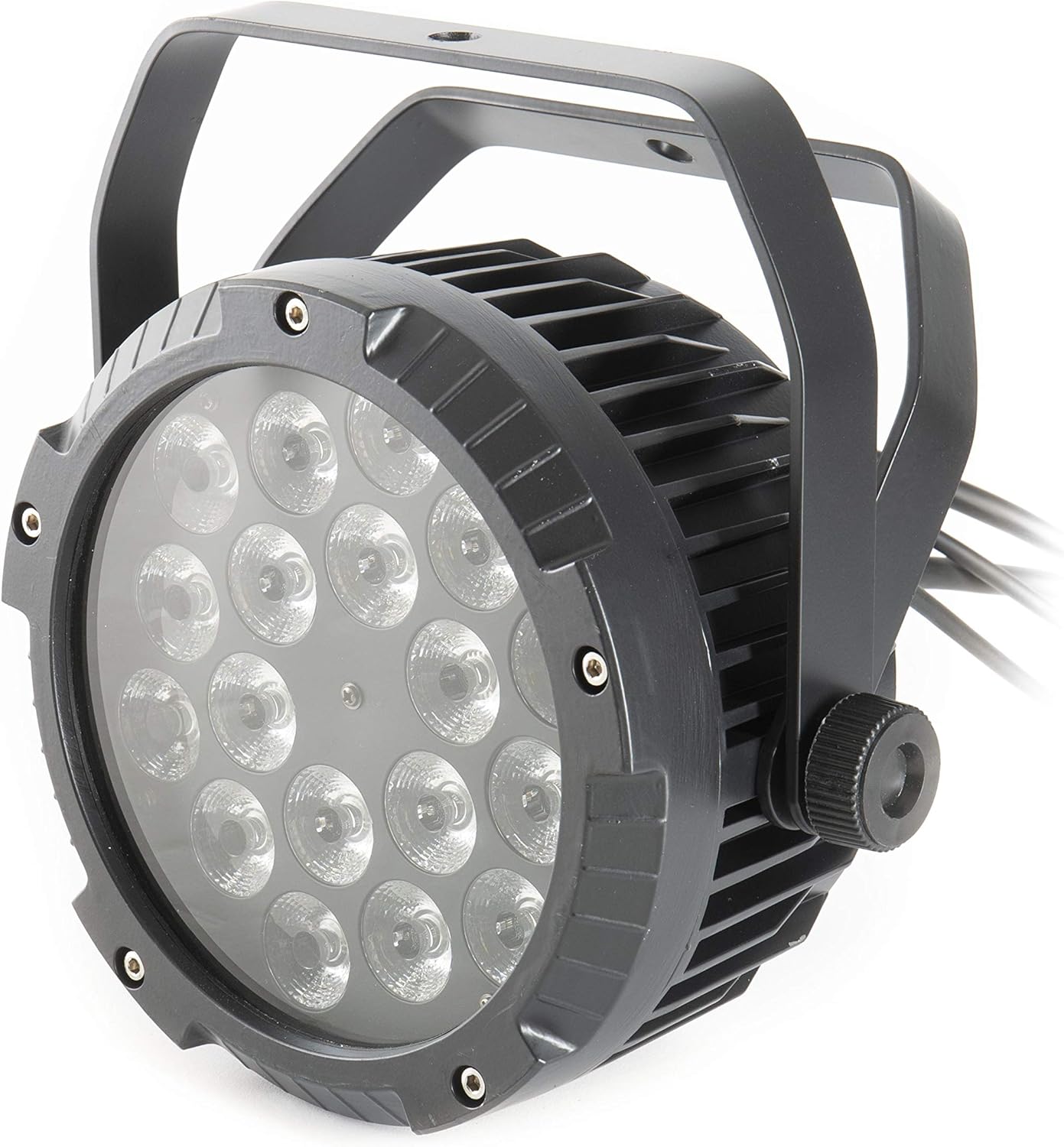

Obrázek 4.1: Přední strana view of the lightmaXX Slim Spot ARC LED PAR, showing the 18 LED lenses and the sturdy black housing with mounting bracket.

Obrázek 4.2: Zadní view of the lightmaXX Slim Spot ARC LED PAR, displaying the control panel with a digital display and four buttons (MENU, UP, DOWN, ENTER), along with Power In/Out and DMX In/Out connections.

4.1 Komponenty

• LED pole: 18x 10W RGBW LEDs for rich color mixing.
• Ovládací panel: Digital display and four buttons (MENU, UP, DOWN, ENTER) for setting modes and parameters.
• Napájení: IP65-rated Power In and Power Out connectors for daisy-chaining power.
• DMX připojení: IP65-rated DMX In and DMX Out connectors for DMX control.
• Montážní držák: Adjustable bracket for floor standing or truss mounting.

5. Nastavení

5.1 Montáž

1. Attach the mounting bracket to the fixture using the provided screws.
2. Securely fasten the fixture to a truss, stand, or flat surface using appropriate clamps or bolts (not included). Ensure the mounting point can safely support the fixture's weight (approximately 4.87 kg).
3. Adjust the angle of the fixture using the side knobs on the mounting bracket.

5.2 Připojení napájení

1. Connect the provided power cable to the 'POWER IN' connector on the rear of the fixture.
2. Plug the other end of the power cable into a suitable grounded power outlet (230V AC, 50/60Hz).
3. For daisy-chaining multiple units, connect a power cable from the 'POWER OUT' of the first fixture to the 'POWER IN' of the next. Observe the maximum power load for daisy-chaining.

5.3 DMX připojení (volitelné)

To control the fixture via DMX, you will need a DMX controller and DMX cables.

1. Connect a DMX cable from your DMX controller's 'DMX OUT' to the 'DMX IN' connector on the first fixture.
2. For multiple fixtures, connect a DMX cable from the 'DMX OUT' of the first fixture to the 'DMX IN' of the next, and so on.
3. Ensure all DMX connections are secure and properly sealed for IP65 integrity.

6. Provoz

The Slim Spot ARC can be operated in several modes: Standalone (Auto, Sound-Active, Static Color) or DMX control.

Figure 6.1: The lightmaXX Slim Spot ARC LED PAR emitting a warm white light, showcasing its color mixing capabilities.

6.1 Navigace v ovládacím panelu

Use the four buttons on the rear panel to navigate the menu and adjust settings:

• JÍDELNÍ LÍSTEK: Cykluje mezi možnostmi hlavní nabídky.
• NAHORU: Increases the value or moves up in the menu.
• DOLŮ: Decreases the value or moves down in the menu.
• ZADEJTE: Confirms the selection or enters a submenu.

6.2 Režim DMX

To control the fixture via DMX, set the DMX address:

1. Stiskněte MENU until 'Addr' or 'DMX Address' appears on the display.
2. Použití UP a DOLŮ to set the desired DMX start address (e.g., 001).
3. Stiskněte ENTER potvrdit.
4. Consult your DMX controller's manual and the fixture's DMX channel chart (usually found in a separate DMX appendix or on the manufacturer's website) to understand the control functions for each DMX channel.

Figure 6.2: The lightmaXX Slim Spot ARC LED PAR emitting a vibrant blue light, demonstrating its RGBW color capabilities.

6.3 Standalone Modes

The fixture offers several standalone modes for operation without a DMX controller:

• Automatický režim: Stiskněte MENU until 'Auto' appears. Use NAHORU/DOLŮ to select different built-in programs. Press ENTER potvrdit.
• Zvukově aktivní režim: Stiskněte MENU until 'Sound' or 'SoUn' appears. The fixture will react to ambient sound via its built-in microphone. Use NAHORU/DOLŮ to adjust sensitivity if available. Press ENTER potvrdit.
• Statický barevný režim: Stiskněte MENU until 'Color' or 'CoLo' appears. Use NAHORU/DOLŮ to select a preset static color or adjust individual RGBW values. Press ENTER potvrdit.

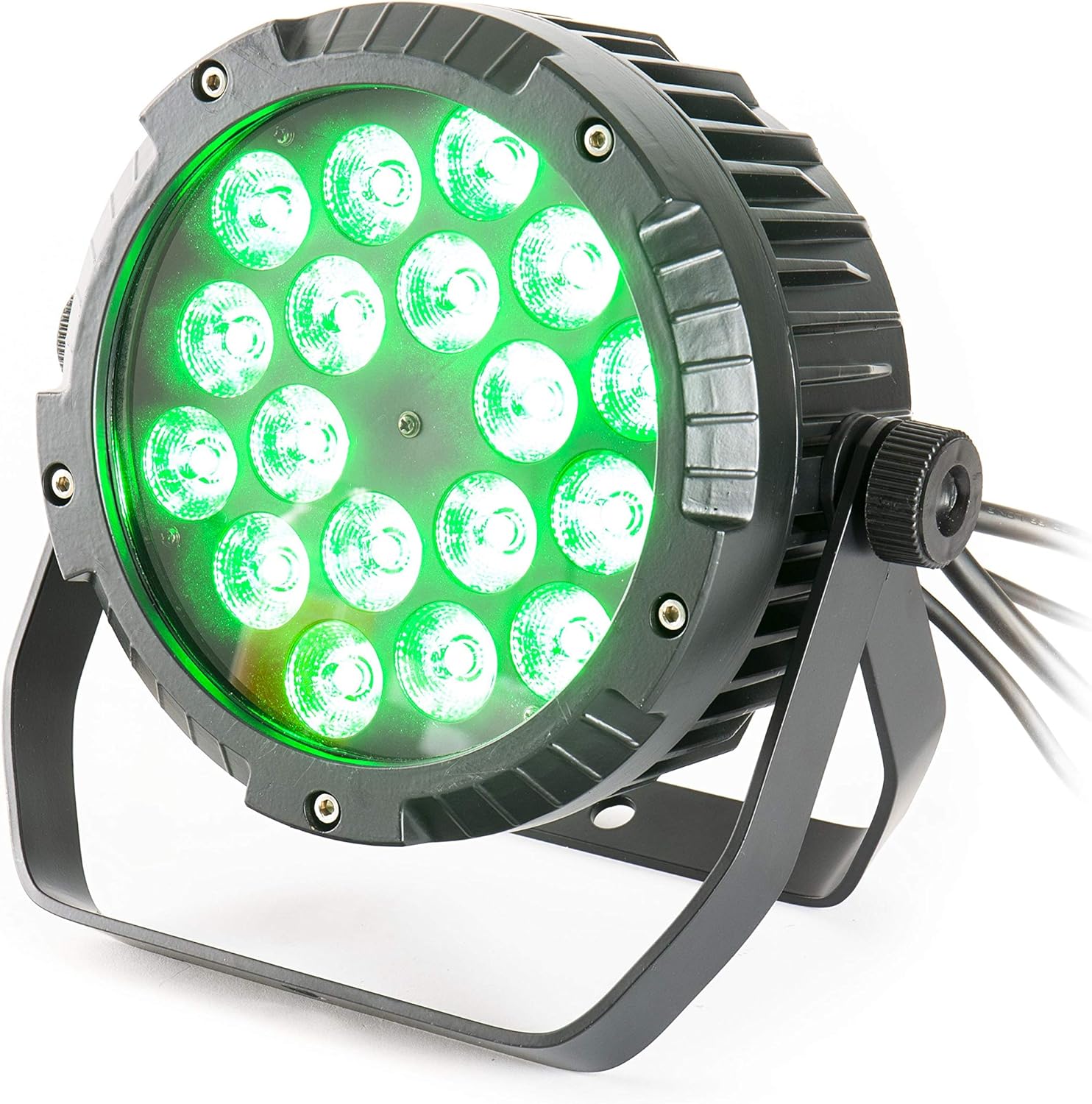

Figure 6.3: The lightmaXX Slim Spot ARC LED PAR emitting a bright green light, highlighting its versatile color output.

7. Údržba

Regular maintenance ensures optimal performance and longevity of your lightmaXX Slim Spot ARC.

• Čištění: Periodically clean the lens and housing with a soft, lint-free cloth. For stubborn dirt, use a mild glass cleaner. Ensure the fixture is powered off and cool before cleaning. Do not use abrasive cleaners or solvents.
• Inspekce: Regularly check power and DMX cables for damage. Inspect mounting hardware for security.
• Skladování: Pokud svítidlo nepoužíváte, skladujte jej v suchém a bezprašném prostředí.

8. Řešení problémů

If you encounter issues with your lightmaXX Slim Spot ARC, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact lightmaXX customer support or a qualified technician.

9. Specifikace

Detailed technical specifications for the lightmaXX Slim Spot ARC 18x 10W RGBW, IP65 LED PAR Spot:

10. Záruka a podpora

lightmaXX products are designed and manufactured to the highest quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.

For technical support, service, or warranty inquiries, please contact your local lightmaXX dealer or visit the official lightmaXX website for contact information. Do not attempt to open or repair the device yourself, as this will void the warranty.
