DCH CS-JYB001BL 700mAh Ni-MH Battery Replacement User Manual

1. Úvod

This manual provides essential instructions for the safe and effective use of your DCH CS-JYB001BL 700mAh Ni-MH Battery Replacement. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the battery.

This battery is designed as a replacement for specific remote control units. Always verify compatibility with your device's model and existing battery part number before use.

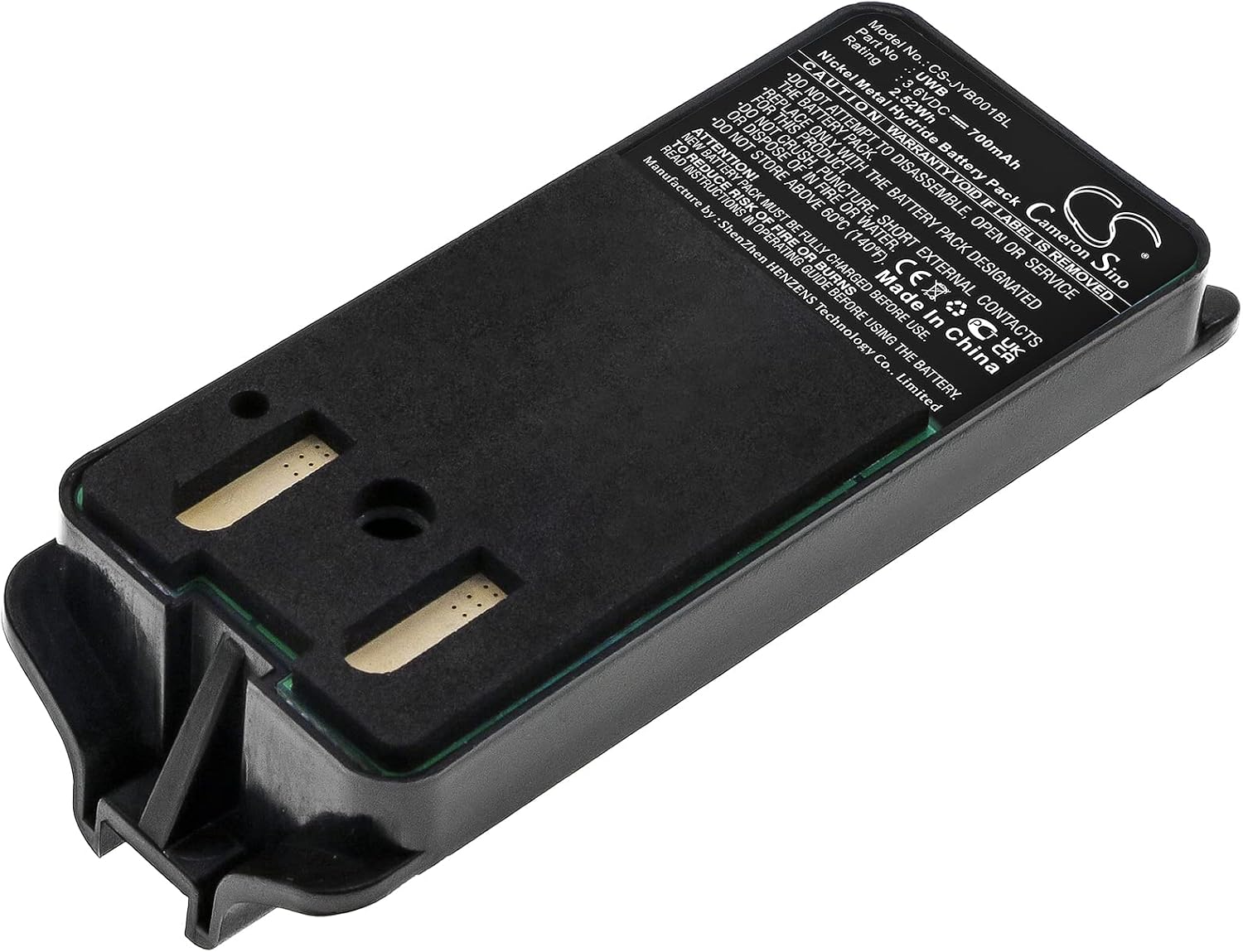

Obrázek 1: Přední view of the DCH CS-JYB001BL 700mAh Ni-MH Battery, showing the product label with model number, part number, rating, and safety warnings.

2. Kompatibilita

The DCH CS-JYB001BL battery is compatible with the following devices and battery part numbers:

• Kompatibilní modely:
  • Jay Remote Control ECU
  • A001 Remote Industrial HF Standard
• Compatible Battery Part Number: ZČU

Před nákupemasing or installing, please ensure that both your device's model and the original battery's part number match the specifications listed above. If unsure, consult your device's original manual or contact customer support.

3. Nastavení a instalace

Follow these general steps for battery installation. Specific steps may vary depending on your device. Always refer to your device's instruction manual for detailed installation procedures.

1. Vypínací zařízení: Ensure your remote control or industrial device is completely powered off before attempting battery replacement.
2. Najděte přihrádku na baterie: Identify and open the battery compartment on your device. This usually involves removing a cover or panel.
3. Vyjměte starou baterii: Carefully remove the old battery. Note its orientation to ensure correct installation of the new battery.
4. Vložení nové baterie: Insert the DCH CS-JYB001BL battery into the compartment, matching the polarity (+/-) as indicated in the device. Ensure it fits securely.
5. Zavřít přihrádku: Bezpečně zavřete kryt bateriového prostoru.
6. Počáteční poplatek: It is recommended to fully charge the new battery before its first use. Refer to the "Operating Instructions" section for charging guidance.

Důležité: A new battery pack must be fully charged before its first use to optimize performance and lifespan.

4. Návod k obsluze

This Ni-MH battery requires proper charging and discharge cycles for optimal performance.

4.1 Nabíjení

• Use only the charger specifically designed for your remote control or industrial device.
• Connect the device with the installed DCH battery to its charger.
• Allow the battery to charge completely. Charging indicators (LEDs, screen icons) on your device will typically show charging status.
• Avoid overcharging by disconnecting the charger once the battery is full, if your device's charger does not have automatic cut-off.

4.2 Použití

• Operate your device as per its original instructions.
• Monitor battery levels and recharge before the battery is completely depleted to prolong its life.
• Baterie poskytuje jmenovitý objemtage s napětím 3.6 V a kapacitou 700 mAh.

5. Údržba a skladování

Proper care and storage will extend the life of your DCH battery.

• Teplota: Store the battery in a cool, dry place. Do not store above 60°C (140°F). Extreme temperatures can degrade battery performance and safety.
• Čištění: Keep battery contacts clean. Use a dry, soft cloth to wipe away any dust or debris.
• Dlouhodobé skladování: If storing the battery for an extended period, charge it to approximately 50-70% capacity. Recharge every 3-6 months to prevent deep discharge.
• Vyhněte se vlhkosti: Keep the battery away from water and high humidity.

Obrázek 2: Strana view of the DCH CS-JYB001BL battery, illustrating its form factor for fitting into compatible devices.

6. Řešení problémů

If you encounter issues with your DCH battery, consider the following common troubleshooting steps:

• Baterie se nenabíjí:
  • Ensure the charger is properly connected to both the device and a power source.
  • Check if the charger or charging cable is damaged.
  • Verify that the battery is correctly seated in the device's compartment.
  • Clean battery contacts on both the battery and the device.
• Krátká provozní doba:
  • Před použitím se ujistěte, že je baterie plně nabitá.
  • Ni-MH batteries may require several charge/discharge cycles to reach full capacity.
  • Operating in extreme temperatures can reduce battery life.
• Zařízení se nezapíná:
  • Ujistěte se, že je baterie plně nabitá a správně nainstalovaná.
  • Check if the device itself has other issues (refer to your device's manual).

Pokud problémy přetrvávají i po provedení těchto kroků, kontaktujte prosím zákaznickou podporu.

7. Specifikace

Obrázek 3: Shora dolů view of the DCH CS-JYB001BL battery, highlighting the electrical contact points and the detailed product label.

8. Bezpečnostní informace a varování

Your safety is paramount. Please read and adhere to all safety warnings to prevent injury or damage to the battery and device.

• Záruka: The warranty is void if the product label is removed.
• Demontáž: Do not attempt to disassemble, open, or service the battery pack. This can lead to electric shock, fire, or explosion.
• Nahrazení: Replace only with the battery pack designated for this product. Using incompatible batteries may cause damage or safety hazards.
• Fyzické poškození: Nedrťte, nepropichujte ani nezkratujte vnější kontakty baterie.
• Heat and Fire: Do not dispose of the battery in fire or water. Do not store above 60°C (140°F). High temperatures can cause the battery to explode or leak.
• Popáleniny: To reduce the risk of fire or burns, read all instructions in the operating guide before using the battery.
• Děti: Udržujte baterie mimo dosah dětí.
• Likvidace: Použité baterie zlikvidujte v souladu s místními předpisy. Nevyhazujte je do domovního odpadu.

9. Zákaznická podpora

For any questions regarding the DCH CS-JYB001BL battery, including pre-sales inquiries or after-sales service, please feel free to contact us. We are committed to providing professional support.

Please have your product model number (CS-JYB001BL) and any relevant purchase information ready when contacting support.
