HOMCOM 6-in-1 Evolutionary Tricycle User Manual

1. Úvod

Thank you for choosing the HOMCOM 6-in-1 Evolutionary Tricycle. This manual provides essential information for the safe assembly, operation, and maintenance of your new tricycle. Please read it thoroughly before use and retain it for future reference.

This versatile tricycle is designed to adapt to your child's growth, offering 6 different stages of use to ensure comfort and safety from approximately 12 to 60 months of age.

Image 1.1: The HOMCOM Evolutionary Tricycle in use with a child and parent.

2. Bezpečnostní informace

WARNING: Failure to follow these instructions may result in serious injury.

• Always supervise children when using the tricycle. Never leave a child unattended.
• This tricycle is suitable for children aged approximately 12 to 60 months.
• Maximální nosnost této tříkolky je 25 kg (55 liber). Nepřekračujte tento limit.
• Ensure all locking mechanisms, buckles, and fasteners are securely engaged before each use.
• Vždy používejte bezpečnostní pásy k zajištění dítěte v autosedačce.
• Do not use the tricycle on public roads, near motor vehicles, steep inclines, or stairs.
• Udržujte dětské prsty a oblečení v dostatečné vzdálenosti od pohyblivých částí.
• Regularly inspect the tricycle for loose parts, damage, or wear. Do not use if damaged.
• Montáž musí provádět dospělá osoba.
• Remove the push handle and safety bar when the child is old enough to ride independently.

3. Obsah balení

Please check the package carefully to ensure all components are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Rám tříkolky
• Kola (přední a zadní)
• Sedadlo s bezpečnostním pásem
• Odnímatelná stříška
• Nastavitelná rukojeť
• Front Safety Bar
• Skládací opěrka nohou
• Zadní úložný koš
• Brašna na řídítka
• Držák na láhev
• Montážní materiál (šrouby, matice, podložky)
• Basic Assembly Tools (if included)
• Návod k použití

Image 3.1: Key product details and included accessories.

4. Nastavení a montáž

Assembly of the HOMCOM 6-in-1 Evolutionary Tricycle requires adult supervision and basic tools. Follow these general steps. Refer to the detailed diagrams in the separate assembly guide for specific instructions.

1. Rozbalte komponenty: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify all components are present against the package contents list.
2. Připevněte kola: Securely attach the front and rear wheels to the tricycle frame according to the assembly diagrams. Ensure they rotate freely.
3. Install Seat and Safety Bar: Mount the seat onto the frame and attach the front safety bar. Ensure the safety harness is correctly threaded and adjustable.
4. Připevnění rukojeti: Insert the adjustable push handle into its designated slot at the rear of the tricycle. Ensure it locks securely into place.
5. Hora Canopy: Attach the removable canopy to the tricycle frame.
6. Přidat příslušenství: Attach the handlebar bag, bottle holder, and rear storage basket.
7. Závěrečná kontrola: Before first use, double-check all screws, bolts, and connections to ensure they are tight and secure. Test all adjustable features and safety mechanisms.

5. Návod k obsluze

The HOMCOM 6-in-1 Evolutionary Tricycle is designed to adapt through various stages of your child's development. The following outlines the general operation and how to transition between stages.

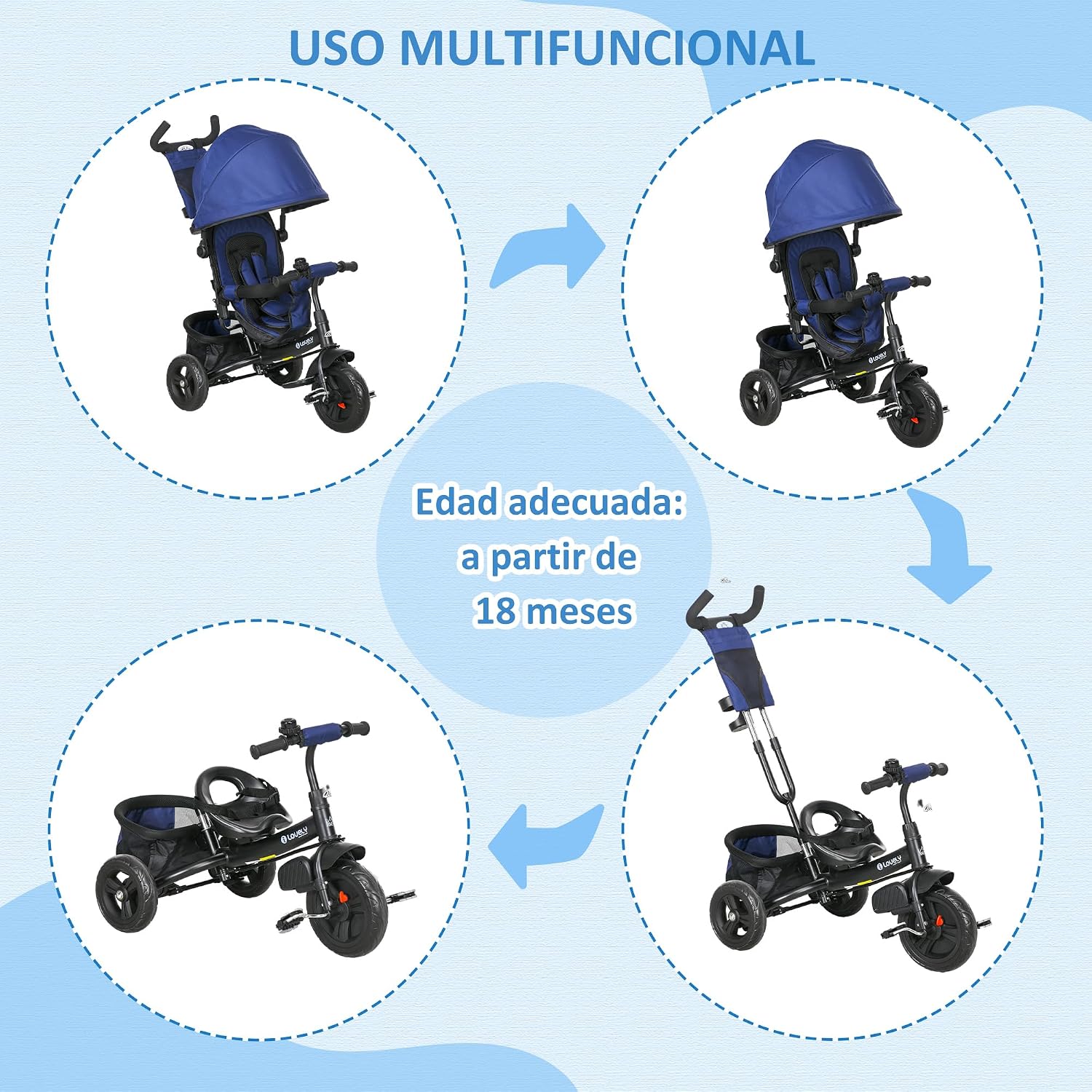

Image 5.1: Multifunctional use diagram showing the tricycle's evolution.

5.1. 6-in-1 Evolutionary Stages

The tricycle transitions through stages by adding or removing components:

• Stage 1 (Stroller Mode): For younger infants, use with the push handle, canopy, safety bar, and footrest. The child is secured by the harness, and the parent controls direction.
• Stage 2 (Push Tricycle Mode): As the child grows, they can use the pedals, but the parent still controls steering with the push handle. The safety bar and canopy may remain.
• Stage 3 (Training Tricycle Mode): Remove the safety bar. The child can practice steering while the parent still assists with the push handle. The footrest can be folded away.
• Stage 4 (Independent Tricycle Mode): Remove the push handle and canopy. The child can now ride independently, pedaling and steering on their own.
• Further Stages: Další stages involve removing the backrest or other components as the child gains confidence and requires a simpler tricycle.

5.2. Nastavitelné funkce

• Tlačná rukojeť: The push handle is height-adjustable to suit different parent heights. It can also be detached when no longer needed. Refer to Image 5.2 for details.
• Baldachýn: The canopy is adjustable to provide optimal shade and sun protection. It is also removable. Refer to Image 5.3 for details.
• Opěrka nohou: The footrest is foldable. When the child is not pedaling, it provides a comfortable place for their feet. When they are ready to pedal, it can be folded away to prevent interference.
• Bezpečnostní postroj: The 3-point safety harness ensures your child is securely fastened in the seat. Always adjust it snugly.

Image 5.2: Adjustable and detachable push handle for parental control.

Image 5.3: Adaptable canopy for sun protection and suitability for various terrains.

6. Údržba

Regular maintenance will extend the life of your tricycle and ensure continued safe operation.

• Čištění: Otřete rám a plastové části čisticím prostředkem.amp cloth and mild soap. Do not use abrasive cleaners. The fabric covers are removable and washable.
• Mazání: Periodically apply a small amount of lubricant to moving parts like wheel axles and pedal mechanisms to ensure smooth operation.
• Inspekce: Regularly check all bolts, nuts, and screws for tightness. Inspect tires for wear and tear. Ensure the safety harness and buckles are in good working condition.
• Skladování: Tříkolku skladujte na suchém a chladném místě mimo dosah přímého slunečního záření a extrémních teplot, abyste zabránili degradaci materiálu.

7. Řešení problémů

If you encounter any issues with your HOMCOM tricycle, refer to the following common solutions:

• Tricycle is difficult to steer: Check if the push handle is securely attached and locked. Ensure the front wheel is properly aligned.
• Kola jsou tuhá nebo hlučná: Inspect for any debris caught in the wheels. Apply lubricant to the axles if necessary.
• Parts feel loose: Re-tighten all screws, bolts, and connections. Do not overtighten.
• Child cannot reach pedals: Ensure the footrest is in the correct position for their height, or fold it away if they are ready to pedal. The tricycle is designed for evolutionary use, so ensure the stage is appropriate for the child's size.
• Stříška nedrží na místě: Check the canopy's attachment points and adjustment mechanisms for proper engagement.

If problems persist, please contact HOMCOM customer support.

8. Specifikace

Image 8.1: Tricycle dimensions.

9. Záruka a podpora

HOMCOM products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official HOMCOM website. If you have any questions, require assistance with assembly, or need replacement parts, please contact HOMCOM customer support directly.

Prosím, uveďte číslo modelu (370-027V00DB) and purchase date ready when contacting support.
