DEWALT DPG22 Type II Safety Helmet User Manual
Model: DPG22-SLATE
Comprehensive guide for the safe and effective use of your DEWALT DPG22 Type II Safety Helmet.
1. Úvod
The DEWALT DPG22 Type II Safety Helmet is engineered to provide advanced head protection in demanding work environments. Designed for safety and comfort, this helmet meets ANSI/ISEA Z89.1 Type II Class E standards, offering enhanced protection against top and side impacts.
Its lightweight yet durable construction, combined with customizable fit features, ensures reliable performance throughout your workday.

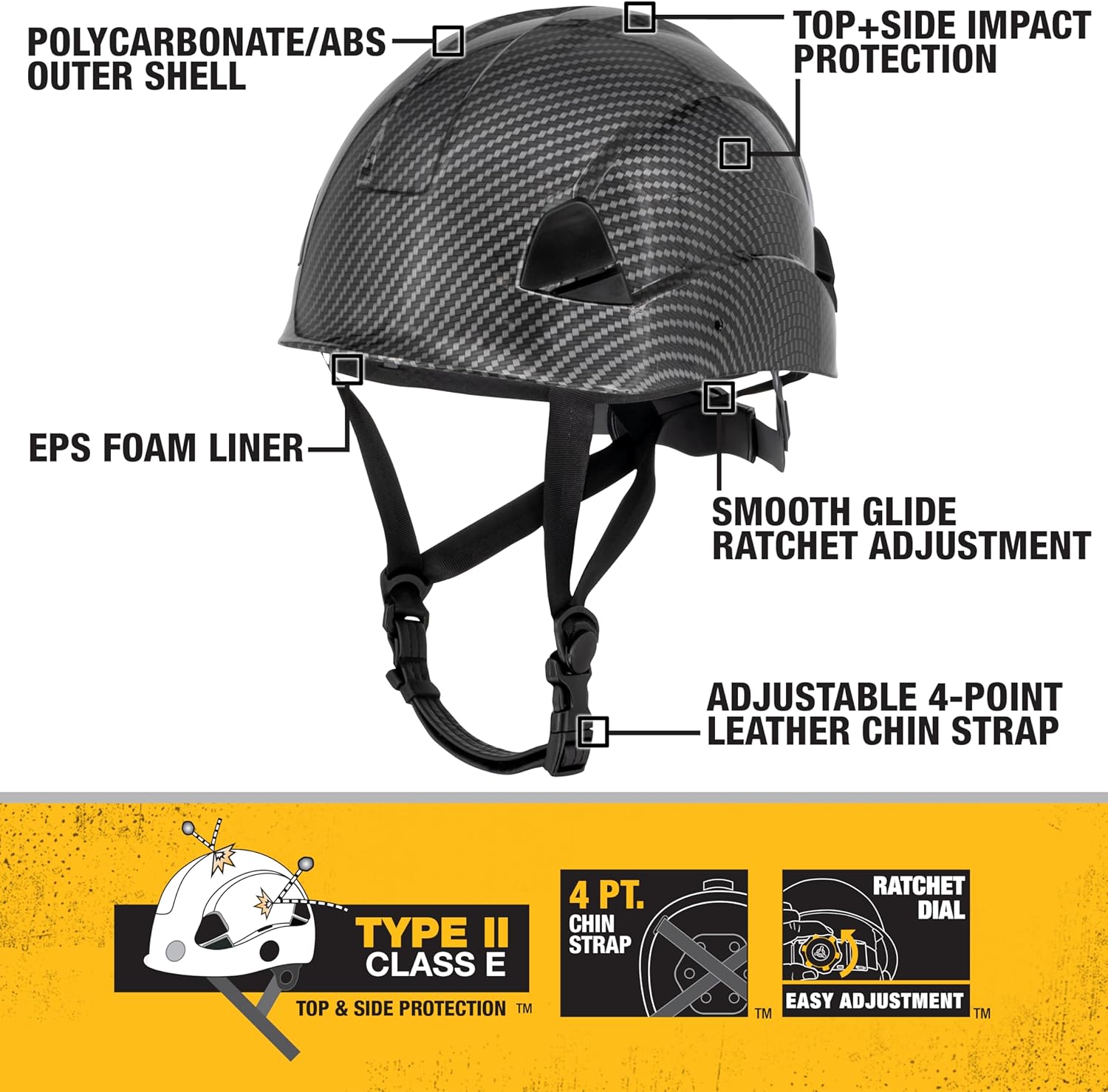

Figure 1: Key Features of the DEWALT DPG22 Type II Safety Helmet.
Video 1: Produkt Overview of the DEWALT DPG22 Type II Safety Helmet. This video highlights the helmet's design, safety features, and comfort aspects, providing a visual introduction to its capabilities.
2. Nastavení a seřízení
Proper fit is crucial for optimal protection and comfort. The DPG22 helmet features an adjustable articulating smooth-glide ratchet suspension and a soft leather chin strap to ensure a snug and secure fit for various head sizes.
2.1 Adjusting the Ratchet Suspension
To adjust the fit, locate the smooth-glide ratchet dial at the back of the helmet's suspension system. Rotate the dial clockwise to tighten the fit or counter-clockwise to loosen it. Ensure the helmet is centered and stable on your head without being uncomfortably tight.

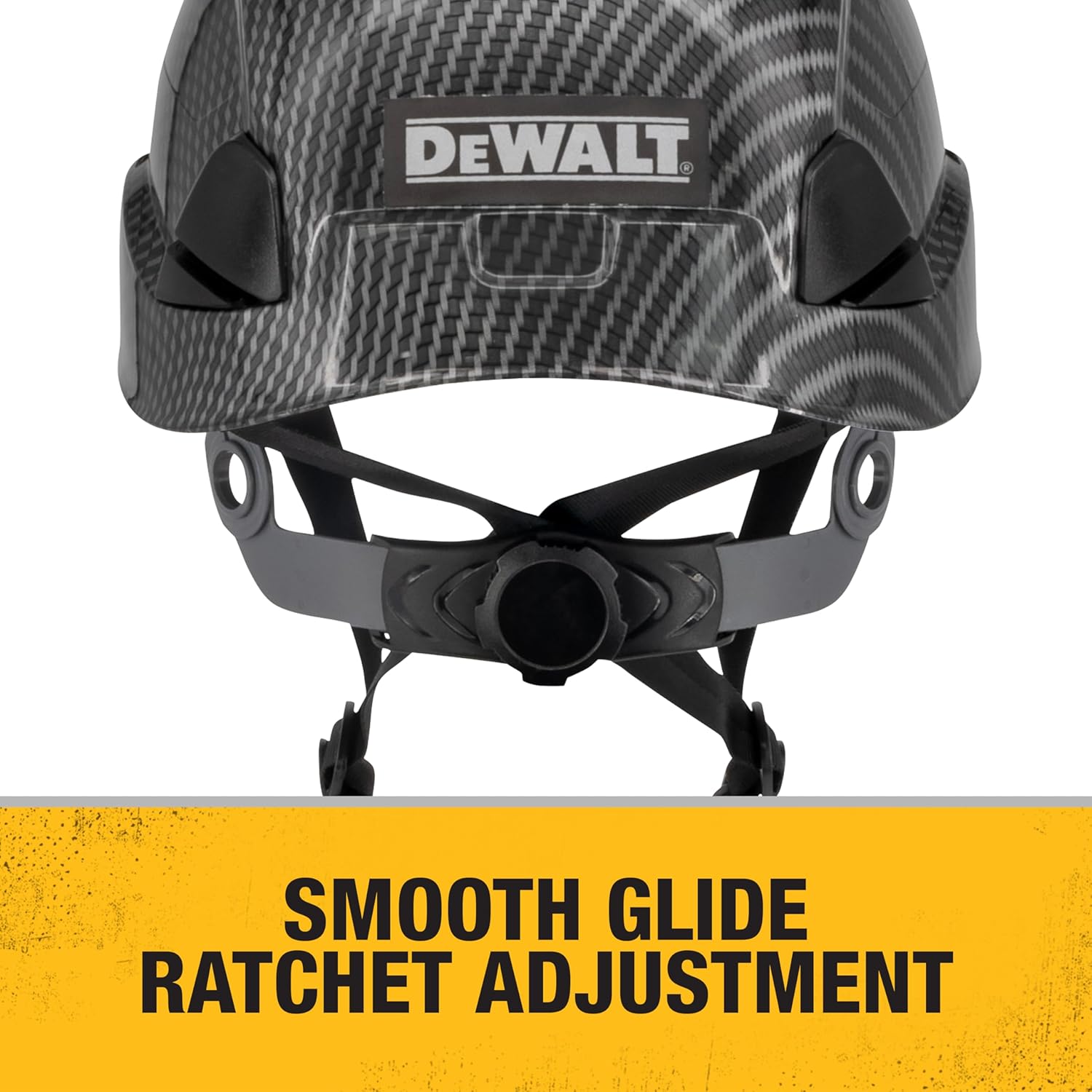

Figure 2: Smooth Glide Ratchet Adjustment for a customized fit.
2.2 Adjusting the Chin Strap
The 4-point retention strap with a soft leather chin strap provides additional security. Adjust the straps to ensure they are snug under your chin and around your ears, preventing the helmet from shifting during movement or impact. The strap should be tight enough to keep the helmet in place but not cause discomfort.
Figure 3: Adjustable 4-Point Leather Chin Strap for enhanced stability.
3. Provozní a bezpečnostní pokyny
Always wear the DEWALT DPG22 helmet correctly adjusted and secured when in environments requiring head protection. This helmet is designed to protect against top and side impacts, crucial for various industrial and construction settings.
3.1 Enhanced Protection Features
The helmet's lightweight Polycarbonate/ABS shell provides robust protection, while the EPS foam liner offers an additional layer of comfort and impact absorption. This combination ensures comprehensive head protection against various angles of impact.
Figure 4: DEWALT DPG22 Type II Safety Helmet.
Figure 5: Durable Polycarbonate/ABS Outer Shell.
3.2 Integrace příslušenství
The DPG22 helmet includes accessory slots that allow for integration with a variety of DEWALT hearing protection, visors, and other compatible accessories. Refer to specific accessory manuals for installation and usage instructions.
Figure 6: DEWALT DPG22 Helmet with various color options and compatible accessories.
4. Údržba a péče
Regular maintenance ensures the longevity and effectiveness of your DEWALT DPG22 helmet. Always inspect the helmet for any damage prior to each use.
4.1 Pokyny pro čištění
- The helmet's liner is removable and machine washable for easy cleaning.
- The helmet shell should be wiped down with a clean, damp rag. Avoid using harsh chemicals or abrasive cleaners, as these can damage the material.
4.2 Kontrola
Before each use, visually inspect the helmet for cracks, dents, discoloration, or any signs of wear and tear. If any damage is observed, the helmet should be replaced immediately, as its protective capabilities may be compromised.
5. Řešení problémů
Most issues with the DEWALT DPG22 helmet can be resolved by ensuring proper adjustment and regular maintenance. If you experience discomfort or the helmet does not feel secure, re-adjust the ratchet suspension and chin strap as described in Section 2.
For persistent issues or concerns regarding the helmet's integrity or performance, please refer to the customer support section.
6. Technické specifikace
| Specifikace | Detail |
|---|---|
| Značka | DEWALT |
| Název modelu | DPG22 Type II Class E 4-Pt Ratcheting Safety Helmet |
| Číslo dílu | DPG22-SLATE |
| Barva | Břidlice |
| Velikost | DOSPĚLÝ |
| Styl | Nevětrané |
| Materiál | Polykarbonát (PC), akrylonitril-butadien-styren (ABS) |
| Hmotnost položky | 2 libry |
| Typ uzávěru | Ráčna |
| Specifikace splněna | ANSI/ISEA Z89.1 Type II Class E |
| Zahrnuté komponenty | 1 EA Type II Class E 4-Pt Ratcheting Safety Helmet |
| UPC | 674326380131 |
7. Záruka a zákaznická podpora
7.1 Informace o záruce
The DEWALT DPG22 Type II Safety Helmet comes with a 90-day limited warranty. Please retain your proof of purchase for any warranty claims. This warranty covers defects in materials and workmanship under normal use.
7.2 Kontaktování zákaznické podpory
For technical assistance, warranty claims, or any questions regarding your DEWALT DPG22 helmet, please visit the official DEWALT website or contact their customer service department. Contact information can typically be found on the product packaging or the DEWALT official webmísto.
Poznámka: Vždy se řiďte nejnovějšími informacemi poskytnutými výrobcem, abyste získali nejpřesnější a nejaktuálnější informace o záruce a podpoře.
