HOMCOM Garage Workbench (Model B71-052V80) User Manual

1. Úvod

This manual provides instructions for the assembly, operation, maintenance, and troubleshooting of your HOMCOM Garage Workbench, Model B71-052V80. Please read this manual thoroughly before assembly and use to ensure proper function and safety. Keep this manual for future reference.

Figure 1: Fully assembled HOMCOM Garage Workbench with various tools and storage items.

2. Bezpečnostní informace

• Always assemble the workbench on a flat, stable surface.
• Před použitím se ujistěte, že jsou všechny upevňovací prvky bezpečně utažené. Pravidelně kontrolujte a v případě potřeby dotahujte.
• Do not exceed the maximum weight capacities for the tabletop, pegboard, shelf, or drawer.
• Udržujte děti a domácí zvířata mimo oblast montáže.
• Use appropriate personal protective equipment (e.g., gloves, safety glasses) during assembly.
• Avoid placing hot items directly on the MDF tabletop.
• Distribute weight evenly across surfaces to prevent tipping.

3. Obsah balení

Před zahájením montáže ověřte, zda jsou přítomny všechny níže uvedené komponenty. Pokud některé díly chybí nebo jsou poškozené, kontaktujte zákaznickou podporu.

• Ocelové rámové komponenty
• MDF Tabletop
• Panelová deska
• Montáž zásuvek
• Cabinet Door and Lock Mechanism (with 2 keys)
• Otevřený panel police
• 20 Y-shaped Pegboard Hooks
• Montážní materiál (šrouby, matice, podložky)

4. Pokyny k instalaci a montáži

Assembly typically requires two adults. Refer to the included diagrams for visual guidance. Ensure all parts are correctly oriented before tightening fasteners.

1. Rozbalení a identifikace součástí: Carefully remove all components from the packaging. Lay them out and compare them against the parts list to ensure everything is present and undamaged. Separate hardware by type.
2. Sestavte hlavní rám: Connect the vertical and horizontal steel frame components using the provided hardware. Do not fully tighten all bolts until the entire frame is assembled to allow for minor adjustments.
3. Připevněte desku stolu: Secure the MDF tabletop to the top of the main frame. Ensure it is flush and centered before tightening the screws.
4. Install the Pegboard: Mount the pegboard panel to the rear uprights of the workbench frame.
5. Sestavte zásuvku: Assemble the drawer components. Pay close attention to the orientation of the drawer slides and ensure they are properly aligned with the frame's mounting points for smooth operation. Secure the drawer handle.
6. Install the Open Shelf: Place and secure the open shelf panel within its designated frame section.
7. Attach the Cabinet: Assemble the cabinet structure and attach the cabinet door. Install the lock mechanism and ensure it functions correctly with the provided keys.
8. Konečné utažení: Once all components are in place and aligned, systematically tighten all bolts and screws.
9. Připevnění základny nohou: Secure the protective leg bases to the bottom of each workbench leg.

Figure 2: Detail of the steel frame connection points during assembly.

Figure 3: Workbench leg with its protective base for stability and floor protection.

5. Návod k obsluze

The HOMCOM Garage Workbench is designed for versatile use in various work environments.

5.1 Workbench Surface

The MDF tabletop provides a stable surface for various tasks. It can support up to 44 lbs (20 kg). Avoid placing excessively heavy or sharp objects directly on the surface without protection.

5.2 Pegboard

The integrated pegboard allows for organized storage of frequently used tools. Utilize the 20 included Y-shaped hooks to hang small tools and accessories, keeping them within easy reach. The pegboard can support up to 44 lbs (20 kg).

Figure 4: Pegboard with Y-shaped hooks for hanging tools.

5.3 Odkládací zásuvka

The slide-out drawer provides enclosed storage for smaller items, hardware, or documents. The drawer has a weight capacity of 22 lbs (10 kg).

5.4 Open Shelf

An open shelf is located beneath the drawer, offering accessible storage for larger tools, bins, or equipment. This shelf can support up to 44 lbs (20 kg).

5.5 Lockable Cabinet

The cabinet features a door with a lock mechanism, providing secure storage for valuable tools or hazardous materials. Two keys are included. Ensure the door is properly closed and locked when security is required. The cabinet also includes an internal shelf for organized storage.

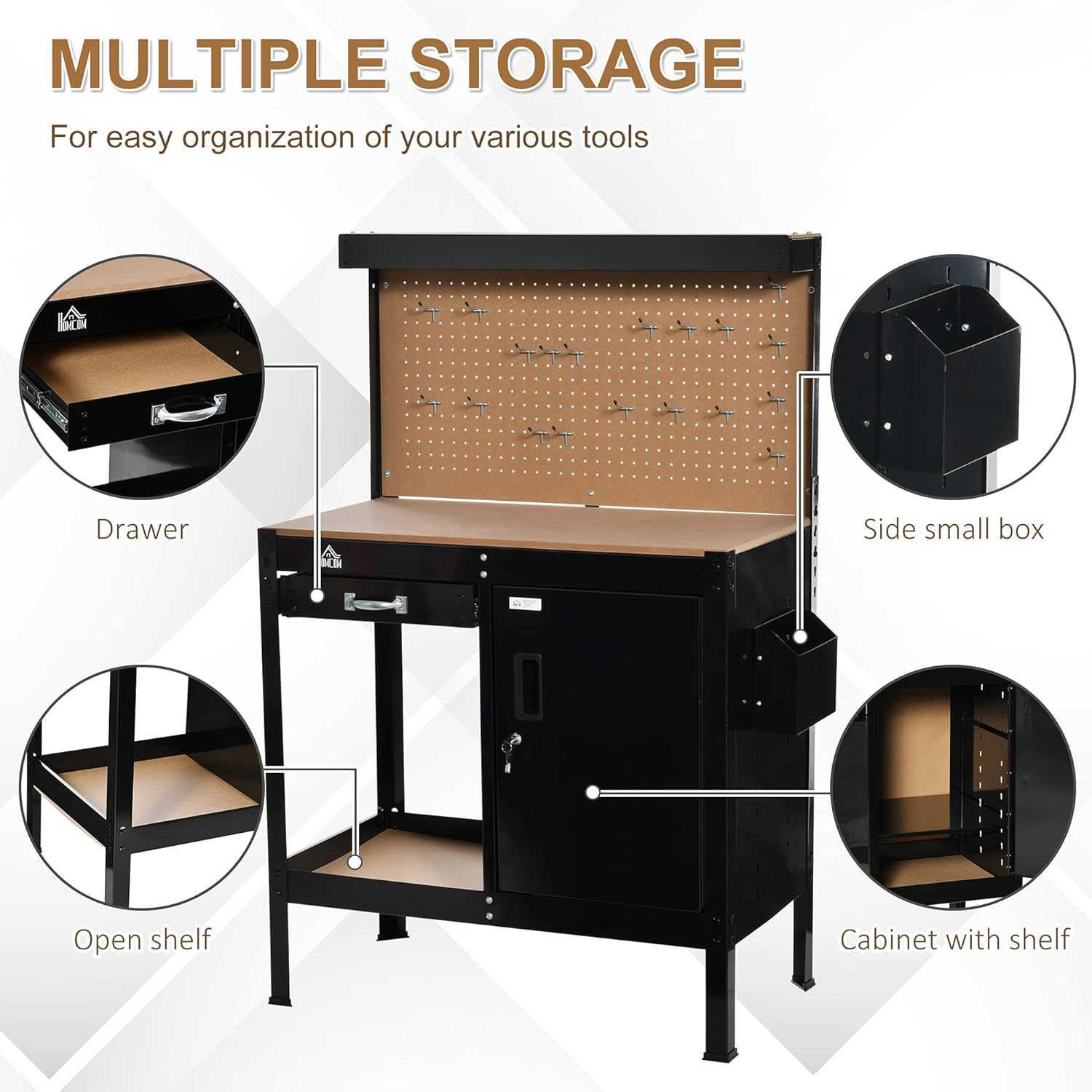

Obrázek 5: Přesview of the workbench's multiple storage compartments.

Figure 6: Detail of the lockable cabinet and included keys.

Figure 7: Workbench with the cabinet door open, showing internal storage space.

6. Údržba

• Čištění: Wipe down the steel frame and MDF surfaces with a damp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani agresivní chemikálie, které by mohly poškodit povrchovou úpravu.
• Inspekce: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners.
• Posuvy zásuvek: If the drawer becomes stiff, apply a small amount of silicone lubricant to the drawer slides.
• Prevence rzi: In humid environments, consider applying a rust-inhibiting spray to exposed steel parts to prolong the life of the workbench.

7. Řešení problémů

• Workbench is Unstable/Wobbly:
  Řešení: Ensure all assembly bolts are fully tightened. Check that the workbench is on a level surface. Adjust leg bases if necessary.
• Zásuvka se zasekává nebo se neposouvá hladce:
  Řešení: Verify that the drawer slides were installed correctly and are aligned. Ensure no objects are obstructing the slides. Lubricate the slides with silicone spray if needed.
• Cabinet Door Does Not Close/Lock Properly:
  Řešení: Check for any obstructions. Ensure the cabinet hinges are properly aligned and tightened. Verify the lock mechanism is correctly installed and the key turns freely.
• Chybějící nebo poškozené díly:
  Řešení: Nepokračujte v montáži. Okamžitě kontaktujte zákaznickou podporu ohledně náhradních dílů.

8. Specifikace

Figure 8: Dimensional diagram of the workbench.

9. Záruka a podpora

Záruka výrobce: This product comes with a 90-day warranty against manufacturer defects.

Vrácení: Eligible for return or refund within 30 days of receipt.

Zákaznická podpora: For assistance with assembly, missing parts, or warranty claims, please contact Aosom Canada. You can reach them at Tel. 1-416-792-6088.
