1. Úvod
This manual provides essential instructions for the safe installation, operation, and maintenance of your Grand Canyon Millivolt Quick Mount Kit. This 82,000 BTU natural gas kit is designed for use with Grand Canyon 2 or Grand Canyon 3 Burner systems and features a standing pilot for reliable ignition. Please read this manual thoroughly before installation and operation.
2. Bezpečnostní informace
VAROVÁNÍ: Nesprávná instalace, seřízení, úprava, servis nebo údržba mohou způsobit zranění nebo poškození majetku. Řiďte se touto příručkou. Potřebujete-li pomoc nebo další informace, obraťte se na kvalifikovaného instalatéra, servisní agenturu nebo dodavatele plynu.
- Při provozu plynových spotřebičů vždy zajistěte řádné větrání.
- Neskladujte ani nepoužívejte benzín nebo jiné hořlavé výpary a kapaliny v blízkosti tohoto ani jiného spotřebiče.
- Během provozu udržujte děti a domácí zvířata mimo dosah spotřebiče.
- Nikdy nenechávejte spotřebič během používání bez dozoru.
- Před uvedením do provozu se ujistěte, že jsou všechna plynová připojení těsná a bez úniků.
- Only use natural gas as specified for this kit.

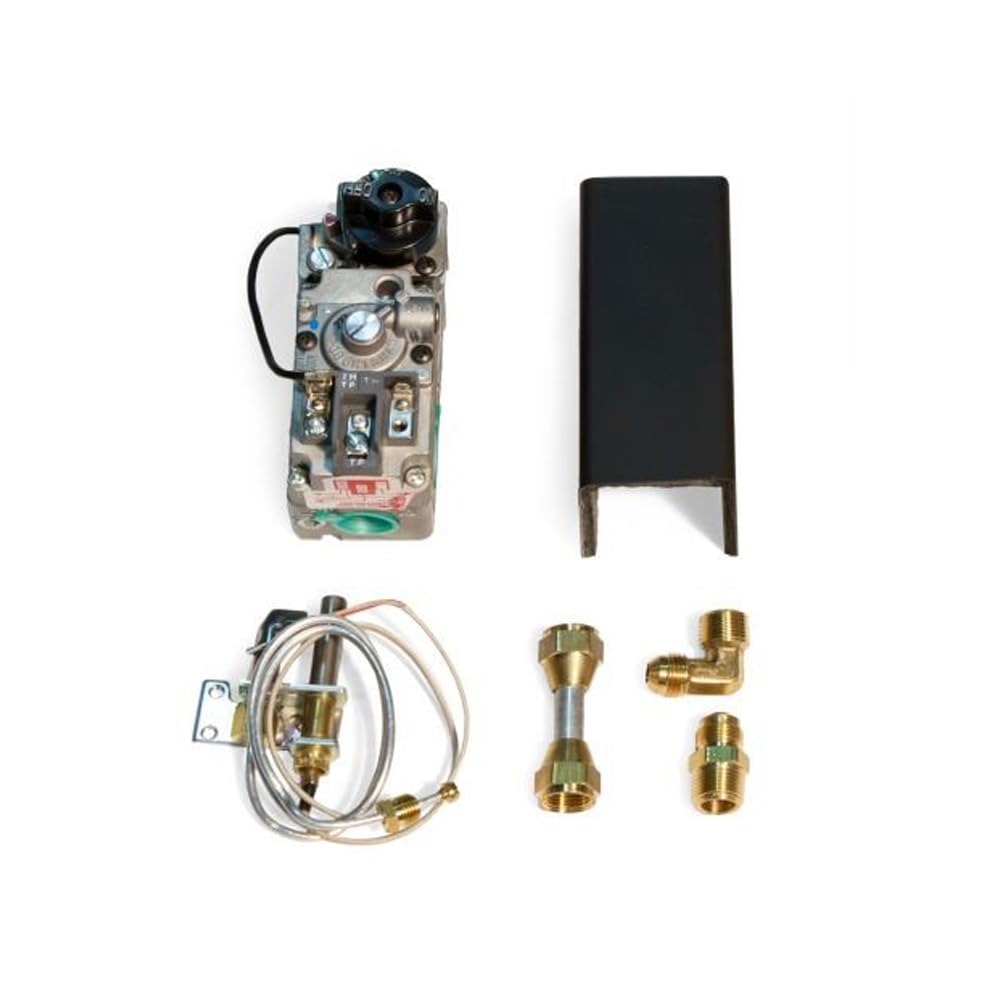

3. Obsah balení
Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:
- Millivolt Valve (82K BTU)
- Tepelný štít
- Pilotní shromáždění
- Various Fittings for Natural Gas Connection
- Návod k použití
4. Nastavení a instalace
This kit is designed for quick mounting with Grand Canyon 2 or Grand Canyon 3 Burner systems. Professional installation is recommended.
- Rozbalte komponenty: Opatrně vyjměte všechny položky z obalu a zkontrolujte, zda nejsou poškozené.
- Position Heat Shield: Securely mount the heat shield in the designated area next to your Grand Canyon burner system. The heat shield protects the valve from excessive heat.
- Install Millivolt Valve: Attach the millivolt valve to the heat shield or burner system according to the specific instructions of your Grand Canyon burner. Ensure it is firmly secured.
- Connect Pilot Assembly: Connect the pilot assembly to the millivolt valve. Ensure all connections are tight.
- Připojení zemního plynu: Connect the natural gas supply line to the millivolt valve using the provided fittings. Use appropriate pipe sealant on all threaded connections.
- Test těsnosti: After all connections are made, turn on the gas supply and perform a leak test using a soap and water solution on all gas connections. Bubbles indicate a leak. Tighten connections or replace parts as necessary.
- Závěrečná kontrola: Ensure all components are correctly installed and secured, and there are no obstructions around the pilot or burner area.
5. Návod k obsluze
This millivolt system operates with a standing pilot for ease of ignition.
- Pilot Ignition: Locate the control knob on the millivolt valve. Turn the knob to the "PILOT" position. Press and hold the knob in while simultaneously pressing the igniter button (if present) or using a long lighter to ignite the pilot flame.
- Hold Pilot: Continue to hold the control knob in for approximately 30-60 seconds after the pilot ignites. This allows the thermocouple to heat up and generate enough millivoltage to keep the pilot lit. Release the knob slowly. If the pilot extinguishes, repeat the process.
- Main Burner Ignition: Once the pilot is steadily lit, turn the control knob from the "PILOT" position to the "ON" position. The main burner should ignite.
- Upravit plamen: If your system includes a flame adjustment, you can now adjust the flame height as desired.
- Vypnout: To turn off the main burner, turn the control knob to the "PILOT" position. The main burner will extinguish, but the pilot will remain lit. To turn off the entire system, including the pilot, turn the control knob to the "OFF" position.
6. Údržba
Regular maintenance ensures safe and efficient operation of your millivolt kit.
- Roční kontrola: Have the system inspected annually by a qualified service technician.
- Clean Pilot and Burner: Periodically inspect the pilot assembly and burner ports for dust, debris, or insect nests. Clean with a soft brush or compressed air as needed. Ensure all openings are clear.
- Zkontrolujte plynové přípojky: Annually check all gas connections for leaks using a soap and water solution.
- Tepelný štít: Ensure the heat shield remains securely in place and is free from damage.
- Skladování: If the unit will not be used for an extended period, turn off the gas supply at the main shut-off valve.
7. Řešení problémů
Refer to the following common issues and solutions before contacting a service technician.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Pilot will not light or stay lit | Žádná dodávka plynu Pilot orifice clogged Thermocouple not heating Loose pilot connection | Check gas supply valve Clean pilot orifice Hold pilot knob longer; ensure pilot flame engulfs thermocouple tip Tighten pilot assembly connections |
| Main burner will not ignite | Pilot not lit Control knob not in "ON" position Main burner orifice clogged | Ignite pilot first Turn control knob to "ON" Clean main burner orifice |
| Low flame or irregular flame pattern | Nízký tlak plynu Porty hořáku jsou ucpané Incorrect air shutter adjustment | Consult gas supplier or qualified technician Vyčistěte porty hořáku Adjust air shutter (if applicable, consult technician) |
8. Specifikace
- Typ produktu: Millivolt Quick Mount Kit
- Typ paliva: Zemní plyn
- Výstup BTU: 82,000 XNUMX BTU
- Typ zapalování: Stálý pilot
- Kompatibilita: Grand Canyon 2 or Grand Canyon 3 Burner systems
- Rozměry produktu: 6 x 6 x 6 palce
- Hmotnost položky: 3 libry
- Číslo modelu: GrandCanyon_MVQMKN
9. Informace o záruce
This Grand Canyon Millivolt Quick Mount Kit is covered by the manufacturer's limited warranty. Please refer to the warranty card included with your purchase or contact the manufacturer directly for specific terms and conditions. Keep your proof of purchase for warranty claims.
10. Podpora
For technical assistance, replacement parts, or further information, please contact the manufacturer or your authorized dealer. Always provide your product model number (GrandCanyon_MVQMKN) and ASIN (B0CS6Y7DXD) when seeking support.
