Pomya 48MP Film Scanner and Slide Converter User Manual

1. Úvod

The Pomya 48MP Film Scanner and Slide Converter is designed to digitize various film formats, preserving your memories in high-resolution digital images. This device supports 135mm, 126mm, 110mm, and Super 8mm color or black and white films and slides.

Equipped with a 1/2.33-inch CMOS sensor, the scanner ensures sharpness and clarity in every detail. The integrated 5-inch LCD screen allows for convenient preview and selection of images before scanning. With built-in 16GB memory, you can store a significant number of digital photos directly on the device.

The scanning process is straightforward: simply place the film in the appropriate frame, insert it into the scanner, and press the snapshot button. Images are converted to digital photos in less than 2 seconds, ready for permanent storage on your computer.

Image: The Pomya Film Scanner, designed for converting various film types to digital.

2. Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• 1 x filmový skener
• 1 x Multimedia Interface Cable (HDMI)
• 1 x Type-C Cable (USB)
• 1 x čisticí kartáček
• 1 x základna
• 1 x Slide Tray
• 1 x 110 Base
• 1 x Super 8 Base
• 1 x 126 Base
• 1 x Uživatelská příručka (tento dokument)

Obrázek: Overview of the film scanner and its included accessories, such as film trays and cables.

3. Nastavení

3.1 Připojení k počítači

1. Connect the scanner to your computer using the provided Type-C USB cable. Ensure the Type-C end is connected to the scanner and the USB-A end to an available USB port on your computer.
2. Zapněte skener.
3. On the scanner's main menu screen, navigate using the control buttons until "USB" appears, then press the "OK/Enter" button.
4. Once successfully connected, your computer will recognize the scanner's internal memory. You can then view and edit the captured photos directly from your computer.
5. Open the scanner's internal memory drive on your computer to copy all digitized images.

Image: Detail of the Type-C USB port for computer connection and HDMI port for external display.

4. Návod k obsluze

4.1 Skenování filmů a diapozitivů

1. Select the appropriate film tray or slide adapter for your film type (135mm, 126mm, 110mm, or Super 8mm).
2. Carefully place your film or slide into the selected tray/adapter. Ensure it is correctly aligned.
3. Insert the loaded tray/adapter into the film scanner's slot.
4. Use the 5-inch LCD screen to preview the image. Adjust the film position if necessary to frame the desired area.
5. Press the "Snapshot" button to capture the image. The scanner will convert the film image into a digital photo and save it to the internal 16GB memory. This process takes less than 2 seconds per image.
6. Repeat for all films/slides.

Image: The scanner's LCD screen showing a preview of a digitized image.

4.2 Navigace v nabídce

The scanner features control buttons for navigation and selection:

• Vypínač: Zapíná nebo vypíná zařízení.
• Tlačítka nahoru/dolů: Procházení možností nabídky nebo úprava nastavení.
• Tlačítko OK/Enter: Confirms selections or initiates actions.
• Scan/Menu Button: Toggles between scanning mode and the main menu.

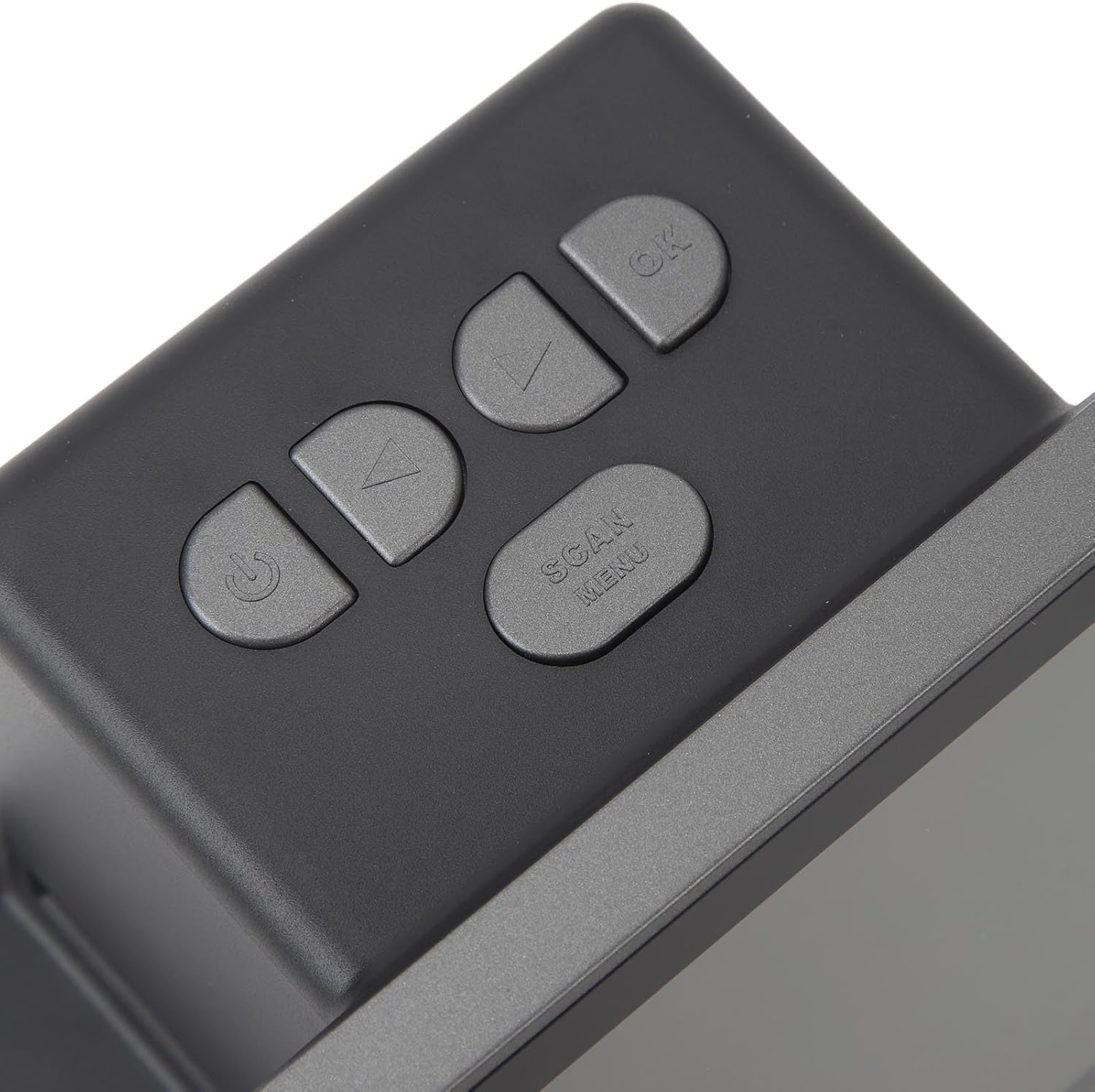

Obrázek: Detail view of the scanner's control buttons for operation.

5. Údržba

To ensure optimal performance and longevity of your film scanner, follow these maintenance guidelines:

• Cleaning the Lens and Film Path: Use the provided cleaning brush to gently remove dust and debris from the film slot and lens area. Avoid using abrasive materials or liquid cleaners directly on optical components.
• Čištění exteriéru: Wipe the exterior of the scanner with a soft, dry cloth. Do not use harsh chemicals or solvents.
• Skladování: When not in use, store the scanner in a cool, dry place away from direct sunlight and excessive dust. Keep it in its original packaging or a protective case if available.
• Zacházejte opatrně: Zabraňte pádu zařízení na zem nebo jeho vystavování silným nárazům, mohlo by dojít k poškození vnitřních součástí.

6. Řešení problémů

If you encounter issues with your Pomya Film Scanner, refer to the following common problems and solutions:

• Zařízení se nezapne:
  • Ensure the Type-C USB cable is securely connected to both the scanner and a power source (e.g., computer USB port or USB wall adapter).
  • Ověřte, zda je zdroj napájení aktivní.
• Computer does not recognize the scanner:
  • Confirm the Type-C USB cable is properly connected.
  • Ensure the scanner is powered on and set to "USB" mode from its main menu.
  • Zkuste se připojit k jinému portu USB na počítači.
  • Restartujte skener i počítač.
• Scanned images are blurry or unclear:
  • Clean the film path and lens using the provided cleaning brush to remove any dust or smudges.
  • Ensure the film or slide is correctly seated in the tray and lies flat.
  • Check that the film or slide itself is clean and free from scratches or damage.
• Film or slide does not fit into the tray:
  • Verify you are using the correct film tray or adapter for your specific film format (135mm, 126mm, 110mm, Super 8mm).
  • Do not force film into the tray; this can cause damage.

Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu.

7. Specifikace

8. Záruka a podpora

Tento produkt je dodáván se standardní zárukou výrobce. Konkrétní podmínky, včetně doby trvání záruky a podrobností o krytí, naleznete v záruční kartě, která je součástí balení.

For technical support, troubleshooting assistance, or warranty claims, please contact Pomya customer service through the retailer where the product was purchased or visit the official Pomya webstránky pro kontaktní informace.
