ATsafepro 3/8" Torque Wrench Instruction Manual

1. Úvod

This manual provides instructions for the proper use, setup, maintenance, and storage of your ATsafepro 3/8" Torque Wrench. This tool is designed for precise torque application in various mechanical tasks, ensuring components are tightened to the correct specifications. Adhering to these instructions will help maintain the tool's accuracy and prolong its lifespan.

Image 1.1: ATsafepro 3/8" Torque Wrench. This image shows the overall design of the torque wrench, highlighting its red and black color scheme and robust construction.

2. Vlastnosti produktu

• Vysoká přesnost: The industrial-grade torque wrench offers a torque range of 10-120 Nm (7.4-88.6 Lbf.ft) with a calibrated precision of ±3%. Each unit is tested and supplied with a calibration certificate.
• Odolná konstrukce: Made from durable chrome-vanadium stainless steel, providing a comfortable, non-slip, and corrosion-resistant grip.
• Clear Dual Scale: Features laser-etched Nm and FT-LB scales for clear and easy reading, resistant to wear.
• Přesné nastavení: Allows fine adjustment of torque values to ensure components are tightened accurately, preventing damage from over-tightening and extending component life.
• Audible Click Mechanism: Emits an audible and tactile "click" when the preset torque value is reached, indicating to stop applying force.
• Bidirectional Operation: The wrench head allows for adjustment of the operating direction, supporting both clockwise and counter-clockwise torque application.

Image 2.1: Product Details. This image illustrates key components of the torque wrench, including the bidirectional switching paddle, adapter quick release button, main body material, accurate torque scale, torque locking ring, and non-slip handle.

3. Součásti zahrnuty

• 1 x ATsafepro 3/8" Torque Wrench (10-120 Nm)
• 1 x pouzdro na uložení
• 1 x Kalibrační certifikát

4. Setup and Torque Adjustment

To set the desired torque value:

1. Odemkněte rukojeť: Slide the torque locking ring down to unlock the handle.
2. Nastavení točivého momentu: Rotate the handle to align the desired torque value on the main scale with the zero mark on the micrometer scale. For fine adjustments, continue rotating the handle until the exact value is set.
3. Zamkněte rukojeť: Slide the torque locking ring up to lock the handle. Ensure it is securely locked before use to prevent accidental changes to the torque setting.

Image 4.1: How to Adjust the Required Torque Value. This image demonstrates the three steps for setting the torque: sliding down to unlock, rotating the handle for adjustment, and sliding up to lock.

5. Provoz

Once the torque is set and locked:

1. Připojit zásuvku: Securely attach the appropriate socket or adapter to the 3/8" drive head.
2. Vyberte směr: Use the bidirectional switching paddle on the ratchet head to select the desired tightening direction (clockwise or counter-clockwise).
3. Použij sílu: Place the socket onto the fastener and apply smooth, steady force to the wrench handle.
4. Poslouchejte kliknutí: Continue applying force until you hear and feel a distinct "click." This indicates that the preset torque value has been reached. Immediately stop applying force to avoid over-tightening.

Image 5.1: Easy to Use. This image highlights the audible "click" sound and tactile feedback received when the preset torque is achieved, indicating the user to stop applying force.

6. Údržba a skladování

• Čištění: After each use, wipe the torque wrench clean with a dry, soft cloth. Do not use solvents or harsh chemicals that could damage the finish or internal mechanisms.
• Skladování: Always store the torque wrench in its protective case. Set the torque to the lowest possible value (but not below the minimum specified range) before storage to relieve tension on the internal spring mechanism, which helps maintain accuracy over time. Store in a dry, clean environment.
• Kalibrace: For optimal accuracy, it is recommended to have the torque wrench recalibrated periodically, typically after 12 months or 5000 uses, or if dropped or mishandled.

7. Řešení problémů

• Žádný zvuk kliknutí: Ensure the torque value is set correctly and the handle is locked. If the issue persists, the wrench may require recalibration or service.
• Nepřesná čtení: Verify that the wrench is clean and free from debris. Ensure the torque setting is locked. If accuracy is still questionable, recalibration is necessary.
• Pevné nastavení: If the handle is difficult to turn, ensure the locking ring is fully disengaged. Do not force the adjustment; clean the mechanism if necessary.

8. Specifikace

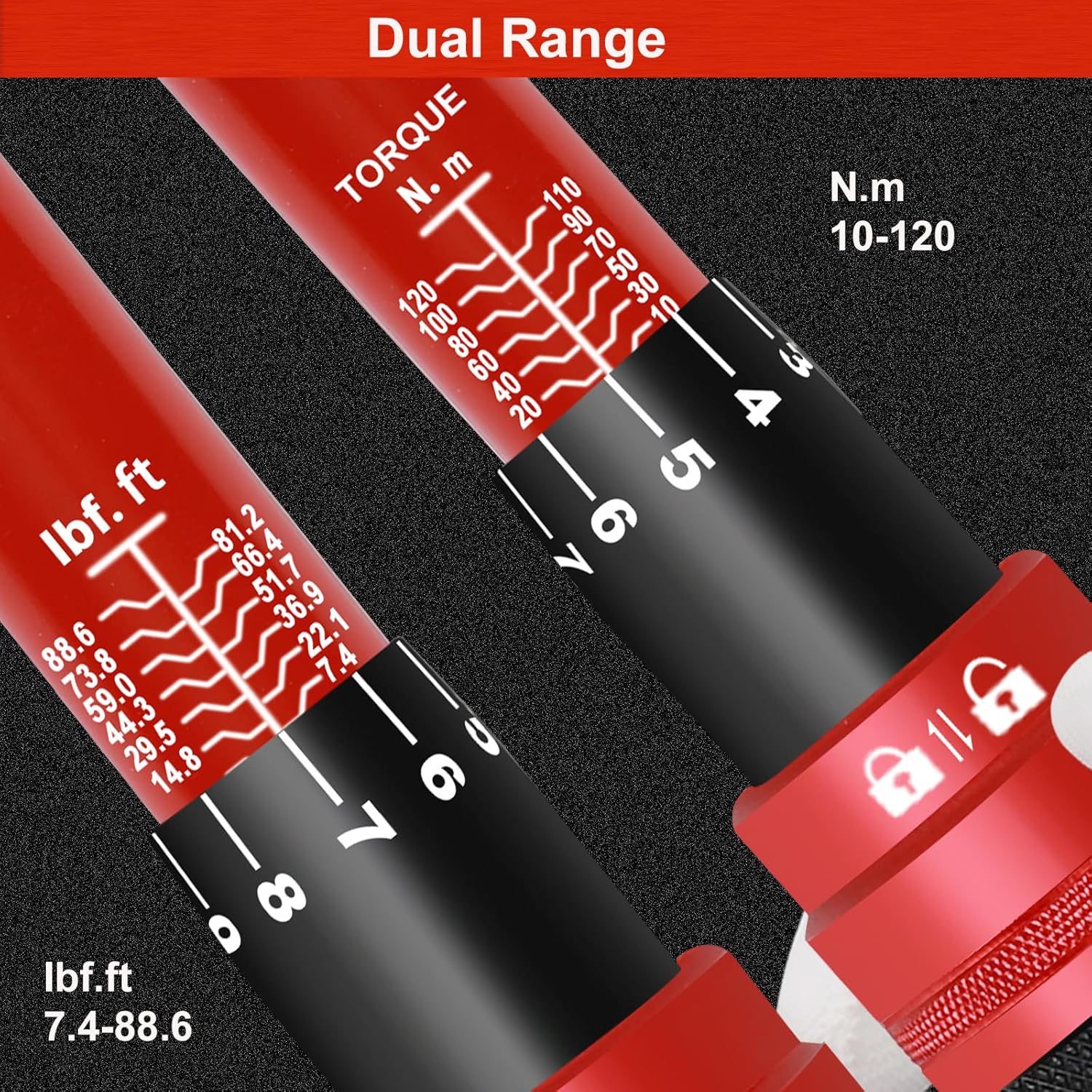

Image 8.1: Dual Range Scale. This image provides a detailed view of the Nm (10-120) and Lbf.ft (7.4-88.6) scales on the torque wrench, illustrating the clear markings for precise adjustments.

9. Aplikační scénáře

The ATsafepro 3/8" Torque Wrench is a versatile tool suitable for a wide range of applications where precise torque is required:

• Automotive maintenance (e.g., engine components, wheel nuts)
• Motorcycle repair and assembly
• Bicycle assembly and maintenance (e.g., stem bolts, crank bolts)
• General mechanical work and product assembly
• Electrical engineering tasks

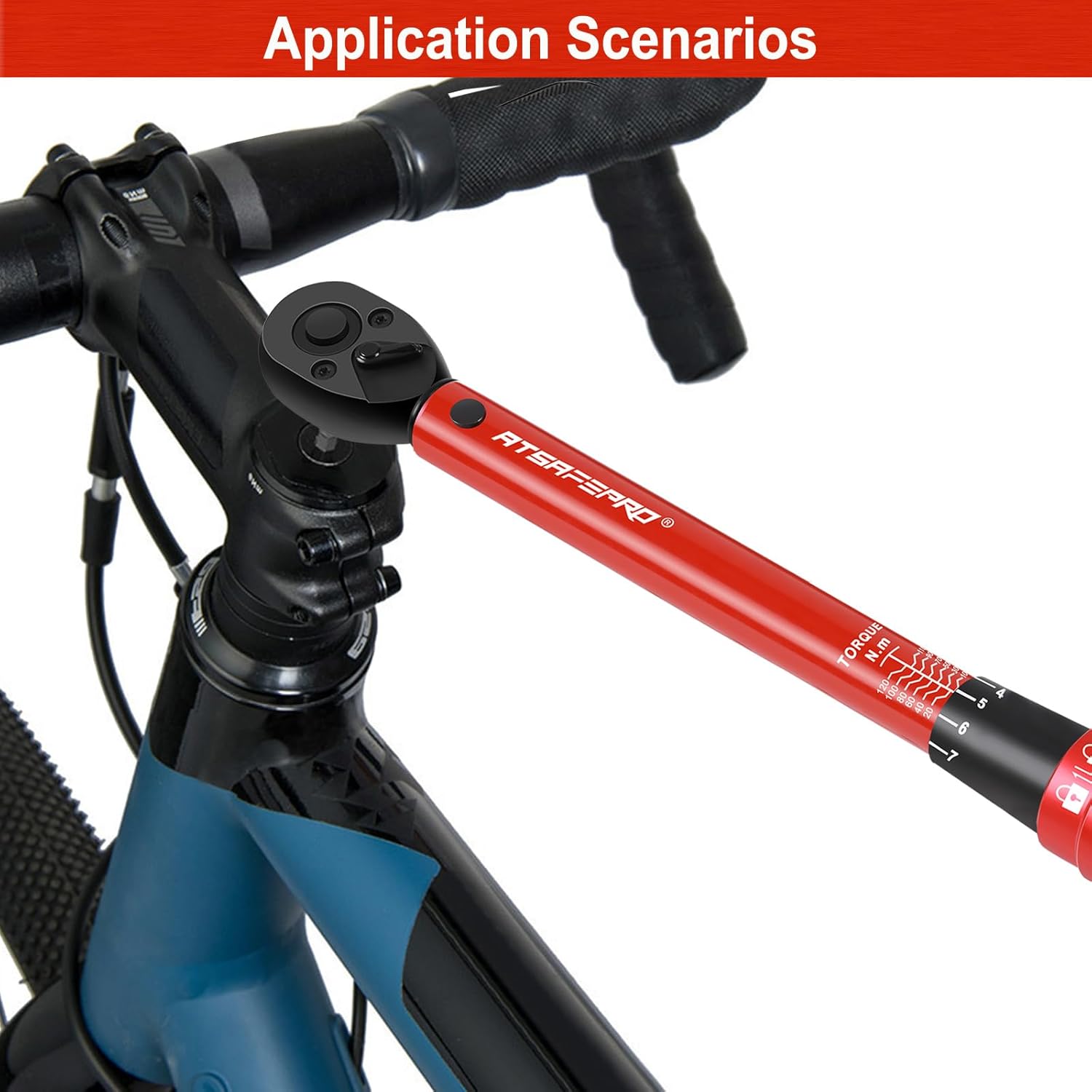

Image 9.1: Application on a Bicycle. This image shows the torque wrench being used to tighten a component on a bicycle, demonstrating its suitability for bicycle maintenance.

10. Záruka a podpora

ATsafepro stands behind the quality of its products. For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase or visit the official ATsafepro webmísto. Uschovejte si doklad o koupi pro případ záručních reklamací.
