IINE L871 Wireless Pro Controller User Manual

1. Úvod

Thank you for choosing the IINE L871 Wireless Pro Controller. This controller is designed for a versatile gaming experience across multiple platforms, including PC, Nintendo Switch, Steam, Android tablets and phones, and iOS devices. It features advanced Hall Effect joysticks and triggers for precision, a motion sensor, NFC functionality, customizable macro buttons, and immersive rumble feedback. Please read this manual carefully to ensure proper use and optimal performance of your controller.

2. Vlastnosti produktu

The IINE L871 controller integrates several key features to enhance your gaming:

• Joysticky a spouštěče s Hallovým efektem: Provides precise, drift-free control and extended lifespan.
• Kompatibilita s více platformami: Seamlessly switch between Nintendo Switch, PC, Steam, Android, and iOS.
• Bezdrátové připojení: Bluetooth 5.0 for stable and low-latency connection up to 10 meters.
• Funkce NFC: Supports Amiibo scanning for compatible games.
• Pohybový senzor: Built-in 6-axis gyroscope for motion control in supported games.
• Makro tlačítka: Two programmable back buttons (MR, ML) for custom command sequences.
• Turbo Auto-Fire: Adjustable turbo function for rapid button presses.
• Zpětná vazba z dunění: Dual vibration motors for immersive haptic feedback.
• 3.5mm Headset Port: For audio output when connected via Type-C cable to a Nintendo Switch.
• Keylinker APP Support: Mobile application for advanced customization of button mapping, dead zones, sensitivity, and auto-fire rates.

Obrázek 2.1: Přesview of the IINE L871 Wireless Pro Controller highlighting its main features including Hall Effect technology, NFC, and headset jack.

3. Nastavení a párování

The controller supports easy switching and pairing across various devices.

3.1. Device Switching

Locate the 'Easy-Switch Button' on the back of the controller. Use this switch to select the desired platform mode (NS for Nintendo Switch, Android, iOS, or PC) before pairing.

3.2. Pokyny pro párování

1. Vyberte režim: Use the Easy-Switch Button to select the appropriate mode for your device.
2. Aktivovat párování: Press and hold the 'Pairing Button' (usually a small button near the Easy-Switch) until the indicator lights begin to flash rapidly.
3. Connect on Device:
   • Nintendo Switch: Go to 'Controllers' > 'Change Grip/Order' on your Switch console.
   • PC/Steam: Go to Bluetooth settings on your computer and select 'Add Bluetooth or other device'.
   • Android/iOS: Go to Bluetooth settings on your mobile device and search for available devices.
4. Potvrdit připojení: Select 'IINE L871' or similar name from the list of available Bluetooth devices. The indicator lights on the controller will become solid once connected.

Figure 3.1: Location of the Easy-Switch button for platform selection and the Pairing button for initiating Bluetooth connection.

Figure 3.2: The controller features Bluetooth 5.0 for strong pairing and enhanced adaptation, with a range of 10 meters without latency. A USB Bluetooth adaptor may be included for PC connections.

4. Návod k obsluze

4.1. Turbo Auto-Fire

The Turbo function allows a button to be pressed repeatedly as long as it is held down. To activate or deactivate Turbo for a specific button, refer to the controller's specific button combinations or the Keylinker APP.

4.2. Nastavení maker

The MR and ML back buttons can be programmed to execute a sequence of button presses. Consult the Keylinker APP or the controller's quick start guide for detailed instructions on recording and assigning macros.

4.3. Standard 3.5mm Headset Port

A 3.5mm audio jack is provided for connecting a headset. Poznámka: This feature is typically functional only when the controller is wired connected to a Nintendo Switch console via a Type-C cable.

Figure 4.1: The 3.5mm headset port allows for audio output. Remember that for Switch, it typically requires a wired connection.

4.4. Keylinker Mobile APP

Download the 'Keylinker' mobile application to unlock advanced customization options for your controller. This app allows you to:

• Modify button mapping.
• Adjust dead zone settings for joysticks.
• Fine-tune sensitivity.
• Modify auto-fire rates.

Figure 4.2: The Keylinker APP provides a graphical interface for modifying various controller settings, including button assignments and joystick parameters.

5. Nabíjení a výdrž baterie

The controller is equipped with a built-in rechargeable battery.

• Kapacita baterie: 1000 XNUMX mAh
• Estimated Endurance: Up to 15 hours of gameplay on a full charge.
• Doba nabíjení: Plné nabití trvá přibližně 2–3 hodiny.

Connect the controller to a power source using the provided USB Type-C cable. The indicator lights will show charging status and turn off or change color when fully charged.

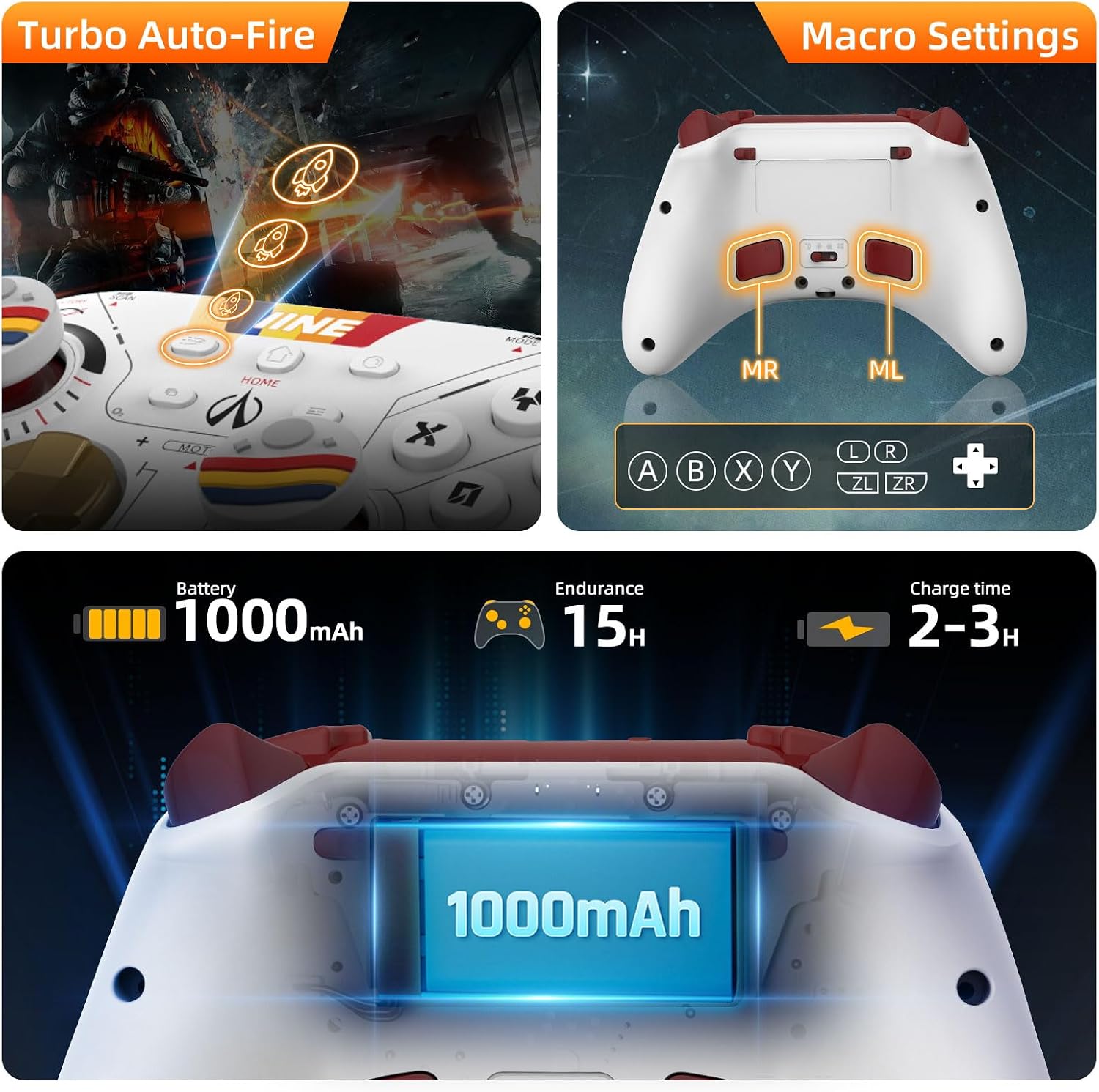

Figure 5.1: Visual representation of the controller's 1000mAh battery, 15-hour endurance, and 2-3 hour charge time, alongside Turbo and Macro button indicators.

6. Údržba

Pro zajištění dlouhé životnosti a optimálního výkonu vašeho regulátoru dodržujte tyto pokyny pro údržbu:

• Čištění: K čištění ovladače používejte měkký, suchý hadřík. Nepoužívejte agresivní chemikálie ani abrazivní materiály.
• Skladování: Regulátor skladujte na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
• Vyhněte se kapkám: Protect the controller from physical shocks and drops, which can damage internal components.
• Nabíjení: Nepřebíjejte baterii. Jakmile je baterie plně nabitá, odpojte nabíjecí kabel.

7. Řešení problémů

If you encounter issues with your IINE L871 controller, refer to the following common solutions:

• Ovladač se nepřipojuje:
  • Ensure the correct platform mode is selected using the Easy-Switch button.
  • Ujistěte se, že je ovladač nabitý.
  • Re-initiate pairing mode by holding the Pairing Button.
  • Remove previous Bluetooth connections for the controller from your device and try pairing again.
• Vstupní zpoždění nebo výpadky:
  • Ujistěte se, že jste v dosahu 10 metrů od Bluetooth.
  • Minimalizujte rušení od jiných bezdrátových zařízení.
  • Ujistěte se, že je ovladač plně nabitý.
• Tlačítka nereagují:
  • Zkontrolujte, zda je ovladač správně připojen.
  • Reset the controller (refer to specific reset instructions if available, usually a small pinhole button).
  • Update controller firmware via the Keylinker APP if available.
• Headset Port Not Working:
  • Confirm the controller is connected to the Nintendo Switch via a Type-C cable.
  • Ensure the headset is properly plugged in and functional.

8. Specifikace

9. Záruka a podpora

For warranty information and technical support, please refer to the documentation included with your purchase or contact IINE customer service through their official webnebo prodejce, u kterého byl produkt zakoupen. Uschovejte si prosím doklad o koupi pro případ reklamace.
