Lilienthal Berlin Chronograph Day Meteorite Watch

1. Úvod

Welcome to the world of Lilienthal Berlin. This manual provides essential information for the proper use and care of your new Chronograph Day Meteorite Watch, model C01-025-B023FB. This timepiece combines German engineering with a unique design featuring a genuine meteorite dial, chronograph functionality, and a day display.

Your watch is a product of meticulous craftsmanship, featuring a Swiss Ronda movement, medical-grade stainless steel, and sapphire-reinforced glass, ensuring durability and precision. Each meteorite dial is unique, making your watch truly one-of-a-kind.

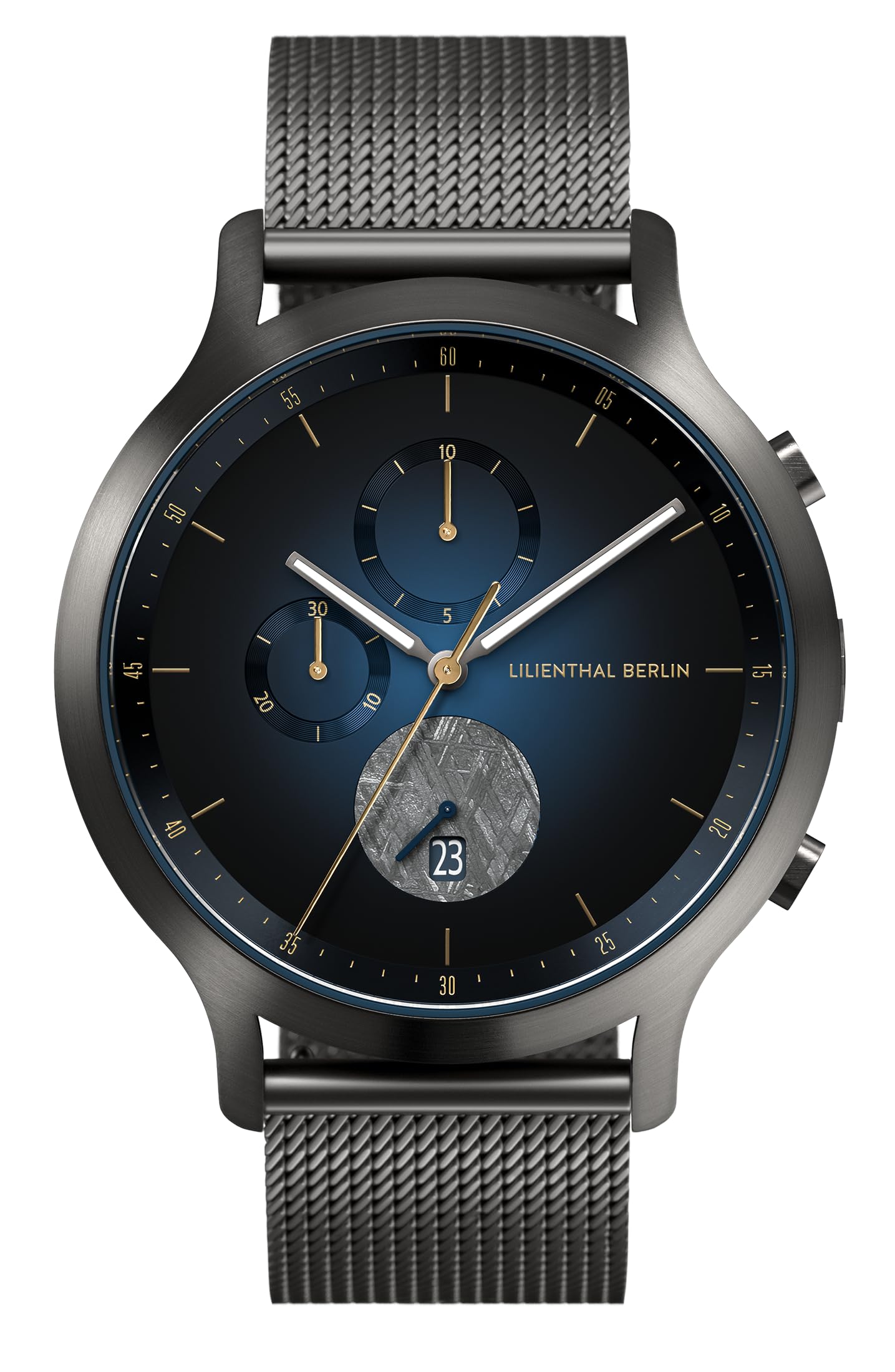

Image 1: The Lilienthal Berlin Chronograph Day Meteorite Watch, showcasing its unique dial and mesh strap.

2. Nastavení

2.1. Nastavení času a dne

1. Vytáhněte korunku (A) do polohy 2.
2. Turn the crown clockwise or counter-clockwise to set the desired time. Ensure the day indicator (at 6 o'clock) changes at midnight, not noon, to correctly set AM/PM.
3. Zatlačte korunku zpět do polohy 0 pro spuštění hodinek.

Obrázek 2: Detailní view of the watch dial, showing the main hands, sub-dials, and day display.

2.2. Adjusting the Mesh Strap

The stainless steel mesh strap features a slide clasp for easy adjustment to your wrist size. To adjust:

1. Use a small tool (e.g., a flat-head screwdriver) to lift the clasp's locking plate.
2. Posuňte sponu podél síťovaného pásku do požadované polohy.
3. Press the locking plate back down firmly until it clicks into place.

3. Návod k obsluze

3.1. Použití funkce chronografu

Vaše hodinky jsou vybaveny funkcí chronografu pro měření uplynulého času.

1. Start: Press the upper pusher (B) to start the chronograph. The central second hand will begin to move.
2. Stop: Press the upper pusher (B) again to stop the chronograph. The central second hand will stop, indicating the elapsed time in seconds. The sub-dials will show elapsed minutes and hours if applicable.
3. Resetovat: After stopping the chronograph, press the lower pusher (C) to reset all chronograph hands to their zero positions.

Obrázek 3: Boční strana view of the watch, highlighting the crown (A) and chronograph pushers (B and C).

3.2. Understanding the Sub-dials

• Levý subciferník: Typically measures chronograph minutes.
• Pravý subciferník: Zobrazuje aktuální den v týdnu.
• Spodní dílčí ciferník: Displays the running seconds for the main timekeeping function.

Obrázek 4: Přední strana view of the watch dial, showing the chronograph hands in their reset position.

4. Údržba

4.1. Voděodolnost

Your watch has a water resistance rating of 5 ATM (50 meters). This means it is suitable for everyday use, such as showering or brief immersion in water. It is not suitable for swimming, diving, or prolonged water activities. Always ensure the crown is fully pushed in before any contact with water.

4.2. Čištění

To maintain the appearance of your watch, wipe the case and strap regularly with a soft, dry cloth. For the mesh strap, a soft brush can be used to remove dirt from the links. Avoid using harsh chemicals or abrasive materials.

4.3. Výměna baterie

The watch is powered by a quartz movement. When the battery needs replacement, it is recommended to take your watch to an authorized service center or a professional watchmaker to ensure proper handling and maintain water resistance.

4.4. Sapphire Glass Care

The sapphire crystal is highly scratch-resistant but not entirely scratch-proof. Avoid direct impact and contact with extremely hard or sharp objects to prevent damage.

Image 5: The watch dial in low light, demonstrating the Super-LumiNova luminous hands and markers for visibility.

5. Řešení problémů

• Hodinky neběží: Zkontrolujte, zda je korunka zcela zatlačena. Pokud hodinky stále nefungují, může být nutné vyměnit baterii.
• Time/Day incorrect: Refer to section 2.1 for instructions on setting the time and day.
• Ručičky chronografu se neresetují na nulu: If the chronograph hands do not return to their zero position after pressing the lower pusher, a recalibration may be needed. Consult an authorized service center.
• Kondenzace pod krystalem: To může znamenat ztrátu vodotěsnosti. Zabraňte dalšímu kontaktu s vodou a okamžitě vyhledejte odbornou pomoc.

6. Specifikace

Image 6: A close-up of the watch dial, emphasizing the unique texture of the meteorite element and the day display.

7. Záruka a podpora

7.1. Záruka výrobce

Your Lilienthal Berlin Chronograph Day Meteorite Watch is covered by a 2letá záruka výrobce od data nákupu. Tato záruka se vztahuje na výrobní vady vzniklé při běžném používání. Nevztahuje se na škody způsobené nesprávným zacházením, nehodami, neoprávněnými opravami nebo běžným opotřebením.

7.2. Zákaznická podpora

For warranty claims, service, or any questions regarding your watch, please contact Lilienthal Berlin customer support through their official website or the retailer where the watch was purchased. Please have your model number (C01-025-B023FB) and proof of purchase available when contacting support.

Oficiální Webmísto: www.lilienthal.berlin
