SPORTARC LCD-S966 Ebike Display User Manual

1. Úvod

Thank you for choosing the SPORTARC LCD-S966 Ebike Display. This high-quality, durable display is designed to enhance your electric bicycle riding experience by providing crucial information at a glance. It accurately reflects battery charge, records real-time energy consumption to ensure riding mileage, and displays useful data such as riding speed, time, power, and temperature. The colorful screen makes data viewing clear and easy. Please note that this display must be used with a Protocol No. 2 controller for proper functionality.

2. Bezpečnostní informace

• Always ensure the display is securely mounted before riding.
• Nepokoušejte se otevírat ani upravovat zobrazovací jednotku, mohlo by dojít ke zrušení záruky a poškození.
• Keep the display clean and dry. Avoid exposure to extreme temperatures or direct sunlight for prolonged periods.
• Ensure all connections are properly seated and waterproofed (if applicable) to prevent electrical issues.
• Operate your ebike responsibly and always prioritize safety.

3. Obsah balení

Balíček obsahuje následující položky:

• 1 x SPORTARC LCD-S966 Ebike Display
• Integrated connection cable (5-pin waterproof connector)
• Control button unit

4. Konec produktuview

4.1 Funkce displeje

The LCD-S966 display provides a comprehensive overview of your ebike's status and riding data. Key indicators include:

• Rychlost: Current riding speed (km/h or mph).
• Úroveň baterie: Real-time battery charge indicator.
• Indikátor chyby: Displays error codes if issues arise.
• Režimy jízdy: Režimy SPORT, STD (Standardní), ECO (Úsporný).
• ozubené kolo: Aktuální úroveň asistence nebo převodový stupeň.
• ODO (počítadlo kilometrů): Celková ujetá vzdálenost.
• VÝLET: Current trip distance.
• AVG (průměrná rychlost): Average speed for the current trip.
• MAX (Maximální rychlost): Maximum speed achieved during the current trip.
• VWh/Ah: svtage-Watt-hour or Amp-hour consumption.

Obrázek 1: Přední strana view of the SPORTARC LCD-S966 Ebike Display, showing the screen interface with various data points like speed, battery level, error indicators, and riding modes.

4.2 Control Buttons and Connectors

The display unit is operated via a separate control button unit, typically mounted near the handlebar grip. This unit usually includes:

• Tlačítko „M“: Mode/Menu button for cycling through display information or entering settings.
• Tlačítko šipka nahoru: Zvyšuje hodnoty nebo se v nabídkách pohybuje nahoru.
• Tlačítko šipka dolů: Snižuje hodnoty nebo se v nabídkách pohybuje směrem dolů.

The display connects to your ebike's controller via a 5-pin waterproof connector, ensuring a secure and reliable connection.

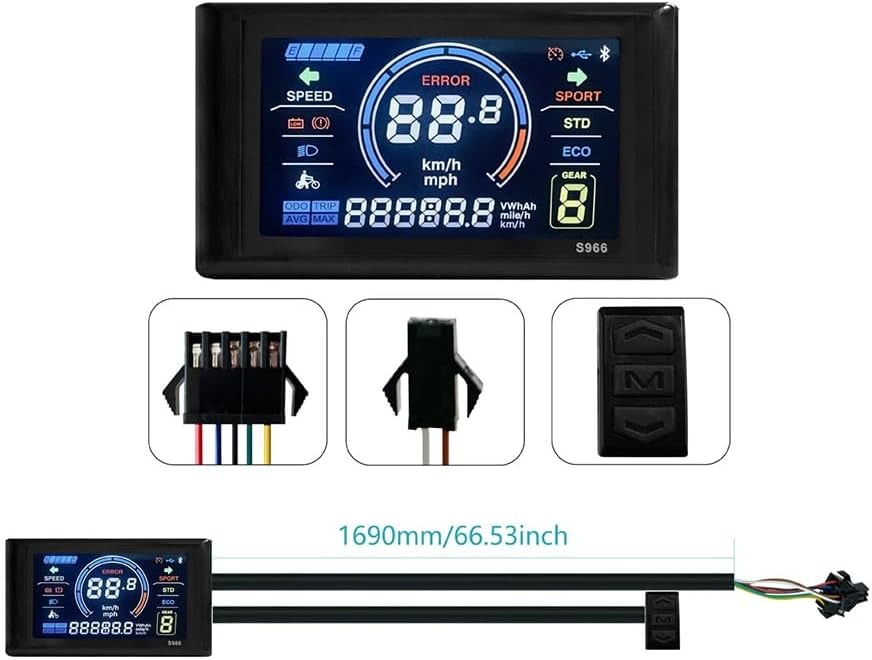

Figure 2: The LCD-S966 display unit, its 5-pin waterproof connector, and the separate control buttons. The image also indicates the overall length of the display unit with its cable.

5. Nastavení a instalace

5.1 Montáž displeje

1. Choose a suitable location on your ebike's handlebars for the display, ensuring it is easily visible and accessible without obstructing your view nebo ovládací prvky.
2. Securely attach the display bracket to the handlebars using the provided hardware.
3. Mount the control button unit near your thumb for easy operation while riding.

Figure 3: The LCD-S966 display securely mounted on the handlebars of an electric bicycle, demonstrating its typical placement and user perspective during operation.

5.2 Připojení displeje

The LCD-S966 display features clearly configured individual joints for straightforward installation. It is crucial to connect the display to an ebike controller that supports Protocol No. 2. Failure to do so will result in the display not functioning.

1. Locate the corresponding 5-pin connector on your ebike's controller or wiring harness.
2. Align the pins and carefully push the display's 5-pin waterproof connector into the controller's port until it clicks securely into place.
3. Ensure the connection is firm and free from any loose wires.
4. Route the cable neatly along the handlebars and frame, securing it with cable ties if necessary, to prevent interference with moving parts.

Figure 4: This image presents two wiring configurations for the LCD-S966 display: one with a direct 5-pin waterproof connector and another showing individual wire connections. It also provides a dimension for the cable length.

6. Návod k obsluze

6.1 Zapnutí/vypnutí

To power on the display, turn on your ebike's main power switch. The display should illuminate automatically. To power off, turn off your ebike's main power switch.

6.2 Režimy zobrazení

Press the 'M' (Mode) button on the control unit to cycle through different display modes, such as ODO (Odometer), TRIP (Trip Distance), AVG (Average Speed), and MAX (Maximum Speed).

6.3 Gear Selection / Assist Levels

Use the Up and Down arrow buttons on the control unit to adjust the ebike's assist level or gear. The current gear will be displayed on the screen.

6.4 Indikátory chyb

If an error occurs, the display will show an 'ERROR' message along with a specific code. Refer to the troubleshooting section or your ebike's controller manual for details on specific error codes.

Figure 5: This image compares the visibility of the LCD-S966 display in different lighting conditions, showing its clear readability during both daytime and nighttime riding.

7. Údržba

• Čištění: Otřete displej a tělo měkkým hadříkemamp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
• Vystavení vodě: While the display is designed to be waterproof, avoid submerging it in water or exposing it to high-pressure water jets.
• Skladování: When not in use for extended periods, store the ebike and display in a dry, cool place away from direct sunlight.
• Kontrola připojení: Pravidelně kontrolujte všechna kabelová připojení, abyste se ujistili, že jsou bezpečná a bez koroze.

8. Řešení problémů

• Displej se nezapne:
  • Ensure your ebike's main power is on.
  • Check all cable connections, especially the 5-pin connector, for proper seating.
  • Verify that your ebike's controller is compatible with Protocol No. 2. The display will not function with incompatible controllers.
  • Check the ebike's battery level.
• Zobrazená nesprávná data:
  • Ensure the wheel circumference setting (if adjustable via controller) is correct.
  • Check for any loose sensor connections on your ebike.
• 'ERROR' Message on Screen:
  • Note the specific error code displayed.
  • Consult your ebike's controller manual or contact ebike support for interpretation of error codes.
• Tlačítka nereagují:
  • Check the connection of the control button unit to the main wiring harness.
  • Ensure buttons are not physically stuck or damaged.

9. Specifikace

10. Záruka a podpora

For warranty information or technical support, please refer to the documentation provided with your ebike or contact the retailer where you purchased the SPORTARC LCD-S966 Ebike Display. Keep your purchase receipt as proof of purchase.
