WEIZE Kids Bike User Manual

Zavedení

This manual provides essential information for the safe assembly, operation, and maintenance of your new WEIZE Kids Bike. Please read it thoroughly before first use to ensure the safety of the rider and the longevity of the bicycle. The WEIZE Kids Bike is designed for children aged 3-13 years, with various wheel sizes (16, 18, 20 inches) to accommodate different rider heights.

Popis obrázku: Plný view of the WEIZE Kids Bike in white, featuring red and black accents on the frame and chain guard. The bike has black tires, a red seat, and a bell on the handlebar.

Bezpečnostní informace

Always prioritize safety. Ensure the rider wears a helmet and appropriate safety gear. Adult supervision is recommended, especially for younger riders. Regularly inspect the bike for loose parts, proper brake function, and tire pressure before each ride.

• Vždy noste správně nasazenou přilbu.
• Ujistěte se, že všechny šrouby a rychloupínáky jsou bezpečně utažené.
• Před každou jízdou zkontrolujte tlak v pneumatikách.
• Test both hand and coaster brakes for proper function.
• Ride in safe environments, away from traffic.
• Do not ride at night without proper lighting.

Nastavení a montáž

Your WEIZE Kids Bike requires some assembly. While the bike comes with most components pre-assembled, final steps such as handlebar, pedal, and front wheel installation are typically required. A portable bike pump is included. Please note that other installation tools are not included.

Zahrnuté komponenty:

• Bicycle Frame and partially assembled components
• Přední kolo
• Řídítka
• Pedály
• Sedlovka a sedlo
• Přenosná pumpa na kolo
• Training Wheels (for some models, as shown in images)

Montážní kroky:

1. Rozbalení: Opatrně vyjměte všechny součásti z obalu.
2. Instalace řídítek: Insert the handlebar stem into the fork tube and tighten the bolt securely. Ensure the handlebar is aligned with the front wheel.


   Popis obrázku: A white WEIZE Kids Bike is shown with labels pointing to its "Durable Steel Frame," "Tool-Free Adjustable Seat Post," and "Adjustable Handlebar." This image highlights the bike's adjustability for growing children.

3. Montáž předního kola: Attach the front wheel to the fork. Ensure the wheel is centered and the quick release or axle nuts are tightened firmly.
4. Instalace pedálu: Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Thread them carefully to avoid cross-threading.
5. Nastavení sedlovky: Insert the seat post into the frame. Adjust the saddle height using the tool-free adjustable seat post to ensure the rider's feet can touch the ground.


   Popis obrázku: A white WEIZE Kids Bike is displayed next to a table detailing wheel size, bike weight, saddle height, rider height, and rider age for 16", 18", and 20" models. The image emphasizes the ease of installation and provides a helpful sizing guide.

6. Training Wheels (Optional): If your model includes training wheels, attach them securely to the rear axle according to the instructions provided with the training wheels.


   Popis obrázku: A white WEIZE Kids Bike, equipped with training wheels, is parked on a city street. This image illustrates the bike's appearance with training wheels attached, suitable for beginner riders.
7. Kontrola před jízdou: Before the first ride, double-check all connections, brakes, and tire pressure.

Návod k obsluze

The WEIZE Kids Bike features a dual brake system for enhanced safety and control, including both a hand brake and a coaster brake.

Brzdový systém:

• Ruční brzda: Located on the handlebar, this brake is designed for shorter distances for kids' small hands, providing immediate stopping power to the front wheel.
• Coaster Brake: Activated by pedaling backward, the coaster brake provides reliable stopping power to the rear wheel, allowing for intuitive stopping.

Popis obrázku: This image showcases the WEIZE Kids Bike's dual brake system. It features the full bike with an inset showing a close-up of the hand brake lever and another inset illustrating the coaster brake mechanism at the rear wheel, emphasizing the fully enclosed chain guard for safety.

Adjustments for Growth:

The bike is designed to grow with your child. The handlebar and seat height are adjustable to ensure a comfortable and safe riding position as your child grows.

• Seřízení řídítek: Loosen the stem bolt, adjust the handlebar to the desired height, and re-tighten securely.
• Nastavení sedadla: Use the quick-release lever on the seat post to adjust the saddle height. Ensure the seat post is inserted past the minimum insertion line.

Údržba

Regular maintenance ensures the safety and extends the life of your WEIZE Kids Bike.

• pneumatiky: Check tire pressure before each ride. Recommended pressure is usually indicated on the tire sidewall. Use the included portable bike pump.
• brzdy: Regularly check brake levers for proper tension and ensure brake pads make full contact with the rim. For coaster brakes, ensure smooth engagement.
• Řetěz: Keep the chain clean and lubricated. The bike features a fully enclosed chain guard for protection, but occasional cleaning and lubrication are still beneficial.

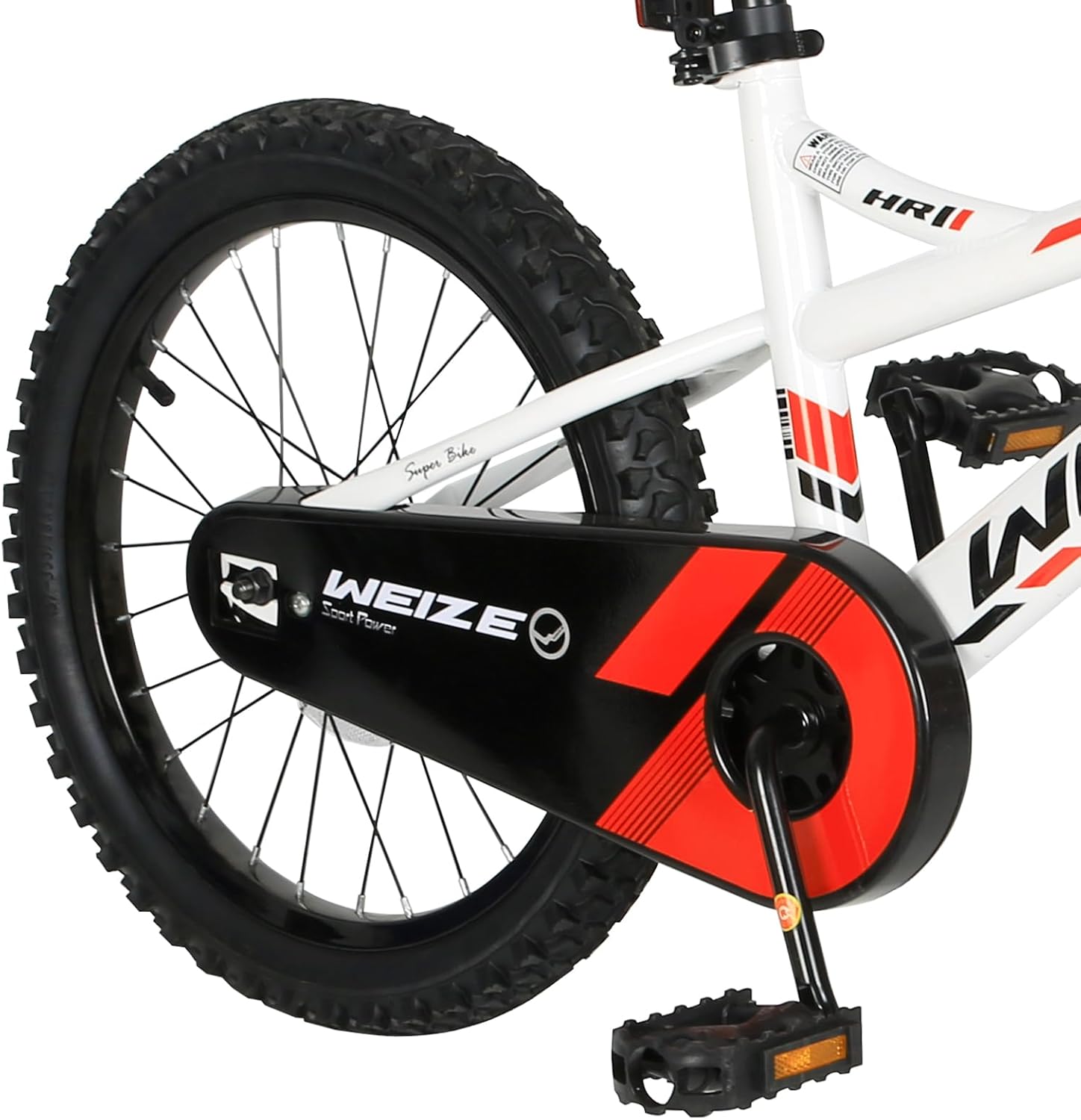

  Popis obrázku: Detailní záběr view of the rear wheel and pedal area of the WEIZE Kids Bike, highlighting the fully enclosed chain guard. This guard helps protect the chain from dirt and debris and prevents clothing from getting caught.

• Šrouby a matice: Periodically check all bolts and nuts for tightness, especially on the wheels, handlebars, and seat post.
• Čištění: Clean the bike with mild soap and water. Avoid high-pressure washing, which can damage bearings.

Odstraňování problémů

Zde jsou některé běžné problémy a jejich řešení:

• Pád pneumatiky: Check for punctures. If found, repair or replace the inner tube. Inflate to recommended pressure.
• Brakes Not Working Effectively: Check brake cable tension (for hand brake) and adjust if too loose. Ensure brake pads are not worn and are properly aligned. For coaster brakes, ensure the mechanism is clean and free of debris.
• Loose Handlebar/Seat: Re-tighten the stem bolt for the handlebar or the quick-release lever for the seat post.
• Squeaky Brakes: Clean brake pads and rims. If noise persists, slight toe-in adjustment of brake pads might be needed (for hand brake).

Specifikace

Detailed specifications for the WEIZE Kids Bike (Model TW-DU008):

Popis obrázku: Diagram showing the dimensions of the 16-inch WEIZE Kids Bike, including overall length, height, handlebar width, and seat height range.

Popis obrázku: Diagram showing the dimensions of the 18-inch WEIZE Kids Bike, including overall length, height, handlebar width, and seat height range.

Popis obrázku: Diagram showing the dimensions of the 20-inch WEIZE Kids Bike, including overall length, height, handlebar width, and seat height range.

Záruka a podpora

For any questions, concerns, or warranty inquiries regarding your WEIZE Kids Bike, please contact WEIZE customer support. Refer to the product packaging or the WEIZE official webstránky s nejaktuálnějšími kontaktními informacemi.

Můžete také navštívit WEIZE Store on Amazon pro další informace o produktu a podporu.
