1. Bezpečnostní informace
Please read this instruction manual thoroughly before using the Bestway Pool Heater. Keep this manual for future reference. Children must always be supervised by an adult when near or in the pool.
The Bestway pool heater is GS certified (TÜV Rheinland) and includes an integrated personal protection switch to ensure high safety standards.

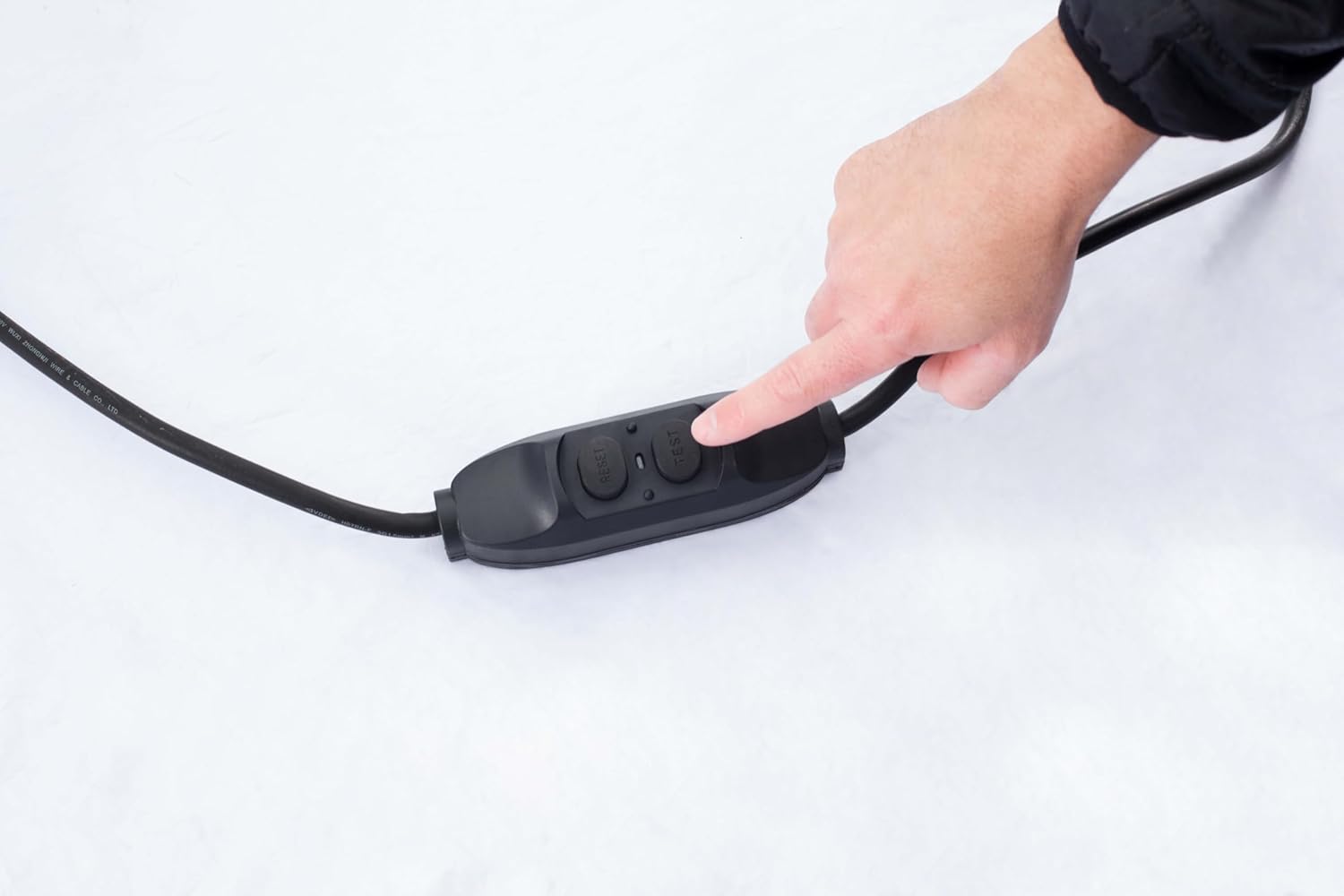

Obrázek 1: The Bestway pool heater showing its power cord with the integrated personal protection switch, designed for enhanced safety.
2. Pokyny k nastavení
Proper installation is crucial for the safe and efficient operation of your pool heater. Follow these steps carefully.
2.1 Vybalení a umístění
Remove all components from the packaging. Place the heater on a stable, level surface near your pool and filter system. Ensure it is positioned to allow for proper hose connections and electrical access.
2.2 Připojení hadic
The pool heater must be connected in-line with your pool's filtration system. Water flows from the pool, through the filter pump, then through the heater, and back into the pool.
- Connect one hose from the filter pump's outlet to the inlet of the pool heater.
- Connect a second hose from the outlet of the pool heater to the return inlet of your pool.
- Ensure all connections are secure to prevent leaks. Use hose clamps v případě potřeby.
Obrázek 2: A user connecting a hose to the Bestway pool heater, ensuring a tight fit for water circulation.

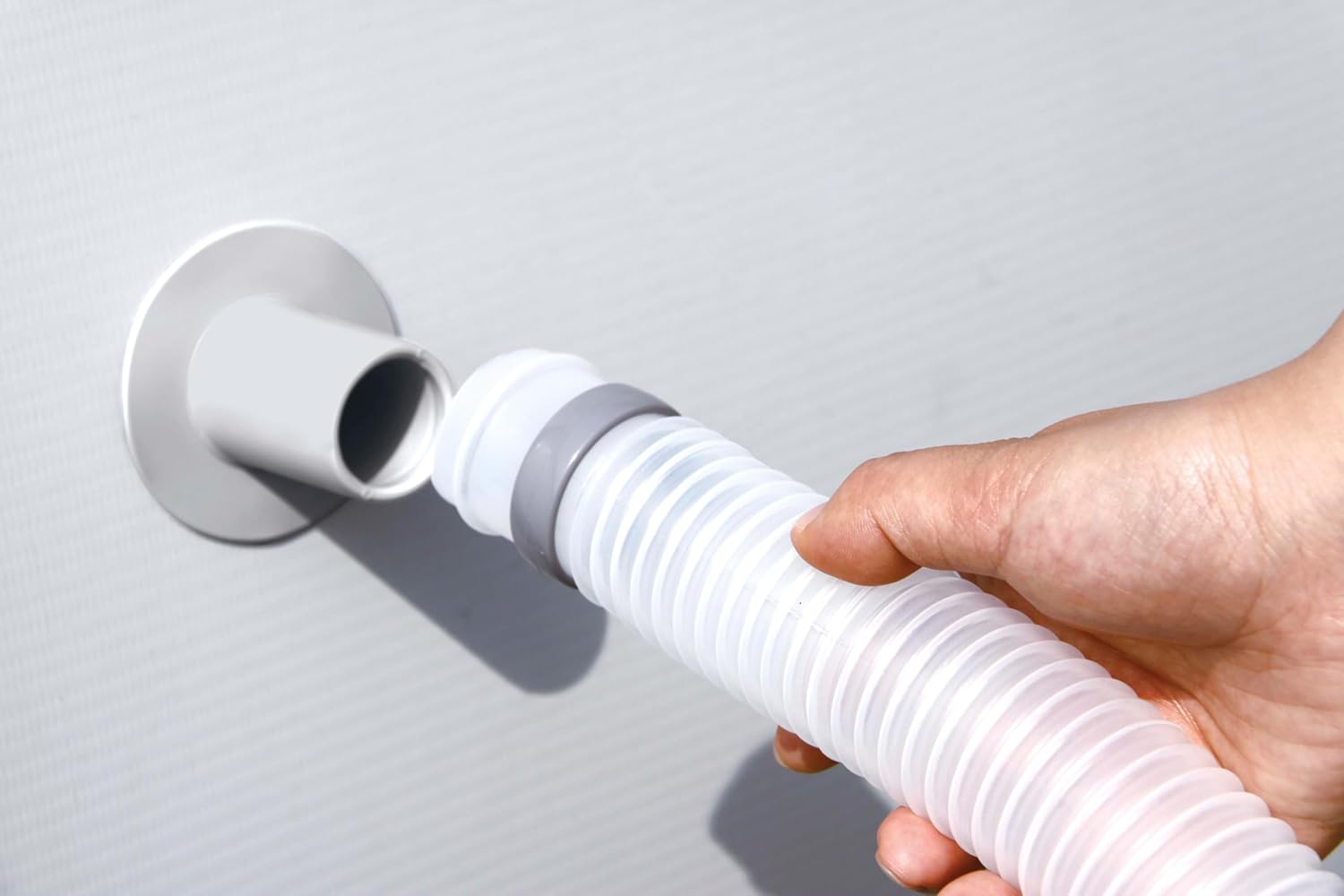

Obrázek 3: Connecting the hose from the heater to the pool's return inlet. This completes the water circulation path.
Obrázek 4: Nadview of the Bestway pool heater correctly installed between the pool and the filter pump, showing the complete setup.
2.3 Elektrické připojení
Connect the heater's power cord to a suitable electrical outlet. Ensure the outlet is protected by a Ground Fault Circuit Interrupter (GFCI) for safety. The heater operates at 220-240 V.
3. Návod k obsluze
Once installed, operating your Bestway Pool Heater is straightforward using the intuitive soft-touch control panel.
3.1 Spuštění ohřívače
- Ensure your filter pump is running to circulate water through the heater. The heater will not operate without water flow.
- Press the power button on the soft-touch control panel to turn on the heater. The display will show the current water temperature.
Obrázek 5: Activating the heater by pressing the power button on the control panel.
3.2 Nastavení teploty
Use the temperature adjustment buttons on the control panel to set your desired water temperature. The heater will automatically work to reach and maintain this temperature.
Obrázek 6: The soft-touch control panel displaying the temperature, allowing for precise adjustments.
3.3 Výkon topení
The 2800 W heater provides a heating output at 220-240 V. Depending on the water volume (suitable for 1,520 to 17,035 litres) and outside temperature, you can expect a temperature increase of 0.5 to 1.5 °C per hour. For optimal performance, ensure your filter system operates up to a flow rate of 3,785 l/h.
4. Údržba
Regular maintenance ensures the longevity and efficiency of your Bestway Pool Heater.
- Clean Hoses and Connections: Periodically check hoses and connections for debris or blockages. Ensure they are free from kinks and damage.
- Inspect Electrical Cord: Regularly inspect the power cord and the personal protection switch for any signs of wear or damage. Do not use the heater if the cord is damaged.
- Zima: Before winter or prolonged periods of non-use, disconnect the heater, drain all water from it, and store it in a dry, protected area away from freezing temperatures.
- Generální úklid: Otřete vnější část topení čističemamp hadříkem dle potřeby. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
5. Řešení problémů
If you encounter issues with your pool heater, refer to the following common problems and solutions.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Topení se nezapíná. | No power, GFCI tripped, insufficient water flow. | Check power connection. Reset GFCI. Ensure filter pump is running and hoses are clear. |
| Water not heating sufficiently. | Pool volume too large, low ambient temperature, filter pump flow rate too low, heat loss. | Verify pool volume is within recommended range (1,520-17,035 litres). Ensure filter pump flow rate is adequate (up to 3,785 l/h). Use a pool cover to reduce heat loss. Allow more time for heating. |
| Netěsnosti v místech spojení. | Loose hose connections, damaged O-rings. | Utáhněte hadici třamps. Zkontrolujte a vyměňte O-kroužky, pokud jsou poškozené. |
If problems persist, contact Bestway customer support.
6. Specifikace
- Model: 1058259XXX24
- Výkon: 2800 W
- svtage: 220-240 V
- Doporučený objem bazénu: 1,520 až 17,035 litrů
- Compatible Filter System Flow Rate: Up to 3,785 l/h
- Rozměry produktu: 18.9 x 9.06 x 11.42 palce (48 x 23 x 29 cm)
- Hmotnost položky: 9.09 libry (4.12 kg)
- Výrobce: Bestway
7. Záruka a podpora
Informace o záruce a zákaznické podpoře naleznete v dokumentaci dodané s vaším nákupem nebo navštivte oficiální webové stránky Bestway. webUschovejte si doklad o koupi pro případ reklamace.
