Konduone CH2332 Tumbler Heat Press Machine User Manual

1. Konec produktuview

The Konduone CH2332 Tumbler Heat Press Machine is designed for transferring sublimation designs onto 11-30oz tumblers. This manual provides essential information for safe and effective operation of your heat press machine.

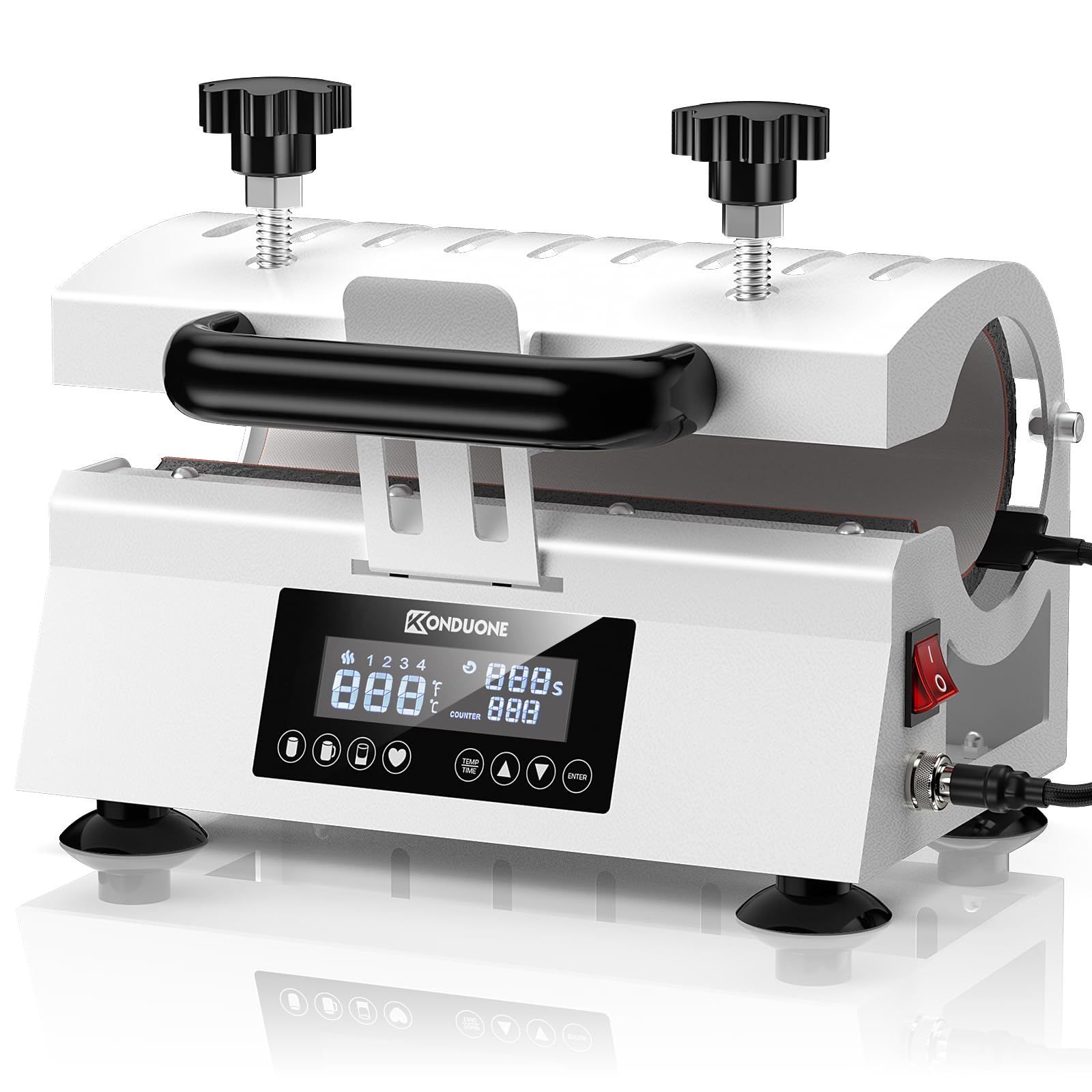

Figure 1: Konduone CH2332 Tumbler Heat Press Machine

2. Bezpečnostní informace

• Stroj vždy používejte na stabilním, tepelně odolném povrchu.
• Keep hands and flammable materials away from the heating element during operation.
• Use heat-resistant gloves when handling hot tumblers or machine parts.
• Nenechávejte stroj bez dozoru, pokud je zapnutý nebo se zahřívá.
• Zajistěte dostatečné větrání ve vašem pracovním prostoru.
• Pokud stroj nepoužíváte nebo před čištěním, odpojte jej ze zásuvky.

3. Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• Konduone CH2332 Tumbler Heat Press Machine
• Návod k použití
• Heat-resistant tape
• Two (2) replacement fuses
• Two (2) heat-resistant gloves
• One (1) blank sublimation tumbler (for testing)
• Sublimační papír
• Pre-designed sublimation paper (for testing)

4. Pokyny k nastavení

1. Rozbalte stroj: Carefully remove the heat press machine and all accessories from the packaging.
2. Umístění: Place the machine on a flat, stable, and heat-resistant surface. Ensure adequate space around the machine for safe operation.
3. Připojení napájení: Connect the power cord to the machine and then to a grounded electrical outlet (AC110V/60Hz).
4. Prepare Tumbler: Ensure the tumbler surface is clean. Cut your design paper to fit the tumbler. Wrap the design paper tightly around the tumbler using heat-resistant tape.
5. Pre-warm the Heater: Place a blank tumbler (without design paper) into the heating element for warm-up. This helps ensure even heat distribution.
6. Upravte tlak: Adjust the pressure knob until the cup fits snugly against the heating element. Turn clockwise to increase pressure, counterclockwise to decrease.

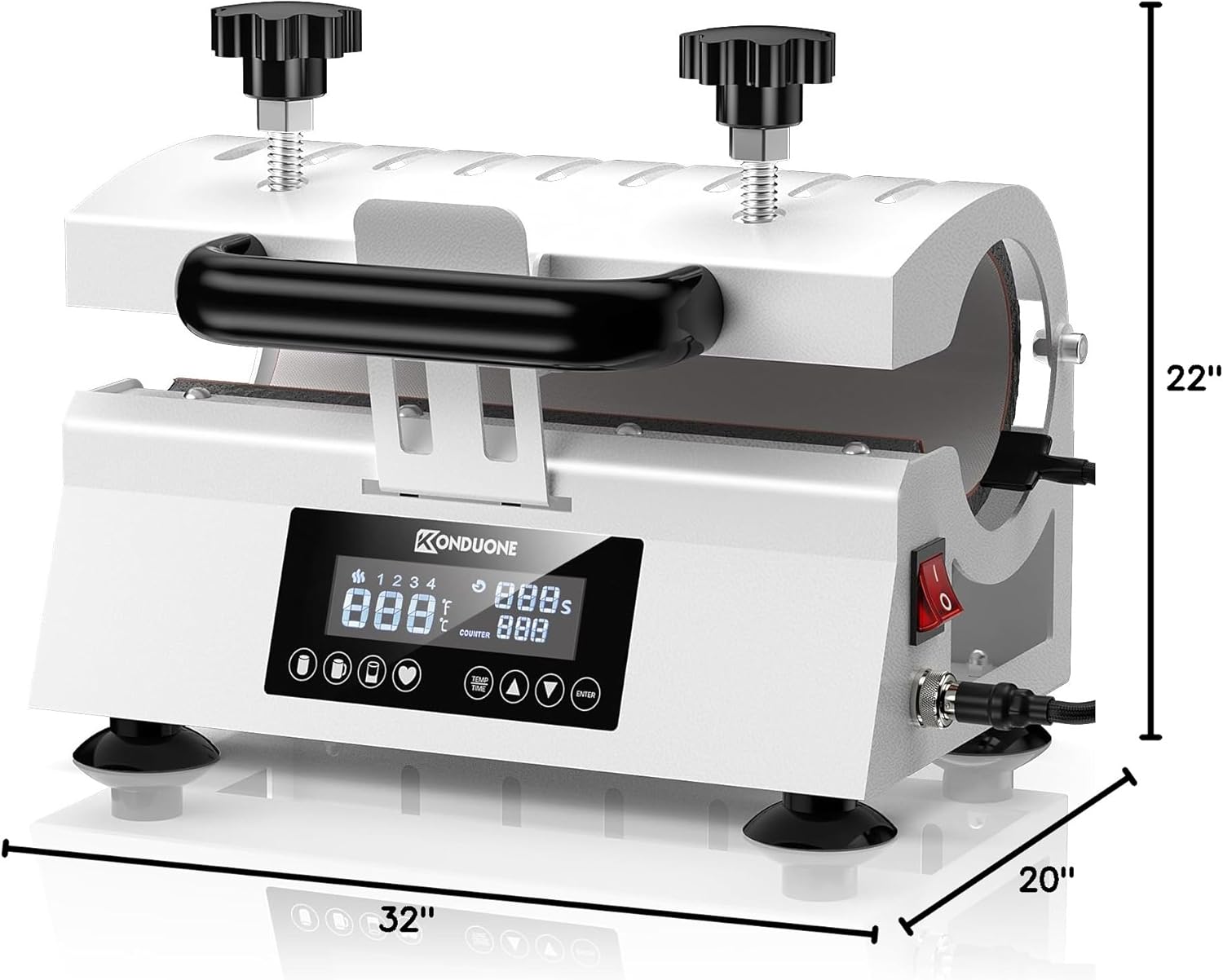

Figure 2: Tumbler Heat Press Machine with dimensions for reference.

5. Návod k obsluze

1. Zapnutí: Zapněte stroj pomocí hlavního vypínače.
2. Nastavit teplotu a čas: Use the control panel to set the desired temperature and time for your sublimation project. For stainless steel tumblers, preset memory mode 1 is often suitable.
3. Počkejte na zahřátí: The machine will begin heating. Wait until the temperature reaches the set value and the heating indicator light illuminates.
4. Vložit hrnek: Carefully place the prepared tumbler (with design paper) into the heating element. Ensure it is centered and secure.
5. Spustit časovač: Press the “ENTER” button to start the countdown. The dashboard countdown sign will light up.
6. Dokončení: Once the timer reaches zero, a beep will sound.
7. Odstraňte sklenici: Turn off the machine. Using heat-resistant gloves, carefully remove the hot tumbler.
8. Cool Down and Peel: Allow the tumbler to cool completely before carefully removing the sublimation paper.

6. Specifikace

7. Údržba

• Čištění: Ensure the machine is unplugged and completely cool before cleaning. Wipe down the exterior with a soft, damp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani neponořujte stroj do vody.
• Topné těleso: Periodically inspect the heating element for any residue or damage. Clean gently if necessary.
• Skladování: Pokud termolis nepoužíváte, skladujte jej v suchém a bezprašném prostředí.

8. Řešení problémů

• Stroj se nezapíná: Check the power cord connection and ensure the outlet is functional. Verify that the power switch is in the 'ON' position. Check the fuses and replace if necessary.
• Nerovnoměrný přenos tepla: Ensure the tumbler is properly centered and the pressure is evenly applied across the heating element. Pre-warming the tumbler can also help.
• Design Not Transferring Fully: Confirm that the correct temperature and time settings are used for your specific sublimation paper and tumbler material. Increase pressure slightly if needed.
• Kódy chyb: If an error code appears on the display, refer to the specific error code section in the full manual (if available) or contact customer support.

9. Záruka a podpora

For warranty information, technical support, or to purchase replacement parts, please contact Konduone customer service through the retailer where you purchased the product or visit the official Konduone website. Please have your model number (CH2332) and purchase date available when contacting support.
