Zopsc Dual Screens Waterproof Digital Camera User Manual

1. Úvod

Děkuji za nákupasing the Zopsc Dual Screens Waterproof Digital Camera. This manual provides essential information for the safe and effective use of your camera. Please read it thoroughly before operating the device and keep it for future reference.

2. Bezpečnostní informace

• Vodotěsné těsnění: Before each underwater use, carefully ensure that the battery door is securely locked. Failure to do so will compromise the camera's waterproof integrity and may cause damage.
• Depth and Duration: The camera is waterproof up to 10 feet (3 meters) for approximately one hour per use without an additional case. Do not exceed these limits.
• Teplota: Avoid exposing the camera to extreme temperatures.
• Čištění: After underwater use, rinse the camera with fresh water and dry thoroughly with a soft cloth. Do not use chemical cleaners.
• Baterie: Use only the specified battery type. Do not attempt to open or modify the battery.

3. Obsah balení

Ověřte, zda jsou v balení obsaženy všechny níže uvedené položky:

• 1 x Zopsc Dual Screens Waterproof Digital Camera (Host)
• 1 x ruční lano
• 1 x nabíjecí kabel (Micro USB)
• 1 x úložný sáček
• 1 x Uživatelská příručka

This image shows the Zopsc Digital Camera along with its included accessories: a hand rope, a charging cable, and a storage bag.

4. Konec produktuview

Seznamte se s komponenty a ovládacími prvky fotoaparátu.

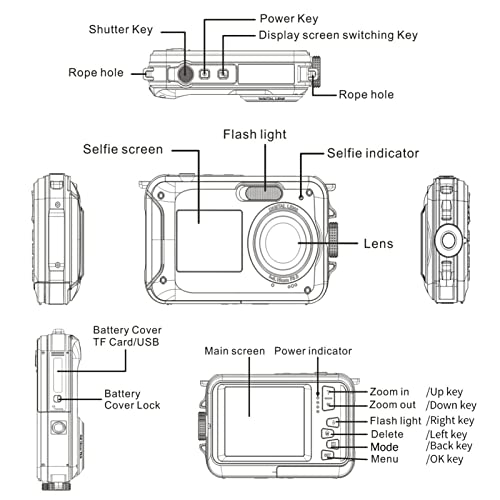

This detailed diagram labels the various parts and controls of the Zopsc Digital Camera, including the shutter key, power key, display screen switching key, rope holes, selfie screen, flash light, lens, battery cover, USB port, main screen, power indicator, zoom buttons, flash light button, delete button, mode button, and menu button.

Dual Screen Design

The camera features a rear 2.7-inch TFT LCD (4:3) for general viewing and a front 1.8-inch TFT LCD (4:3) for convenient selfies.

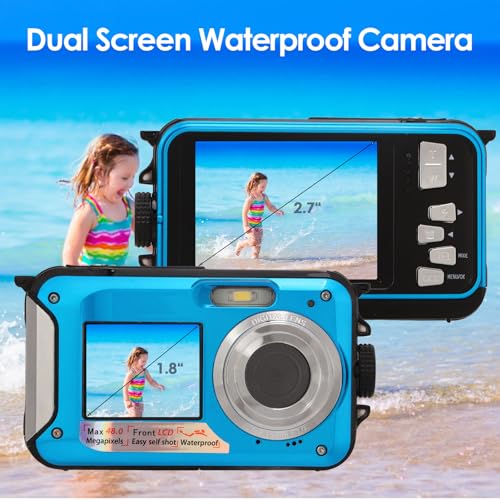

This image displays the Zopsc Dual Screens Waterproof Digital Camera, highlighting both the larger rear 2.7-inch LCD and the smaller front 1.8-inch LCD, demonstrating its dual-screen capability for easy selfies and viewIng.

5. Nastavení

5.1. Instalace a nabíjení baterie

1. Vyhledejte přihrádku na baterii na boku fotoaparátu.
2. Press the cover lock with one hand and slide the battery cover outwards with the other hand to open the battery door.
3. Insert the provided 650mAh BP 5m Lithium Ion Battery, ensuring correct polarity.
4. Close the battery door securely until it clicks into place. Ensure it is fully locked, especially before underwater use.
5. To charge, connect the camera to a power source using the Micro USB charging cable. The power indicator light will show charging status.

5.2. Instalace paměťové karty

The camera supports Micro SD cards up to 128GB (not included, purchase separately).

1. Open the battery compartment door as described above.
2. Locate the Micro SD card slot inside the compartment.
3. Insert the Micro SD card into the slot until it clicks.
4. Bezpečně zavřete dvířka baterie.

This image displays the Zopsc Digital Camera alongside a 128GB Micro SD card, indicating its compatibility with high-capacity storage for extended shooting.

6. Návod k obsluze

6.1. Zapnutí/vypnutí

Stiskněte a podržte Vypínač zapněte nebo vypněte fotoaparát.

6.2. Fotografování

V režimu fotografování stiskněte Tlačítko spouště to capture a 48MP image. The camera supports various image resolutions including 48M, 30M, 24M, 20M, 16M, 12M, 8M, 7M, 5M, 2M.

This image highlights the camera's ability to capture high-resolution 48MP photos and record 2.7K video, suitable for various outdoor and underwater activities.

6.3. Nahrávání videí

Switch to video mode using the Režim tlačítko. Stiskněte tlačítko Tlačítko spouště to start recording 2.7K (2688x1520P/20fps) or 1080P (1920x1080P/30fps) video. Press again to stop recording.

6.4. Using Dual Screens (Selfie Mode)

Stiskněte tlačítko Display Screen Switching Key to toggle between the rear and front LCD screens. The front screen is ideal for framing selfies. Built-in selfie timers (2, 5, 10 seconds) are available in the settings.

6.5. Digitální zoom

Použijte Přiblížit a Oddálit buttons to adjust the 16X digital zoom. Note that digital zoom may reduce image quality.

This image illustrates the 16X digital zoom capability of the Zopsc camera, showing a subject at 1X, 4X, and 16X magnification.

6.6. Režimy blesku

The camera features a built-in flash. Use the Bleskové světlo button to cycle through flash modes: Auto, On/Fill, and Off.

6.7. Použití pod vodou

Ensure the battery door is securely locked before submerging the camera. The camera is waterproof up to 10 feet (3 meters) for up to one hour per session. It is designed for outdoor activities and underwater photography.

This image shows the Zopsc Digital Camera in use underwater, demonstrating its waterproof design for capturing moments during swimming or snorkeling.

6.8. Recording While Charging

The camera supports recording while charging, allowing for extended use when connected to a power source.

7. Údržba

• Čištění: After each use, especially after exposure to saltwater, rinse the camera with fresh water. Wipe the body and screens with a soft, lint-free cloth. Do not use abrasive materials or chemical solvents.
• těsnění: Regularly inspect the rubber seals around the battery compartment for any signs of damage, dirt, or debris. Clean them gently if necessary. Damaged seals can compromise waterproofing.
• Skladování: Store the camera in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the battery compartment is dry before closing for long-term storage.
• Péče o baterie: If storing for an extended period, remove the battery. Recharge the battery periodically to maintain its health.

8. Řešení problémů

• Fotoaparát se nezapne:
  • Ujistěte se, že je baterie správně nainstalována a plně nabitá.
  • Check if the battery door is securely closed.
• Únik vody:
  • Okamžitě vyjměte fotoaparát z vody.
  • Check the battery door seal for proper closure and any damage or debris.
  • Do not use the camera if water has entered the compartment. Contact support.
• Špatná kvalita obrazu/videa:
  • Ensure the lens is clean and free from smudges or water droplets.
  • Zkontrolujte světelné podmínky.
  • Digital zoom (16X) can reduce image clarity; try to shoot without maximum zoom if possible.
• Chyba paměťové karty:
  • Ujistěte se, že je paměťová karta správně vložena.
  • Zkuste naformátovat paměťovou kartu (tím se vymažou všechna data.
  • Vyzkoušejte s jinou kompatibilní kartou Micro SD.
• Controls are unresponsive or fiddly:
  • Ensure your fingers are dry and clean.
  • Practice using the controls to become familiar with their operation.

9. Specifikace

10. Záruka a podpora

Informace o záruce a technickou podporu naleznete v dokumentaci dodané při nákupu nebo se obraťte na prodejce. Uschovejte si účtenku jako doklad o koupi.
