Voomy 7-in-1 Cube Wall Power Strip

VOOMY 7-in-1 Cube Wall Power Strip User Manual

Model: 7-in-1 Cube Wall Power Strip

Brand: Voomy

1. Úvod

Thank you for choosing the VOOMY 7-in-1 Cube Wall Power Strip. This manual provides essential information for the safe and efficient use of your device. Please read these instructions carefully before use and retain them for future reference.

This compact power strip is designed to provide convenient power access with multiple AC outlets and USB charging ports, featuring built-in safety protections for your electronic devices.

VOOMY 7-in-1 Cube Wall Power Strip, showing 4 AC outlets and 3 USB ports

Image 1.1: The VOOMY 7-in-1 Cube Wall Power Strip, illustrating its compact design with four AC outlets and three USB-A ports.

2. Konec produktuview a funkce

The VOOMY 7-in-1 Cube Wall Power Strip offers a space-saving design and extensive connectivity options for various electronic devices.

Klíčové vlastnosti:

  • Kompaktní krychlový design: Maximizes space utilization, ideal for home, office, or travel.
  • Rozšířená konektivita: Features 4 AC outlets (16A) and 3 USB-A ports (5V=3.1A) for simultaneous charging of multiple devices.
  • Rychlé nabíjení přes USB: Provides efficient charging for smartphones, tablets, power banks, and other USB-powered gadgets without additional adapters.
  • Pokročilá bezpečnostní opatření: Equipped with integrated protection against overloads, overvoltages, and short circuits to safeguard connected devices.
  • Vysoký výkon: Supports up to 4000 watts, ensuring stable power delivery without overloading.
VOOMY Cube Power Strip showing its various ports and compact form factor

Obrázek 2.1: Podrobný view of the VOOMY Cube Power Strip, highlighting its multiple AC outlets and USB ports.

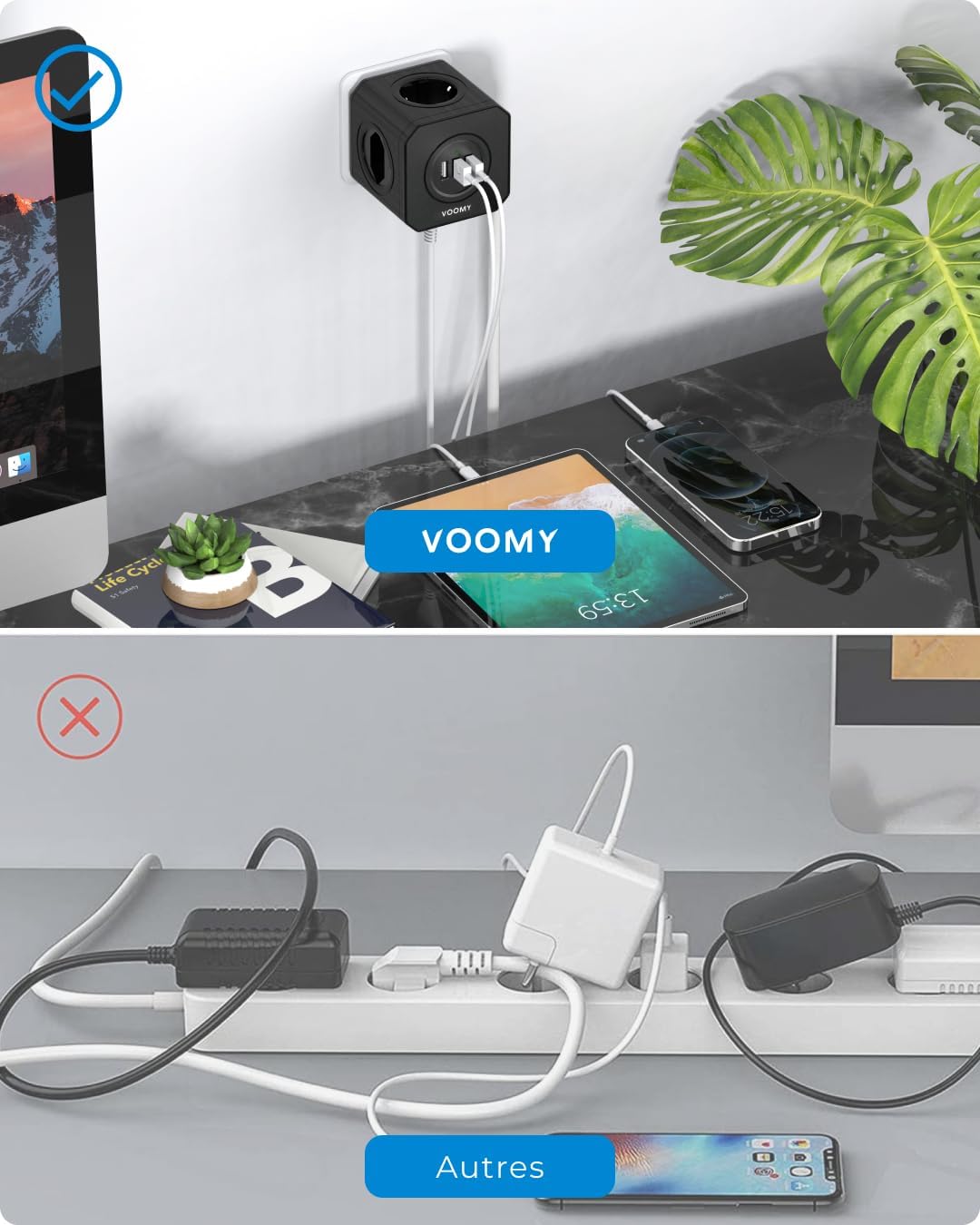

Comparison of VOOMY cube power strip vs traditional power strip, showing space saving

Image 2.2: Visual comparison demonstrating the space-saving advantage of the VOOMY cube design over a traditional power strip.

3. Pokyny k nastavení

  1. Rozbalte zařízení: Opatrně vyjměte prodlužovací kabel z obalu. Zkontrolujte, zda není viditelně poškozený.
  2. Vyberte umístění: Select a suitable wall outlet that is easily accessible and free from obstructions. Ensure the location is dry and away from heat sources or direct sunlight.
  3. Připojit: Insert the power strip's plug firmly into a standard wall socket. Ensure a secure connection.
  4. Kontrolka: Once plugged in, the LED indicator light on the power strip will illuminate, indicating it is receiving power and ready for use.
VOOMY Cube Power Strip plugged into a wall outlet with devices charging

Image 3.1: The VOOMY Cube Power Strip correctly plugged into a wall outlet, demonstrating its use with multiple devices.

4. Návod k obsluze

The VOOMY 7-in-1 Cube Wall Power Strip is designed for straightforward operation.

Používání zásuvek střídavého proudu:

  • Insert the plugs of your electronic devices into any of the 4 available AC outlets.
  • Ensure that the total power consumption of all connected devices does not exceed the maximum rating of 4000W (16A).

Používání portů USB-A:

  • Connect your USB charging cables to the 3 USB-A ports and then to your devices (e.g., smartphones, tablets).
  • The USB ports provide a combined output of 5V=3.1A, suitable for charging most standard USB-powered devices.

Důležité: Always ensure that the devices you connect are compatible with the power strip's voltage and current ratings. Do not attempt to connect devices that exceed the specified limits.

5. Údržba

Proper maintenance ensures the longevity and safe operation of your power strip.

  • Čištění: Disconnect the power strip from the wall outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners, aerosols, or solvents.
  • Skladování: When not in use for extended periods, unplug the power strip and store it in a cool, dry place away from direct sunlight and moisture.
  • Inspekce: Periodically inspect the power strip and its cord for any signs of damage, such as frayed wires, cracked casing, or loose connections. If damage is found, discontinue use immediately and contact support.

6. Řešení problémů

If you encounter issues with your VOOMY 7-in-1 Cube Wall Power Strip, refer to the following common problems and solutions:

ProblémMožná příčinaŘešení
Zásuvky/USB porty nejsou napájené.Power strip not plugged in correctly.
Zásuvka nefunguje.
Aktivována ochrana proti přetížení.
Ensure the power strip is firmly plugged into a live wall outlet.
Vyzkoušejte zásuvku ve zdi s jiným zařízením.
Unplug some devices to reduce load, then unplug and re-plug the power strip to reset.
Zařízení se nenabíjejí přes USB.Vadný USB kabel.
Zařízení není kompatibilní.
USB ports overloaded.
Zkuste jiný kabel USB.
Ensure your device is compatible with 5V/3.1A USB charging.
Disconnect other USB devices to see if charging resumes.
Power strip feels hot.Overloaded with too many high-power devices.Immediately unplug some devices to reduce the load. Ensure total wattage does not exceed 4000W. If overheating persists, discontinue use.

7. Specifikace

Technical details for the VOOMY 7-in-1 Cube Wall Power Strip:

Diagram showing the dimensions of the VOOMY Cube Power Strip: 8 cm length, 8 cm width, 11.5 cm height

Image 7.1: Dimensions of the VOOMY Cube Power Strip.

FunkceDetail
ZnačkaVoomy
Model7-in-1 Cube Wall Power Strip
BarvaČerný
Celkový počet zásuvek střídavého proudu4
Celkový počet portů USB3 (USB-A)
USB výstup5V=3.1A (shared)
Max. Proud16 A
Maximální jmenovitý výkon4000 W
svtage220-250V (Typical European voltage)
Typ elektrické zástrčkyEuropean Type E/F compatible (Schuko)
Speciální funkceUSB Connector, Surge Protection
Rozměry produktu (D x Š x V)8 l x 8 š x 11.5 v centimetrů
Hmotnost položky300 gramů
Vnitřní materiálPolycarbonate or Plastic
Země původuČína

8. Bezpečnostní informace

Pro zajištění bezpečného provozu a zabránění poškození zařízení nebo připojené elektroniky dodržujte prosím následující bezpečnostní pokyny:

  • Pouze pro vnitřní použití: This power strip is designed for indoor use in dry environments. Do not use it outdoors or in wet conditions.
  • Vyhněte se přetížení: Do not exceed the maximum power rating of 4000W (16A). Overloading can cause overheating, fire, or electrical shock.
  • Přepěťová ochrana: The device includes surge protection to shield your electronics from voltage spikes. However, it is not a substitute for proper grounding or protection against direct lightning strikes.
  • Děti a domácí mazlíčci: Keep the power strip out of reach of children and pets.
  • Větrání: Do not cover the power strip or place it in an enclosed space where heat cannot dissipate.
  • Bez demontáže: Do not attempt to open, modify, or repair the power strip. Doing so will void the warranty and may pose a safety risk.
  • Správné vložení: Ensure all plugs are fully inserted into the outlets. Loose connections can cause overheating.
  • Poškození: If the power strip or its cord is damaged, discontinue use immediately and replace it.
Graphic illustrating the safety features of the VOOMY Cube Power Strip: Lightning Protection, Short-circuit Protection, Overload Protection, Overvoltage Ochrana

Obrázek 8.1: Konecview of the integrated safety features.

9. Záruka a podpora

Informace o záruce:

This VOOMY product comes with a 3-letá záruka od data nákupu. Tato záruka se vztahuje na výrobní vady a vady zpracování při běžném používání. Nevztahuje se na škody způsobené nesprávným použitím, nehodami, neoprávněnými úpravami nebo přírodními katastrofami.

Uschovejte si prosím doklad o koupi pro uplatnění záruky.

Zákaznická podpora:

For technical assistance, warranty claims, or any questions regarding your VOOMY 7-in-1 Cube Wall Power Strip, please contact your retailer or visit the official Voomy webstránky pro kontaktní informace podpory.

Náhradní díly jsou k dispozici až 10 let od data zakoupení.
