1. Konec produktuview
The NEXTORCH TA20 is a high-performance, compact LED tactical flashlight designed for various applications including tactical use, outdoor activities, law enforcement, emergency situations, and everyday carry. It features a powerful 1,000 lumen output, multiple lighting modes, and a durable aluminum alloy construction with a ceramic window breaker.
Obrázek: Overview of the NEXTORCH TA20 highlighting its compact size, one-step strobe, tri-setting operation, and nano-ceramic window breaker.
Image: The compact size of the NEXTORCH TA20 flashlight, measuring approximately 10cm, fitting comfortably in a gloved hand.
2. Obsah balení
Po otevření balení ověřte, zda jsou v něm obsaženy všechny následující položky:
- Taktická svítilna NEXTORCH TA20
- FR-1 Tactical Ring
- Multi-language Use Manual
- Nabíjecí kabel USB typu C.
- 16340 Rechargeable Battery (with Type-C charging port)
- Řemínek na ruku
Image: The complete package contents including the flashlight, FR-1 tactical ring, manual, charging cable, battery, and hand strap.
3. Nastavení
3.1 Instalace a nabíjení baterie
The TA20 flashlight uses a 16340 rechargeable Li-ion battery (included) or is compatible with CR123A low-temperature resistant batteries. To install the battery, ensure the positive (+) end (button portion) is inserted first, aligning with the polarity markings inside the flashlight body. To charge the 16340 battery, connect the included USB Type-C cable directly to the battery's charging port. The indicator light on the battery will turn red during charging and blue when fully charged.

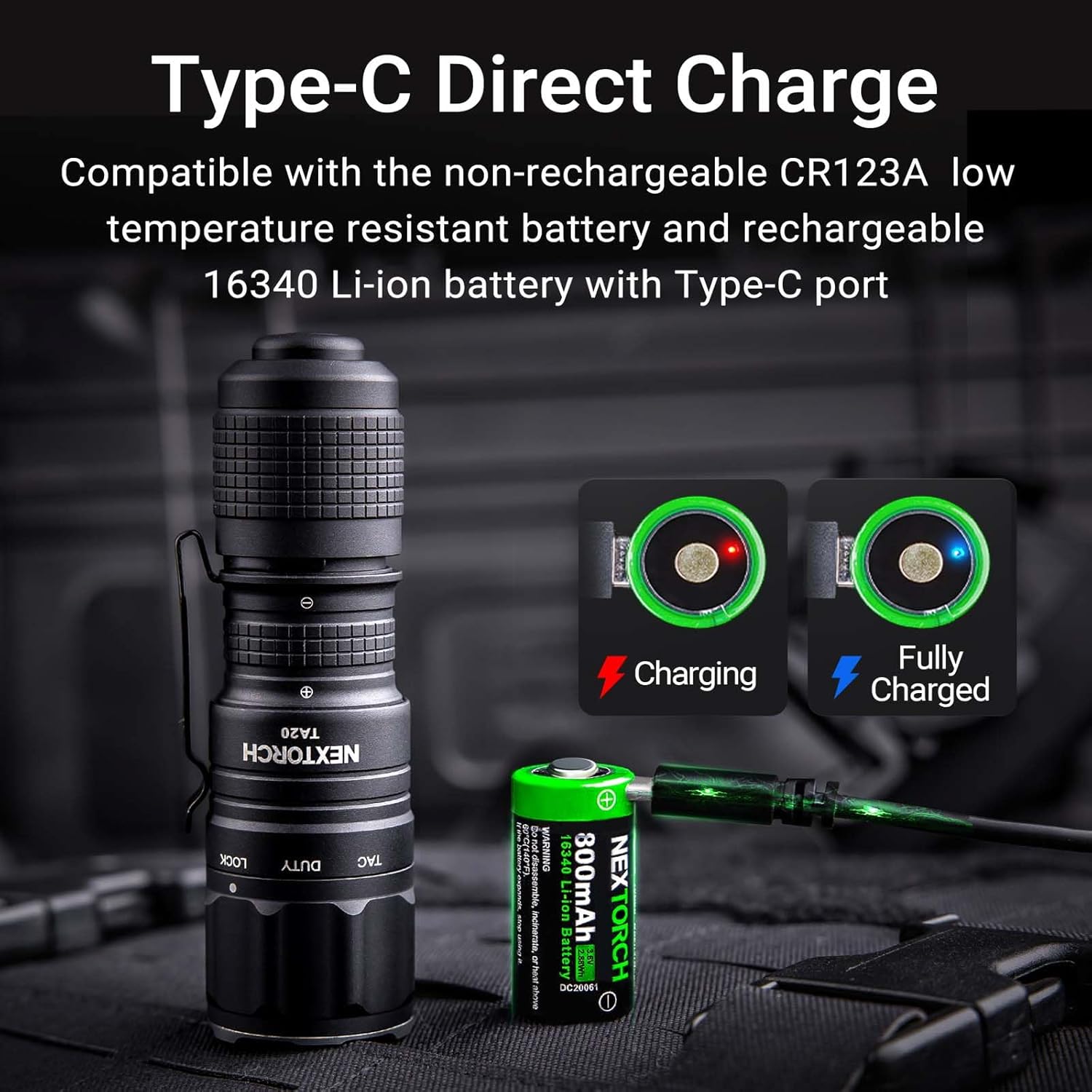

Image: The NEXTORCH TA20 flashlight alongside its 16340 rechargeable battery, demonstrating the direct Type-C charging capability. The battery shows charging (red) and fully charged (blue) indicators.
3.2 Attaching the FR-1 Tactical Ring
The FR-1 tactical ring provides flexible application, convenient access, and hands-free operation. It can be attached to the flashlight body to enhance grip and carrying options. Refer to the included manual for detailed instructions on attaching and utilizing the FR-1 tactical ring.
Image: The FR-1 MAX Tactical Ring shown with the flashlight, illustrating its flexible application for convenient access and hands-free operation.
4. Návod k obsluze
The NEXTORCH TA20 features a unique Tri-Setting Design, allowing instant switching between Lock, Duty, and Tactical modes by rotating the flashlight head. The tail switch operates differently depending on the selected mode.
4.1 Mode Selection (Rotating Head)
- Režim zámku: Prevents accidental activation. The flashlight will not turn on in this mode.
- Duty Mode: For general illumination. Tap for momentary-on, heavy press for constant-on. Lightly press to cycle through High, Medium, Low, and Strobe modes.
- Taktický režim: For tactical applications. Tap for momentary-on, heavy press for strobe.
Image: The Tri-Setting Design of the NEXTORCH TA20, showing how rotating the flashlight head instantly switches between Lock, Tactical, and Duty settings.
Image: The Anti-Mistouch Lock Mode Design, illustrating how rotating the flashlight head to the 'Lock' position prevents accidental activation, making it worry-free for daily use.
Obrázek: Detailní záběr view of the durable and comfortable metal tactical tail switch on the NEXTORCH TA20 flashlight.
4.2 Ovládání zadního spínače
- Lehký stisk: Partially press and hold the tail switch for momentary-on. Release to turn off.
- Firm Press: Fully press the tail switch until it clicks for constant-on. Press again to turn off.
5. Modes and Functions
The TA20 offers versatile lighting options and additional features for various scenarios.
5.1 režimy osvětlení
In Duty Mode, cycle through the following brightness levels:
- Vysoký: 1000 lumens (210m beam distance)
- Střední: 190 lumens (85m beam distance)
- Nízký: 25 lumens (30m beam distance)
- Strobe: 1000 lumens (variable frequency for disorientation)
- Okamžitě na: Quick burst of light (available in both Duty and Tactical modes)
Image: Visual representation of the five lighting modes: High, Medium, Low, Strobe, and Momentary-on, demonstrating their respective light outputs.
Image: A person using the NEXTORCH TA20 flashlight's variable frequency one-step strobe function in a dark environment, demonstrating its disorienting effect.
5.2 Ceramic Window Breaker
The TA20 is equipped with an ultra-high hardness ceramic bead attack head. This feature, with hardness second only to diamond, allows for quick and efficient breaking of car window glass for emergency escape, self-defense, or tactical entry.
Image: A gloved hand using the nano-ceramic strike bezel of the NEXTORCH TA20 to break a car window, illustrating its effectiveness for rescue and self-defense.
5.3 Helmet Light Application
The lightweight TA20 can be used as a helmet light when paired with the RM25S flashlight clip (sold separately). This allows for hands-free illumination in tactical or outdoor environments.
Image: The NEXTORCH TA20 mounted on a helmet using the RM25S flashlight clip, demonstrating its use as a helmet light for tactical applications.
6. Údržba
Proper maintenance ensures the longevity and optimal performance of your NEXTORCH TA20 flashlight.
- Čištění: Tělo svítilny otřete čistým, měkkým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Mazání: Periodically apply silicone grease to the O-rings and threads to maintain waterproof integrity.
- Péče o baterie: Store the battery in a cool, dry place when not in use. Recharge regularly to prolong battery life.
6.1 Vlastnosti trvanlivosti
The TA20 is built to withstand challenging conditions:
- Vodotěsný: IPX8 rated, submersible up to 2 meters.
- Odolnost proti pádu: Navrženo tak, aby odolalo pádům z výšky až 2 metru.
Image: The NEXTORCH TA20 flashlight submerged in water, illustrating its IPX8 waterproof rating and impact resistance.
7. Řešení problémů
If you encounter issues with your TA20 flashlight, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Svítilna se nezapne. | Baterie je slabá nebo vybitá. Baterie je nainstalována nesprávně. Flashlight is in Lock Mode. | Nabijte baterii. Ensure battery is inserted with positive (+) end first. Rotate flashlight head to Duty or Tactical Mode. |
| Světelný výstup je slabý nebo bliká. | Slabá baterie. Loose head or tail cap. | Nabijte baterii. Tighten all parts of the flashlight securely. |
| Vnikání vody. | Poškozené O-kroužky. Uvolněné součásti. | Inspect and replace O-rings if damaged. Ensure all parts are tightly sealed before exposure to water. |
If the problem persists after attempting these solutions, please contact NEXTORCH customer support.
8. Specifikace
Detailed technical specifications for the NEXTORCH TA20 Tactical Flashlight:
| Funkce | Detail |
|---|---|
| Light Output (Tactical Mode) | Momentary-on: 1000 lm, Tactical Strobe: 1000 lm |
| Light Output (Duty Mode) | High: 1000 lm, Medium: 190 lm, Low: 24 lm, Strobe: 1000 lm |
| Run Time (Duty Mode) | High: 1h 15min, Medium: 2h 30min, Low: 24h |
| Beam Distance (Duty Mode) | High: 210 m, Medium: 85 m, Low: 30 m |
| Beam Intensity (Duty Mode) | High: 11025 cd, Medium: 1808 cd, Low: 225 cd |
| Odolnost proti nárazu | 2 metrů |
| Ponorné | IPX8 (2 metrů) |
| Hmotnost | 89 g / 3.14 oz (bez baterie) |
| Rozměry | 100 mm (Length) × 30 mm (Head Diameter) × 25 mm (Barrel Diameter) |
| Světelný zdroj | LED OSRAM P9 |
| Materiál | Hliníková slitina |
| Baterie | One 16340 or CR123A |
Note: Above tested specifications are strictly based on the standard of ANSI / PLATO-FL1. Tested with one 16340 (800 mAh) battery in 22°C ± 3°C. Specifications might vary with different battery or conditions.
Image: A table summarizing the technical specifications of the NEXTORCH TA20 flashlight, including light output, run time, beam distance, and durability ratings.
9. Oficiální video produktu
Watch the official product video for a visual guide on the NEXTORCH TA20 Tactical Flashlight's features and operation.
Video: Official NEXTORCH TA20 Tactical Flashlight demonstration video, showcasing its compact design, mode switching, window breaking capability, and various lighting modes.
10. Záruka a podpora
NEXTORCH offers a five-year warranty on all flashlights. If you have any questions about the product, require technical assistance, or need to claim warranty service, please feel free to contact NEXTORCH customer support. Refer to the official NEXTORCH webkontaktní údaje naleznete na webových stránkách nebo v dokumentaci k nákupu.
