JRD Car FM Transmitter User Manual

1. Úvod

Děkuji za nákupasing the JRD Car FM Transmitter. This device allows you to stream audio from your Bluetooth-enabled devices to your car's FM radio, make hands-free calls, and charge your mobile devices. Please read this manual carefully before use to ensure optimal performance and safety.

2. Bezpečnostní informace

This section outlines important safety precautions. Please adhere to these guidelines to prevent damage to the device or injury.

• Nevystavujte zařízení extrémním teplotám, přímému slunečnímu záření ani vlhkosti.
• Nerozebírejte ani neupravujte zařízení. Zrušíte tak platnost záruky a může dojít k poškození.
• Ujistěte se, že je zařízení bezpečně zapojené do zásuvky zapalovače cigaret v autě.
• Avoid operating the device in a manner that distracts you from driving.
• General safety warnings may apply, including handling batteries with care, avoiding water and heat, and not using the product while driving unless legal and safe to do so.

3. Konec produktuview

The JRD Car FM Transmitter is designed for convenience and versatility. It features multiple ports and controls for seamless operation.

Přední view of the JRD Car FM Transmitter, showing the display and control buttons.

The JRD Car FM Transmitter plugged into a car's cigarette lighter socket, displaying the frequency.

Detailed diagram of the JRD Car FM Transmitter with labels for each button and port, including U disk socket, 1A charging port, 3.1A charging port, PD charging port, Frequency LED display, microphone, colorful dazzling lights, TF card socket, LED light button, Multi-function button, Previous song, Next song, and Frequency adjustment key.

Klíčové vlastnosti:

• Upgraded Bluetooth 5.0 for stable connection and faster data transmission.
• PD3.0 Type-C (20W) and QC3.0 USB (18W) ports for fast charging.
• Additional 5V/1A USB port for music playback via USB disk.
• Supports music playback from Bluetooth, TF card, and USB disk.
• Built-in noise-cancelling microphone for clear hands-free calls.
• Supports A2DP and MP3/WMA/FLAC/AAC/WAV audio formats.
• Memory function for frequency, track, volume, and power-off restart.

4. Obsah balení

Po otevření balíku se prosím ujistěte, že jsou všechny položky přítomny a v dobrém stavu:

• 1 x JRD Car FM Transmitter
• 1 x Uživatelská příručka (tento dokument)

5. Pokyny k nastavení

Follow these steps to set up your JRD Car FM Transmitter:

1. Insert the Transmitter: Plug the JRD Car FM Transmitter firmly into your vehicle's 12V/24V cigarette lighter socket. The LED display will light up, indicating it is powered on.


   The transmitter inserted into the car's power outlet.
2. Tune Your Car Radio: Turn on your car's FM radio and find an empty, unused frequency. This should be a frequency with only static, no active radio station. Frequencies between 87.5 MHz and 108.0 MHz are typically used.
3. Frekvence vysílače Match:
   • Press the "CH" button on the transmitter. The frequency display will start blinking.
   • Use the "Previous Song" (K) and "Next Song" (I) buttons to adjust the transmitter's frequency to match the blank frequency you found on your car radio.
   • Once matched, wait a few seconds for the frequency to stop blinking, or press the "CH" button again to confirm.
4. Spárovat s Bluetooth:
   • Povolte na svém mobilním zařízení Bluetooth.
   • Hledat available Bluetooth devices and select "JRD" (or similar name) from the list.
   • Once connected, the transmitter will indicate successful pairing (e.g., a voice prompt or stable Bluetooth icon on the display).


   The transmitter connected wirelessly to a smartphone, ready for audio streaming.

6. Návod k obsluze

6.1 Přehrávání hudby

The JRD Car FM Transmitter supports three modes for music playback:

• Režim Bluetooth: After successful Bluetooth pairing, open your music player on your phone. Audio will be transmitted to your car's FM radio.
• Režim USB disku: Insert a USB flash drive (U Disk) containing MP3/WMA/FLAC/AAC/WAV audio files into the 5V/1A USB port. The transmitter will automatically detect and play music from the USB disk.

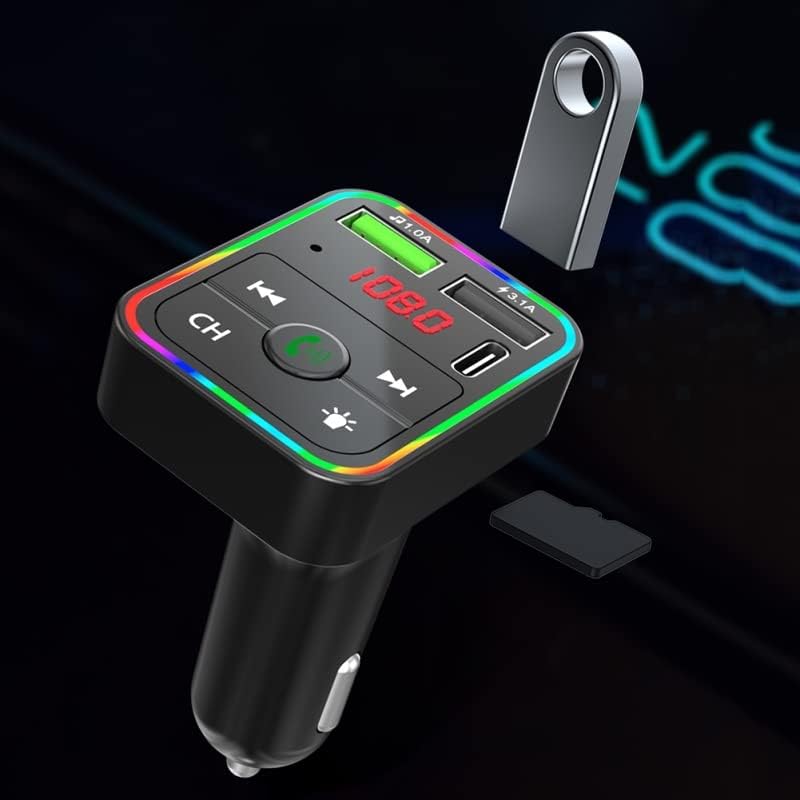

  The transmitter showing the USB disk and TF card slots.
• Režim karty TF: Insert a TF (microSD) card containing MP3/WMA/FLAC/AAC/WAV audio files into the TF card slot. The transmitter will automatically detect and play music from the TF card.

6.2 Funkce volání

When connected via Bluetooth, you can manage calls using the multi-function button (phone icon) on the transmitter:

• Přijmout/ukončit hovor: Krátce stiskněte multifunkční tlačítko.
• Odmítnout hovor: Dlouze stiskněte multifunkční tlačítko.
• Znovu vytočit poslední číslo: Dvakrát stiskněte multifunkční tlačítko.

6.3 Nabíjecí zařízení

The transmitter features multiple charging ports:

• PD3.0 Type-C Port: Provides up to 20W fast charging for compatible devices.
• QC3.0 USB Port: Provides up to 18W fast charging for compatible devices.
• 5V/1A USB port: Standard charging port, also used for USB disk music playback.

The transmitter highlighting its dual USB charging capabilities.

6.4 Ovládání LED světel

The transmitter features colorful dazzling lights. Short press the LED light button (sun icon) to cycle through different light modes or turn them off.

7. Údržba

To ensure the longevity and optimal performance of your JRD Car FM Transmitter, follow these maintenance guidelines:

• Keep the device clean by wiping it with a soft, dry cloth. Do not use liquid cleaners or aerosols.
• Nevystavujte zařízení extrémním teplotám, vlhkosti nebo přímému slunečnímu záření.
• Pokud zařízení delší dobu nepoužíváte, skladujte jej na chladném a suchém místě.
• Ensure the cigarette lighter socket is clean and free of debris for a secure connection.

8. Řešení problémů

If you encounter issues with your JRD Car FM Transmitter, refer to the following common problems and solutions:

9. Specifikace

Detailed technical specifications for the JRD Car FM Transmitter:

• Model: JRD Car FM Transmitter
• Verze Bluetooth: 5.0
• Rozsah kmitočtu FM: 87.5 - 108.0 MHz
• Vstupní objemtage: 12V-24V
• USB Output 1 (QC3.0): 5V/3A, 9V/2A, 12V/1.5A (max. 18W)
• USB Output 2 (PD3.0 Type-C): 5V/3A, 9V/2.22A, 12V/1.67A (max. 20W)
• USB Output 3 (U Disk/Charging): 5V/1A
• Podporované zvukové formáty: MP3, WMA, FLAC, AAC, WAV
• Technologie připojení: Bluetooth, USB
• Hmotnost položky: 4.6 unce
• Rozměry balení: 5.12 x 4.76 x 1.73 palce

10. Záruka a podpora

Tento produkt je dodáván se standardní zárukou výrobce. Konkrétní záruční podmínky naleznete v dokumentaci dodané s vaším nákupem nebo se obraťte přímo na prodejce.

For technical support, troubleshooting assistance, or inquiries regarding your JRD Car FM Transmitter, please contact the seller or manufacturer through the platform where you purchased the product. Please have your purchase details and model number ready when contacting support.
