Aigo AC SE 240 Rainbow 240mm Water Cooler Instruction Manual

1. Konec produktuview

The Aigo AC SE 240 is an all-in-one (AIO) liquid CPU cooler designed to provide efficient thermal management for your computer's processor. Featuring a 240mm radiator and two fans with Rainbow lighting, it offers effective cooling performance for a wide range of Intel and AMD sockets.

This manual provides essential information for the proper installation, operation, and maintenance of your Aigo AC SE 240 Water Cooler.

2. Obsah balení

Please verify that all components listed below are present in your package before proceeding with the installation.

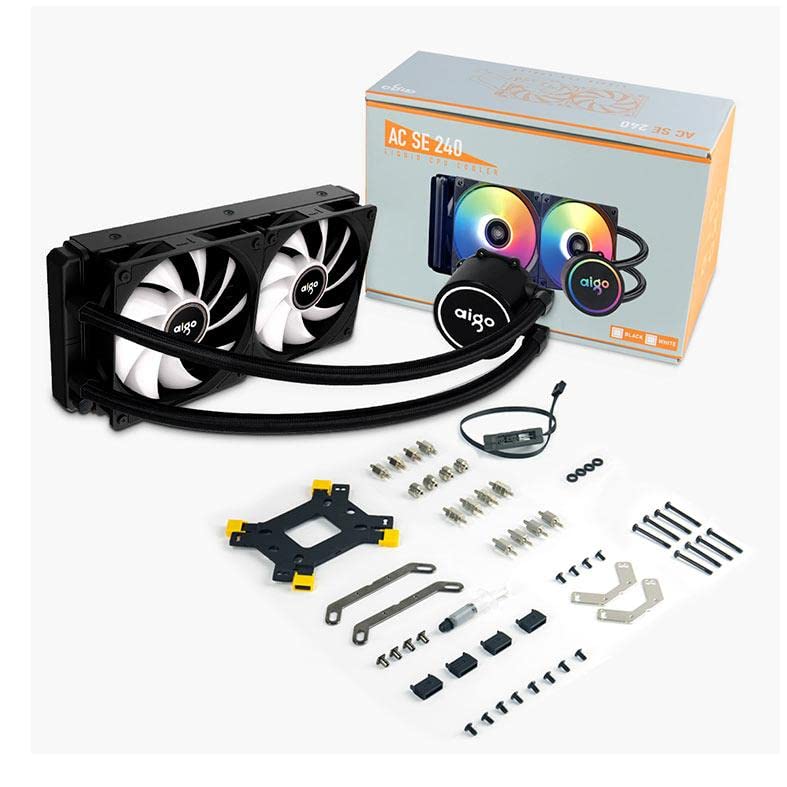

Obraz: All components included with the Aigo AC SE 240 Water Cooler, laid out on a white background. This includes the radiator with two fans, the CPU block/pump, tubing, various mounting brackets for Intel and AMD sockets, screws, thermal paste, and a fan/RGB controller.

• 240mm Radiator with integrated pump/CPU block and tubing
• Two 120mm Fans (Rainbow lighting)
• Intel Mounting Bracket Kit (LGA 2066/ 2011-v3 / 2011 / 1700 / 1366 / 1200 / 115X)
• AMD Mounting Bracket Kit (FM1 / FM2 / FM2+ / AM2 / AM2+ / AM3 / AM3+ / AM4)
• Backplate for Intel sockets
• Montážní šrouby a distanční sloupky
• Termální pasta
• Fan/RGB Controller (if applicable, inferred from image)
• Uživatelská příručka (tento dokument)

3. Instalační příručka

This section provides general steps for installing the Aigo AC SE 240 Water Cooler. Refer to your motherboard and PC case manuals for specific instructions regarding component placement and cable management.

3.1 Prepare the CPU and Motherboard

1. Ujistěte se, že je váš systém vypnutý a odpojený od zdroje napájení.
2. Remove any existing CPU cooler. Clean the CPU surface thoroughly with isopropyl alcohol to remove old thermal paste.
3. Určete správný montážní držák pro patici procesoru (Intel nebo AMD).

3.2 Install the Radiator and Fans

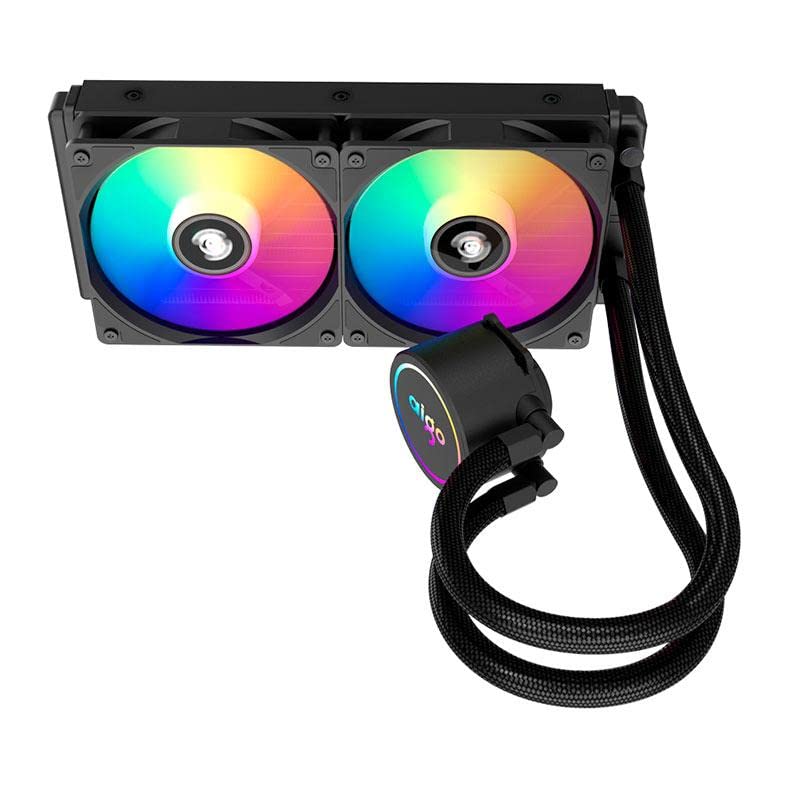

Obraz: The Aigo AC SE 240 Water Cooler showing the 240mm radiator with two fans attached, displaying their rainbow LED lighting. The pump/CPU block is connected via two braided tubes.

1. Attach the two 120mm fans to the radiator using the provided long screws. Ensure the fan airflow direction is correct for your case (typically intake or exhaust).
2. Mount the radiator assembly to an available 240mm fan mount in your PC case (e.g., top, front, or rear). Use the appropriate screws to secure it.

3.3 Install the CPU Block/Pump

1. Apply a small amount of thermal paste to the center of your CPU's integrated heat spreader (IHS). A pea-sized dot is usually sufficient.
2. Attach the correct mounting standoffs and brackets to your motherboard around the CPU socket. For Intel sockets, you may need to install the backplate first.
3. Carefully place the CPU block/pump onto the CPU, aligning the mounting holes.
4. Secure the CPU block/pump with the provided thumb screws or nuts, tightening them in a diagonal pattern until snug. Do not overtighten.

3.4 Připojení kabelů

1. Connect the pump's power cable to a dedicated AIO_PUMP or CPU_FAN header on your motherboard. If neither is available, use a SYS_FAN header.
2. Connect the fan power cables to the CPU_FAN and/or SYS_FAN headers on your motherboard, or to the included fan/RGB controller.
3. Connect the RGB cables from the fans and pump to the included RGB controller, and then connect the controller to an available RGB header on your motherboard (if applicable) or a SATA power connector.
4. Uspořádejte kabely pro optimální proudění vzduchu a estetiku.

4. Návod k obsluze

Once installed, the Aigo AC SE 240 Water Cooler operates automatically. The pump and fans will adjust their speeds based on CPU temperature, as controlled by your motherboard's BIOS/UEFI settings or dedicated software.

• Nastavení BIOSu/UEFI: Access your motherboard's BIOS/UEFI to configure fan curves and pump speed settings. It is recommended to set the pump to run at 100% speed for optimal cooling performance and to prevent air bubbles from settling.
• Ovládání softwaru: If your motherboard supports it, you may use manufacturer-provided software to fine-tune fan speeds, monitor temperatures, and customize RGB lighting effects.
• Počáteční spuštění: During the first few minutes of operation, you might hear gurgling sounds as air bubbles are purged from the loop. This is normal and should subside.

Obraz: Shora dolů view of the Aigo AC SE 240 Water Cooler, highlighting the CPU block with its illuminated Aigo logo and the two rainbow-lit fans on the radiator.

5. Údržba

Regular maintenance ensures optimal performance and longevity of your water cooler.

• Čištění prachu: Pravidelně čistěte prach z žeber chladiče a lopatek ventilátoru pomocí stlačeného vzduchu nebo měkkého kartáče. Nadměrné množství prachu může bránit proudění vzduchu a snižovat účinnost chlazení.
• Inspekce trubek: Visually inspect the tubing and connections for any signs of leaks, kinks, or damage. Address any issues immediately.
• Hlučnost čerpadla: If the pump starts making unusual noises, it may indicate air trapped in the loop or a failing pump. Ensure the pump is running at full speed and try gently tilting your PC case to help dislodge air bubbles.

6. Řešení problémů

This section addresses common issues you might encounter with your Aigo AC SE 240 Water Cooler.

7. Specifikace

Detailed technical specifications for the Aigo AC SE 240 Water Cooler.

• Model: ACSE240-BK
• Intel Socket Compatibility: LGA 2066/ 2011-v3 / 2011 / 1700 / 1366 / 1200 / 115X
• AMD Socket Compatibility: FM1 / FM2 / FM2+ / AM2 / AM2+ / AM3 / AM3+ / AM4
• Délka trubky: 395 mm
• Rychlost čerpadla: 3200 ± 10 % RPM
• Pump Voltage: 12V
• Rozměry radiátoru: 274 x 120 x 27 mm
• Rozměry ventilátoru: 120 x 120 x 25 mm
• Rychlost ventilátoru: 800 ~ 1800 RPM
• Proud vzduchu: 64.05 CFM
• Hladina hluku: 30 dBA ± 10%
• TDP: 210W
• Způsob chlazení: Kapalina (voda)
• Kompatibilní zařízení: Desktop

8. Záruka a podpora

Pro informace o záruce, technickou podporu nebo servisní dotazy se prosím obraťte na oficiální stránky společnosti Aigo. webnebo se obraťte na prodejce. Uschovejte si doklad o koupi pro případ reklamace.

Official Aigo Webmísto: www.aigocooler.com (Poznámka: Toto je zástupný symbol URL. Please verify the actual official website for Aigo products.)
