Ortis Refrigerator Surge Protector HRSP-01Y User Manual

1. Úvod

The Ortis Refrigerator Surge Protector HRSP-01Y is designed to safeguard your valuable home appliances, particularly refrigerators, from various electrical abnormalities. This device offers protection against high and low voltage, power spikes, instant surges, power failures, voltage fluctuations, brownouts, and load shedding. By regulating the power supply and introducing a time delay after power restoration, it helps to extend the lifespan of your appliances and prevent costly damage.

Figure 1: Ortis Refrigerator Surge Protector HRSP-01Y. This image shows the front of the yellow surge protector with two standard North American outlets and LED indicators.

2. Bezpečnostní informace

• Před použitím zařízení si přečtěte všechny pokyny.
• Do not disassemble or modify the surge protector.
• Ensure the wall outlet and appliance plug are in good condition before connection.
• Nepřekračujte maximální jmenovitý proud 15 Amps.
• Toto zařízení je určeno pouze pro použití v interiéru. Nevystavujte jej vlhkosti nebo extrémním teplotám.
• Uchovávejte mimo dosah dětí.

3. Vlastnosti produktu

• Professional Surge Protection: Protects against high/low voltage, spikes, instant surges, power failures, voltage fluctuations, brownouts, and load shedding.
• Double Outlets: Features two outlets to protect two appliances simultaneously, such as a refrigerator and a microwave, water cooler, or dishwasher.
• Simple LED Indicators: Clearly displays normal voltage, vysoký objemtage (>135VAC), low voltage (<90VAC), and time delay status.
• 3-Minute Delay Function: Automatically re-connects power after a 3-minute delay once voltage stabilizes, preventing damage from rapid power cycling.
• Kompaktní design: Plug-and-play design that does not obstruct adjacent wall outlets.
• Široká kompatibilita: Ideal for refrigerators and domestic freezers up to 27 cu. ft., and other home appliances.

Figure 2: The surge protector offers comprehensive protection including power-back surge, high voltage, nízký objemtage, lightning, and spike/surge protection.

4. Pokyny k nastavení

1. Rozbalit: Carefully remove the Ortis Refrigerator Surge Protector from its packaging.
2. Kontrolovat: Check the device for any visible damage. Do not use if damaged.
3. Připojit: Insert the surge protector's plug into a standard 3-pin (North American Type B) wall outlet. Ensure it is securely seated.
4. Připojení spotřebičů: Plug your refrigerator and/or another compatible appliance into the two outlets on the surge protector. Ensure the appliance plugs are fully inserted.
5. Ověřte: Observe the LED indicators on the surge protector to confirm proper operation (refer to Section 6 for LED indicator details).

Figure 3: The surge protector connected to a refrigerator and another appliance in a kitchen setting. This demonstrates its dual outlet capability.

Figure 4: The back of the surge protector, illustrating its design for easy installation and potential wall mounting to save space.

5. Návod k obsluze

Once connected, the Ortis Refrigerator Surge Protector operates automatically. It continuously monitors the incoming voltage for abnormalities. If the voltage deviates from the safe operating range (below 90VAC or above 135VAC), the device will automatically cut off power to the connected appliances to prevent damage.

When the power supply returns to a stable voltage, the surge protector initiates a 3-minute time delay. This delay is crucial for appliances with compressors, such as refrigerators, allowing internal pressures to equalize before restarting. This prevents stress on the compressor and prolongs its operational life. After the 3-minute delay, if the voltage remains stable, power will be restored to your appliances.

Figure 5: The device responds quickly to voltage abnormalities, typically within 0.5 seconds, to protect connected appliances.

6. LED indikátory

The surge protector features clear LED indicators to display the current voltage stav:

• Vysoký objemtage (>135VAC) Indicator: Lights up when the incoming voltage exceeds 135VAC. Power to appliances is cut off.
• Nízký objemtage (<90VAC) Indicator: Lights up when the incoming voltage drops below 90VAC. Power to appliances is cut off.
• Normální svtage Indikátor: Lights up when the incoming voltage is within the safe operating range (90VAC to 135VAC).
• Delay Period Indicator: Lights up during the 3-minute delay period after power restoration or voltage stabilizace.

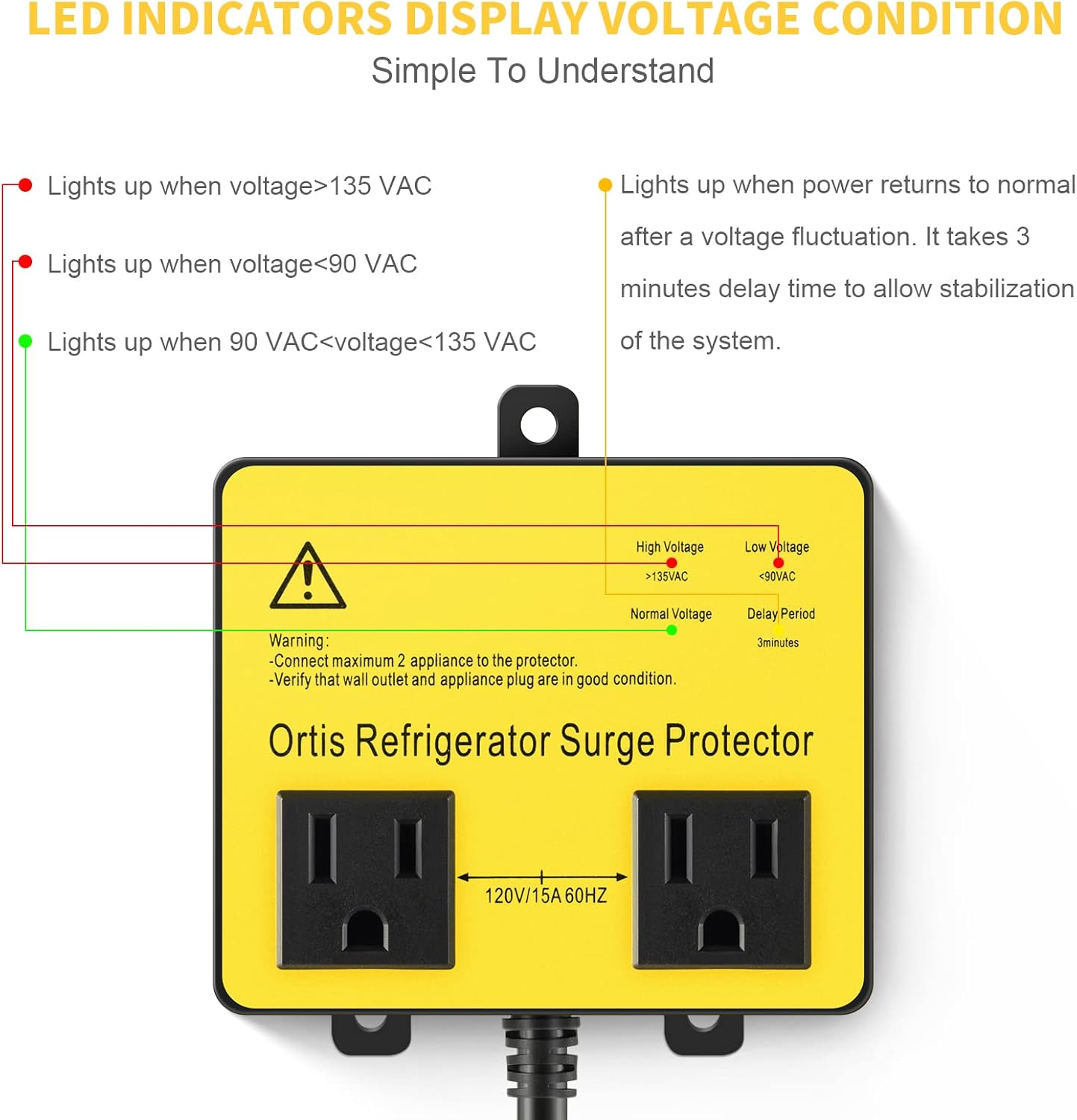

Obrázek 6: Detailní view of the LED indicators. The image shows the labels for High Voltage, Low Voltage, Normal Voltage, and Delay Period, with corresponding lights.

7. Údržba

The Ortis Refrigerator Surge Protector requires minimal maintenance. Follow these guidelines to ensure its continued performance:

• Čištění: Periodically wipe the exterior of the device with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Inspekce: Regularly inspect the surge protector, its cord, and the connected appliance cords for any signs of wear, damage, or overheating.
• Větrání: Ensure the device is not covered or placed in an area where ventilation is restricted.
• Skladování: If storing the device, keep it in a cool, dry place away from direct sunlight and moisture.

8. Řešení problémů

9. Specifikace

Figure 7: Dimensions of the surge protector, showing its compact size for easy placement.

10. Záruka a podpora

For warranty information or technical support, please refer to the product packaging or contact Ortis customer service directly. Keep your purchase receipt for warranty claims.

Kontaktní údaje na podporu často najdete na oficiálních stránkách výrobce webwebu nebo prostřednictvím prodejce, u kterého byl produkt zakoupen.
