Veleco COSMO Electric Wheelchair User Manual

1. Úvod

Thank you for choosing the Veleco COSMO Electric Wheelchair. This lightweight, foldable electric wheelchair is designed to provide mobility and independence with ease of use. Featuring a powerful 500-watt motor and intuitive joystick control, the COSMO is built for comfort, safety, and convenience. Please read this manual thoroughly before operating the wheelchair to ensure safe and proper use.

Figure 1.1: The Veleco COSMO Electric Wheelchair, showcasing jeho kompaktním a moderním designem.

Klíčové vlastnosti:

• Ovládání joystickem: Easy control via a user-friendly joystick, flexibly mountable on the left or right armrest.
• Elektromagnetické brzdy: Reliable electromagnetic brakes ensure safe and quick deceleration.
• 500wattový motor: Two powerful motors, each 250 watts, enable smooth and powerful movement.
• Reverzní funkce: The reverse function increases maneuverability and facilitates backing up the wheelchair.
• Pelvic Belt: Additional safety is provided by a mounted pelvic belt, ensuring stability during movement.
• 13 Ah Lithium-Ion Battery: A large, durable 13 Ah lithium-ion battery provides sufficient range and can be easily recharged at home.
• Elektrický klakson: An electric horn enhances safety and facilitates communication in traffic environments.
• Praktické boční kapsy: Integrated side pockets allow for convenient storage of personal items while on the go.
• Regulátor rychlosti: An adjustable speed controller allows the user to individually adjust the travel speed.
• Charger and Batteries Included: Fully equipped with a charger and the necessary batteries for problem-free use.

2. Bezpečnostní informace

Your safety is paramount. Please adhere to all safety guidelines to prevent injury or damage to the wheelchair.

• Always read the entire manual before first use.
• Consult with a healthcare professional to ensure this device is suitable for your specific needs.
• Do not exceed the maximum weight capacity of the wheelchair (refer to specifications).
• Always wear the pelvic safety belt when operating the wheelchair.
• Avoid operating the wheelchair on steep inclines, uneven terrain, or near bodies of water.
• Před delším používáním se ujistěte, že je baterie plně nabitá.
• Do not expose the wheelchair or battery to extreme temperatures or direct sunlight for prolonged periods.
• Udržujte ruce a oděv v dostatečné vzdálenosti od pohyblivých částí, zejména kol a motorů.
• Always engage the electromagnetic brakes when stopping or parking.
• Do not attempt to modify the wheelchair. Any modifications may void the warranty and compromise safety.
• Use only the charger provided by Veleco for charging the battery.

3. Konec produktuview

Familiarize yourself with the main components of your Veleco COSMO Electric Wheelchair.

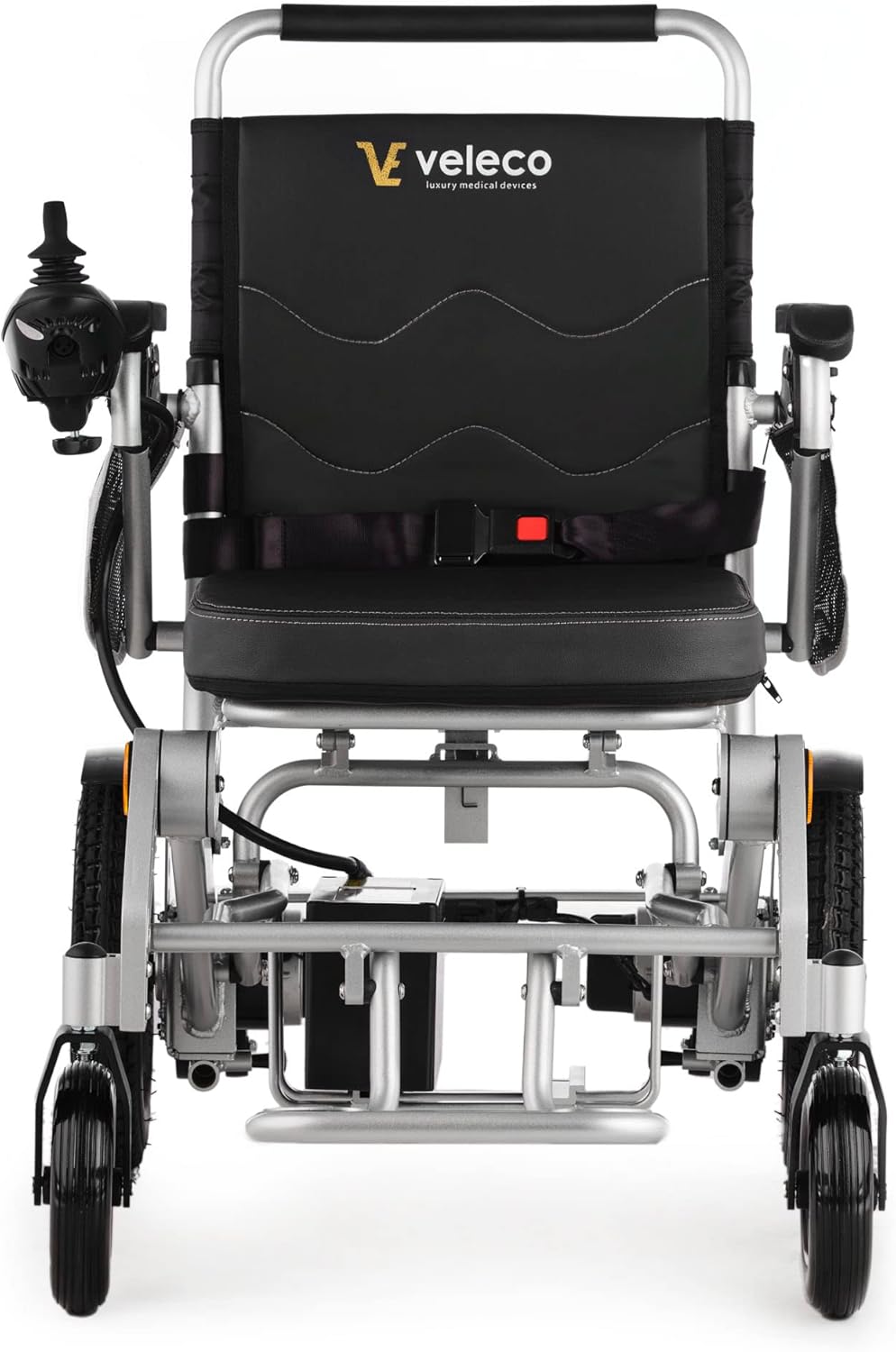

Obrázek 3.1: Přední strana view, highlighting the footrest and front wheels.

Obrázek 3.2: Zadní view, showing the push handles and rear wheels.

Obrázek 3.3: Detailní view of the joystick control panel with power, speed, and horn buttons.

Obrázek 3.4: View of the powerful 250-watt electric motors on each rear wheel.

4. Nastavení a montáž

4.1 Rozložení invalidního vozíku

The Veleco COSMO is designed for easy folding and unfolding. Follow these steps to prepare your wheelchair for use:

1. Složený invalidní vozík umístěte na rovný a stabilní povrch.
2. Grasp the backrest and gently pull upwards until the frame begins to unfold.
3. Push down on the seat frame until it locks securely into place. Ensure all locking mechanisms are engaged.
4. Nastavte opěrku nohou do požadované polohy.

Figure 4.1: Visual guide to the folding and unfolding process of the wheelchair.

4.2 Attaching the Joystick

The joystick can be mounted on either the left or right armrest for user convenience.

1. Locate the mounting bracket on the armrest.
2. Slide the joystick into the bracket until it clicks into place.
3. Connect the joystick cable to the corresponding port on the wheelchair. Ensure a secure connection.

4.3 Instalace a nabíjení baterie

The wheelchair comes with a 13 Ah lithium-ion battery. Ensure it is properly installed and charged before first use.

1. Vyhledejte přihrádku na baterii, obvykle pod sedadlem.
2. Insert the battery into the compartment, ensuring it is seated firmly.
3. Connect the battery cable to the wheelchair's power system.
4. To charge, connect the charger to the charging port on the wheelchair or directly to the battery if removable. Plug the charger into a standard wall outlet.
5. The charger will indicate charging status (e.g., red for charging, green for fully charged).

5. Návod k obsluze

5.1 Zapnutí/vypnutí

• To power on, press the power button on the joystick controller. The indicator lights will illuminate.
• Chcete-li zařízení vypnout, stiskněte a podržte tlačítko napájení, dokud světla nezhasnou.

5.2 Ovládání joystickem

The joystick provides intuitive control over the wheelchair's movement.

• Vpřed: Gently push the joystick forward. The further you push, the faster the wheelchair will move (up to the set speed limit).
• Zpět: Gently pull the joystick backward for reverse movement.
• Soustružení: Push the joystick left or right to turn in the desired direction.
• Zastavení: Release the joystick. The electromagnetic brakes will automatically engage, bringing the wheelchair to a smooth stop.

5.3 Nastavení rychlosti

Use the speed control buttons on the joystick to adjust the maximum speed.

• Press the '+' button to increase speed.
• Press the '-' button to decrease speed.
• The speed indicator lights on the joystick will show the current speed setting.

5.4 Electric Horn

Press the horn button on the joystick to alert others of your presence.

5.5 Bezpečnostní pás

Always fasten the pelvic safety belt before operating the wheelchair to ensure stability and prevent accidental falls.

6. Údržba a péče

6.1 Čištění

• Otřete rám a sedadlo čisticím prostředkemamp hadříkem a jemným čisticím prostředkem.
• Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
• Avoid direct water spray on electrical components.

6.2 Péče o baterii

• Charge the battery regularly, even if the wheelchair is not in frequent use, to prolong its lifespan.
• Baterii skladujte na chladném a suchém místě.
• Před nabíjením baterii zcela nevybíjejte.

6.3 Pravidelné kontroly

• Periodically check tire pressure (if applicable) and tread wear.
• Zkontrolujte utažení všech šroubů a upevňovacích prvků.
• Ujistěte se, že všechna elektrická připojení jsou bezpečná a nepoškozená.
• Test the brakes and horn regularly.

7. Řešení problémů

Tato část se zabývá běžnými problémy, se kterými se můžete setkat. V případě problémů, které zde nejsou uvedeny, se obraťte na zákaznickou podporu.

8. Specifikace

Technical specifications for the Veleco COSMO Electric Wheelchair.

Figure 8.1: Folded dimensions of the Veleco COSMO Electric Wheelchair.

9. Záruka a podpora

Veleco stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Veleco webmísto.

If you encounter any issues or have questions regarding your Veleco COSMO Electric Wheelchair, please contact our customer support team. Have your model number (COSMO) and purchase information ready for faster assistance.

Kontaktní údaje:

• Please refer to your product packaging or the Veleco webstránky s nejaktuálnějšími kontaktními údaji.
