Zavedení
The Datalogic QuickScan QD2590 is a high-performance, handheld 2D barcode imager designed for various point-of-sale (POS) and general-purpose applications. This device offers fast and reliable scanning of 1D and 2D barcodes, ensuring efficient data capture. Its durable design and flexible connectivity options (USB, RS-232) make it suitable for diverse environments. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your QD2590 scanner.
Nastavení
1. Vybalení skeneru
Opatrně vyjměte všechny součásti z obalu. Zkontrolujte, zda jsou přítomny všechny položky uvedené v části „Co je v krabici“.
- QuickScan QD2590 Portable 1D/2D Barcode Reader (Black)
2. Připojení skeneru
The QD2590 scanner supports USB and RS-232 connectivity. Connect the appropriate cable to the scanner's interface port and then to your host device (computer, POS system).
Pro připojení USB: Plug the USB cable into an available USB port on your computer. The scanner will typically be recognized automatically, and necessary drivers will be installed by the operating system.
For RS-232 Connection: Connect the RS-232 cable to a serial port on your host device. Ensure proper configuration of the serial port settings on your host system to match the scanner's default settings (e.g., baud rate, data bits, parity, stop bits).

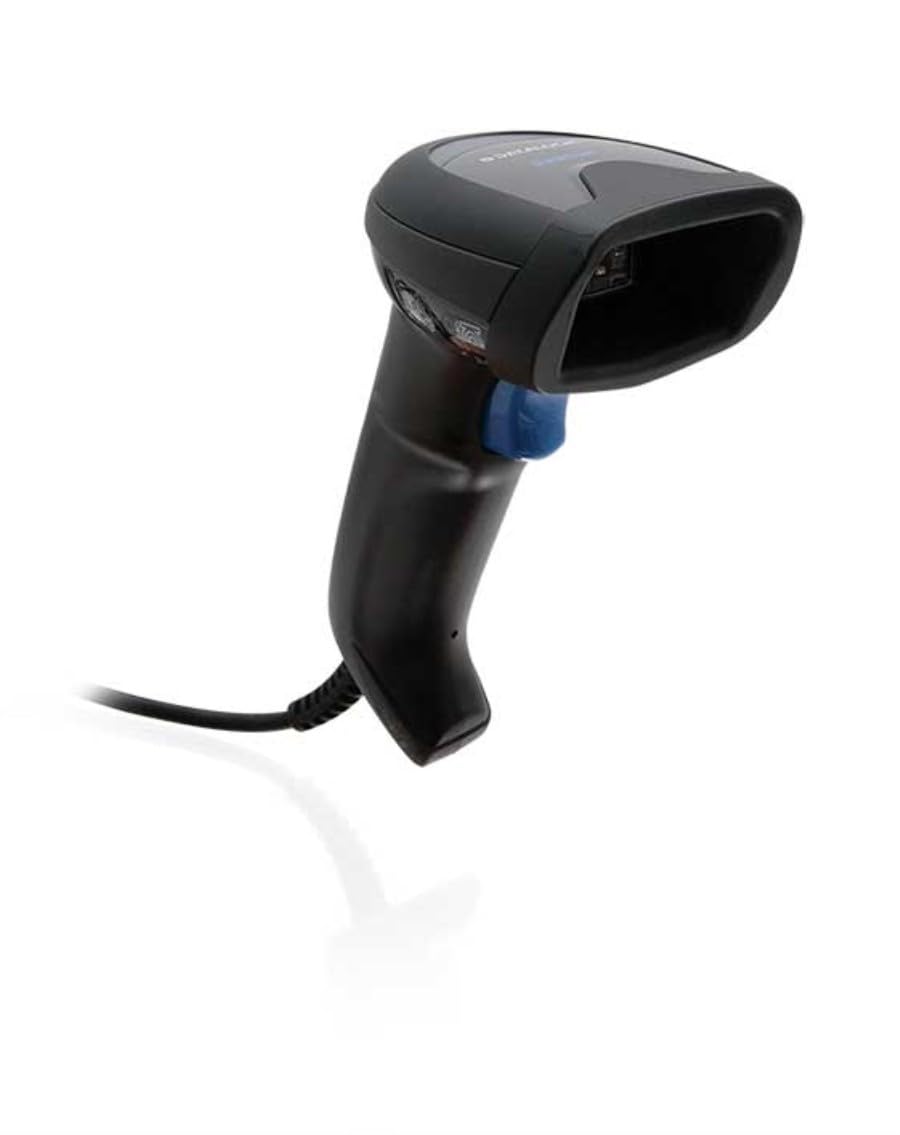

Image: The Datalogic QuickScan QD2590 scanner showing its wired connection.
Obsluha skeneru
1. Základní postup skenování
- Ensure the scanner is properly connected and powered on.
- Namiřte okénko skeneru na čárový kód, který chcete naskenovat.
- Press and hold the trigger button. A red aiming beam will appear.
- Center the aiming beam over the entire barcode.
- Once the barcode is successfully read, the scanner will emit an audible beep and/or the LED indicator will change color (typically green).
- Release the trigger button. The scanned data will be transmitted to your host device.
2. Scanning Feedback
- Indikátor dobrého čtení: A successful scan is typically indicated by a green LED and a configurable beep sound.
- Zaměřovací paprsek: The red aiming beam helps position the scanner correctly over the barcode.
Obrázek: Přední strana view of the Datalogic QuickScan QD2590, highlighting the scanning area.
Údržba
1. Čištění skeneru
To ensure optimal performance, keep the scanner's window clean. Use a soft, lint-free cloth dampened with water or a mild, non-abrasive cleaner. Do not use harsh chemicals, solvents, or abrasive materials, as these can damage the scanning window or casing.
2. Skladování
When not in use, store the scanner in a clean, dry environment, away from extreme temperatures, direct sunlight, and corrosive materials. Avoid dropping or subjecting the scanner to excessive impact.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Skener se nezapne. | Cable not connected properly; host device not powered on. | Check cable connections. Ensure host device is powered on. |
| Skener nečte čárové kódy. | Barcode damaged or poorly printed; incorrect symbology enabled; scanning window dirty; scanner not configured correctly. | Try scanning a different barcode. Clean the scanning window. Refer to the full product manual for symbology enablement and advanced configuration. |
| Naskenovaná data jsou nesprávná nebo neúplná. | Incorrect data formatting; partial scan. | Ensure the aiming beam covers the entire barcode. Check host application settings for data formatting. |
| No audible beep on good read. | Beeper disabled in configuration. | Refer to the full product manual to enable the beeper. |
For more detailed troubleshooting and advanced configuration, please refer to the complete Datalogic QuickScan QD2590 product manual available on the Datalogic webmísto.
Technické specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | W126053080 |
| Typ skeneru | Handheld 2D Imager |
| Typ prvku skenování | 2D Imager - Red LED Sensor |
| Rozlišení snímače | 1280 x 800 pixelů |
| Rychlost skenování | 60 snímků za sekundu (fps) |
| Minimum Bar Symbol Width | 3 mil |
| Technologie připojení | Wired (USB, RS-232) |
| Zdroj napájení | DC 5V (via cable) |
| Rozměry (Š x H x V) | 6.8 cm x 12.6 cm x 14.8 cm |
| Hmotnost | 145 g |
| Barva | Černý |
| Kompatibilní zařízení | Smartphone, laptop, desktop, tablet |
| Nemovitý View Úhel | 40 stupňů |
Záruka a podpora
Informace o záruce
The Datalogic QuickScan QD2590 barcode scanner comes with a 2letá záruka výrobceTato záruka se vztahuje na vady materiálu a zpracování při běžném používání. Uschovejte si prosím doklad o koupi pro případ uplatnění záruky.
Zákaznická podpora
For technical assistance, product inquiries, or warranty service, please contact Datalogic customer support. Visit the official Datalogic webstránky s kontaktními údaji, častými dotazy a dalšími zdroji.
Oficiální společnost Datalogic Webmísto: www.datalogic.com
