U.S. Solid 3/4-inch Motorized Ball Valve

1. Úvod

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your U.S. Solid 3/4-inch Motorized Ball Valve. Please read these instructions thoroughly before installation and use, and retain this manual for future reference.

The U.S. Solid motorized ball valve is constructed from durable SS304 stainless steel, ensuring a lead-free and safe solution for various applications, including potable water systems. It features a full port design for optimal flow and operates on a wide voltage range of 9-24V AC/DC. The valve is designed for quick open/close cycles (3-5 seconds) and automatically ceases power consumption once fully open or closed, preventing overheating and promoting energy efficiency. An IP65 enclosure rating provides protection against dust and water jets, ensuring longevity in diverse environments. This model also includes a manual override function for operation during power outages or specific maintenance needs.

2. Bezpečnostní informace

• Před instalací, údržbou nebo řešením problémů vždy odpojte napájení.
• Ensure proper electrical wiring according to local codes and regulations.
• Do not exceed the maximum pressure or temperature ratings specified for the valve.
• Během instalace a údržby používejte vhodné osobní ochranné prostředky (OOP).
• Avoid exposing the valve to corrosive chemicals or environments beyond its specified material compatibility.
• Ensure the valve is installed in a location where it is protected from physical damage.

3. Konec produktuview

The U.S. Solid motorized ball valve combines robust construction with intelligent design for reliable fluid control. Its key components include the stainless steel valve body, the electric actuator, and a manual override mechanism.

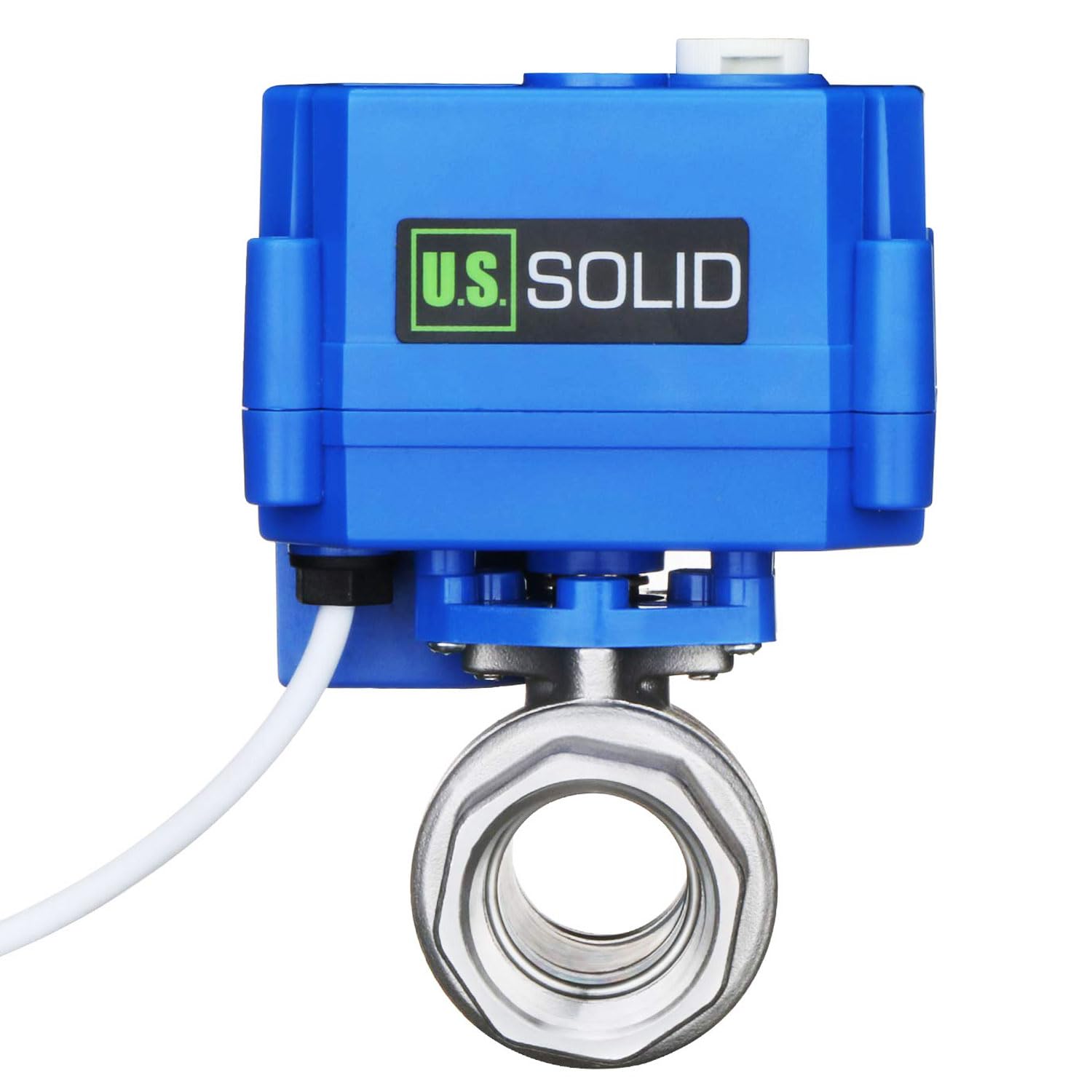

Obrázek 1: Přední strana view of the U.S. Solid 3/4-inch Motorized Ball Valve.

Klíčové vlastnosti:

• Materiál: SS304 Stainless Steel body and stem, PTFE ball seat, EPDM seal.
• svtage: 9-24V AC/DC wide operating voltage rozsah.
• Operace: Full port design for unrestricted flow; 3-5 second open/close time.
• Energetická účinnost: Power consumption ceases once the valve reaches its fully open or closed position.
• Ochrana: IP65 rated enclosure for dust and water jet resistance.
• Ruční ovládání: Allows for manual operation of the valve.
• Position Indicator: Visual indicator on the actuator shows the current valve position (open/closed).

Figure 2: Close-up of the manual override knob and position indicator.

4. Specifikace

Obrázek 3: Nahoře view of the valve actuator showing key specifications.

5. Nastavení a instalace

Proper installation is crucial for the valve's performance and longevity. Follow these general guidelines:

1. Příprava: Ensure the pipeline is clean and free of debris before installation. Verify that the valve's specifications (size, pressure, temperature) match your application requirements.
2. Montáž: Install the valve in the desired position, ensuring the flow direction matches the application. The valve can be installed in any orientation, but ensure adequate space for wiring and manual override access.
3. Řezání závitů: Apply appropriate thread sealant (e.g., PTFE tape) to the pipe threads. Carefully thread the valve onto the pipes, ensuring a tight, leak-free connection. Do not overtighten, as this can damage the valve body or threads.
4. Zapojení: This valve uses a 3-wire positive break configuration. Connect the power supply (9-24V AC/DC) to the appropriate terminals on the actuator. Refer to the wiring diagram (if provided with the product packaging) for specific connections. Ensure all electrical connections are secure and insulated.
5. Testování: After installation and wiring, slowly introduce fluid into the system and check for leaks. Then, apply power and test the motorized operation.

6. Návod k obsluze

Motorizovaný provoz:

The valve operates by applying power to the actuator. Depending on the wiring configuration, applying power will either open or close the valve. The actuator will automatically stop once the valve reaches its fully open or closed position.

• To open the valve: Apply power to the designated 'open' wire.
• To close the valve: Apply power to the designated 'close' wire.
• The position indicator on top of the actuator provides a visual confirmation of the valve's current state.

Funkce ručního ovládání:

This valve is equipped with a manual override feature, allowing you to operate it without electrical power or to adjust it if the valve is stuck.

• To engage manual override: Locate the manual override knob on the side of the actuator (refer to Figure 2).
• Operace: Turn the knob to manually open or close the valve. The position indicator will move accordingly.
• Uvolnění: Once manual adjustment is complete, ensure the knob is returned to its neutral position to allow for motorized operation.

7. Údržba

The U.S. Solid motorized ball valve is designed for minimal maintenance. However, periodic checks can ensure optimal performance and extend its lifespan.

• Pravidelná kontrola: Pravidelně kontrolujte ventil, zda nevykazuje známky netěsností, koroze nebo fyzického poškození.
• Čištění: Keep the exterior of the actuator clean and free from excessive dust or debris. Do not use harsh chemicals that could damage the IP65 enclosure.
• Elektrické připojení: Ujistěte se, že všechna elektrická připojení zůstanou bezpečná a bez koroze.
• Funkce aktuátoru: Occasionally cycle the valve through its full open and close positions to ensure smooth operation.
• Výměna těsnění: If leaks occur around the stem or ball, the seals (PTFE ball seat, EPDM gasket) may need replacement by a qualified technician.

8. Řešení problémů

9. Záruka a podpora

For warranty information, technical support, or service inquiries, please contact U.S. Solid customer service. Keep your purchase receipt and model number (USS-MSV00203) handy when contacting support.

Contact information can typically be found on the U.S. Solid official webna webu nebo prostřednictvím vašeho nákupního místa.
