1. Úvod
This manual provides detailed instructions for the installation, operation, and maintenance of your FLITI 110V Motion Sensor Outdoor Flood Light. Please read this manual thoroughly before installation and use to ensure proper function and safety. This hardwired security light offers 2500 lumens of brightness, an 8-meter sensing distance, and convenient remote control functionality with multiple lighting modes.
2. Vlastnosti produktu
- Super Bright Hardwired Design: 15-watt LED equivalent to 150-watt traditional halogen bulbs, providing 2500 lumens of high brightness. Requires connection to a power cord; not solar or battery-powered.
- Funkce dálkového ovládání: Easily change lighting modes without needing to access the physical unit.
- Five Night Lighting Modes:
- Motion-activated: High brightness (2500LM) when motion is detected, then turns off.
- Motion-activated with low brightness standby: Low brightness (300LM) standby, switches to high brightness (2500LM) upon motion detection, then returns to low brightness.
- Always On (Micro Brightness): Maintains a constant micro brightness (300LM).
- Always On (Medium Brightness): Maintains a constant medium brightness (700LM).
- Always On (High Brightness): Maintains a constant high brightness (1000LM).
- Durable for Cold Climates: Designed with low-temperature resistant material, suitable for temperatures from -40°C to 0°C, making it ideal for Canadian winters.
- Flexibilní rotační design: Adjustable light heads and sensor for optimal coverage.
- Vodotěsnost IP65: Resistant to rain, snow, and dust for reliable outdoor use.

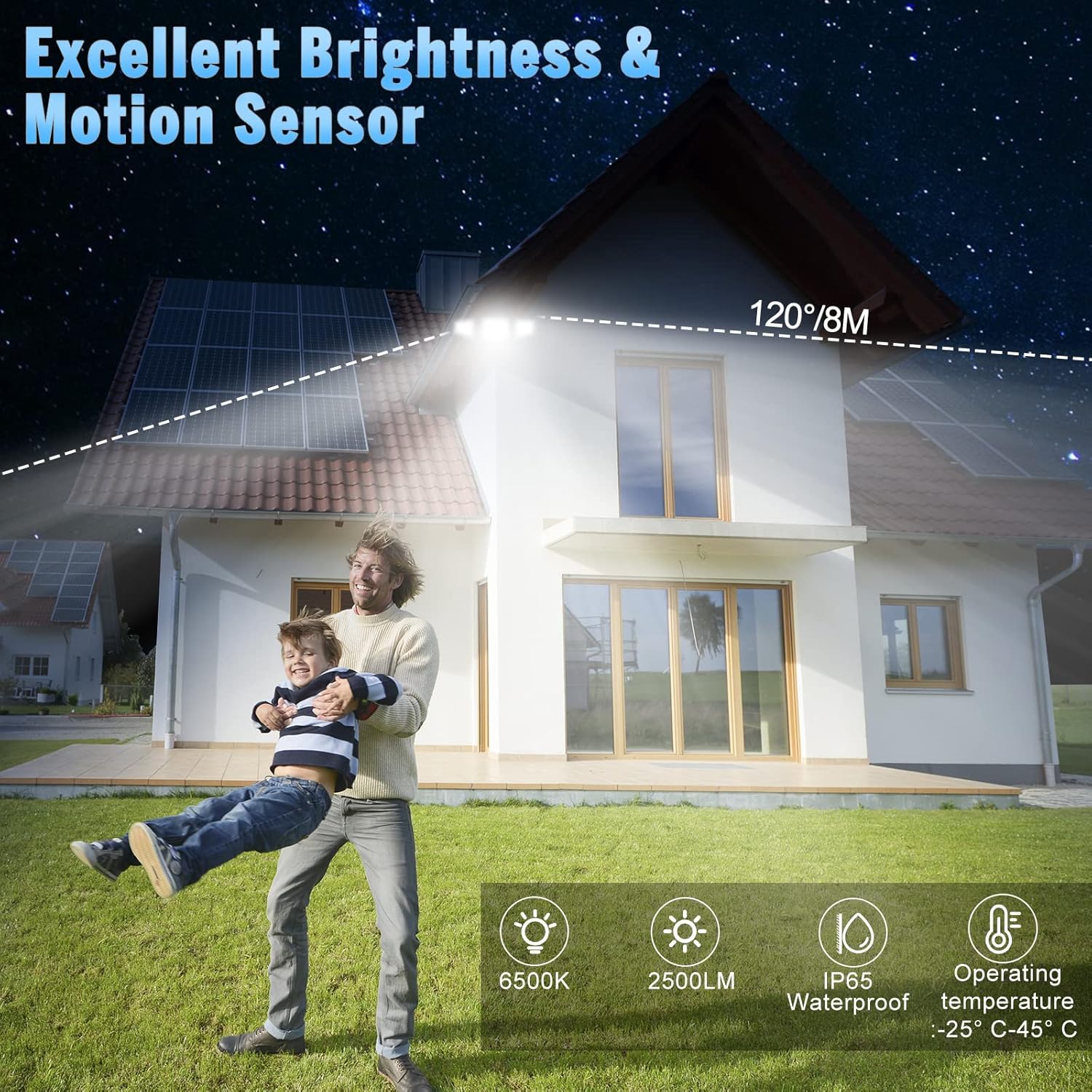

Image: The flood light illuminates a wide area with a 120-degree beam and 8-meter sensing distance. It features 6500K color temperature, 2500LM brightness, IP65 waterproof rating, and operates between -25°C and 45°C.
Image: The flood light features a flexible rotation design, allowing the light heads to adjust 360 degrees horizontally and 90 degrees vertically, and the sensor to adjust 360 degrees horizontally.
3. Bezpečnostní informace
- Před instalací nebo servisem vždy vypněte napájení jističem.
- Pokud si nejste jisti postupem instalace, poraďte se s kvalifikovaným elektrikářem.
- Nepokoušejte se produkt upravovat. Jakékoli úpravy mohou vést ke zrušení záruky a představovat bezpečnostní riziko.
- Ujistěte se, že všechny spoje jsou bezpečné a řádně izolované.
- Do not look directly into the LED light source when illuminated, as it may cause eye damage.
- Udržujte výrobek mimo dosah hořlavých materiálů.
4. Instalace
This flood light is designed for wall mounting and requires hardwired electrical connection. Professional installation is recommended.
4.1 Pokyny pro zapojení
- Vypněte napájení hlavním jističem.
- Remove your existing light fixture, if applicable.
- Connect the live wire (black) from the flood light to the live wire from your electrical box using a wire nut.
- Connect the neutral wire (white) from the flood light to the neutral wire from your electrical box using a wire nut.
- Connect the ground wire (green/yellow) from the flood light to the ground wire from your electrical box.
- Ujistěte se, že všechny spoje jsou těsné a bezpečné.
Image: Wiring diagram showing connections for live, neutral, and ground wires. Ensure proper insulation and secure connections.
4.2 Montáž svítidla
- After wiring, align the mounting plate of the flood light with the junction box.
- Secure the fixture to the wall using the provided screws. Ensure it is firmly attached.
- Adjust the light heads and motion sensor to your desired angles.
- Apply silicone sealant around the top and sides of the mounting plate to prevent water ingress, leaving the bottom open for drainage.
- Obnovte napájení na jističi.
Image: Step-by-step illustration of mounting the flood light to a wall, showing wiring connections and securing the fixture.
5. Návod k obsluze
The FLITI Motion Sensor Outdoor Flood Light can be controlled using the included remote control.
5.1 Funkce dálkového ovládání
Image: The remote control features ON/OFF buttons and numbered buttons (1-5) corresponding to different lighting modes.
- ON/OFF: Zapíná nebo vypíná světlo.
- Mode 1 (Motion Sensor - High Brightness): Light remains off until motion is detected, then illuminates at 2500LM for a set duration (e.g., 20 seconds) before turning off.
- Mode 2 (Low Brightness Standby + Motion Sensor - High Brightness): Light stays at a low brightness (300LM) until motion is detected, then switches to 2500LM. After motion ceases, it returns to low brightness.
- Mode 3 (Always On - Micro Brightness): Light stays on continuously at 300LM.
- Mode 4 (Always On - Medium Brightness): Light stays on continuously at 700LM.
- Mode 5 (Always On - High Brightness): Light stays on continuously at 1000LM.
Obrázek: Vizuální examples of the five lighting modes, illustrating how the light behaves with and without motion detection at different brightness levels.
5.2 Nastavení senzoru
The motion sensor can be adjusted for sensitivity and duration. Refer to the sensor unit for specific dial settings (e.g., DISTANCE, TIME).
Video: Demonstration of Mode 1 (off to high light for 20 seconds) and Mode 2 (dim to high light for 20 seconds) in action, showing how the light responds to motion.
Video: Explanation of motion sensor settings, including adjustments for sensing distance (L, M, H) and light duration (1 min, 3 min, 10 min), and a test mode.
6. Údržba
- Čištění: Svítidlo pravidelně čistěte měkkým hadříkemamp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Inspekce: Regularly inspect the wiring and housing for any signs of damage or wear.
- LED diody: LED světelný zdroj je integrovaný a nelze jej vyměnit uživatelem.
7. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Světlo se nerozsvítí. | No power; faulty wiring; sensor malfunction. | Check circuit breaker. Verify wiring connections. Test sensor sensitivity. |
| Pohybový senzor nedetekuje. | Sensor obstructed; incorrect sensitivity setting; ambient light interference. | Clear obstructions. Adjust sensor sensitivity (DISTANCE dial). Ensure sensor is not facing direct light sources. |
| Light stays on continuously (in motion modes). | Continuous motion detected; incorrect mode selected; sensor malfunction. | Ensure no constant motion in sensor range. Verify correct mode (Mode 1 or 2). Adjust sensor settings. |
| Dálkové ovládání nefunguje. | Battery depleted; remote out of range; obstruction. | Replace remote battery. Ensure remote is within effective range and pointed towards the light. Remove obstructions. |
8. Specifikace
| Funkce | Specifikace |
|---|---|
| Číslo modelu | světlo-12.5 |
| Zdroj napájení | Electric (Hardwired) |
| svtage | 120 voltů |
| Wattage | 15 wattů |
| Jas | 2500 lumenů (max.) |
| Teplota barev | 6500 Kelvinů |
| Kontrolní metoda | Dálkové ovládání |
| Vnitřní/venkovní použití | Venkovní |
| Úroveň odolnosti proti vodě | IP65 Vodotěsný |
| Materiál | Plastic, Glass (Shade) |
| Rozměry produktu | 25D x 25Š x 25V milimetrů |
| Hmotnost položky | 0.96 kg |
| Typ montáže | Wall Mount, Semi Flush Mount |
9. Záruka a podpora
FLITI offers a 1-letá záruka for this product from the date of purchase. We also provide a 30-day money-back guarantee. If you encounter any issues or have questions regarding your FLITI Motion Sensor Outdoor Flood Light, please contact our customer support for assistance. Our goal is to provide professional and reliable LED lamps and excellent after-sales experience.
