VIVO 26 inch Desk Converter K Series Instruction Manual (DESK-V026KF)

Konec produktuview

The VIVO 26 inch Desk Converter, K Series (Model DESK-V026KF), is a height-adjustable sit-to-stand riser designed to transform your existing desk into an ergonomic workstation. This converter allows you to easily switch between sitting and standing positions throughout your workday, promoting better posture and increased productivity.

• Okamžité aktivní stání: Provides on-demand standing to relieve muscle tension, reduce stress, and increase productivity.
• Prostorově efektivní design: The top surface measures 25.6” x 15.7”, fitting easily into most workspaces. A synchronized keyboard tray (25.4” x 11.8”) ensures a comfortable setup.
• Odolná konstrukce: Features a strong steel frame that resists scratches and supports up to 33 lbs on the desktop and 4.4 lbs on the keyboard tray.
• Smooth Height Adjustment: Utilizes a simple touch height locking mechanism with a lift assist for smooth transitions between 4.5” and 16.9” (vertical lift design).
• Minimal Assembly: The unit arrives nearly pre-assembled, requiring only the attachment of the keyboard tray.

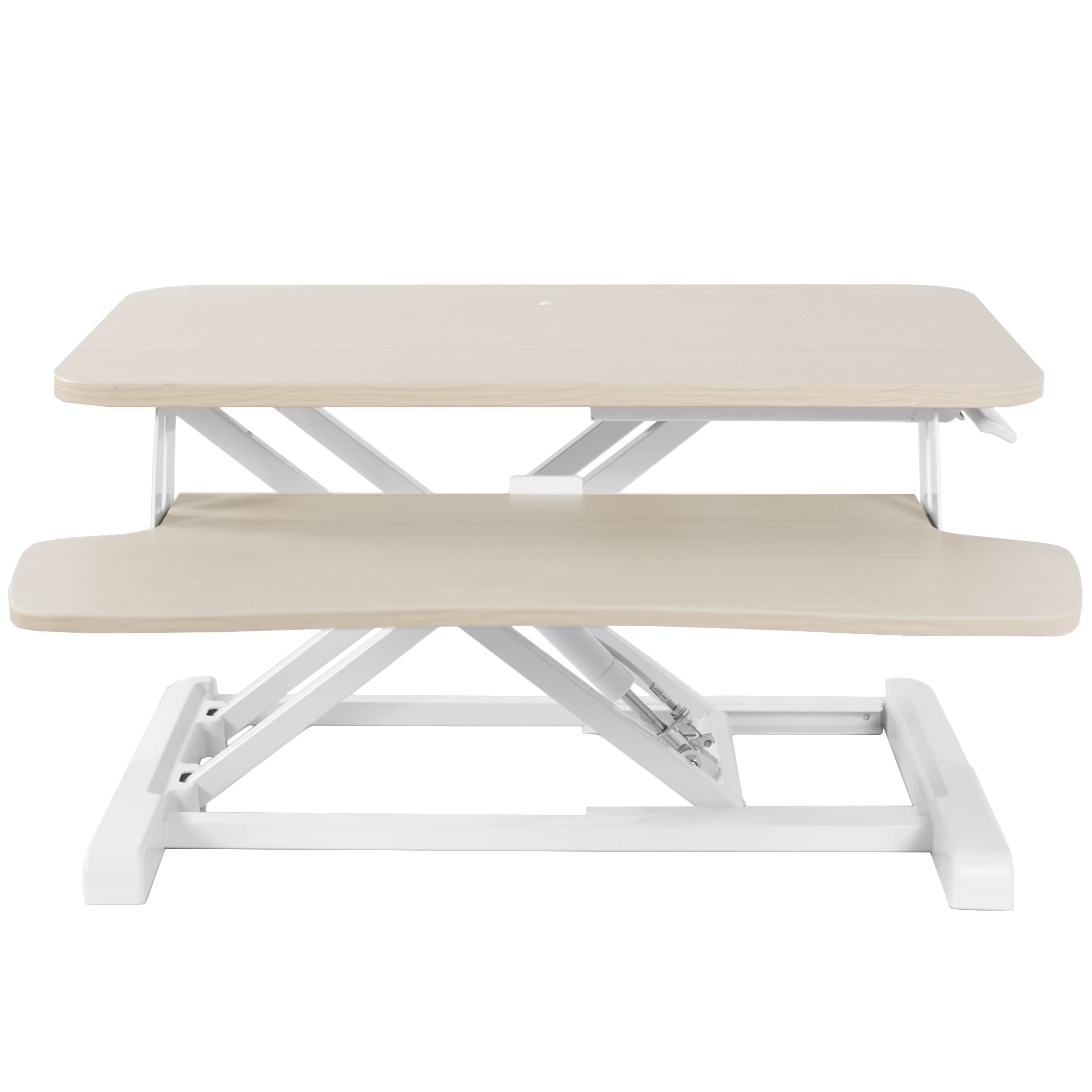

Figure 1: VIVO 26 inch Desk Converter (DESK-V026KF) in Light Wood.

Nastavení a montáž

The VIVO 26 inch Desk Converter is designed for minimal assembly, allowing you to quickly integrate it into your workspace. Follow these steps to set up your new desk converter:

1. Rozbalte jednotku: Carefully remove all components from the packaging. Ensure all parts listed in the included assembly instructions are present.
2. Place on Existing Desk: Position the main riser unit on your existing desk in the desired location.
3. Připojení přihrádky na klávesnici: Secure the keyboard tray to the main unit using the provided mounting hardware and hex tool. This typically involves aligning the tray with the pre-drilled holes and fastening with screws.
4. Uspořádejte kabely: Route any monitor, keyboard, or mouse cables to prevent tangling during height adjustments.

Figure 2: The VIVO Desk Converter seamlessly integrates into an existing office setup.

Figure 3: The patented X-frame design provides stable vertical lift.

Návod k obsluze

The VIVO Desk Converter features a pneumatic lift assist mechanism for smooth and effortless height adjustments. Always ensure the desktop is clear of obstructions before adjusting the height.

• Zvednutí stolu: Locate the height adjustment lever, typically on the side of the desktop. Squeeze the lever and gently lift the desktop upwards. The pneumatic assist will help elevate the unit. Release the lever at your desired standing height.
• Snížení stolu: Squeeze the height adjustment lever and gently push the desktop downwards. Guide the unit to your preferred sitting height and release the lever to lock it in place.

The adjustment range is from 4.5 inches (lowest sitting position) to 16.9 inches (highest standing position).

Figure 4: A user comfortably working at the VIVO Desk Converter in the standing position.

Figure 5: The converter easily lowers to a comfortable sitting position.

Údržba

To ensure the longevity and optimal performance of your VIVO Desk Converter, follow these simple maintenance guidelines:

• Pravidelný úklid: Wipe down the desktop and frame with a soft, damp tkanina. Vyhněte se agresivním chemikáliím, které mohou poškodit povrch.
• Zkontrolujte připojení: Periodically inspect all screws and connections to ensure they are tight. Re-tighten if necessary.
• Vyhněte se přetížení: Do not exceed the maximum weight capacity of 33 lbs for the desktop and 4.4 lbs for the keyboard tray.
• Hladký provoz: If the lift mechanism feels stiff, ensure no debris is obstructing the moving parts. Do not apply lubricants unless specifically recommended by VIVO support.

Specifikace produktu

Figure 6: Detailed dimensions of the 26 inch VIVO Desk Converter.

Bezpečnostní informace

Always prioritize safety when using your VIVO Desk Converter. Adhere to the following guidelines:

• Vždy dodržujte přiložený montážní návod.
• Ensure the desk riser is securely placed on your existing desk and does not wobble or feel unstable.
• Do not exceed the weight limit of 33 lbs on the desktop and 4.4 lbs on the keyboard tray.
• Be cautious when adjusting the height, especially when the riser is at its maximum height of 16.9 inches.
• Keep hands and fingers clear of moving parts during height adjustments to prevent pinching.

Záruka a podpora

The VIVO 26 inch Desk Converter comes with a Omezená záruka. For specific details regarding your warranty coverage, please refer to the documentation included with your product or visit the official VIVO webmísto.

VIVO is a US-based company dedicated to providing high-quality ergonomic office solutions. Their customer and product support teams are readily available to assist with any questions or issues you may encounter.
