Univerzální náhradní dálkové ovládání

Uživatelská příručka

Universal Replacement Remote Control for Daikin AC Units

Model: Univerzální náhradní dálkový ovladač

Značka: Generické

Zavedení

This manual provides essential information for the setup, operation, and maintenance of your new universal replacement remote control. This remote is designed to be compatible with various Daikin AC Room Air Conditioner models, including but not limited to: FTXF25D5V1B, FTXF35D5V1B, FTXF42D5V1B, ATXF20D5V1B, ATXF25D5V1B, RKS18SL216, RKS24SL216, RXS09SL116, RXS09SL216, and RXS12SL116.

Please note that while this remote is a functional replacement, some advanced or specific functions of your original remote may not be fully supported. Refer to the original Daikin AC unit manual for comprehensive details on your air conditioner's features.

Nastavení

1. Instalace baterie

Dálkový ovladač vyžaduje dvě (2) baterie typu AAA (nejsou součástí balení). Pro jejich instalaci postupujte takto:

  1. Najděte kryt prostoru pro baterie na zadní straně dálkového ovladače.
  2. Posuňte kryt dolů nebo stiskněte západku a zvedněte jej, abyste přihrádku otevřeli.
  3. Vložte dvě baterie typu AAA a ujistěte se, že kladný (+) a záporný (-) pól správně srovnávány se značkami uvnitř přihrádky.
  4. Nasaďte kryt přihrádky na baterie tak, že jej zasunete zpět na místo, dokud bezpečně nezacvakne.
Zadní strana dálkového ovladače s odstraněným krytem baterie, na které jsou vidět dva sloty pro baterie AAA.

Figure 1: Battery compartment with cover removed, showing slots for two AAA batteries.

Back of the remote control with the battery cover closed.

Obrázek 2: Zadní view dálkového ovladače s bezpečně zavřeným krytem baterie.

2. První použití

This remote control operates via infrared (IR) technology and typically does not require pairing. Once batteries are installed, point the remote directly at your Daikin AC unit's IR receiver and press the ON/OFF button to test functionality.

Návod k obsluze

Familiarize yourself with the buttons and their functions as shown below:

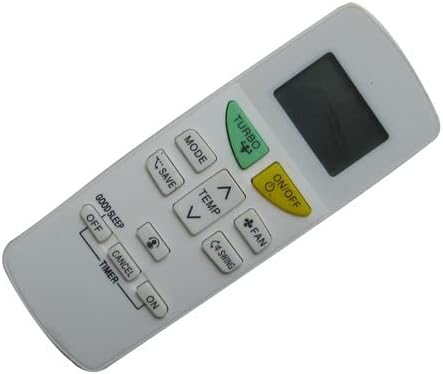

Přední view dálkového ovladače zobrazující všechna tlačítka a displej.

Obrázek 3: Přední strana view of the universal replacement remote control.

TlačítkoFunkce
ON/OFFZapíná nebo vypíná klimatizační jednotku.
TEPLOTA ▲ / ▼Adjusts the temperature setting up or down. The display shows temperature in Celsius.
MODECyklicky provádí provozní režimy (např. Chlazení, Topení, Ventilátor, Odvlhčování, Automaticky).
FANAdjusts fan speed settings.
SWINGActivates or adjusts the louver swing function for air distribution.
TURBOZapíná maximální chladicí/topný výkon pro rychlou změnu teploty.
ULOŽITAktivuje režim úspory energie.
GOOD SLEEPInitiates a specialized sleep mode, often adjusting temperature gradually.
TIMER ON / OFF / CANCELSets a timer for the AC unit to turn on or off automatically. Use CANCEL to disable.

Obecné tipy pro provoz:

  • Ensure a clear line of sight between the remote control and the AC unit's infrared receiver.
  • Avoid placing obstacles between the remote and the unit.
  • The effective range of the remote control is typically up to 8 meters (26 feet).

Údržba

Výměna baterie

Replace batteries when the remote's display becomes dim or the remote becomes unresponsive. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries.

Čištění

Dálkový ovladač otírejte měkkým, suchým hadříkem. Nepoužívejte tekuté čisticí prostředky, abrazivní čisticí prostředky ani chemická rozpouštědla, protože by mohla poškodit povrch dálkového ovladače nebo jeho vnitřní součásti.

Skladování

Pokud dálkový ovladač nebudete delší dobu používat, vyjměte baterie, abyste zabránili jejich vytečení a možnému poškození.

Odstraňování problémů

ProblémMožná příčinaŘešení
Remote not responding or AC unit not reacting.
  • Vybité nebo vybité baterie.
  • Nesprávná instalace baterie.
  • Překážka mezi dálkovým ovladačem a klimatizační jednotkou.
  • Dálkové ovládání mimo dosah.
  • IR přijímač klimatizační jednotky je zablokovaný nebo vadný.
  • Vyměňte baterie za nové.
  • Zkontrolujte polaritu baterie (+/-).
  • Odstraňte všechny předměty blokující cestu signálu.
  • Move closer to the AC unit (within 8 meters).
  • Ensure the AC unit's display/receiver is clean and unobstructed.
Některé funkce nefungují.
  • Náhradní dálkový ovladač nemusí podporovat všechny původní funkce.
  • Specific AC unit model incompatibility for certain features.
  • This is expected for some universal replacement remotes.
  • Refer to your original AC unit manual for specific feature operation.

Specifikace

  • Zdroj napájení: 2 x AAA baterie (nejsou součástí balení)
  • Konektivita: Infračervený (IR)
  • Typ ovladače: Ovládání tlačítkem
  • Speciální vlastnosti: Temperature display in Celsius, Direct replacement functionality
  • Kompatibilní modely: Daikin FTXF25D5V1B, FTXF35D5V1B, FTXF42D5V1B, ATXF20D5V1B, ATXF25D5V1B, RKS18SL216, RKS24SL216, RXS09SL116, RXS09SL216, RXS12SL116, and similar Daikin AC Room Air Conditioner models.

Záruka a podpora

This product is a replacement remote control. Specific warranty terms and support options are typically provided by the seller or manufacturer at the time of purchase. For any issues or inquiries regarding your remote control, please contact the seller directly through your purchase platform.

Manufacturer: Easytry

For further assistance, please refer to the product listing or your purchase documentation.

© 2024 Generické dálkové ovládání. Všechna práva vyhrazena.

Daikin is a registered trademark of Daikin Industries, Ltd. This product is not manufactured or endorsed by Daikin.
