Uživatelská příručka k elektrické sponkovačce a hřebíkovačce Brad WORKPRO 3.6 V

1. Úvod

Thank you for choosing the WORKPRO 3.6V Electric Staple Gun and Brad Nailer. This versatile 2-in-1 tool is designed for various DIY, craft, and light woodworking projects, offering convenience and efficiency. To ensure safe and effective operation, please read this instruction manual thoroughly before using the tool and keep it for future reference.

Image 1: WORKPRO 3.6V Electric Staple Gun and Brad Nailer with included accessories.

2. Obsah balení

The following items are included in your WORKPRO Electric Staple Gun and Brad Nailer package:

• 1 x WORKPRO 3.6V Electric Staple Gun
• 1000 x JT21 Staples
• 1000 x BN18 Nails
• 1 x USB nabíjecí kabel

3. Vlastnosti produktu

• Funkce 2 v 1: This tool functions as both a staple gun and a brad nailer. It is compatible with 1/4 inch to 9/16 inch JT21 staples and 5/8 inch 18GA brad nails. Note: Only use the specified staple and nail types. T50 staples are not compatible.

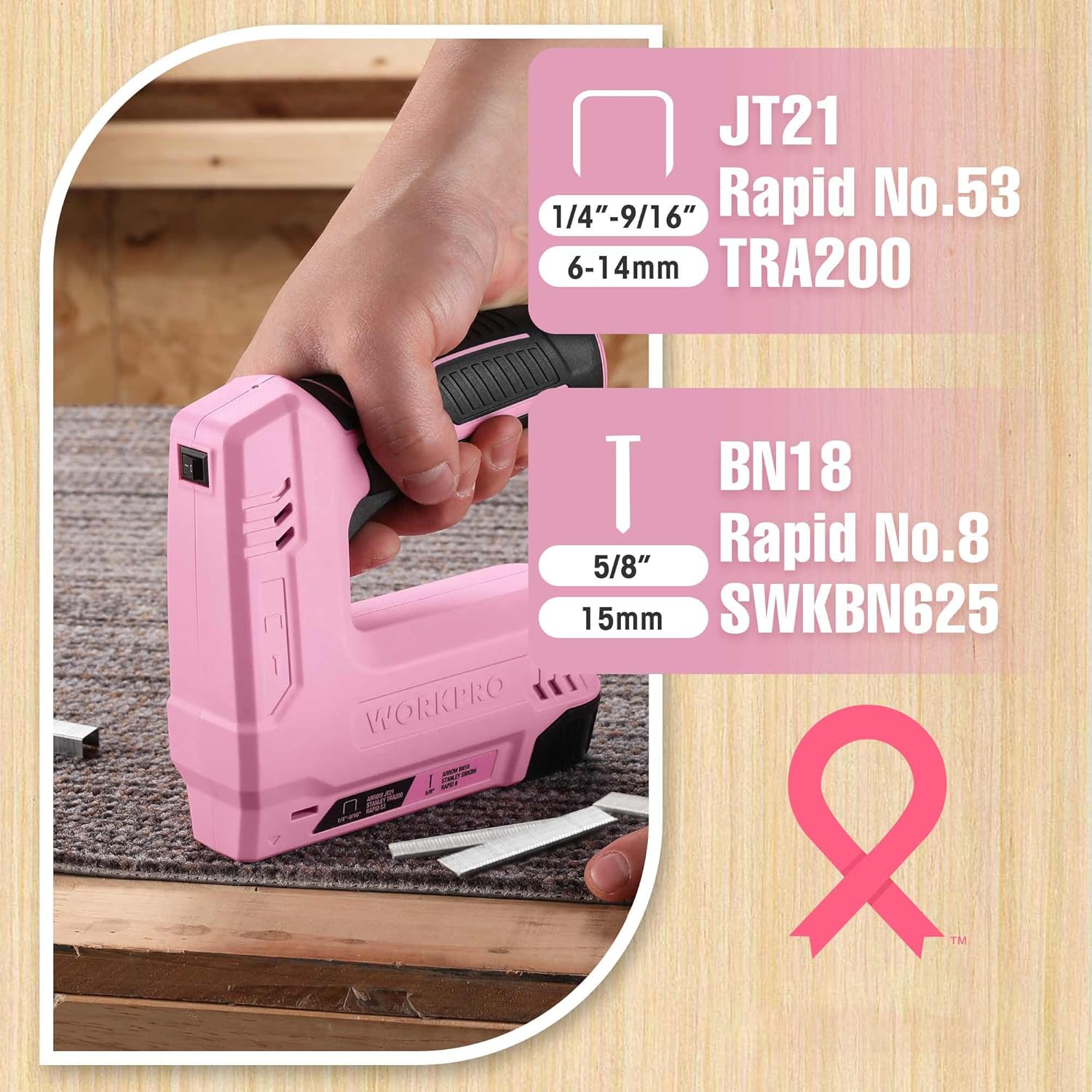

  Image 2: Compatible staple (JT21) and nail (BN18) types.

• Kompaktní a lehký design: Measuring approximately 5.75 inches in length and width, and weighing 1.8 pounds (0.8 kg), this cordless tool is designed for easy handling and effective use in narrow spaces.
• Efficient Battery Performance: The integrated 3.6V 2000mAh lithium battery fully charges in 1-2 hours and can fire up to 1000 fasteners on a single charge.
• Trojitý bezpečnostní mechanismus: Equipped with three safety switches, including a contact safety device, to prevent accidental firing and ensure user safety.
• Široká škála aplikací: Ideal for interior decoration, material repair, light woodworking, furniture assembly, DIY projects, and various renovation needs. Suitable for fastening materials such as fabric, paper, leather, and softwood products. Not suitable for professional heavy-duty carpentry or nailing into hardwood.

Obrázek 3: Konecview of the staple gun's components.

4. Bezpečnostní pokyny

Při používání elektrického nářadí vždy dodržujte základní bezpečnostní opatření, abyste snížili riziko požáru, úrazu elektrickým proudem a zranění osob.

• Používejte ochranu očí: Vždy používejte ochranné brýle nebo ochranné brýle, abyste si chránili oči před odletujícími úlomky.
• Udržujte pracovní prostor volný: Ujistěte se, že vaše pracovní místo je dobře osvětlené a bez nepořádku.
• Zajištění obrobku: Always secure the material you are working on to prevent movement.
• Držte ruce dál: Never place your hands or fingers near the firing mechanism or the workpiece contact area.
• Vypnutí, když se nepoužívá: When the tool is not in use, or before performing any adjustments or maintenance, always turn off the power switch (position "O").
• Vyvarujte se přehřátí: To prevent machine damage from overheating, do not fire more than 30 fasteners per minute. Take a 1-minute break after every 100 fasteners.
• Trojitý bezpečnostní mechanismus: The tool is equipped with an ON/OFF switch, a trigger, and a contact safety device. The tool will only fire when the ON switch is engaged, the trigger is pressed, AND the contact safety device is fully pressed against the workpiece. This design prevents accidental firing.

Image 4: Steps for engaging the triple safety mechanism and firing the tool.

5. Nastavení

5.1. Nabíjení zařízení

1. Locate the charge port on the tool (refer to Image 3).
2. Connect the provided USB charging cable to the charge port and a suitable USB power source (e.g., computer, USB wall adapter).
3. The LED indicator (refer to Image 3) will show red during charging.
4. A full charge typically takes 1-2 hours. The LED indicator will turn green when fully charged.

5.2. Loading Staples and Nails

Ensure the power switch is in the "O" (OFF) position before loading fasteners.

1. Pull out the magazine cover: Locate the quick release magazine at the bottom rear of the tool and pull out its cover.
2. Vložte svorky: For staples (JT21), place them into the magazine with their points facing upwards.
3. Load Nails: For brad nails (BN18), place them into the left side of the magazine with their points facing upwards.
4. Close the magazine cover: Push the magazine cover back into place until it locks securely.

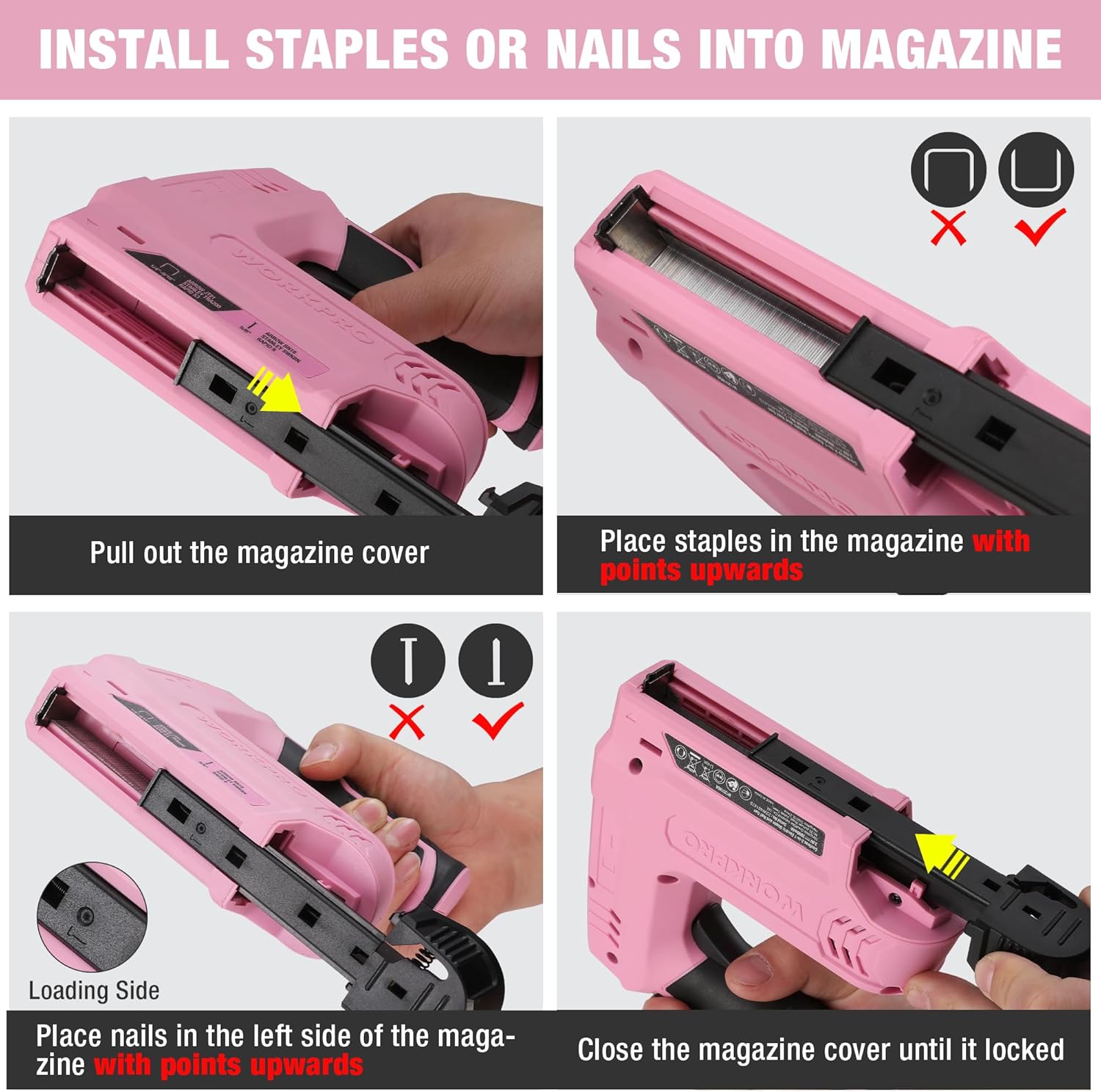

Image 5: Step-by-step guide for loading staples and nails.

6. Návod k obsluze

6.1. Zapnutí/vypnutí

• To turn the tool ON, slide the power switch (refer to Image 3) to the "I" position. The LED indicator will show green if the battery has sufficient charge.
• To turn the tool OFF, slide the power switch to the "O" position.

6.2. Firing the Tool

Once fasteners are loaded and the tool is powered on:

1. Position the tool over the desired fastening location on your workpiece.
2. Press the contact safety device firmly against the surface of the workpiece until it is fully depressed.
3. Squeeze the trigger to fire a staple or nail.
4. Uvolněte spoušť a zvedněte nástroj z obrobku.

6.3. Doporučené použití

To ensure optimal performance and tool longevity:

• Do not exceed a firing rate of 30 fasteners per minute.
• Take a 1-minute break after every 100 fasteners fired to prevent the machine from overheating.

7. Údržba

7.1. Péče o baterie

• To maintain the battery's health, charge the tool every 3-6 months even if it is not in use.
• Avoid allowing the battery to completely discharge for extended periods, as this can reduce its lifespan.

7.2. Čištění

• Ensure the tool is turned OFF and disconnected from any power source before cleaning.
• Otřete vnější povrch nástroje čistým hadříkemamp tkanina. Nepoužívejte agresivní chemikálie nebo abrazivní čisticí prostředky.
• Periodically check the magazine for any debris or jammed fasteners and clear them carefully.

8. Řešení problémů

• Nástroj se nespustí:
  • Check if the power switch is in the "I" (ON) position.
  • Ensure the battery is charged (LED indicator should be green).
  • Verify that the contact safety device is fully pressed against the workpiece.
  • Check if the magazine is properly loaded with compatible fasteners and securely closed.
• Fasteners Getting Stuck/Jammed:
  • Ensure you are using the correct type and size of staples (JT21) or nails (BN18).
  • Check the magazine for any bent or improperly loaded fasteners.
  • If a jam occurs, turn off the tool, remove the battery (if removable, otherwise ensure power is off), and carefully clear the jam.
• Přehřátí nástroje:
  • This can occur if fasteners are fired too rapidly. Adhere to the recommended firing rate of no more than 30 shots per minute, with a 1-minute break every 100 shots.
  • Před obnovením provozu nechte nástroj vychladnout.

9. Specifikace

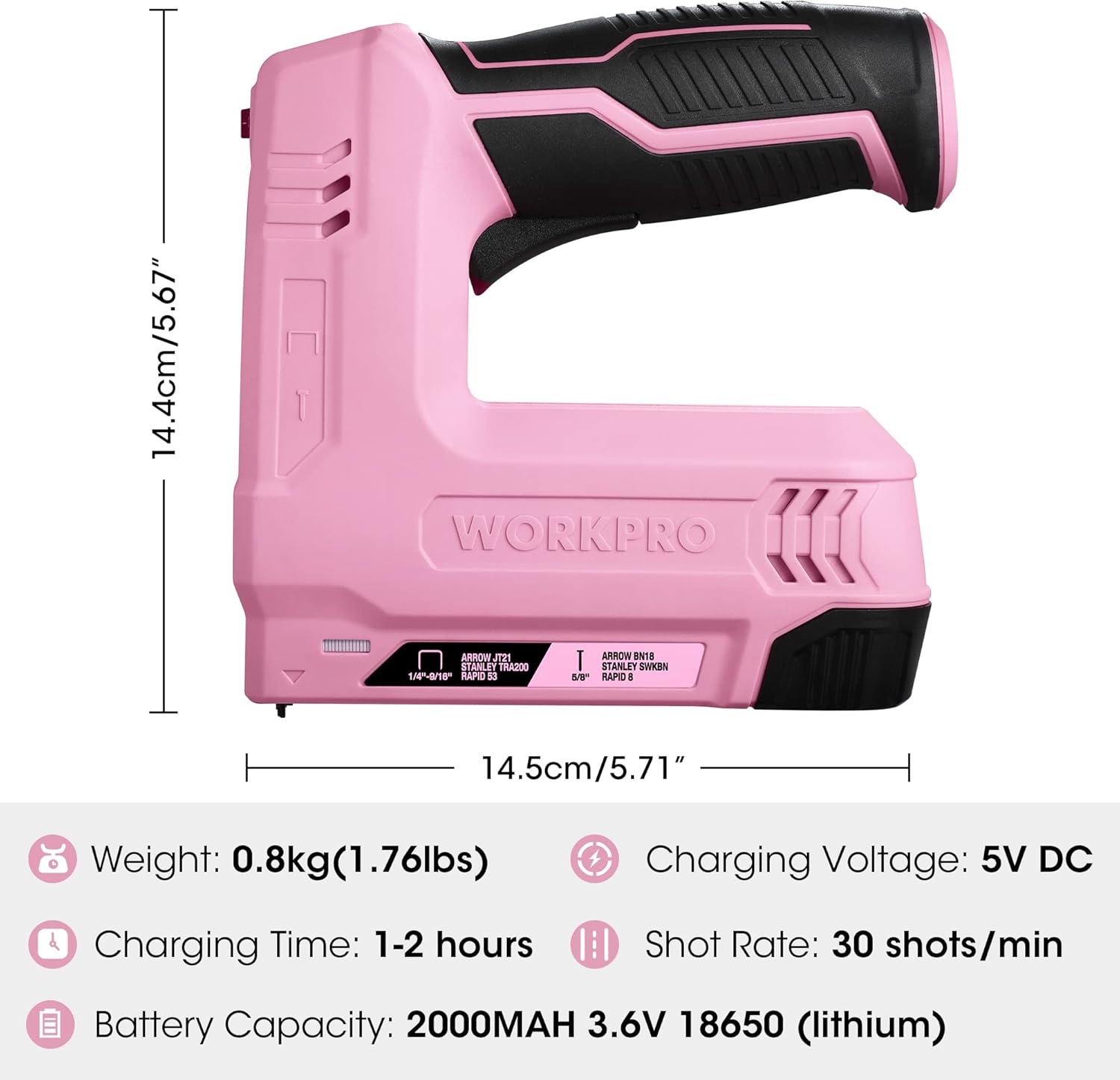

Image 6: Key specifications and dimensions of the tool.

10. Záruka a podpora

Informace týkající se záruky na produkt a zákaznické podpory nebyly v poskytnutých produktových údajích k dispozici. Viz obal produktu nebo oficiální informace od výrobce. webPodrobnosti o záručním krytí a o tom, jak kontaktovat zákaznickou podporu, naleznete na webu.
