1. Úvod
The ciciglow DC 0-60V Digital Power Meter (100A) is a versatile device designed for measuring voltage, current, power, and other electrical parameters in various DC systems. It features a large, easy-to-read display with adjustable backlight settings and a simple interface for switching between different statistical functions. This meter is suitable for applications in solar energy systems, industrial assembly lines, and automotive environments.
Image 1.1: The ciciglow DC Power Meter demonstrating its wide range of applications in solar energy, recreational vehicles, and industrial settings.
2. Bezpečnostní informace
Please read and understand all safety instructions before operating this device. Failure to follow these instructions may result in electric shock, fire, or damage to the product.
- Zajistěte vstupní objtage and current do not exceed the specified limits of 0-60V DC and 100A.
- Nepokoušejte se zařízení rozebírat nebo upravovat.
- Udržujte zařízení mimo dosah vody, vlhkosti a extrémních teplot.
- Use appropriate wiring and connectors for the current and voltage levels involved.
- Always disconnect power before making or breaking connections.
3. Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- 1 x ciciglow DC Digital Power Meter (100A)
- 1 x anglická uživatelská příručka
4. Nastavení a připojení
The power meter is designed for inline measurement. Connect it according to the following instructions:
- Identify the 'IN' and 'OUT' terminals on the meter. The 'IN' side connects to the power source (e.g., battery, solar panel output). The 'OUT' side connects to the load (e.g., inverter, device being powered).
- Connect the positive (+) wire from your power source to the red 'IN' wire of the meter.
- Connect the negative (-) wire from your power source to the black 'IN' wire of the meter.
- Connect the red 'OUT' wire of the meter to the positive (+) input of your load.
- Connect the black 'OUT' wire of the meter to the negative (-) input of your load.
- Ujistěte se, že všechny spoje jsou bezpečné a řádně izolované.
Obrázek 4.1: Úhlové view of the ciciglow DC Power Meter, illustrating the 'IN' and 'OUT' connection points for power source and load.
5. Návod k obsluze
Once connected and power is applied, the meter will automatically display real-time measurements.
5.1 Funkce displeje
The large screen displays voltage (V), current (A), and power (W). The lower right section of the display shows additional statistical data.

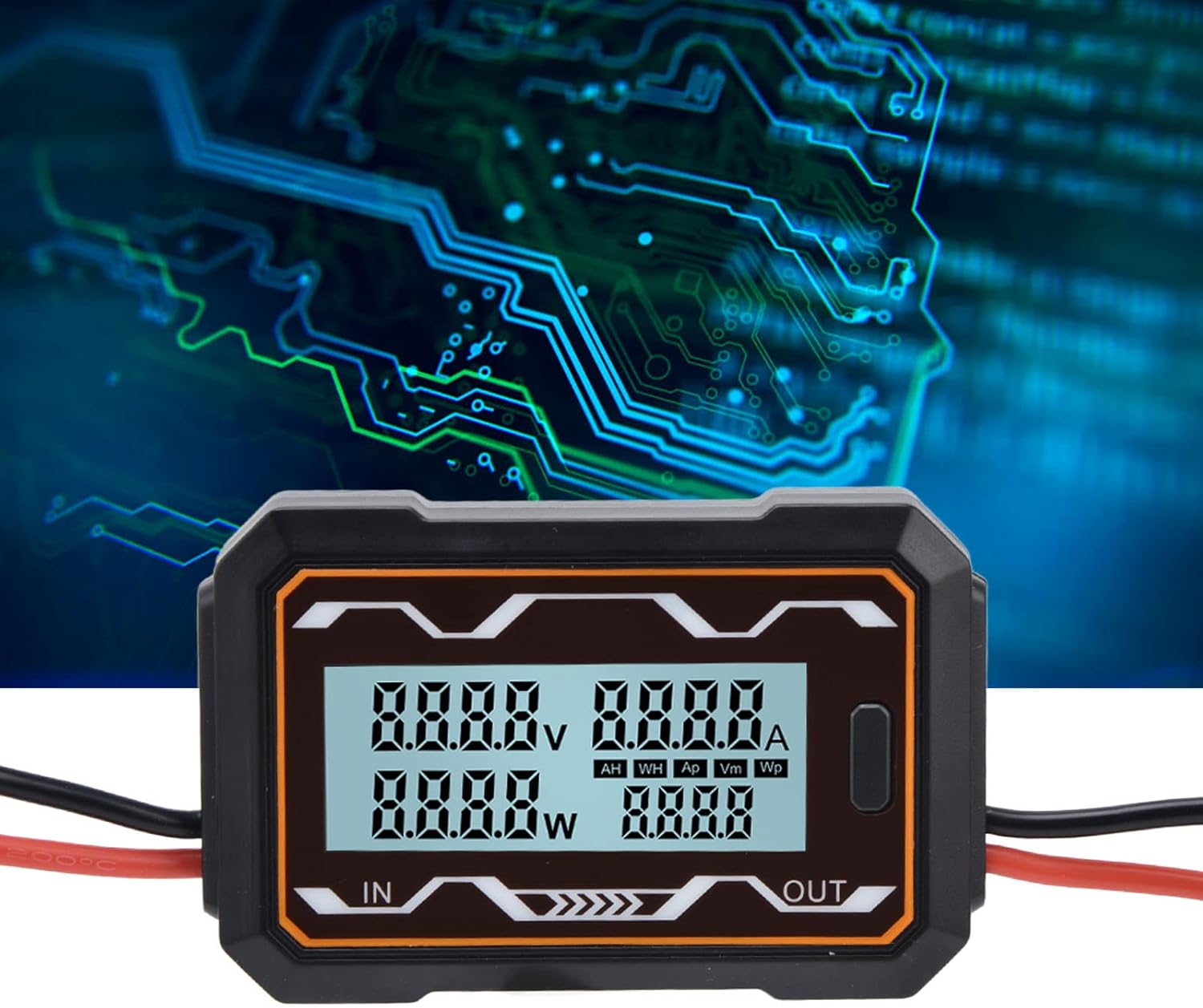

Obrázek 5.1: Detail view of the meter's digital display, highlighting the readouts for voltage, current, power, and the statistical data section.
5.2 Switching Statistical Data
A button located on the side of the meter allows you to cycle through different statistical measurements in the lower right display area. Press the button to switch between the following categories:
- AH: Ampere-hours (accumulated charge)
- WH: Watt-hours (accumulated energy)
- Ap: Vrchol Amps (maximum current recorded)
- Vm: Minimum Volts (minimum voltage recorded)
- Wp: Peak Watts (maximum power recorded)
Obrázek 5.2: Úhlové view of the ciciglow DC Power Meter, clearly showing the function button used to cycle through display modes.
5.3 Nastavení podsvícení
The meter's backlight can be configured. Settings for the backlight are saved even when the power is turned off, ensuring your preferences are retained.
6. Údržba
To ensure the longevity and accurate operation of your ciciglow DC Power Meter, follow these maintenance guidelines:
- Čištění: K čištění zařízení používejte měkký, suchý hadřík. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Skladování: Pokud měřič nepoužíváte, skladujte jej na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
- Inspekce: Periodically check the wiring and connections for any signs of wear, corrosion, or damage.
7. Řešení problémů
If you encounter issues with your ciciglow DC Power Meter, refer to the following common troubleshooting steps:
- Bez displeje: Check all power connections to ensure they are secure and that the power source is active and within the specified voltage rozsah (0-60V DC).
- Nesprávné čtení: Verify that the meter is connected correctly (IN to source, OUT to load) and that the wires are properly seated. Ensure the load is drawing current for accurate current and power readings.
- Tlačítko nereaguje: Ensure the device is powered on. If the button still does not respond, try disconnecting and reconnecting power.
- Přerušovaná čtení: Check for loose connections or damaged wiring. Ensure the operating environment is stable and free from excessive electrical noise.
Pokud problémy přetrvávají, kontaktujte zákaznickou podporu.
8. Specifikace
| Funkce | Specifikace |
|---|---|
| Značka | ciciglow |
| Model | 100A |
| Vstupní objemtage Dosah | 0-60 V DC |
| Aktuální rozsah | 100 A |
| Materiál | ABS |
| Hmotnost produktu | Approx. 92 Grams |
| Rozměry produktu | Přibližně 9.3 x 6 x 2 cm (3.7 x 2.4 x 0.8 palce) |
| Zdroj napájení | Solar (Self-powered from DC circuit) |
| Typ měření | Multimetr (objemtage, Current, Power, Energy, Charge) |
| Provozní teplota (horní) | 85 stupňů Celsia |
| Dodržování | IEC 61010-1 |
Image 8.1: The ciciglow DC Power Meter with its approximate dimensions labeled for reference.
Obrázek 8.2: Zadní strana view of the ciciglow DC Power Meter, displaying the voltage and current range specifications.
9. Záruka a podpora
Specific warranty information for this product is not provided in this manual. For details regarding warranty coverage, technical support, or service, please refer to the product packaging, the seller's website, or contact ciciglow customer service directly.
You can visit the ciciglow store for more information: ciciglow Store
