Uživatelská příručka k kovové kancelářské skříni TecTake®

Zavedení

This user manual provides detailed instructions for the assembly, operation, and maintenance of your TecTake® 2-door metal office cabinet. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation. Keep this manual for future reference.

Konec produktuview

The TecTake® metal office cabinet is designed for efficient organization and secure storage of documents and office supplies. It features a robust metal construction, two hinged doors, and multiple adjustable shelves to accommodate various items.

Kabinet nabízí ample internal space with adjustable shelves, ideal for storing various office items, including files and small safes.

Its elegant design allows the cabinet to seamlessly integrate into various office decors, providing both functionality and aesthetic appeal.

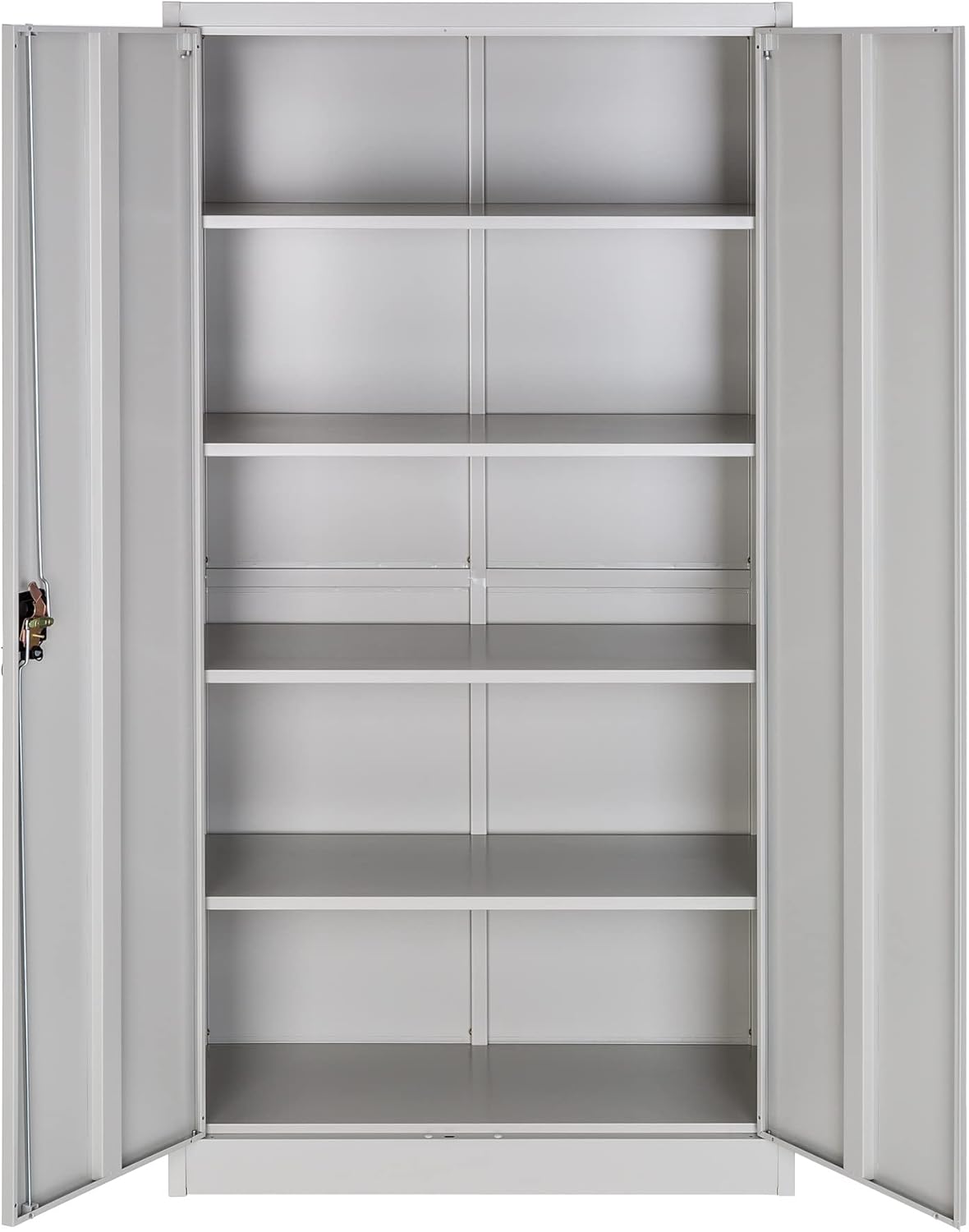

The cabinet features multiple empty shelves, demonstrating its versatile storage capacity before items are placed inside.

The cabinet's sleek, closed design ensures a tidy appearance in any office setting, concealing stored items.

Klíčové vlastnosti:

• Exceptional Organization: Ample space for documents and supplies, robust structure, and high load capacity.
• Flexible Partitioning: Adjustable shelves for versatile internal space adaptation.
• Thoughtful System: Wide door opening angle for easy access and a central key lock for security.
• Odolná konstrukce: Made of steel with a sober color that blends with any office decor.
• Snadná montáž a čištění: Designed for straightforward setup and maintenance.

Seznam komponent

Before assembly, ensure all components are present and undamaged. Refer to the packaging list for a complete inventory. Typical components include:

• Panely skříněk (horní, spodní, boční, zadní)
• Kloubové dveře
• Nastavitelné police
• Lock mechanism and keys
• Assembly hardware (screws, bolts, nuts, shelf clips)
• Kliky dveří

Pokud některé díly chybí nebo jsou poškozené, kontaktujte před zahájením montáže zákaznickou podporu.

Nastavení a montáž

Assembly typically requires two people and approximately one hour. Follow these steps carefully:

1. Připravte oblast: Choose a clean, flat, and spacious area for assembly. Lay down a blanket or cardboard to protect the cabinet panels from scratches.
2. Sestavte rám: Attach the side panels to the bottom panel using the provided screws and bolts. Ensure all connections are secure.
3. Nainstalujte zadní panel: Slide or attach the back panel into the designated grooves or secure it with screws to the assembled frame.
4. Připevněte horní panel: Připevněte horní panel k bočním a zadním panelům.
5. Instalace podpěr polic: Insert the shelf clips into the desired slots on the inner side panels. Ensure they are at the same height on both sides for level shelves.


   Detail of the shelf support mechanism, showing how clips are inserted into the side panels to hold the shelves.

6. Umístění polic: Carefully place the adjustable shelves onto the installed shelf clips.
7. Připevnit dveře: Mount the hinged doors to the cabinet frame using the provided hinges. Ensure the doors are aligned and swing freely.
8. Instalace zámku a klik: Attach the door handles and the central lock mechanism. Test the lock with the provided keys to ensure it functions correctly.


   Detailní view of the central key lock, which provides security for the cabinet's contents.

9. Závěrečná kontrola: Verify that all screws are tightened, the cabinet is stable, and the doors open and close smoothly.

For detailed visual instructions, refer to the assembly diagram included in your product packaging.

Návod k obsluze

Otevírání a zavírání dveří:

• To open, turn the key counter-clockwise to unlock, then pull the handle. The doors have a wide opening angle for full access.
• To close, push the doors firmly until they latch. Turn the key clockwise to lock the cabinet.

Seřizovací police:

• Vyprázdněte polici, kterou chcete upravit.
• Carefully lift the shelf and remove the four shelf clips from their current positions.
• Re-insert the shelf clips into the desired slots on the side panels, ensuring they are level.
• Place the shelf back onto the clips.

Údržba

Čištění:

Otřete povrch skříně měkkým,amp cloth. For stubborn marks, a mild detergent can be used, followed by drying with a clean cloth. Avoid abrasive cleaners or solvents, as they may damage the finish.

Obecná péče:

• Regularly check all screws and bolts for tightness and re-tighten if necessary to maintain stability.
• Do not overload shelves beyond their stated weight capacity (40 kg per shelf).
• Keep the lock mechanism clean and lubricated if it becomes stiff.

Odstraňování problémů

Specifikace

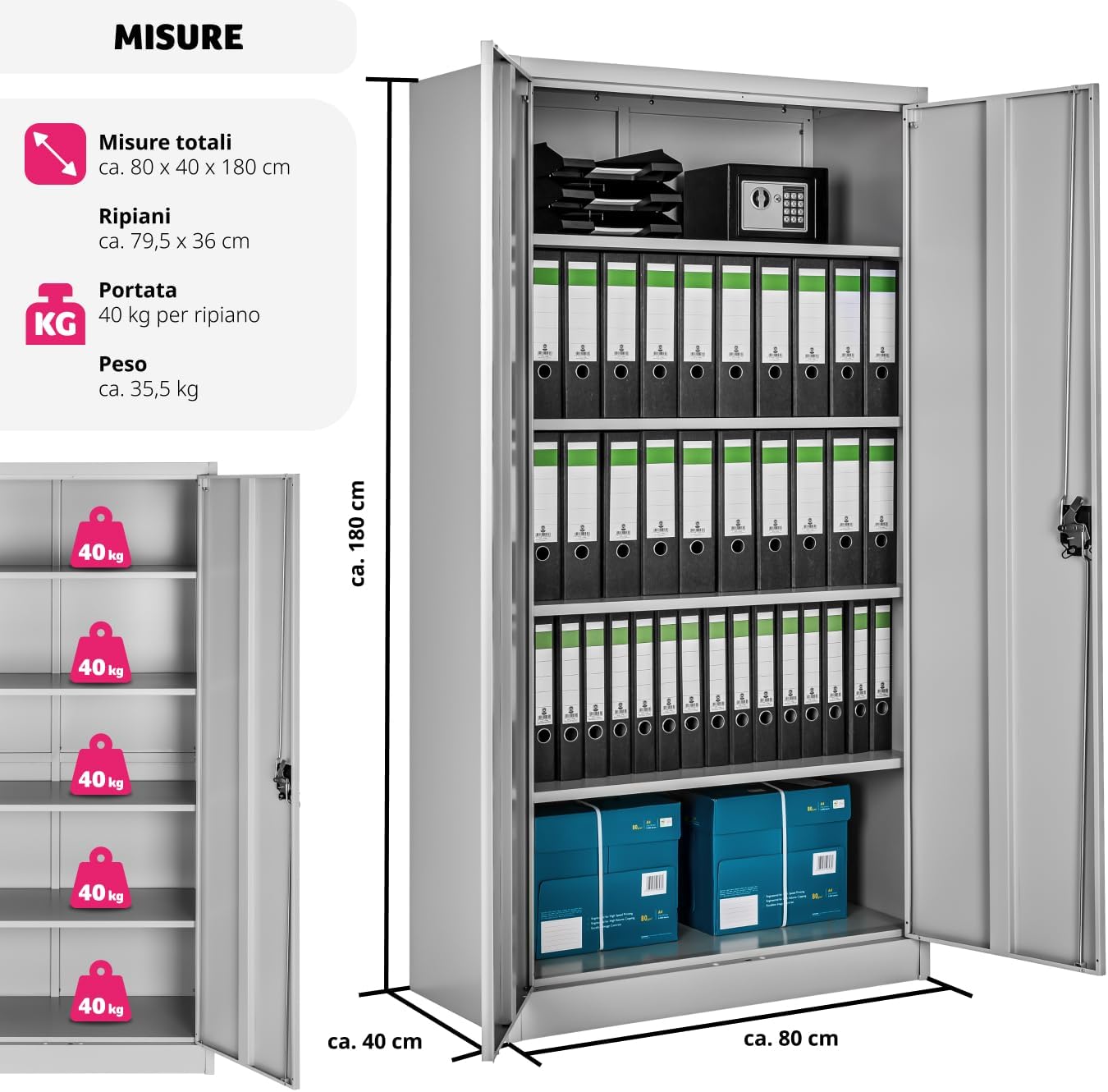

Visual representation of the cabinet's dimensions and individual shelf load capacity.

Záruka a podpora

For warranty information, please refer to the documentation included with your purchase or visit the official TecTake website. For technical support, missing parts, or any inquiries, please contact TecTake customer service through their official channels.

Uschovejte si prosím doklad o koupi pro uplatnění záruky.
