XSTO 48V Lithium Battery for Powered Stair Climbers User Manual

Zavedení

This manual provides essential instructions for the safe and effective use, maintenance, and storage of your XSTO 48V Lithium Battery, designed for compatibility with XSTO powered stair climbers. Please read this manual thoroughly before initial use to ensure proper operation and to maximize the battery's lifespan.

Compatible models include: ZW7250GC, ZW7210GC, ZW4250, ZW47250, CT250S, SCL170AC, CT150PB, ET170W2, LFC170F3, ZW7170EC, ZW7170GFC, ZW7170GC, ZW4170DC.

Nastavení

Instalace baterie

1. Install the battery pack by sliding it downwards into the designated slot on the stair climber.
2. After inserting the battery, press the power switch on the stair climber. The machine should power on automatically without requiring additional cable connections.

Instalace pojistky

It is crucial to install the battery fuse before using the battery. The battery is a vital component of the machine; ensure it is used and protected correctly.

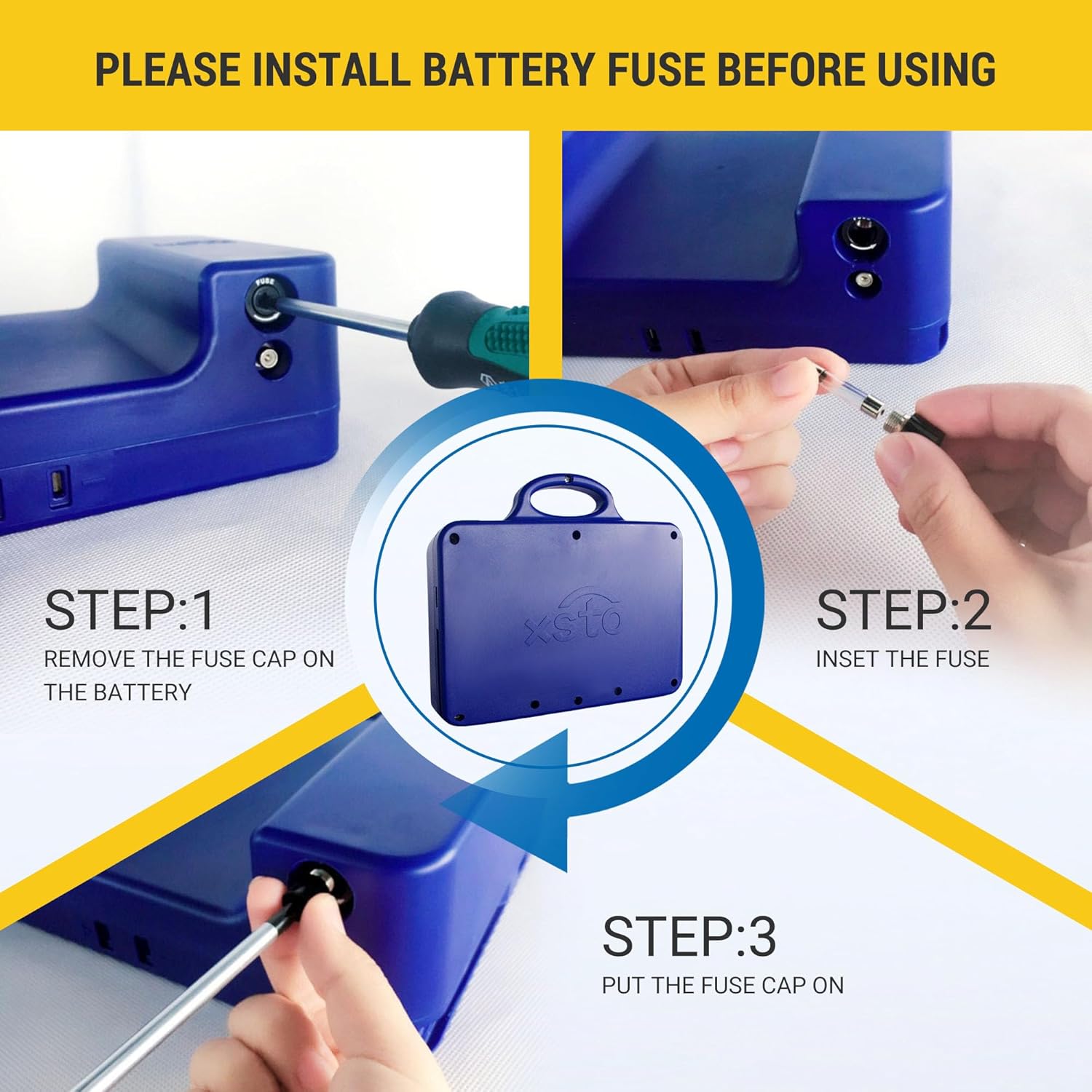

This image illustrates the three-step process for installing the battery fuse. Step 1 shows removing the fuse cap, Step 2 shows inserting the fuse, and Step 3 shows replacing the fuse cap.

1. Krok 1: Remove the fuse cap located on the battery unit.
2. Krok 2: Insert the fuse into the designated slot.
3. Krok 3: Securely replace the fuse cap.

Návod k obsluze

Kontrola kapacity baterie

• Když se zobrazí obrazovka 100 % (or 8 grids on some models), the battery is fully charged.
• When the power display is less than 20 % (or 3 grids on some models), the power is low. It is recommended to charge or replace the battery.
• When the power is displayed as 10 % (or 1 grid on some models), the battery is critically low and requires immediate charging.

Typické scénáře použití

This image collage shows the XSTO powered stair climber in action, moving different types of cargo such as white goods, office equipment, industrial materials, and furniture up and down stairs.

The XSTO powered stair climber, utilizing this battery, is designed for efficient material handling across various applications, including:

• Transporting white goods (e.g., refrigerators, washing machines).
• Moving office equipment (e.g., filing cabinets, large printers).
• Handling industrial materials.
• Relocating furniture.

Údržba a skladování

Pokyny pro nabíjení

• Only use the special charger configured by XSTO for charging. Do not use fast charging stations.
• The battery should be fully charged before its first use.
• If the battery power is insufficient after use, charge it promptly. It is recommended to charge the battery after each use to prolong its service life.

Dlouhodobé skladování

• For long-term storage, charge the battery pack to approximately 50% of its capacity.
• Baterii skladujte na suchém a dobře větraném místě.
• Charge the battery for every 3 months during long-term storage to maintain its performance and life.
• Batteries stored for extended periods must be charged before use.

General Storage Conditions

• Store the battery pack and charger in a clean, dry, and ventilated place.
• Vyhněte se kontaktu s korozivními materiály.
• Uchovávejte mimo dosah ohně a zdrojů tepla.
• The optimal charging temperature range is 0-40℃ (32-104°F). Exceeding this range can reduce battery performance and lifespan.

Pravidelná údržba

It is recommended to have the battery and stair climber checked and maintained regularly by a professional service repair station.

Přeprava

When transporting the battery pack and charger, ensure they are properly packaged to prevent excessive vibration, shock, or extrusion. Protect them from direct sunlight and rain during transit.

Odstraňování problémů

This section addresses common issues you might encounter with your XSTO 48V Lithium Battery. For more complex problems, please contact customer support.

Baterie se nenabíjí

• Ensure the charger is correctly plugged into both the battery and a working power outlet.
• Verify that you are using the original XSTO charger.
• Check the charging temperature. Charging outside the 0-40℃ range can prevent proper charging.

Stair Climber Not Powering On

• Confirm the battery is fully inserted and the power switch on the stair climber is engaged.
• Check the battery capacity display. If it's critically low, charge the battery.
• Ensure the battery fuse is correctly installed and not blown.

Specifikace

This diagram identifies the main components of the XSTO powered stair climber, including the operating button, fold-down handle, adjustable clamp, speed switch, lithium-ion battery, climbing wheel, solid tires, toe plate, and auto-edge brake system.

This image shows the XSTO powered stair climber with its various components and accessories, including the battery, charger, and tools.

Vlastnosti baterie

This infographic highlights the safety features of the XSTO removable lithium-ion battery, including overload, short current, and over voltage protection. It also lists battery capacity (1620-1944 steps), charging time (2.5 hours), and charging voltage (110V-240V).

• FCC/CE/MSDS/NRTL Certifications
• Ochrana proti přetížení
• Ochrana proti zkratu
• Přes Voltage Ochrana
• Battery Capacity: 1620-1944 Steps (approximate)
• Doba nabíjení: 2.5 hodiny
• Nabíjecí svtage: 110V-240V

Informace o záruce

This image provides the dimensions of the XSTO powered stair climber in both extended and folded configurations. It also states the main machine warranty is 1 year, battery warranty is 1 year, and accessories warranty is 3-6 months.

XSTO provides the following warranty coverage for this product:

• Main Machine Warranty: 12 měsíců
• Záruka na baterie: 1 rok
• Záruka na příslušenství: 3-6 měsíců

During the warranty period, new parts will be sent directly for replacement if issues arise. This policy focuses on replacement rather than repair.

Podpora

For technical assistance, warranty claims, or any questions regarding your XSTO 48V Lithium Battery or compatible stair climber, please contact XSTO customer support.

You can find more information and contact details by visiting the official XSTO store:
