Sheffield Folding Utility Knife Instruction Manual

1. Konec produktuview

The Sheffield Folding Utility Knife is designed for controlled cutting in various work and home environments. It features a secure lock-back design and a quick blade change system for efficiency. This utility knife accepts all standard utility razor blades.

Image 1.1: Sheffield Folding Utility Knife showing its open length of 6 inches and closed length of 3-1/2 inches.

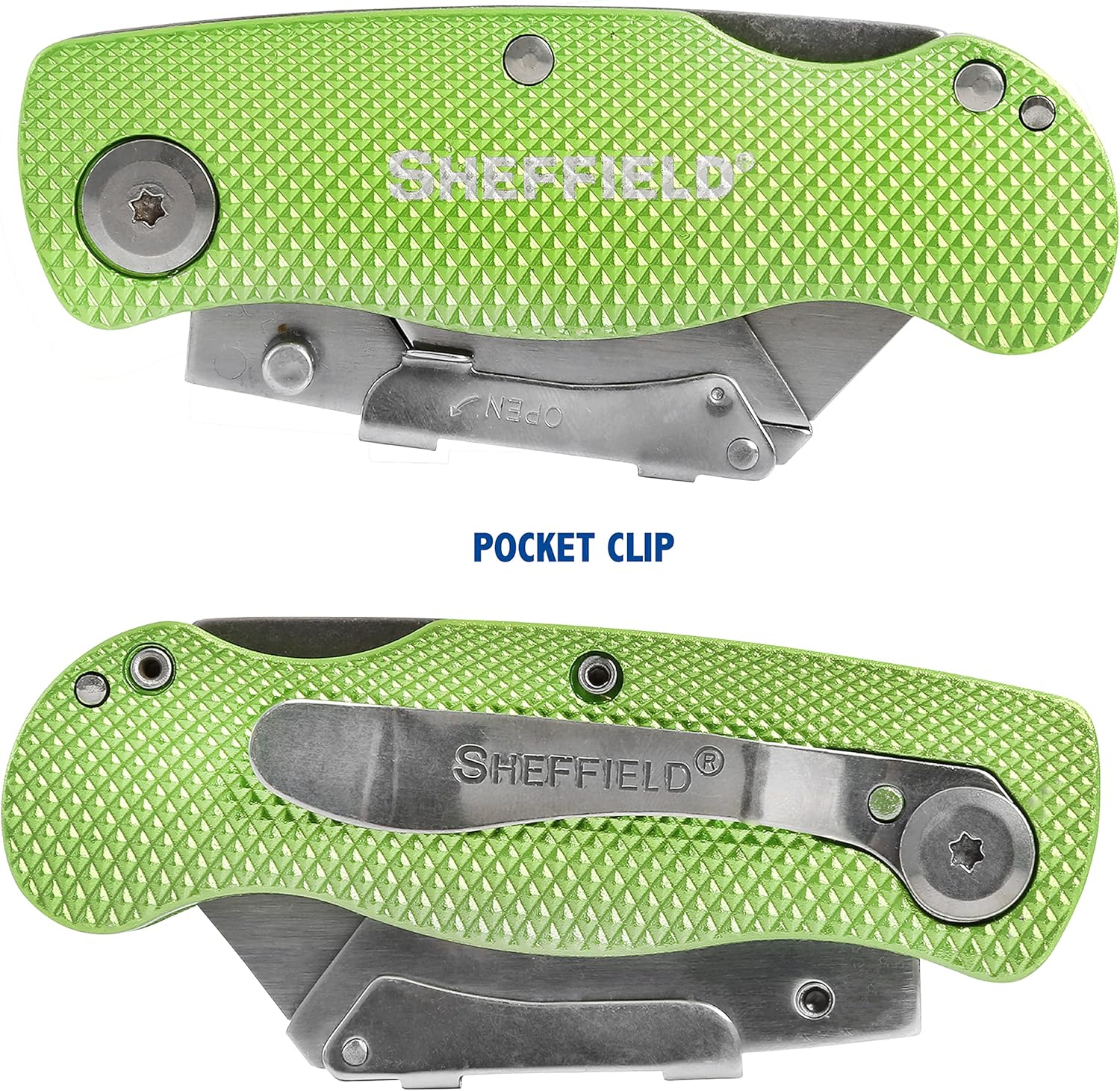

Obrázek 1.2: Nahoře a dole views of the Sheffield Folding Utility Knife, highlighting the integrated pocket clip for convenient carrying.

2. Nastavení a instalace blade serveru

This section details how to safely install and replace blades in your Sheffield Folding Utility Knife.

2.1 Instalace čepele

1. Ensure the knife is in the folded position for safety.
2. Locate the quick-change blade mechanism lever, typically marked 'OPEN'.
3. Press and hold the lever to release the blade holder.
4. Carefully insert a standard utility razor blade into the slot, ensuring it is seated correctly.
5. Release the lever to secure the blade in place. Gently tug on the blade to confirm it is locked.

Obrázek 2.1: Detail view of the patented quick-change blade mechanism, illustrating how to open the holder for blade replacement. The knife accepts all standard utility blades.

Image 2.2: A user demonstrating the process of replacing a blade using the quick-change mechanism.

3. Návod k obsluze

Follow these steps for safe and effective operation of your utility knife.

3.1 Opening the Knife

1. Hold the knife firmly with one hand.
2. Use your thumb to push the blade open until it clicks into the locked position.
3. Ensure the lock-back mechanism is fully engaged before use.

3.2 Using the Knife

The knife is suitable for cutting materials such as cardboard, drywall, and packaging. Always cut away from your body and use appropriate safety gear.

Image 3.1: A hand demonstrating the use of the utility knife to cut tape on a cardboard box.

3.3 Closing the Knife

1. Locate the lock-back release button or lever on the handle.
2. Press the release mechanism while carefully folding the blade back into the handle.
3. Ensure the blade is fully retracted and secured before storing.

Image 3.2: Close-up of the knife handle showing the lock-back release mechanism and the lightweight aluminum textured grip for enhanced control.

4. Údržba

Proper maintenance ensures the longevity and performance of your utility knife.

4.1 Čištění

After each use, wipe down the blade and handle with a dry cloth to remove any debris. For stubborn residue, a damp cloth can be used, followed by thorough drying to prevent rust.

4.2 Výměna čepele

Replace blades when they become dull or damaged. Refer to Section 2.1 for detailed blade installation instructions. Always dispose of used blades safely.

5. Řešení problémů

If you encounter issues with your Sheffield Folding Utility Knife, refer to the following common problems and solutions.

5.1 Blade Not Locking Securely

• Ensure the blade is correctly seated in the holder.
• Verify that the lock-back mechanism is free of debris and fully engaged. Apply light pressure to the blade to confirm it is locked before use.

5.2 Difficulty Opening or Closing the Knife

• Check for any obstructions or debris in the pivot points or blade channel.
• Apply a small amount of light machine oil to the pivot points if movement feels stiff.
• Ensure the lock-back release is fully depressed when closing the knife.

6. Specifikace

7. Informace o záruce

This Sheffield Folding Utility Knife is backed by Sheffield's Lifetime Warranty. For specific details regarding warranty coverage and claims, please refer to the official Sheffield webwebu nebo kontaktujte zákaznickou podporu.

8. Podpora

For further assistance, product inquiries, or technical support, please visit the official Sheffield webnebo kontaktujte jejich oddělení zákaznických služeb. Kontaktní informace obvykle naleznete na obalu produktu nebo na webových stránkách výrobce. webmísto.
