Návod k použití vodního veslařského trenažéru SNODE WR66

1. Úvod

The SNODE WR66 Water Rowing Machine is a fitness device designed for home use, offering a full-body workout. This model, introduced in 2022, features water resistance and Bluetooth connectivity. It supports traditional rowing, as well as simulated paddling and dragon boat rowing exercises. The design prioritizes user comfort and effective exercise, with a focus on a smooth rowing experience.

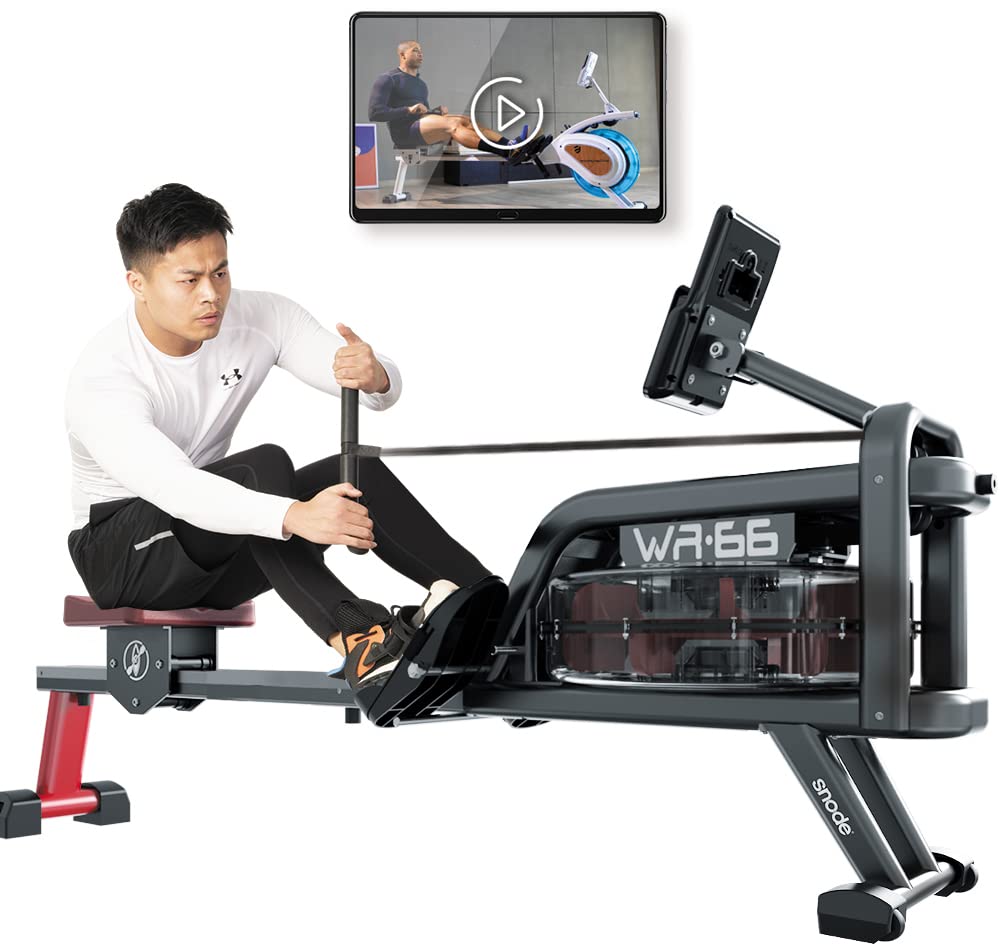

Image 1.1: The SNODE WR66 Water Rowing Machine with a user demonstrating proper rowing form. The machine features a water tank for resistance, a comfortable seat, and a digital monitor.

2. Bezpečnostní informace

• Před použitím stroje si přečtěte všechny pokyny.
• Před zahájením jakéhokoli cvičebního programu se poraďte s lékařem.
• Během provozu držte děti a domácí zvířata mimo dosah stroje.
• Place the machine on a flat, stable surface with adequate clearance around it.
• Inspect the machine for loose or worn parts before each use. Do not use if damaged.
• Nepřetěžujte se. Pokud se cítíte mdlo, točí se vám hlava nebo pociťujete bolest, okamžitě přestaňte cvičit.
• Před použitím se ujistěte, že jsou všechny šrouby a matice bezpečně utažené.
• Maximum user weight capacity: 136.08 kg (300 lbs).

3. Nastavení a montáž

3.1 Vybalení a identifikace součástí

Carefully remove all components from the packaging. Verify that all parts are present according to the packing list (refer to the separate assembly guide for a detailed list).

3.2 Montážní kroky

Follow the step-by-step instructions provided in the separate assembly manual. Ensure all connections are secure and stable. Pay close attention to the attachment of the seat rail, footrests, and main frame components.

3.3 Plnění vodní nádrže

1. Remove the rubber stopper from the top of the water tank.
2. Using the provided funnel and pump, fill the tank with clean tap water to the desired resistance level. Do not overfill.
3. Add one water purification tablet (if provided) to the tank.
4. Replace the rubber stopper securely.

3.4 Initial Power-Up and Bluetooth Pairing

1. Ensure 2 AA batteries are correctly installed in the performance monitor.
2. The monitor should power on automatically when you begin rowing or by pressing any button.
3. To pair with a Bluetooth device, enable Bluetooth on your smartphone or tablet and open the SNODE fitness application. Follow the in-app instructions to connect to the WR66 machine.

Image 3.1: Key components of the SNODE WR66. This image highlights the hydro blades within the water tank, the floor stabilizers for stability, and the transportation wheels for easy movement.

4. Návod k obsluze

4.1 Basic Rowing Technique

Proper rowing technique involves three phases: the Catch, the Drive, and the Finish, followed by the Recovery.

• Chytit: Sit with knees bent, shins vertical, arms extended forward, and torso leaning slightly forward.
• Řídit: Push off with your legs, then swing your torso back, and finally pull the handle towards your abdomen.
• Dokončit: Legs extended, torso leaning slightly back, handle at your abdomen, elbows past your body.
• Zotavení: Extend arms forward, then lean torso forward, and finally bend knees to slide forward to the Catch position.

4.2 Performance Monitor Usage

The LCD performance monitor displays key workout metrics such as time, distance, strokes per minute, and calories burned. Use the buttons on the monitor to cycle through display modes or reset values.

4.3 Paddling and Dragon Boat Rowing Modes

The WR66 supports unique paddling and dragon boat rowing simulations. Refer to the SNODE fitness application for specific instructions and guided workouts for these modes. These modes engage different muscle groups and provide variety to your workout routine.

Obrázek 4.1: Detailní view of the SNODE WR66, highlighting the performance monitor, water resistance tank, wide cushioned seat, non-slip pedals with adjustable straps, and non-slip handlebars.

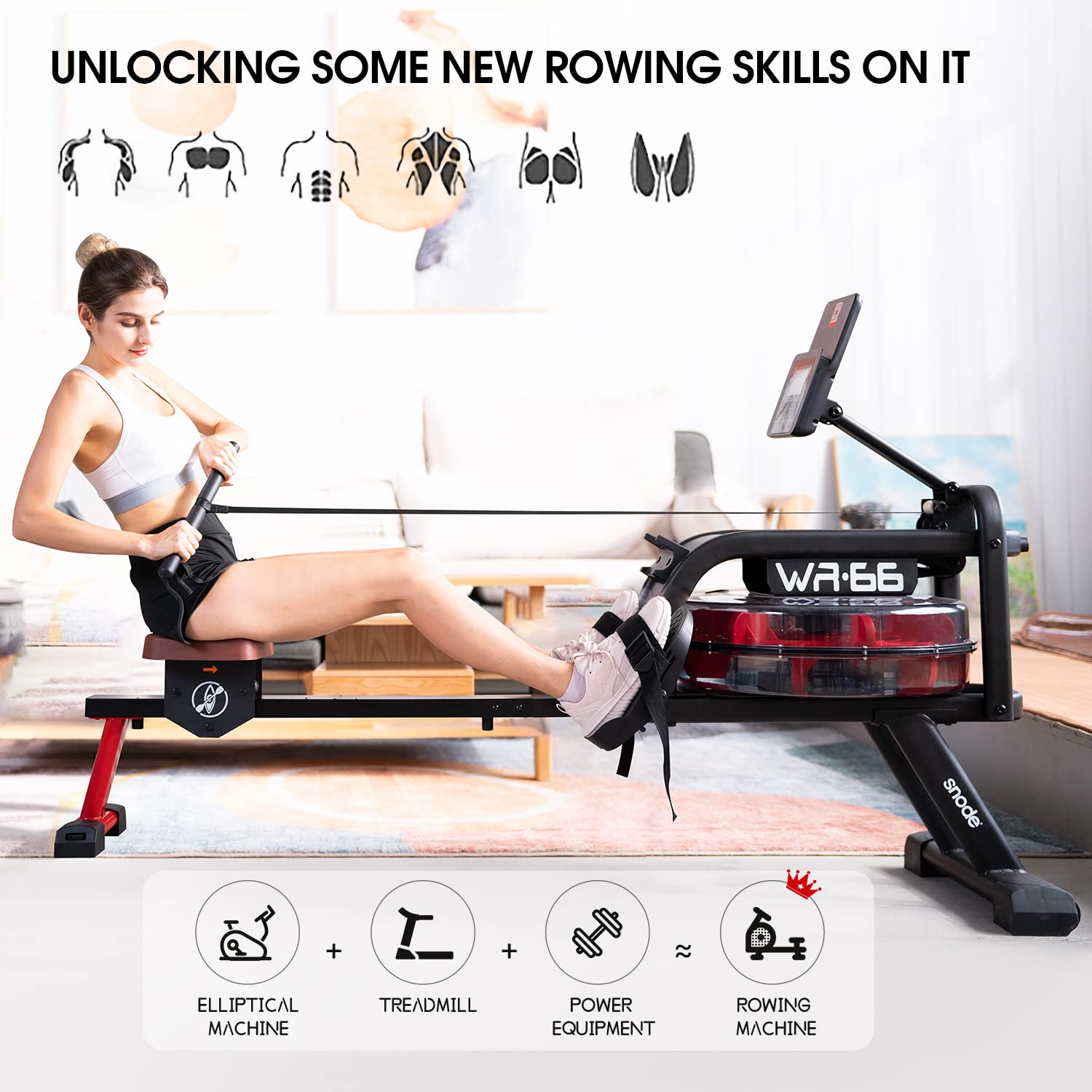

Image 4.2: This image illustrates the various muscle groups engaged during a rowing workout on the SNODE WR66, including back, shoulders, arms, core, and legs. It also visually compares the comprehensive workout to elliptical, treadmill, and power equipment.

5. Údržba

5.1 Čištění

• Otřete stroj reklamouamp hadříkem po každém použití k odstranění potu a prachu.
• Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla, protože by mohly poškodit povrchovou úpravu.
• Keep the performance monitor dry.

5.2 Úprava vody

• Add a water purification tablet to the tank every 6-12 months, or if the water appears cloudy.
• If the water becomes discolored or develops an odor, drain the tank and refill with fresh water and a new purification tablet.

5.3 Obecná kontrola

• Pravidelně kontrolujte utažení a opotřebení všech šroubů, matic a pohyblivých částí. V případě potřeby je dotáhněte.
• Inspect the rowing strap and handle for any signs of fraying or damage.
• Ensure the seat rollers move smoothly along the rail. Clean the rail if debris is present.

6. Řešení problémů

• Monitor nezobrazuje: Check battery installation and replace batteries if necessary. Ensure connections to sensors are secure.
• No Resistance: Verify the water tank is filled to an appropriate level. Inspect the hydro blades for any obstructions.
• Neobvyklé zvuky: Check for loose bolts or components. Lubricate moving parts if squeaking occurs (avoiding the seat rail).
• Problémy s připojením Bluetooth: Ensure the SNODE app is updated to the latest version. Restart your mobile device and the rowing machine. Some users have reported challenges with the Bluetooth app functionality; ensure your device meets the app's requirements.
• Seat Not Sliding Smoothly: Clean the seat rail thoroughly to remove any dust or debris.

7. Specifikace

Image 7.1: This diagram illustrates the key dimensions of the SNODE WR66 Water Rowing Machine, including overall length (73"), width (18"), height (34"), slide rail length (42"), slide rail inseam (40"), and seat dimensions (12"x10"x2"). It also confirms the weight capacity of 300 lbs.

8. Záruka a podpora

For warranty information, please refer to the documentation included with your purchase or contact SNODE customer service directly. If you encounter any issues not covered in this manual or require further assistance, please reach out to SNODE customer support through their official webwebu nebo kontaktních informací uvedených u vašeho produktu.
