VELECO ZT16 3-Wheeled Mobility Scooter User Manual

1. Úvod

Thank you for choosing the VELECO ZT16 3-wheeled mobility scooter. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new scooter. Please read this manual thoroughly before operating the scooter to ensure proper use and to maximize its lifespan. The VELECO ZT16 is designed for ease of use and maneuverability, offering a comfortable and reliable riding experience.

2. Klíčové vlastnosti

• Fully Assembled and Ready to Drive: Your scooter arrives pre-assembled, allowing for immediate use after initial charging.
• Dostupné náhradní díly: Compatible spare parts are readily available for maintenance and repairs.
• Large Wheels and Strong Brakes: Equipped with large wheels and robust braking systems for enhanced safety and stability in various conditions.
• LED světlomety: Powerful and bright LED headlights ensure clear visibility during operation.
• Two Speed Modes: Adjust your speed to suit road conditions and personal preference with two distinct speed settings.
• Zpátečka: Features a reverse gear for easier maneuvering in tight spaces.
• Removable Shopping Basket: Convenient front-mounted basket for carrying personal items or groceries.

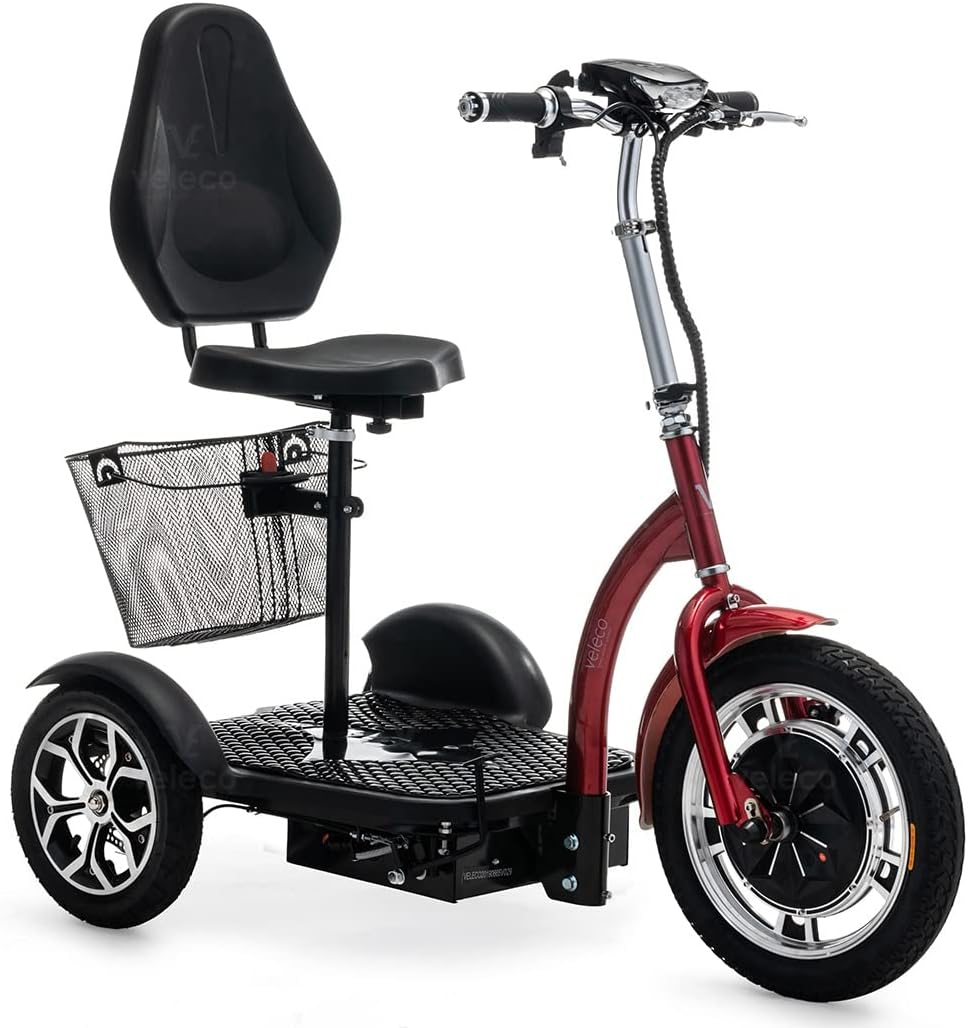

3. Konec produktuview

Familiarize yourself with the different parts of your VELECO ZT16 mobility scooter.

4. Nastavení a první použití

Your VELECO ZT16 mobility scooter comes fully assembled and ready for use. Follow these steps for initial setup:

1. Rozbalení: Carefully remove the scooter from its packaging. Ensure all packing materials are removed.
2. Počáteční poplatek: Before the first ride, fully charge the battery. Locate the charging socket (refer to the product overview diagram) and connect the provided charger. The charging indicator on the charger will show the charging status. A full charge typically takes several hours.
3. Kontrola před jízdou: Before each use, perform a quick check:
   • Ujistěte se, že jsou pneumatiky správně nahuštěny.
   • Check that brakes are functioning correctly.
   • Verify that the lights are working.
   • Confirm the battery level is sufficient for your planned journey.
4. Nastavení sedadla: Adjust the seat height and backrest for a comfortable and secure riding position.

5. Návod k obsluze

Operating your VELECO ZT16 is straightforward. Follow these guidelines for a smooth ride:

5.1. Nastartování koloběžky

• Vložte klíč do zapalování a otočte jím do polohy „ON“.
• The display panel will illuminate, showing the battery level and current speed mode.

5.2. Regulace rychlosti

• The scooter features two speed modes. Use the speed selector switch on the handlebar to toggle between modes (e.g., 'L' for Low, 'H' for High).
• Gently twist the throttle grip to accelerate. Release the throttle to slow down.

5.3. Reverse Gear

• To engage reverse, locate the reverse switch on the handlebar. Activate it to shift into reverse mode.
• Twist the throttle gently to move backward. Be cautious and check your surroundings when reversing.

5.4. Brzdění

• The scooter is equipped with front and rear brakes (drum brakes).
• To brake, gently squeeze the brake levers on the handlebar. Apply both brakes simultaneously for optimal stopping power and stability.
• For emergency stops, apply firm pressure to both brake levers.

6. Bezpečnostní pokyny

Your safety is paramount. Always adhere to these safety guidelines:

• Při ovládání skútru vždy používejte vhodné bezpečnostní vybavení, včetně přilby.
• Nepřekračujte maximální nosnost koloběžky.
• Operate the scooter only on suitable surfaces. Avoid steep inclines, uneven terrain, or slippery conditions.
• Dodržujte bezpečnou vzdálenost od ostatních vozidel a chodců.
• Buďte si vědomi svého okolí a potenciálních nebezpečí.
• Neovládejte skútr pod vlivem alkoholu nebo drog.
• Ensure all lights and reflectors are clean and functional, especially when riding in low light conditions.
• Always turn off the scooter and remove the key when not in use to prevent accidental activation.

7. Údržba

Regular maintenance will ensure the longevity and optimal performance of your VELECO ZT16 scooter.

• Péče o baterie:
  • Charge the battery regularly, even if the scooter is not used frequently.
  • Před nabíjením se vyhněte úplnému vybití baterie.
  • Store the scooter in a cool, dry place when not in use, and ensure the battery is charged.
• Čištění: Pravidelně čistěte skútr čisticím prostředkemamp cloth. Avoid using high-pressure washers or harsh chemicals that could damage electrical components or paintwork.
• Tlak v pneumatikách: Check tire pressure periodically and inflate to the recommended levels (refer to tire sidewall or specifications section). Proper tire pressure ensures safety and extends tire life.
• Kontrola brzd: Regularly inspect brake levers and cables for wear or damage. Ensure brakes respond promptly and effectively. If you notice any issues, have them serviced by a qualified technician.
• Generální inspekce: Periodically check all nuts, bolts, and fasteners to ensure they are tight. Inspect for any loose or damaged parts.

8. Řešení problémů

If you encounter issues with your scooter, refer to this section for common problems and solutions.

If you are unable to resolve an issue using this guide, please contact VELECO customer support.

9. Specifikace

10. Záruka a podpora

For information regarding warranty coverage and customer support, please refer to the documentation provided with your purchase or visit the official VELECO webUschovejte si doklad o koupi pro případné reklamace.

For technical assistance, spare parts, or service inquiries, please contact VELECO customer service directly.
