LUX-TOOLS 1 PowerSystem A-EAS-20/156 Uživatelská příručka akumulátorové prořezávací pily

1. Úvod

Thank you for choosing the LUX-TOOLS 1 PowerSystem A-EAS-20/156 Cordless Pruning Saw. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new tool. Please read these instructions carefully before using the product and keep them for future reference. This pruning saw is designed for cutting branches and small wood in garden and landscaping applications.

2. Bezpečnostní pokyny

Vždy dodržujte základní bezpečnostní opatření, abyste snížili riziko požáru, úrazu elektrickým proudem a zranění osob. Nedodržení těchto pokynů může vést k vážnému zranění.

2.1 Obecná bezpečnost elektrického nářadí

• Bezpečnost pracovního prostoru: Udržujte pracovní prostor čistý a dobře osvětlený. Nepořádek nebo tmavé prostory vedou k nehodám. Nepoužívejte elektrické nářadí ve výbušném prostředí, například v přítomnosti hořlavých kapalin, plynů nebo prachu.
• Elektrická bezpečnost: Zabraňte kontaktu těla s uzemněnými povrchy (např. potrubí, radiátory, sporáky, ledničky). Nevystavujte elektrické nářadí dešti ani vlhku.
• Osobní bezpečnost: Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and sturdy footwear. Dress properly; avoid loose clothing or jewelry that can get caught in moving parts.

2.2 Pruning Saw Specific Safety

• Udržujte pevný úchop: Always hold the saw firmly with both hands during operation.
• Prevence zpětného rázu: Be aware of kickback, which can occur when the tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
• Vyčistěte pracovní oblast: Ensure no bystanders, children, or pets are in the work area. Keep a safe distance from other people and animals.
• Stabilní základna: Work only from a stable and secure position. Do not overreach.
• Bezpečnost baterie: Use only LUX-TOOLS 1 PowerSystem 20V batteries and chargers. Do not expose batteries to extreme heat or fire.

3. Konec produktuview

Familiarize yourself with the components of your LUX-TOOLS A-EAS-20/156 Cordless Pruning Saw.

The LUX-TOOLS 1 PowerSystem A-EAS-20/156 cordless pruning saw, shown with its battery attached, chain cover, and a small screwdriver for adjustments.

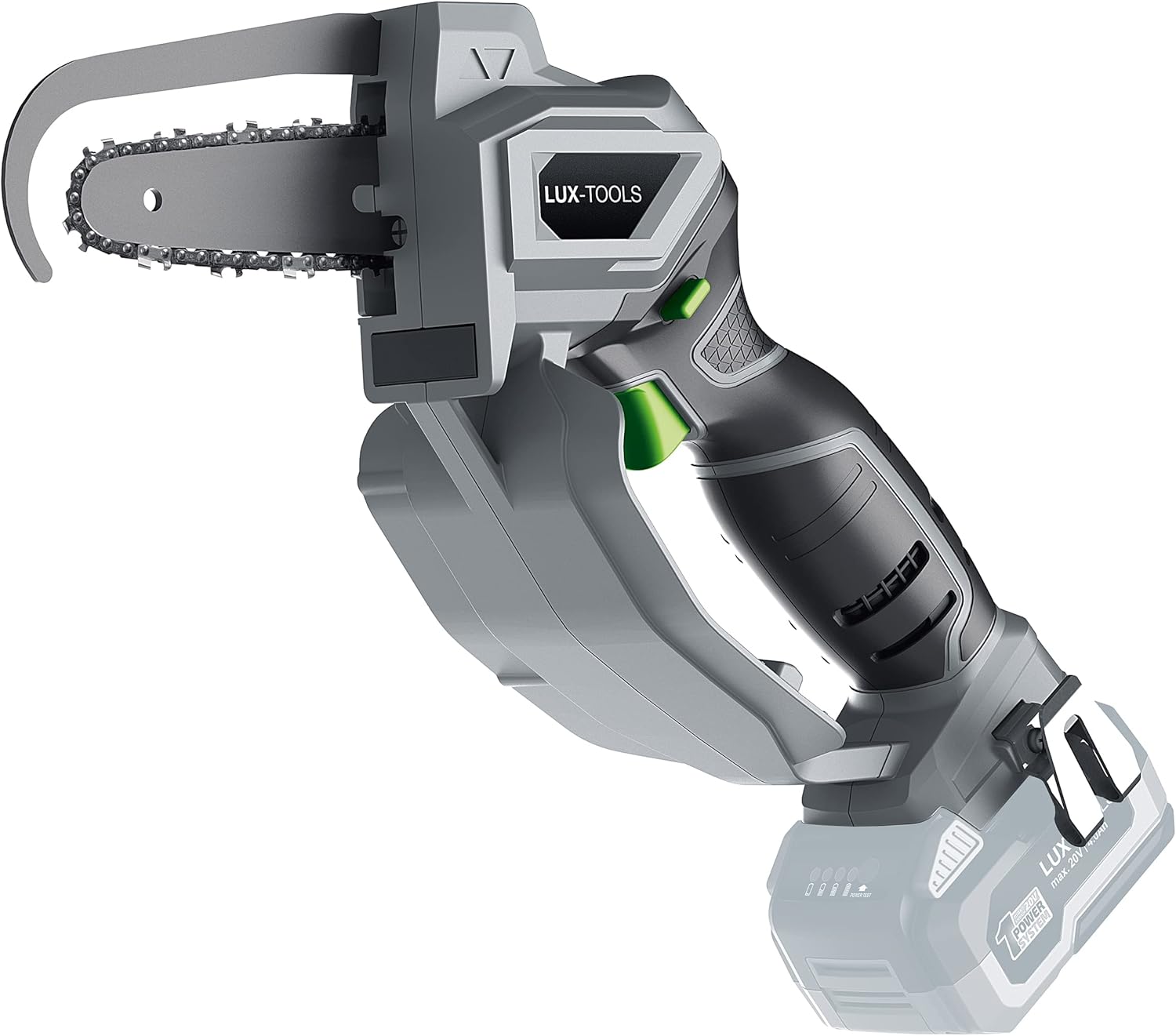

Strana view of the pruning saw, illustrating its compact design, ergonomic handle, and the protective guard over the chain.

3.1 Komponenty

• Vodicí lišta
• Pilový řetěz
• Kryt řetězu
• Ergonomická rukojeť
• Bezpečnostní spínač
• Spínač spouštění
• Přihrádka na baterie
• Chain Tensioning Knob (Tool-free)
• Protective Hand Guard
• Šroubovák (pro drobné úpravy)

4. Nastavení

Before first use, ensure all components are present and undamaged. The saw is part of the LUX-TOOLS 1 PowerSystem and requires a compatible 20V battery (sold separately).

4.1 Instalace a vyjmutí baterie

A close-up of the LUX-TOOLS 1 PowerSystem 20V Lithium-ion battery pack, which powers the pruning saw.

1. Instalace: Align the battery pack with the battery compartment on the saw. Slide the battery into the compartment until it clicks securely into place. Ensure it is fully seated.
2. Odstranění: Press the battery release button (usually located on the battery pack itself) and slide the battery out of the compartment.

4.2 Chain and Guide Bar Assembly

The LUX-TOOLS A-EAS-20/156 features tool-free chain tensioning for easy setup.

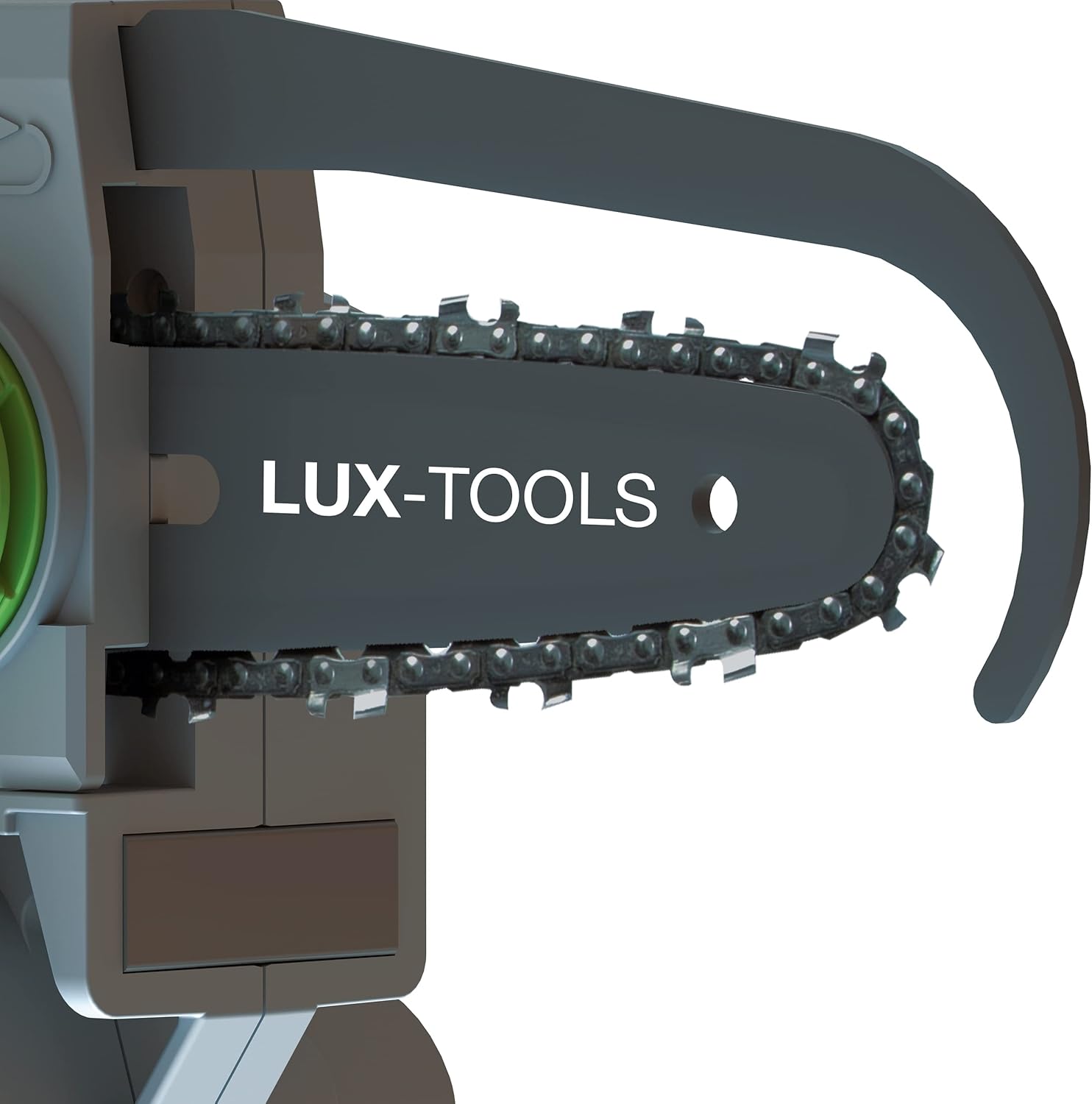

Detailní view of the saw's chain and guide bar, featuring the LUX-TOOLS logo, demonstrating the cutting mechanism.

1. Ensure the battery is removed before handling the chain or guide bar.
2. Place the saw chain around the guide bar, ensuring the cutting edges face the correct direction (refer to markings on the chain and guide bar).
3. Fit the guide bar and chain onto the saw body, engaging the drive sprocket.
4. Adjust the chain tension using the tool-free tensioning knob until the chain is snug but can still be pulled freely around the guide bar by hand. There should be no slack on the underside of the guide bar, but the chain should not be overly tight.
5. Secure the guide bar cover.

5. Provoz

Always wear appropriate safety gear (safety glasses, gloves, hearing protection) before operating the saw.

5.1 Spuštění a zastavení pily

1. Začít: Press and hold the safety switch (usually located on the handle) with one hand, then squeeze the trigger switch with the same hand. The saw chain will begin to move.
2. Zastavit: Uvolněte spouštěcí spínač. Řetěz se rychle zastaví.

5.2 Techniky řezání

An image depicting the cordless pruning saw in action, cutting through a piece of wood, with sawdust visible, illustrating its cutting capability.

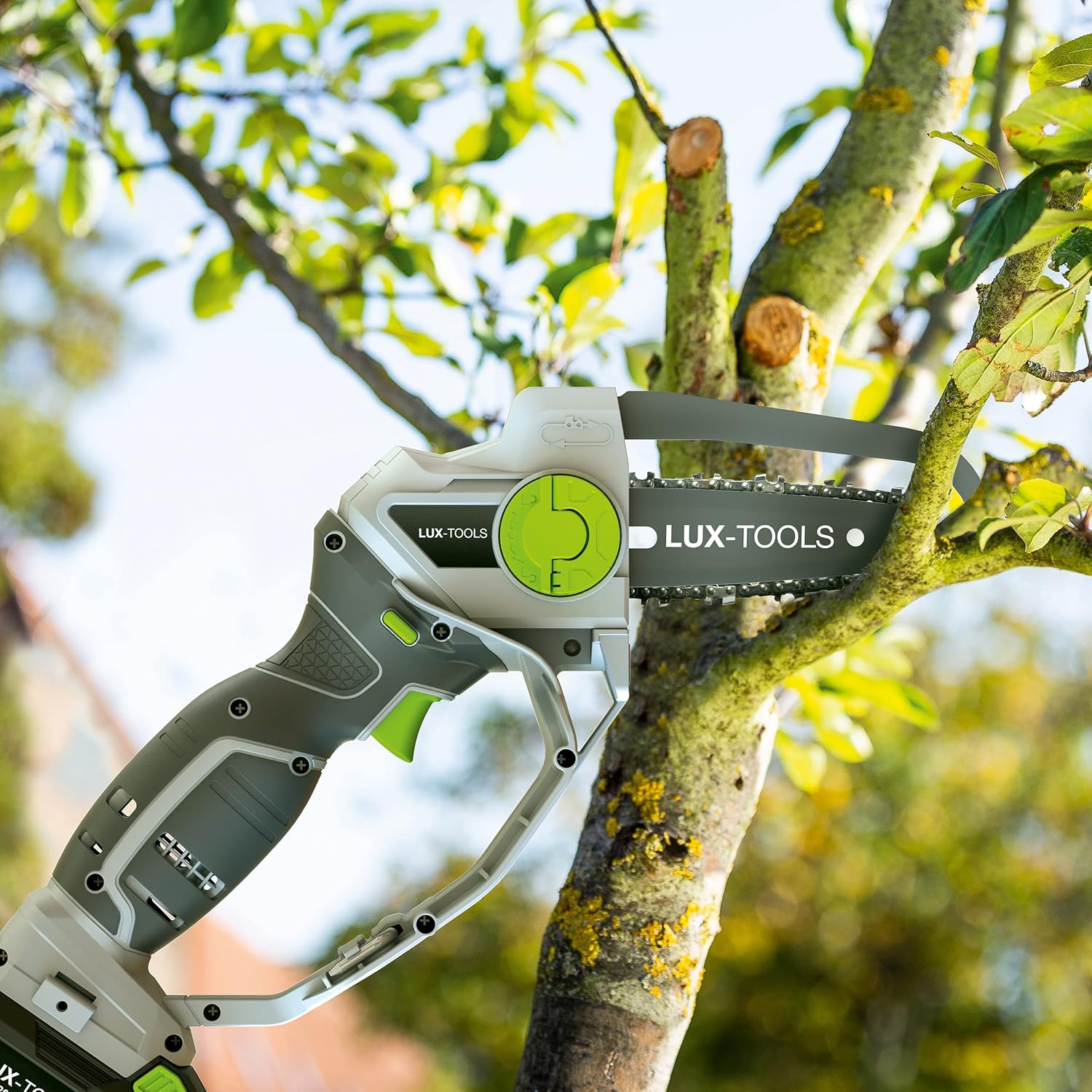

The pruning saw being used to cut a branch directly on a tree, highlighting its suitability for garden pruning tasks.

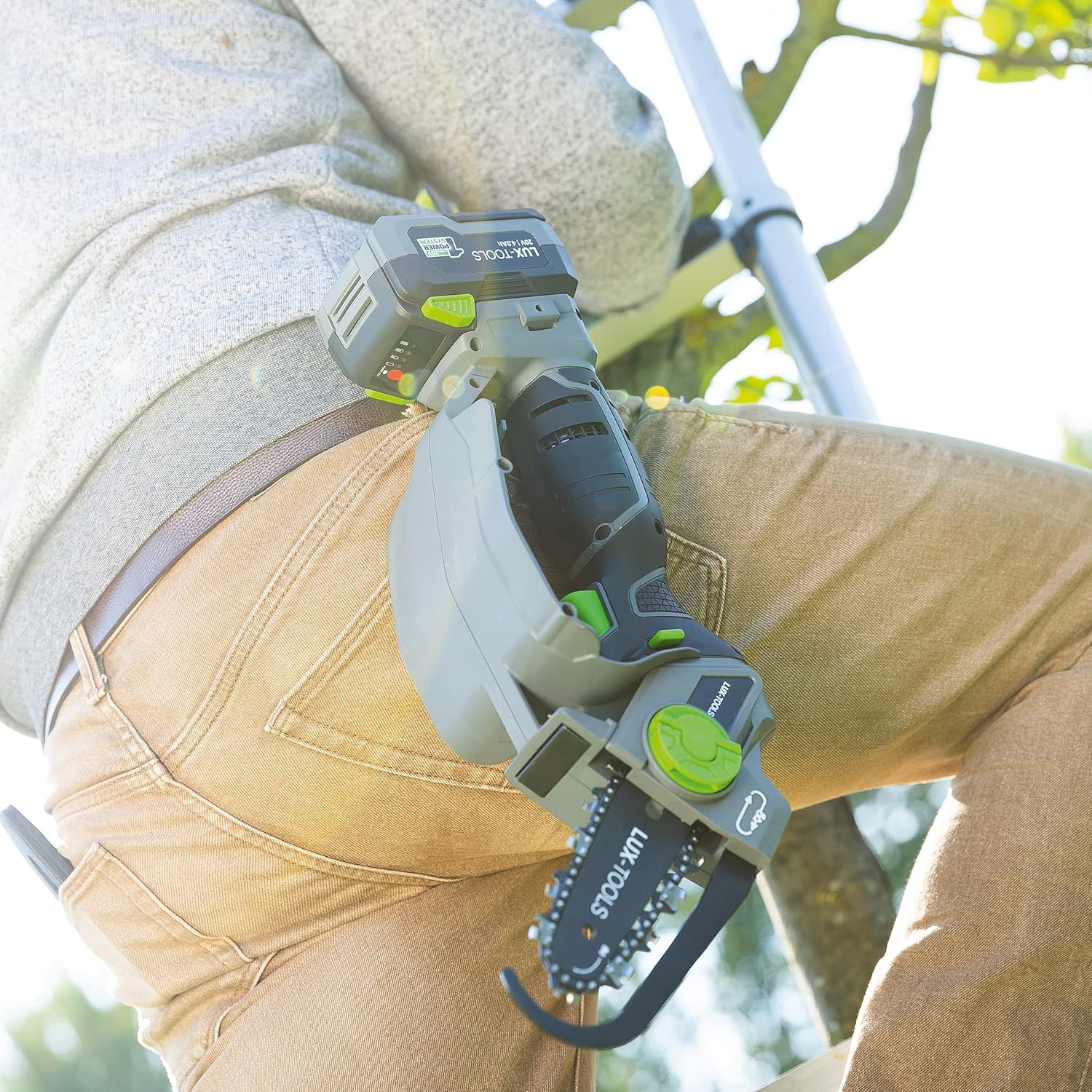

A user on a ladder operating the cordless pruning saw to trim higher branches, showcasing the tool's portability and ease of use for elevated tasks.

• Small Branches: For small branches, position the saw firmly against the branch and allow the saw to do the work. Do not force the cut.
• Larger Branches: For thicker branches, make a relief cut on the underside first to prevent pinching or splintering, then complete the cut from the top.
• Zabraňte zpětnému rázu: Always be aware of the guide bar tip. Avoid contact with other objects or the ground.
• Overhead Work: When working overhead, ensure stable footing and be mindful of falling debris. Consider using a ladder if necessary, ensuring it is stable.

6. Údržba

Regular maintenance ensures optimal performance and extends the life of your pruning saw. Always remove the battery before performing any maintenance.

6.1 Čištění

• After each use, clean the saw body with a damp tkanina.
• Remove sawdust and debris from the guide bar groove and around the sprocket.
• Ujistěte se, že ventilační otvory jsou bez překážek.

6.2 Mazání řetězu

The saw chain requires regular lubrication to reduce friction and wear. Apply chain oil to the guide bar groove and chain links before and during extended use.

6.3 Broušení a výměna řetězu

A hand demonstrating the proper way to hold the pruning saw with the chain cover securely in place, emphasizing safety during handling and storage.

• A dull chain will reduce cutting efficiency and increase strain on the motor. Sharpen the chain regularly or replace it when necessary. Refer to the chain manufacturer's instructions for sharpening.
• When replacing the chain, ensure it is the correct size and type for your A-EAS-20/156 model.

6.4 Skladování

• Always install the chain cover before storing or transporting the saw.
• Pilu skladujte na suchém a bezpečném místě mimo dosah dětí.
• Remove the battery from the saw if storing for extended periods.

7. Řešení problémů

Tato část se zabývá běžnými problémy, se kterými se můžete setkat. V případě problémů, které zde nejsou uvedeny, kontaktujte zákaznickou podporu.

8. Specifikace

Technical data for the LUX-TOOLS 1 PowerSystem A-EAS-20/156 Cordless Pruning Saw.

9. Záruka a podpora

For warranty information, technical support, or to purchase replacement parts, please refer to the documentation included with your product or contact your retailer. You may also visit the official LUX-TOOLS webstránky pro další pomoc.
