AUKEPO Portable Tire Inflator Air Compressor User Manual

1. Úvod

This manual provides instructions for the safe and efficient operation of your AUKEPO Portable Tire Inflator Air Compressor. This device is designed for inflating vehicle tires and various inflatable items.

Image 1.1: AUKEPO Portable Tire Inflator Air Compressor.

Klíčové vlastnosti:

• Digital Pressure Display: Provides clear pressure readings in PSI, BAR, KPA, and KG/CM².
• Automatic Shut-Off: The inflator stops automatically once the preset pressure is reached.
• Emergency LED Light: Integrated light for visibility and emergency use in low-light conditions.
• Quick Inflation: Inflates car tires at a speed of 35 liters per minute.
• Compact and Portable Design: Easy to store and transport.
• Multiple Nozzles: Includes various nozzles for different inflatable items.

Image 1.2: The inflator is suitable for a wide range of applications, including car tires, sports equipment, and various inflatables.

2. Důležitá bezpečnostní varování

• Zdroj napájení: This device operates on DC 12V power only. Connect exclusively to a vehicle's 12V cigarette lighter socket.
• Vehicle Engine: Always start the car engine before plugging the power cable into the 12V cigarette lighter socket to prevent draining the car battery.
• Požadavek na pojistku: Ensure the vehicle's cigarette lighter socket fuse is rated higher than 10A.
• Přehřívání: The unit can become hot during prolonged use. Allow it to cool down between inflation cycles if necessary.
• Děti: Keep the air compressor away from children.
• Provozní prostředí: Use in a well-ventilated area. Avoid operating near flammable liquids or gases.
• Nastavení tlaku: Refer to the instruction manual or the item being inflated for correct pressure settings. Over-inflation can cause damage or injury.
• Nouzové světlo: The integrated LED light can be used to signal presence when parked and inflating in low visibility conditions.

3. Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• AUKEPO Portable Tire Inflator Air Compressor
• Napájecí kabel (integrovaný)
• 3 x Nozzles (various types for different inflatables)
• 1x pojistka navíc

Image 3.1: The included nozzles and spare fuse for versatile inflation.

4. Nastavení

Before operating the tire inflator, follow these steps:

1. Nastartujte motor vozidla: Ensure your vehicle's engine is running. This provides stable power and prevents battery drain.
2. Připojte napájení: Insert the 12V power cable plug into your vehicle's cigarette lighter socket.

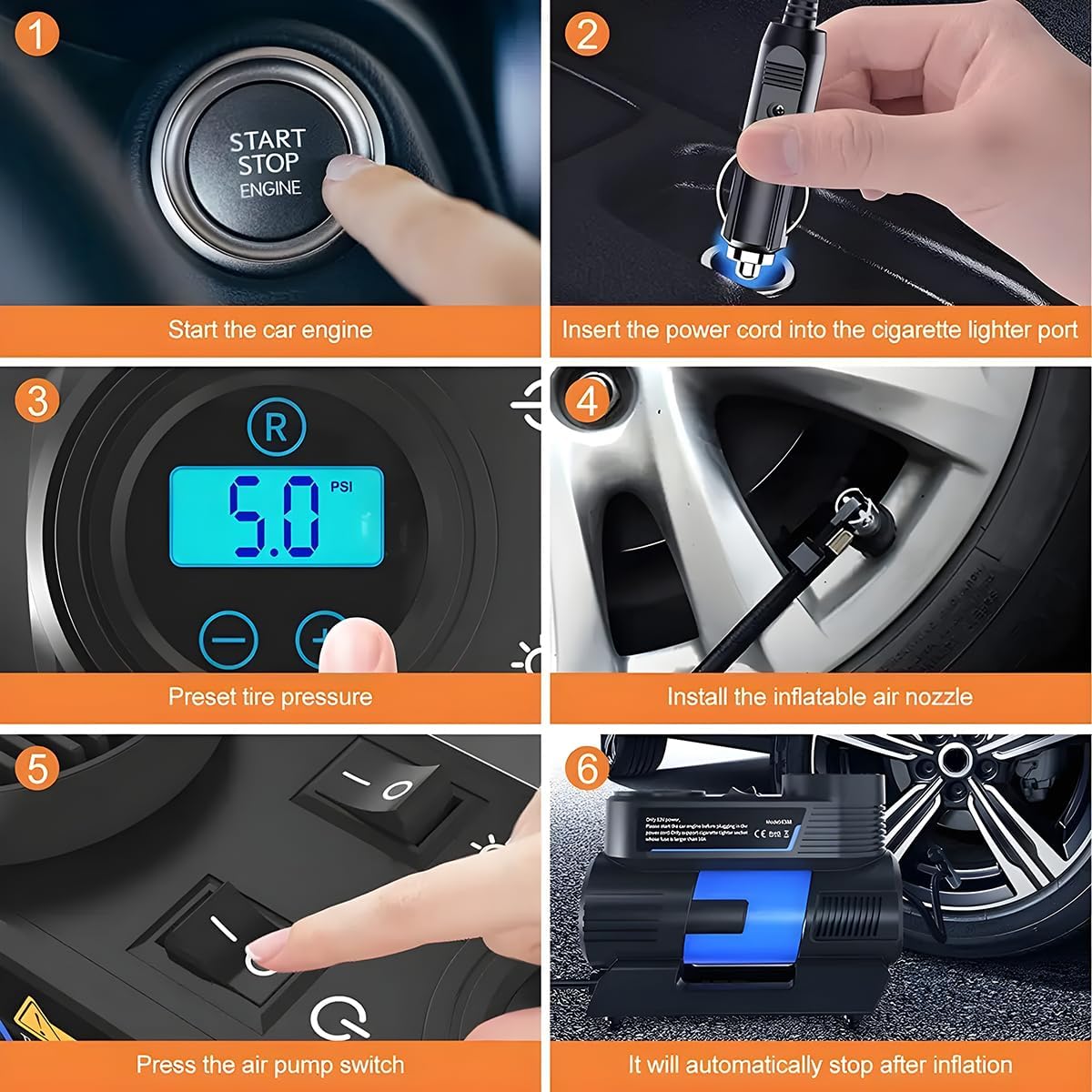

Image 4.1: Visual guide for connecting the inflator to the vehicle's power source.

5. Návod k obsluze

Follow these steps to inflate tires or other items:

1. Připojte trysku: Select the appropriate nozzle for the item you wish to inflate. For vehicle tires, screw the air hose connector onto the tire valve stem. Ensure a secure connection to prevent air leakage.
2. Zapnutí a nastavení tlaku:
   • Once connected to the 12V power source, the digital display will illuminate.
   • Press the 'R' button to cycle through pressure units (PSI, BAR, KPA, KG/CM²).
   • Use the '+' and '-' buttons to set the desired target pressure. Refer to your vehicle's manual or tire sidewall for recommended tire pressure.
3. Začátek inflace: Press the power switch on the inflator to begin inflation.
4. Sledovat průběh: The digital display will show the current pressure as the item inflates.
5. Automatické vypnutí: The inflator will automatically stop once the preset target pressure is reached.
6. Odpojit: Turn off the inflator, then carefully disconnect the air hose from the valve stem and unplug the power cable from the cigarette lighter socket.

Image 5.1: The digital display showing various pressure units and controls.

Použití LED světla:

The inflator features a built-in LED light for use in dark environments or as an emergency signal. Press the light button to cycle through different light modes (e.g., steady on, flashing).

Image 5.2: The integrated LED light providing illumination during use.

6. Údržba

• Čištění: Otřete vnější část hustilky reklamouamp hadříkem. Nepoužívejte agresivní chemikálie ani neponořujte jednotku do vody.
• Skladování: Store the inflator in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the power cord and air hose are neatly coiled.
• Výměna pojistky: If the inflator stops working, check the fuse in the 12V power plug. Replace it with the provided spare fuse if necessary.
• Chlazení: Allow the unit to cool down after each use, especially after inflating multiple tires or for extended periods.

7. Řešení problémů

8. Specifikace

Image 8.1: Product dimensions for the AUKEPO Portable Tire Inflator.

9. Záruka a podpora

For any questions or concerns regarding your AUKEPO Portable Tire Inflator, please contact AUKEPO customer service. Refer to your purchase documentation for specific warranty details and contact information.
