IMOR MIRAMAR Gas Garden Barbecue Instruction Manual

1. Důležité bezpečnostní informace

VAROVÁNÍ: Nedodržení těchto pokynů může vést k požáru, výbuchu nebo popálení, což může vést k poškození majetku, zranění osob nebo smrti.

• Pouze k venkovnímu použití. Nepoužívejte tento spotřebič uvnitř budovy, garáže ani jiného uzavřeného prostoru.
• Read all instructions before assembling and operating the barbecue.
• Udržujte děti a domácí zvířata vždy mimo dosah grilu.
• Neskladujte ani nepoužívejte benzín nebo jiné hořlavé výpary a kapaliny v blízkosti tohoto ani jiného spotřebiče.
• Always ensure the barbecue is placed on a level, stable, non-combustible surface.
• Neblokujte proudění spalovacího a ventilačního vzduchu.
• Always check for gas leaks before each use and after changing the gas cylinder.
• Při manipulaci s horkými součástmi používejte ochranné rukavice.
• Do not attempt to repair or alter the barbecue. Contact qualified service personnel for repairs.

2. Obsah balení

Verify that all components are present before beginning assembly. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

• Barbecue main body with lid and burners
• Side table(s)
• Grill grates and cooking plate
• Wheels (2 or 4, depending on model)
• Legs/Support frame
• Spodní police
• Hardware pack (screws, nuts, washers)
• Návod k použití

3. Montážní návod

Assembly is required for this product. Please follow these general steps. Refer to the detailed assembly diagram included in your package for specific part identification and fastening instructions.

1. Rozbalte komponenty: Opatrně vyjměte všechny díly z obalu. Položte je na měkký, čistý povrch, abyste zabránili poškrábání.
2. Sestavte rám: Attach the legs to the main barbecue body using the provided screws and tools. Ensure all connections are secure.
3. Instalace kol: Secure the wheels to the designated leg supports. This allows for easy movement of the barbecue.
4. Připevnění spodní police: Fasten the bottom shelf to the assembled frame. This provides storage space for accessories or the gas cylinder.
5. Mount Side Table(s): Attach the side table(s) to the main barbecue body. These provide convenient workspace.
6. Insert Grill Grates and Cooking Plate: Place the grill grates and cooking plate into the main cooking area.
7. Závěrečná kontrola: Ensure all screws are tightened and the barbecue is stable.

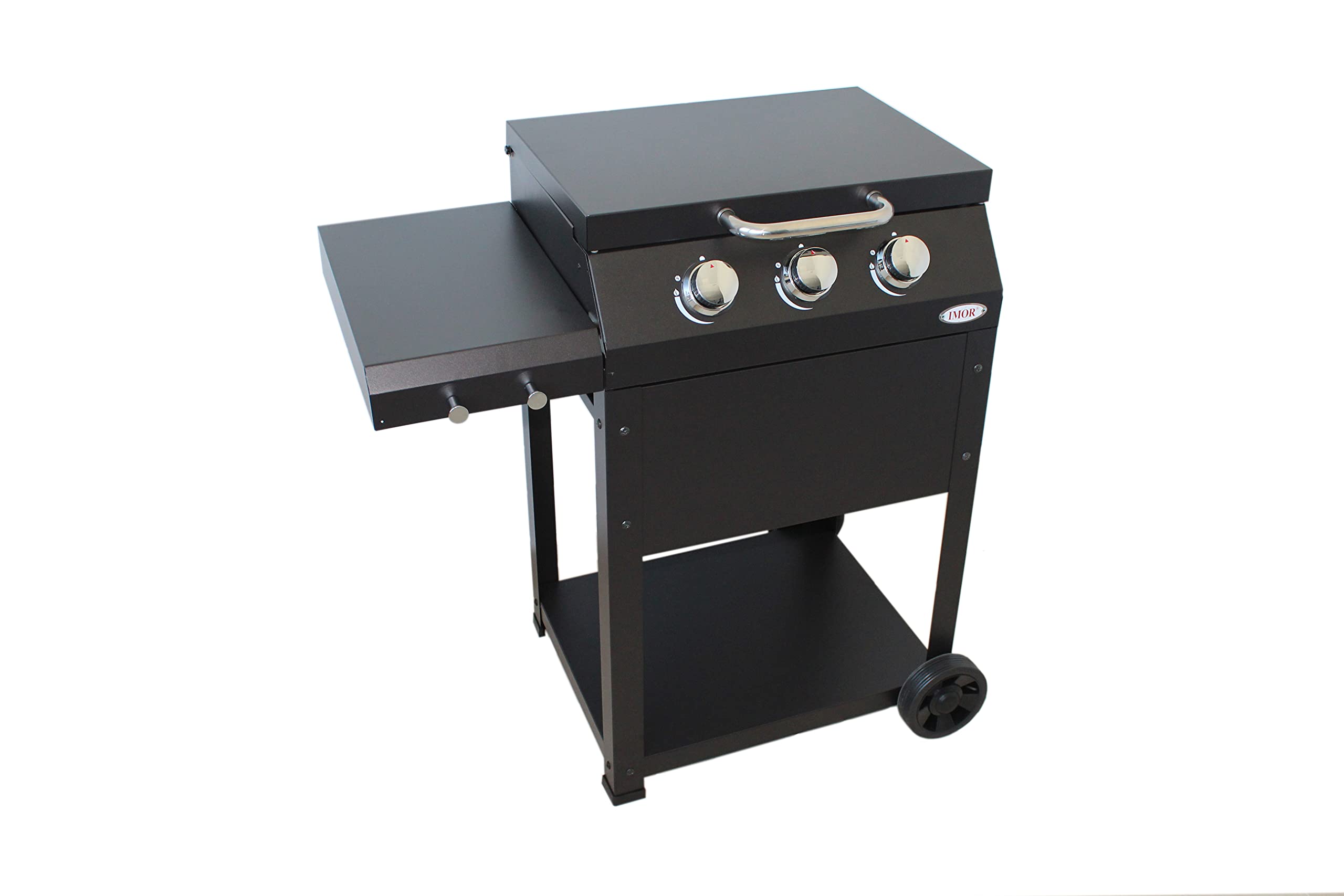

Obrázek 3.1: Přední strana view of the IMOR MIRAMAR Gas Garden Barbecue with the lid closed and side table extended. This image shows the overall assembled product.

Figure 3.2: The IMOR MIRAMAR Gas Garden Barbecue with its lid open, revealing the grill grates and cooking plate, and the side table extended.

4. Initial Setup and Gas Connection

Before operating your barbecue, proper setup and gas connection are crucial for safety and performance.

1. Umístění: Place the barbecue on a firm, level surface, away from any combustible materials. Ensure adequate clearance from walls or other structures.
2. Připojení plynové láhve: Connect the gas regulator to the gas cylinder valve. Ensure the connection is tight and secure.
3. Test těsnosti: Before first use and after every gas cylinder change, perform a leak test. Apply a soapy water solution (50% soap, 50% water) to all gas connections. Open the gas cylinder valve. If bubbles appear, there is a leak. Close the gas valve immediately and tighten connections. Repeat the test. If leaks persist, do not use the barbecue and contact customer support.
4. Burn-off: Before cooking food for the first time, operate the barbecue on high heat for 15-20 minutes with the lid closed to burn off any manufacturing residues.

5. Návod k obsluze

5.1 Zapálení hořáků

1. Ensure the barbecue lid is open.
2. Otevřete přívodní ventil plynu na lahvi.
3. Push in and turn one control knob to the HIGH position. You should hear a clicking sound from the igniter.
4. If the burner does not light within 5 seconds, turn the control knob to OFF, close the gas cylinder valve, and wait 5 minutes before attempting to light again.
5. Once the first burner is lit, you can light other burners by pushing in and turning their respective control knobs to HIGH.

5.2 Vaření

• Preheat the barbecue with the lid closed for 10-15 minutes on medium heat.
• Adjust burner controls to achieve desired cooking temperature.
• Use appropriate barbecue tools for handling food.

5.3 Turning Off the Barbecue

1. Otočte všechny ovládací knoflíky hořáku do polohy OFF.
2. Zavřete přívodní ventil plynu na plynové lahvi.

6. Péče a údržba

6.1 Cleaning the Grill Grates

• Po každém použití, dokud jsou rošty ještě teplé, odstraňte zbytky jídla kartáčem na gril.
• For deeper cleaning, remove grates once cooled and wash with warm soapy water. Rinse thoroughly and dry completely before reinserting.

6.2 Čištění exteriéru

• Otřete vnější povrchy reklamouamp hadříkem a jemným čisticím prostředkem. Vyhněte se abrazivním čisticím prostředkům.
• For stainless steel parts, use a stainless steel cleaner to maintain shine and prevent corrosion.

6.3 Skladování

• When not in use, store the barbecue in a dry, sheltered area.
• Disconnect the gas cylinder and store it upright in a well-ventilated area, away from direct sunlight or heat sources.
• Consider using a barbecue cover to protect it from weather elements.

7. Řešení problémů

8. Specifikace produktu

Figure 8.1: Dimensions of the IMOR MIRAMAR Gas Garden Barbecue.

9. Záruka a zákaznická podpora

IMOR products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official IMOR webmísto.

For technical assistance, missing parts, or any questions regarding the operation or maintenance of your IMOR MIRAMAR Gas Garden Barbecue, please contact our Specialized Customer Support team. Contact details can typically be found on the IMOR webna webu nebo v dokumentaci k nákupu.
