HY69 Push Pull Switch User Manual

Zavedení

This manual provides essential information for the safe and effective use of the KeDu HY69 6-Pin Push Pull Switch. Designed for various applications including bank insurance cabinets, wine cabinets, disinfection cabinets, refrigerators, freezers, wardrobes, and swing/sliding doors, this switch offers reliable performance.

Mezi klíčové vlastnosti patří:

• Voděodolné a prachotěsné provedení.
• Anti-corrosion and anti-aging properties.
• Flame retardant and high-temperature resistance.
• Long service life, ensuring safe and reliable operation.
• Constructed from high-strength flame retardant engineering plastics for safety and environmental protection.

Image: Two KeDu HY69 push pull switches. These switches feature a white cylindrical push button and a rectangular body, displaying electrical ratings such as 12/16A 250/125V and 1HP.

Nastavení a instalace

The HY69 switch is designed for snap-in mounting. Ensure the mounting surface is clean and dry before installation. Refer to the dimension diagrams for precise cutout requirements.

Montážní pokyny:

1. Příprava montážního otvoru: Based on the "Snap-in Mounting size" diagram, create a rectangular cutout in your panel. For HY69, the typical mounting size is approximately 36mm (X) by 13.5mm (Y).
2. Identifikujte terminály: The switch features 6 terminals. Refer to the wiring diagram provided in the specifications section to correctly identify Common (COM), Normally Open (NO), and Normally Closed (NC) connections.
3. Kabelová připojení: Connect the electrical wires to the appropriate terminals. Ensure all connections are secure and insulated to prevent short circuits. The terminals are Tab 6.3 x 0.8 standard.
4. Insert Switch: Gently push the switch into the prepared cutout until it snaps securely into place.
5. Ověřte instalaci: Before applying power, double-check all wiring connections and ensure the switch is firmly seated.

Image: Reference dimension diagram. This diagram illustrates the physical dimensions of the switch housing (H1, H2, H3 types) and the recommended snap-in mounting hole size for installation. Key dimensions A, B, C, and X are provided in a table.

Image: Technical diagram of HY69 switch. This visual guide details the switch's appearance, internal wiring functions (F1, F4), button dimensions (B1, B2), terminal standards, terminal shapes, and housing types (H1, H2).

Návod k obsluze

The HY69 is a push-pull switch, meaning its state changes by pushing or pulling the actuator button.

• Push Operation: Pushing the button inwards will change the switch's state (e.g., turn a device ON or OFF).
• Pull Operation: Pulling the button outwards will revert the switch to its original state (e.g., turn a device OFF or ON).

The specific function (e.g., turning a lamp ON/OFF) depends on how the switch is wired into the circuit. Refer to your appliance's wiring diagram or the function diagram (F1, F4) in the technical specifications for precise operation details.

Obrázek: Nahoře view of two HY69 switches. This perspective highlights the white cylindrical push button, which is the primary interface for operating the switch.

Údržba

The KeDu HY69 switch is designed for durability and long service life. Minimal maintenance is required.

• Čištění: If necessary, gently wipe the exterior of the switch with a dry, soft cloth. Avoid using abrasive cleaners or solvents.
• Inspekce: Periodically inspect the switch for any signs of physical damage, loose connections, or excessive wear. Ensure the push-pull mechanism operates smoothly.
• Prostředí: Although waterproof and dustproof, avoid exposing the switch to extreme conditions beyond its rated specifications.

Safety Note: Always disconnect power to the circuit before performing any inspection or maintenance on the switch.

Odstraňování problémů

If the HY69 switch is not functioning as expected, consider the following common issues:

• Bez napájení: Check the power supply to the circuit. Ensure the circuit breaker or fuse is not tripped.
• Nesprávné zapojení: Verify that the switch is wired correctly according to the appliance's diagram and the switch's terminal functions (COM, NO, NC). A common issue is misconnecting Normally Open (NO) and Normally Closed (NC) terminals.
• Uvolněná připojení: Ensure all wire connections to the switch terminals are secure and not corroded.
• Poškozený spínač: If the switch mechanism feels stiff, broken, or if there are visible signs of damage (e.g., melted plastic, burnt smell), the switch may be faulty and require replacement.

Warning: Do not attempt to repair internal components of the switch. Contact a qualified electrician if you are unsure about troubleshooting electrical issues.

Specifikace

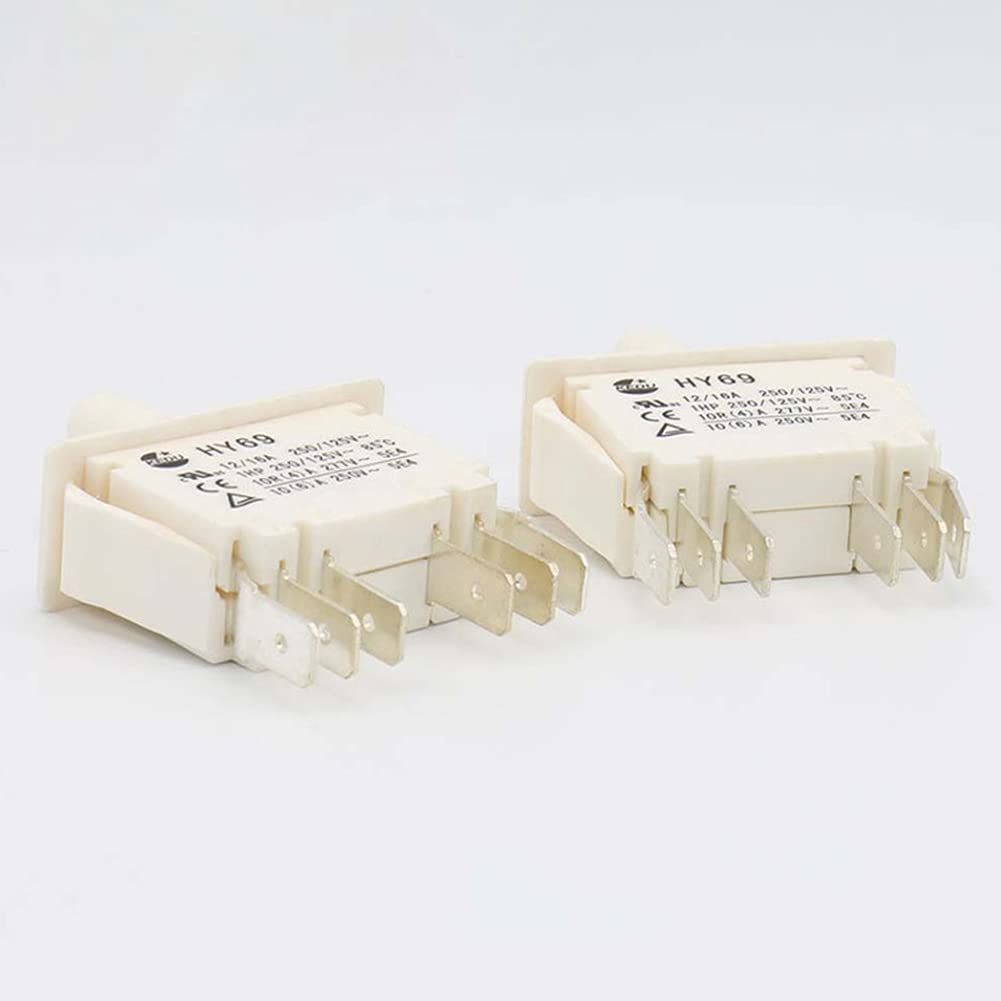

Obrázek: Boční view of two HY69 switches. This view clearly shows the six metal terminals at the bottom of the switch, which are used for electrical connections.

Informace o záruce

Specific warranty details for the KeDu HY69 Push Pull Switch are not provided in this manual. Please refer to the product packaging or contact the seller/manufacturer directly for warranty terms and conditions.

Zákaznická podpora

For technical assistance, questions, or support regarding the KeDu HY69 Push Pull Switch, please contact the seller or manufacturer. Contact information may be available on the product packaging or through the point of purchase.

Manufacturer: KEDU

Seller: Hengte Dianzi Shangwu Gongsi (as per Amazon listing)
