Uživatelská příručka pro generické solární panely

1. Úvod

Welcome to the user manual for your Generic Solar Panel. This guide provides essential information for the safe and efficient installation, operation, and maintenance of your solar panel system. Please read this manual thoroughly before proceeding with installation or use to ensure optimal performance and longevity of your product.

2. Bezpečnostní informace

Safety is paramount when working with electrical components and solar panels. Adhere to the following precautions:

• Always wear appropriate personal protective equipment (PPE), including gloves and eye protection, during installation and maintenance.
• Do not attempt to install or repair the solar panel if you are not qualified. Consult a professional electrician or installer.
• Ensure the solar panel is disconnected from any power source before performing maintenance or adjustments.
• Avoid touching the glass surface of the panel with bare hands, especially when it is hot.
• Do not drop or place heavy objects on the solar panel.
• Udržujte děti a domácí zvířata mimo dosah místa instalace.
• Správné uzemnění je nezbytné pro prevenci úrazu elektrickým proudem.

3. Konec produktuview

The Generic Solar Panel (Surya Plate) is designed to provide reliable electricity, offering a solution to power cuts and enabling you to manage your electricity consumption effectively.

3.1 Součásti zahrnuté v balení

• Solar Panel Unit
• Bolts (for installation)

3.2 Klíčové vlastnosti

• Durable construction with Glass and Aluminium materials.
• Equipped with MC4 Connector Type for secure connections.
• Designed for efficient energy capture.
• Provides a solution for consistent power supply, reducing reliance on grid electricity.

3.3 Obrázky produktů

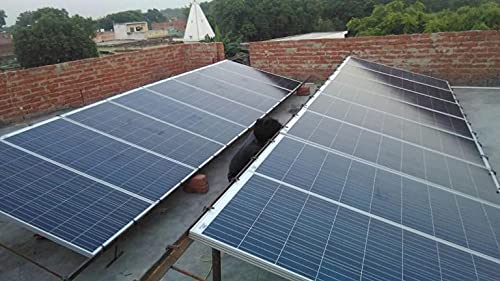

Obrázek 1: An installed Generic Solar Panel on a rooftop, demonstrating its typical deployment for residential or commercial use. The panel is designed for outdoor exposure and efficient energy collection.

Obrázek 2: A row of Generic Solar Panels deployed in an open field, illustrating their scalability for larger installations. These panels are designed to capture sunlight effectively in various environments.

4. Nastavení a instalace

Proper installation is crucial for the performance and safety of your solar panel. It is highly recommended to have the installation performed by a certified professional.

4.1 Výběr místa

• Vyberte si místo, které je po celý den vystaveno maximálnímu množství přímého slunečního záření a není zastíněno stromy, budovami ani jinými překážkami.
• Consider the structural integrity of the mounting surface (e.g., rooftop, ground mount) to support the panel's weight and withstand wind loads.
• The panel dimensions are approximately 121.92 x 60.96 x 5.08 cm (LxWxH). Plan your space accordingly.

4.2 Montáž panelu

• Securely attach the solar panel to the chosen mounting structure using the provided bolts. Ensure all connections are tight and stable.
• Orient the panel to face the optimal direction for sunlight exposure in your region (typically south in the Northern Hemisphere, north in the Southern Hemisphere).
• Adjust the tilt angle for maximum annual energy production, considering seasonal variations.

4.3 Elektrické připojení

• Connect the solar panel to your charge controller and battery bank using MC4 connectors. Ensure correct polarity (+ to + and - to -).
• Veškeré zapojení by mělo splňovat místní elektrotechnické předpisy a normy.
• Implement proper grounding for the entire system to prevent electrical hazards.

5. Návod k obsluze

Once installed, your Generic Solar Panel will begin converting sunlight into electricity.

• The solar panel is designed to charge batteries during daylight hours. These charged batteries can then provide power during the night or when sunlight is insufficient.
• Monitor your charge controller to ensure proper battery charging and discharge cycles.
• The system is intended to help you manage your electricity consumption and reduce reliance on the main grid, minimizing "bijli cut problem" (power cut issues).

6. Údržba

Pravidelná údržba zajistí dlouhou životnost a účinnost vašeho solárního panelu.

• Čištění: Periodically clean the surface of the solar panel to remove dust, dirt, leaves, or other debris that may accumulate and reduce efficiency. Use a soft cloth and water; avoid abrasive cleaners.
• Inspekce: Annually inspect the panel for any physical damage, such as cracks in the glass or frame. Check all electrical connections for corrosion or looseness.
• Stínování: Ensure no new obstructions (e.g., growing trees) are casting shadows on the panel.

7. Řešení problémů

If you experience issues with your solar panel, consider the following common problems and solutions:

• Nízký výstupní výkon:
  • Zkontrolujte stínování na povrchu panelu.
  • Pokud je povrch panelu znečištěný, očistěte ho.
  • Zkontrolujte, zda jsou všechna elektrická připojení bezpečná a bez koroze.
  • Ensure the charge controller is functioning correctly.
• Žádný výkon:
  • Confirm direct sunlight is hitting the panel.
  • Check all wiring for disconnections or damage.
  • Inspect the MC4 connectors for proper engagement.
  • Test the battery bank to ensure it is not fully discharged or faulty.
• Fyzické poškození:
  • If the glass or frame is cracked, contact support for replacement or repair options. Do not attempt to repair damaged panels yourself.

8. Specifikace

9. Záruka a podpora

Your Generic Solar Panel comes with a 25-letá záruka, ensuring long-term reliability and performance. This warranty covers manufacturing defects and significant power output degradation under normal operating conditions.

For technical support, warranty claims, or any inquiries, please contact the manufacturer directly.

Kontaktní číslo: 09650999196
