SOCOTRAN T82 Walkie Talkies User Manual

Zavedení

The SOCOTRAN T82 Walkie Talkies are advanced two-way radios designed for reliable communication in various environments. Featuring Bluetooth earpiece connectivity, NOAA weather alerts, and a durable waterproof design, these radios are suitable for outdoor activities, professional use, and general communication needs. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance.

Co je v krabici

• SOCOTRAN T82 Walkie Talkie Units (Red color, 2 units)
• Bluetooth Earpiece Headsets (2 units)
• USB nabíjecí kabel
• Nabíjecí stanice (2 jednotky)
• Lithium-iontové baterie (2 ks v balení)
• Uživatelská příručka (tento dokument)

Image: Contents of the SOCOTRAN T82 package, including two walkie talkies, two Bluetooth earpieces, and charging accessories.

Nastavení

1. Instalace baterie

1. Open the battery compartment cover on the back of the walkie talkie.
2. Vložte dodanou lithium-iontovou baterii a dbejte na správnou polaritu.
3. Bezpečně zavřete kryt bateriového prostoru.

2. Nabíjení rádií

The SOCOTRAN T82 walkie talkies can be charged using the provided USB cable or by placing them in the charging dock.

• USB nabíjení: Connect the USB charging cable directly to the walkie talkie's USB port and a power source (e.g., computer, USB wall adapter).
• Nabíjecí dok: Place the walkie talkie unit into its dedicated charging dock. The battery or the entire walkie talkie can be charged separately on the dock.

Image: Illustrates the various charging methods for the walkie talkies, including direct USB and charging docks.

3. Pairing Bluetooth Earpiece

The walkie talkie comes with two wireless Bluetooth headsets for hands-free operation. The Bluetooth headset supports a 10-meter call range.

1. Ensure both the walkie talkie and the Bluetooth earpiece are powered on.
2. Refer to the earpiece's specific instructions for entering pairing mode (usually involves holding a button until an indicator light flashes).
3. On the walkie talkie, activate Bluetooth pairing mode (consult the radio's display or menu for this option).
4. Once paired, the earpiece will connect automatically when both devices are on and within range.

Image: A SOCOTRAN T82 walkie talkie shown alongside its wireless Bluetooth earpiece, emphasizing the hands-free communication feature.

Návod k obsluze

1. Zapnutí/vypnutí

To power on or off the walkie talkie, rotate the upper knob (usually combined with the volume control) clockwise to turn on and counter-clockwise to turn off.

2. Výběr kanálu

The US version of the T82 features 22 FRS channels, while the EU version has 16 channels. Use the Up/Down arrow buttons on the front panel to select your desired channel.

3. Kódy ochrany osobních údajů (CTCSS/DCS)

The T82 supports 155 sets of CTCSS (Continuous Tone-Coded Squelch System) and DCS (Digitally Coded Squelch) privacy codes. These codes help filter out unwanted transmissions from other radios on the same channel. To set a privacy code:

1. Stiskněte tlačítko MENU tlačítko.
2. Navigate to the CTCSS or DCS setting using the Up/Down arrows.
3. Select your desired code.
4. Stiskněte MENU znovu nebo VOLÁNÍ pro potvrzení a ukončení.

4. Ovládání VOX v režimu handsfree

The VOX (Voice Operated Exchange) function allows for hands-free communication. When VOX is enabled, the radio transmits automatically when it detects your voice, eliminating the need to press the PTT (Push-To-Talk) button.

5. Meteorologické rádio NOAA

The US version of the T82 includes NOAA weather warnings, providing real-time weather alerts to keep you informed of changing conditions.

Image: The SOCOTRAN T82 walkie talkie featuring NOAA Weather Radio functionality, useful for outdoor activities.

6. Call Tones and Vibration

The T82 offers 10 groups of incoming call ring tones and a super vibration reminder for discreet alerts, especially useful in noisy environments.

7. Svítilna

Vestavěná LED svítilna poskytuje osvětlení za zhoršených světelných podmínek.

8. Long Talk Range

These walkie talkies offer a maximum talking range of 5 miles, ideal for car camping, outdoor adventures, and other long-distance communication needs.

Image: Visual representation of the SOCOTRAN T82's key features, including weather radio, super vibration, clear sound, flashlight, Bluetooth one-key link, USB charging, VOX hands-free, and dual channel monitor.

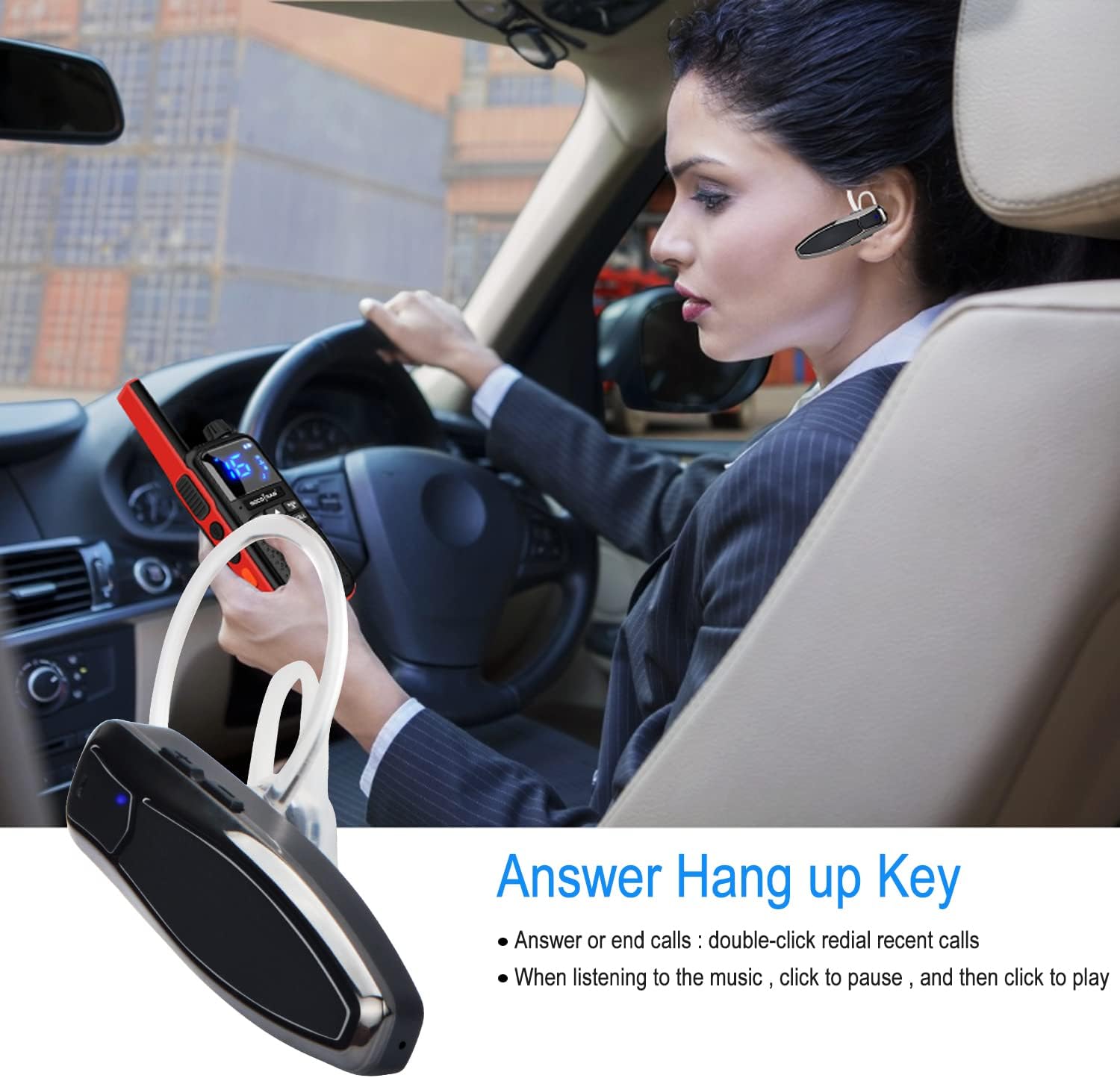

9. Bluetooth Earpiece Operation

The Bluetooth earpiece features a multi-function button for answering/ending calls and controlling music playback (if applicable). It also has a USB charging port and volume controls.

Image: Detailed diagram of the Bluetooth earpiece, pointing out its various parts and functions.

Video: An official product video demonstrating the features and setup of the SOCOTRAN T82 Walkie Talkies with Wireless Earpieces.

Údržba

• Keep the walkie talkies clean by wiping them with a soft, damp tkanina. Vyhněte se agresivním chemikáliím.
• Ensure the USB port cover is securely closed to maintain the waterproof rating when not charging.
• Store the radios and accessories in a cool, dry place when not in use.
• For optimal battery life, fully charge the batteries before first use and avoid deep discharge.

Odstraňování problémů

Specifikace

Záruka a podpora

For warranty information, technical support, or service inquiries, please refer to the contact details provided with your product packaging or visit the official SOCOTRAN webwebu. Uschovejte si účtenku jako doklad o koupi.
