Rakstore ZB2L3 Battery Capacity Tester User Manual

1. Úvod

The Rakstore ZB2L3 Battery Capacity Tester is a versatile device designed to measure the capacity of various battery types, including 18650 Lithium batteries and Lead-Acid batteries. It functions as a discharge tester, allowing users to determine the actual capacity by discharging the battery through a load and measuring the discharged energy. This manual provides detailed instructions for the safe and effective use of the ZB2L3 tester.

2. Bezpečnostní informace

• Always ensure correct polarity when connecting batteries to avoid damage to the tester and battery.
• Use appropriate discharge loads. Overloading the tester or using incorrect loads can cause overheating and damage.
• Nezkratujte kontakty baterie.
• Operate the device in a well-ventilated area, especially when discharging batteries, as they can generate heat.
• Chraňte zařízení před vlhkostí a extrémními teplotami.
• Toto zařízení není hračka. Uchovávejte mimo dosah dětí.

3. Vlastnosti produktu

• Napájení: DC4.5-6V via micro USB interface.
• Pracovní proud: Less than 70mA.
• Výboj Voltage Rozsah: 1-15V with 0.01V resolution.
• Ukončení svtage Rozsah: 0.5-11.0V.
• Supported Discharge Current: Up to 3.000A with 0.001A resolution.
• svtage Chyba měření: Less than 1% + 0.02V.
• Aktuální chyba měření: Less than 1.2% ± 0.002A.
• Rozsah kapacity baterie: Up to 9999Ah (1Ah=1000mAh). Display adjusts decimal point for large values (e.g., X.XXX Ah, XX.XX Ah).
• Kompaktní velikost: Circuit board 50mm x 37mm, finished product 50mm x 37mm x 17mm (L x W x H, including copper foot height).

4. Obsah balení

• 1 x Rakstore ZB2L3 Battery Capacity Tester Unit
• (Note: Discharge resistors and battery holders are typically sold separately and are required for operation.)

5. Nastavení

Before operating the ZB2L3 tester, ensure all connections are made correctly.

Figure 1: ZB2L3 Battery Capacity Tester showing the micro USB power input, battery terminals, and load terminals.

1. Připojení napájení: Connect a DC 4.5-6V power source to the micro USB port on the tester. A standard phone charger or power bank can be used. The display should light up.
2. Připojení baterie: Connect the battery to be tested to the "BAT+" and "BAT-" terminals. Ensure correct polarity. The tester will display the current battery voltage.
3. Discharge Load Connection: Connect an appropriate discharge resistor (load) to the "LOAD+" and "LOAD-" terminals. The resistance value of the load will determine the discharge current. Ensure the load can handle the expected power dissipation.

Důležité: The discharge current should not exceed 3.000A. Calculate the required resistance using Ohm's Law (R = V/I) and Power Law (P = V*I or P = I²*R) to ensure the resistor can handle the power. For example, if testing a 3.7V battery at 1A, you need a 3.7 Ohm resistor capable of dissipating at least 3.7W.

6. Návod k obsluze

Pro provedení testu kapacity baterie postupujte takto:

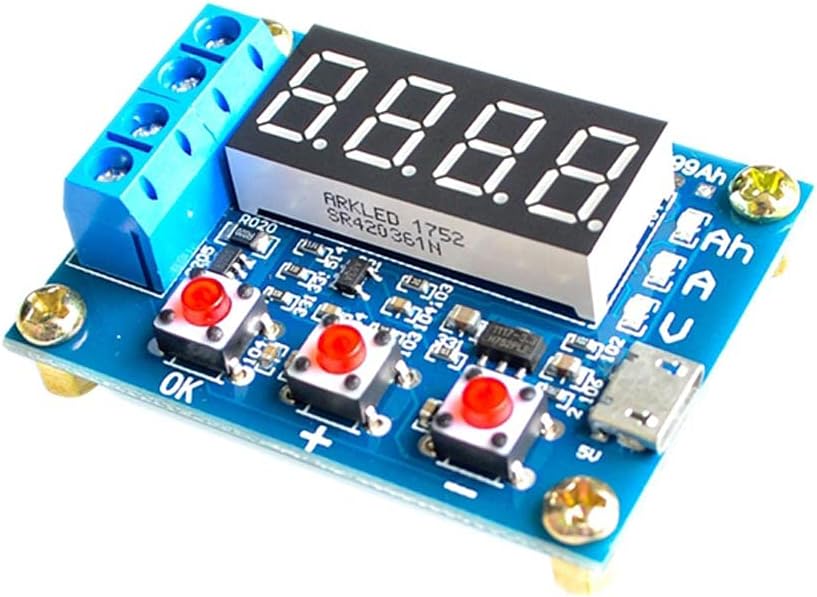

Figure 2: ZB2L3 Battery Capacity Tester showing the 'OK', '+', and '-' buttons for operation.

1. Počáteční zobrazení: After connecting the power and battery, the tester will display the battery's current voltage.
2. Set Termination Voltage:
   • Press the "OK" button once. The display will show the current termination voltage (e.g., "U 3.00").
   • Use the "+" and "-" buttons to adjust the termination voltage. Toto je svazektage at which the discharge test will stop. For 18650 Lithium batteries, a common termination voltage is 3.0V. For Lead-Acid batteries, consult the battery's specifications.
   • Press "OK" again to confirm the setting and return to the main display.
3. Start Discharge Test:
   • With the battery and load connected, and the termination voltage set, press and hold the "OK" button for approximately 3 seconds.
   • The tester will begin discharging the battery through the connected load. The display will cycle through current voltage (V), discharge current (A), and accumulated capacity (Ah).
4. Monitor Test Progress: Observe the display. The voltage will gradually decrease, and the accumulated capacity will increase.
5. Test Completion: The test will automatically stop when the battery voltage reaches the set termination voltage. The display will then show the final accumulated capacity (Ah) and flash.
6. View Výsledky: After the test stops, you can press the "OK" button to cycle through the final voltage, current, and capacity readings.
7. Reset for New Test: To start a new test, disconnect the battery and load, then reconnect them, or simply press and hold the "OK" button again to clear the previous results and start a new cycle.

7. Údržba

• Čištění: K čištění zařízení používejte měkký, suchý hadřík. Nepoužívejte tekuté čisticí prostředky ani rozpouštědla.
• Skladování: Tester skladujte na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
• Inspekce: Periodically check the terminals and connections for any signs of wear or damage.

8. Řešení problémů

9. Specifikace

10. Záruka a podpora

This product is manufactured by Rakstore. For any technical support or warranty inquiries, please refer to the retailer where the product was purchased or visit the official Rakstore webstránky pro kontaktní informace.

Uschovejte si prosím doklad o koupi pro uplatnění záruky.
