Good Housekeeping Kingsley 81030 Decorative Bathroom Ventilation Exhaust Fan with Lighting Instruction Manual

1. Úvod

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Good Housekeeping Kingsley 81030 Decorative Bathroom Ventilation Exhaust Fan with Lighting. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

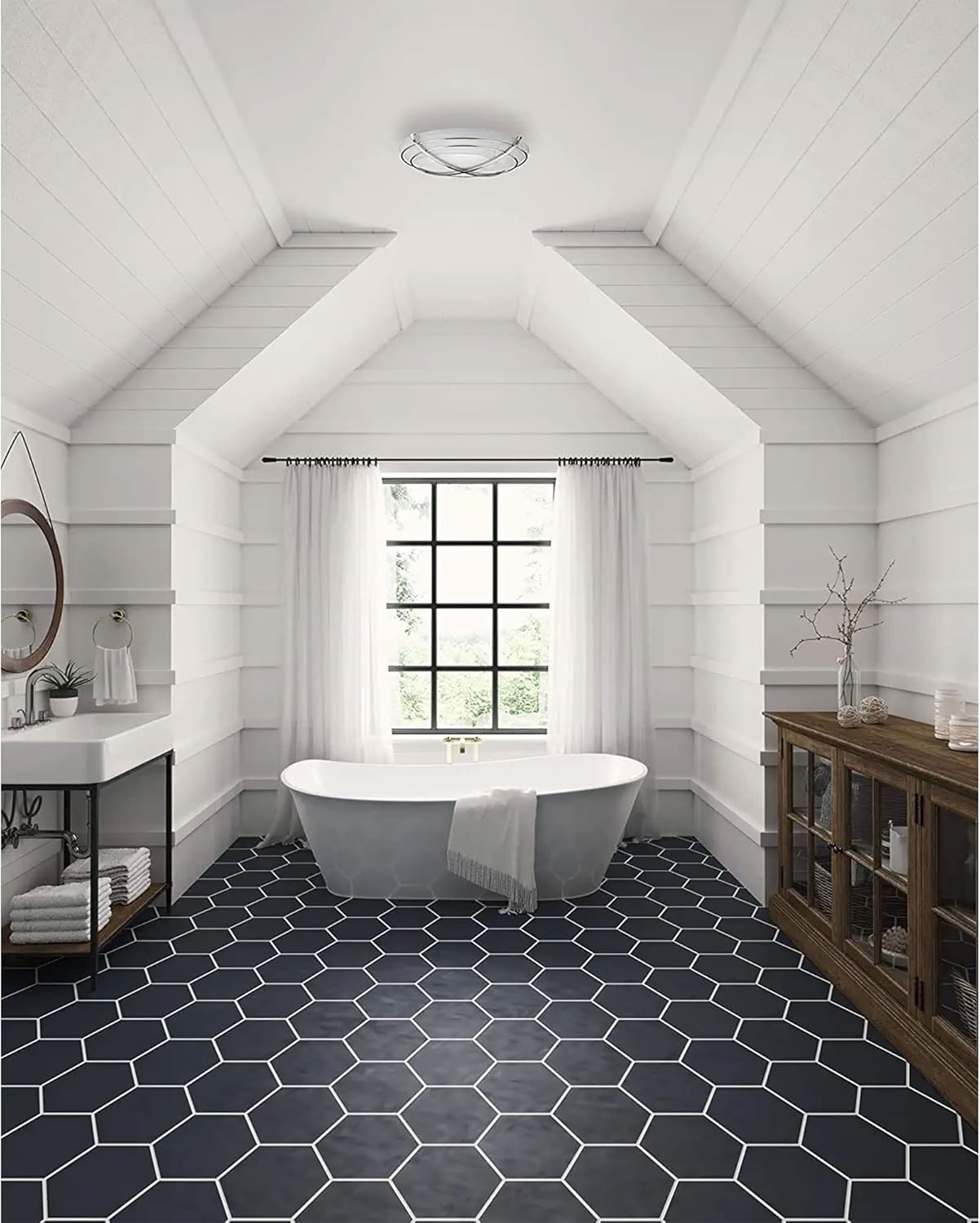

Image 1.1: The Good Housekeeping Kingsley 81030 Decorative Bathroom Ventilation Exhaust Fan with Lighting, featuring a cast chrome finish and a premium glass shade.

2. Bezpečnostní informace

VAROVÁNÍ: Abyste snížili riziko požáru, úrazu elektrickým proudem nebo zranění osob, dodržujte následující:

• Instalační práce a elektrické zapojení musí být provedeny kvalifikovanou osobou (osobami) v souladu se všemi platnými předpisy a normami, včetně protipožárních stavebních předpisů.
• Always disconnect power at the service panel before wiring or servicing this unit.
• This unit is ETL Listed for safe use over shower enclosures and bathtubs when connected to a GFCI (Ground Fault Circuit Interrupter) protected circuit.
• Tento ventilátor nepoužívejte s žádným zařízením pro řízení rychlosti v pevné fázi.
• Never place objects into the fan or light fixture.
• Ujistěte se, že všechny spoje jsou bezpečné a řádně izolované.

3. Obsah balení

Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:

• Motor with Housing (All-Metal)
• Light Kit with Glass Shade
• Installation Hardware (screws, wire nuts, etc.)

Obrázek 3.1: Rozložený view of the fan components, illustrating the main housing, motor, light fixture, and decorative cover.

4. Specifikace

Image 4.1: Dimensional drawing of the fan housing and light fixture.

5. Instalace

Důležité: Installation should be performed by a qualified electrician in compliance with local electrical codes.

1. Příprava: Turn off power at the circuit breaker or fuse box. Ensure the power is completely disconnected before proceeding.
2. Montáž pouzdra: Secure the all-metal motor housing between ceiling joists or to a suitable support structure using the provided installation hardware. Ensure the housing is level and securely fastened.
3. Připojení potrubí: Connect the appropriate ductwork (typically 4-inch diameter) to the fan's exhaust port. Seal all duct connections with duct tape or mastic to prevent air leakage.
4. Elektrické vedení: Route electrical wiring to the fan housing. Connect the fan's wires to the household wiring according to the wiring diagram provided with the installation hardware. Ensure proper grounding.
5. Instalace světelné sady: Attach the light kit to the fan housing. Connect the light's electrical wires to the designated connections within the housing.
6. Instalace skleněného stínítka: Carefully attach the premium glass shade to the light kit.
7. Critical Airflow Note: The fan portion must be mounted flush with the ceiling. The design relies on a small gap between the edge of the glass globe and the ceiling for proper air circulation. If the vent box is recessed, this gap will be lost, hindering airflow and fan performance. Ensure the glass globe does not sit flush against the ceiling, which would block the exhaust path.
8. Závěrečná kontrola: Once installation is complete, restore power and test the fan and light functions.

6. Provoz

The Good Housekeeping Kingsley 81030 fan is designed for simple operation via a standard wall switch (push button control method). It effectively removes excess humidity and odors from your bathroom environment.

• Funkce ventilátoru: The fan operates at 90 CFM (Cubic Feet Per Minute) to move air efficiently. This capacity is suitable for medium-sized bathrooms (80-99 sq. ft.).
• Tichý provoz: The fan is HVI Certified to operate at a low noise level of 2.5 Sones, ensuring a quiet bathroom environment.
• Osvětlení: The integrated light fixture provides illumination for your bathroom.

Image 6.1: Explanation of CFM (airflow capacity) and Sones (noise level) ratings.

7. Údržba

Regular maintenance ensures optimal performance and longevity of your ventilation fan.

1. Odpojit napájení: Always turn off power at the circuit breaker before performing any maintenance.
2. Čistý exteriér: Wipe the decorative grille and glass shade with a soft, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
3. Čištění lopatek ventilátoru: Carefully remove the glass shade and light kit. Gently wipe the fan blades and motor housing interior to remove dust and debris. Avoid bending the fan blades.
4. Inspect Ductwork: Periodically check the duct connection for any signs of leakage or obstruction.
5. Znovu sestavit: Reattach the light kit and glass shade, ensuring they are securely in place. Restore power.

8. Řešení problémů

Pokud máte s ventilátorem problémy, podívejte se na následující běžné problémy a jejich řešení:

9. Záruka a podpora

This Good Housekeeping Kingsley 81030 Decorative Bathroom Ventilation Exhaust Fan with Lighting comes with the following limited warranties:

• Motor: 5 rok omezená záruka
• Části: 1 rok omezená záruka

For warranty claims or technical support, please refer to the contact information provided at the point of purchase or on the product packaging. Keep your proof of purchase for warranty validation.
