1. Konec produktuview
This 10L0L Carburetor and Fuel Pump Kit is designed as a direct replacement for specific EZGO golf cart models. It provides the necessary components to restore optimal fuel delivery and engine performance.
Klíčové vlastnosti:
- Ensures smooth starting and efficient fuel usage.
- Constructed from durable aluminum alloy and high-grade rubber for longevity.
- Navrženo pro snadnou instalaci.

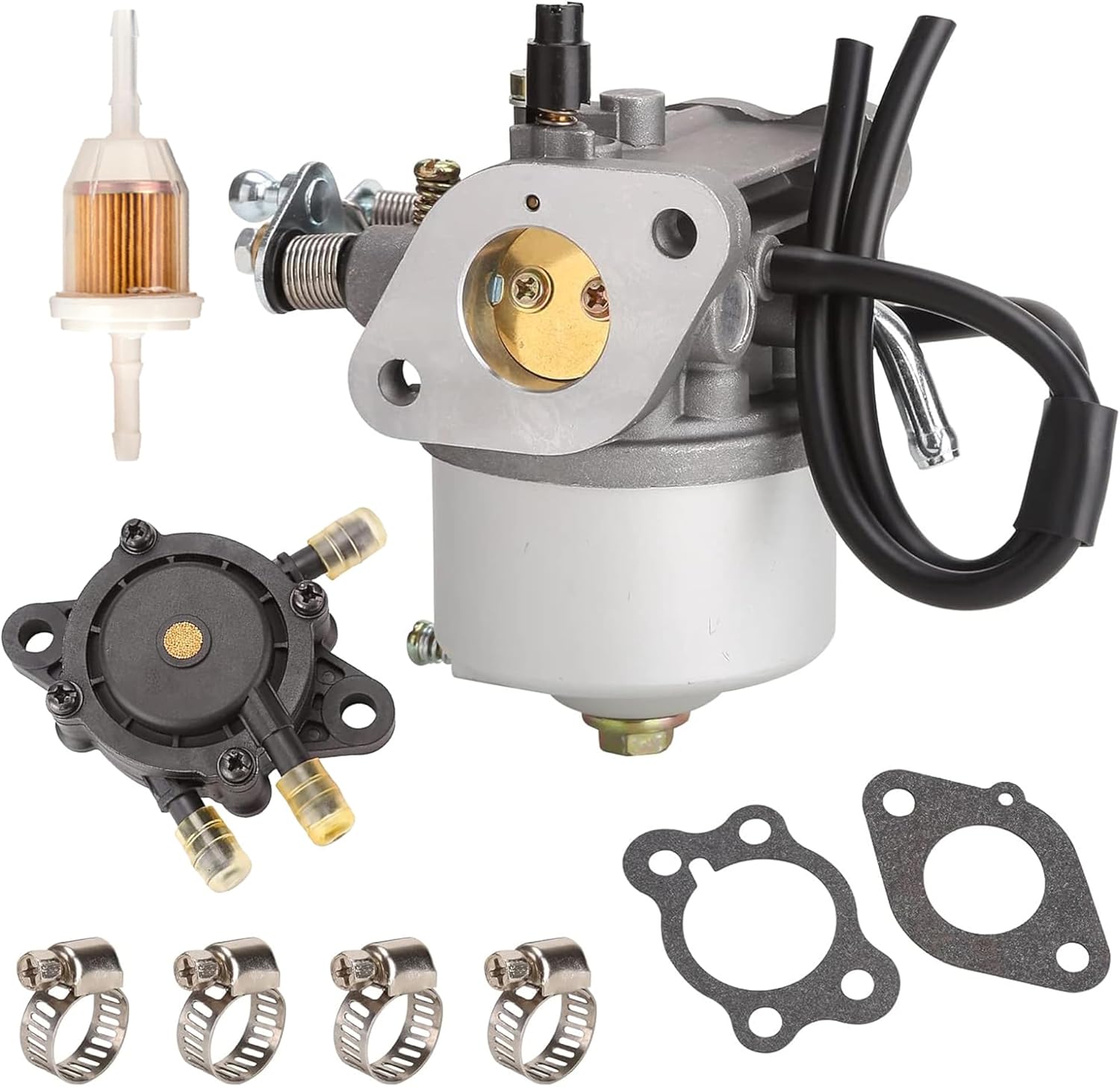

Image 1.1: Complete 10L0L Carburetor and Fuel Pump Kit, showing all included components: carburetor, fuel pump, fuel filter, fuel tubing, hose clamps, and gaskets.
2. Kompatibilita
This kit is compatible with the following EZGO golf cart models equipped with 295cc Robin 4-cycle engines:
- EZGO TXT (2004-2008)
- EZGO Medalist (1996-2003)
- EZGO Marathon (1991-up)
Nahrazuje čísla dílů OEM:
- Carburetor: 72840-G01, 26645-G01, 26645-G03, 26645-G04, 72558-G02
- Fuel Pump: 26726-G01, 26727-G01, M603901, 17553, 72021-G01
- Fuel Filter: 72084-G01
- Fuel Tubing: 17470-G1, 27183-G01
- Gaskets: 26726-G01, 26637-G01
3. Obsah sady
The 10L0L Carburetor and Fuel Pump Kit includes the following components:
- 1x Carburetor
- 1x Fuel Pump
- 1x palivový filtr
- 2x Fuel Tubing sections
- 4x Hadice třamps
- 3x Mount Gaskets
Obrázek 3.1: Detailní view of the carburetor, showing its various ports and adjustment screws.
4. Pokyny k instalaci
Installation of the carburetor and fuel pump kit requires basic mechanical knowledge and tools. Always ensure the golf cart is turned off and the battery is disconnected before beginning any work.
4.1. Příprava
- Park the golf cart on a level surface and engage the parking brake.
- Odpojte záporný pól baterie.
- Locate the existing carburetor and fuel pump assembly.
4.2. Odstranění starých součástí
- Carefully disconnect all fuel lines, vacuum lines, and electrical connections from the old carburetor and fuel pump. Be prepared for minor fuel spills and have rags ready.
- Remove the mounting bolts securing the carburetor and fuel pump to the engine.
- Remove the old components and discard the old gaskets.
4.3. Instalace nových komponent
- Install the new gaskets onto the engine mounting surfaces for the carburetor and fuel pump.
- Mount the new carburetor and fuel pump, securing them with the appropriate bolts. Do not overtighten.
- Connect the new fuel lines, vacuum lines, and electrical connections. Use the provided hose clamps to ensure secure connections.
- Install the new fuel filter in the fuel line, ensuring the flow direction matches the arrow on the filter.
4.4. Po instalaci
- Znovu připojte záporný pól baterie.
- Zkontrolujte těsnost všech spojů.
- Start the engine and allow it to warm up. Monitor for proper operation and any unusual noises or leaks.
Video 4.1: Official product video demonstrating the 10L0L Carburetor Fuel Pump Kit for EZGO Golf Cart TXT Medalist. This video provides a visual overview of the kit components and may offer insights into the installation process.
Video 4.2: Oficiální video s produktemasing the 10L0L Carburetor Kit for TXT Medalist Marathon 1991-up Golf Carts. This video highlights the features and fitment of the carburetor kit.
5. Provozní pokyny
After successful installation, the carburetor and fuel pump work together to deliver the correct fuel-air mixture to the engine. Proper operation relies on a clean fuel system and correctly adjusted carburetor settings.
- Ujistěte se, že palivová nádrž obsahuje čerstvé a čisté palivo.
- The carburetor is typically pre-adjusted for standard operation. Minor adjustments may be required for optimal performance based on environmental factors or specific engine conditions.
- Listen for smooth engine idle and consistent acceleration.
6. Údržba
Regular maintenance helps ensure the longevity and performance of your carburetor and fuel pump kit.
- Výměna palivového filtru: Inspect and replace the fuel filter periodically (e.g., annually or every 100 hours of operation) to prevent contaminants from reaching the carburetor.
- Fuel Line Inspection: Check fuel lines for cracks, leaks, or hardening. Replace as necessary.
- Čištění karburátoru: If performance issues arise, the carburetor may require cleaning. This typically involves disassembling the carburetor and cleaning jets and passages with carburetor cleaner. Consult a professional if unsure.
- Integrita těsnění: Ensure all gaskets remain sealed to prevent air or fuel leaks.
7. Řešení problémů
If you encounter issues after installing the kit, consider the following troubleshooting steps:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Motor nenastartuje nebo nastartuje obtížně | No fuel reaching carburetor, clogged fuel filter, incorrect carburetor adjustment, faulty fuel pump. | Check fuel level. Replace fuel filter. Verify fuel pump operation. Adjust carburetor idle screw. |
| Motor běží nepravidelně nebo se zastavuje | Clogged carburetor jets, vacuum leak, improper fuel-air mixture. | Clean carburetor. Check for loose connections or damaged gaskets. Adjust carburetor mixture screw. |
| Úniky paliva | Loose fuel line connections, damaged gaskets, cracked fuel lines. | Utáhněte hadici třamps. Replace damaged gaskets or fuel lines. |
| Poor acceleration or loss of power | Restricted fuel flow, incorrect carburetor settings. | Ensure fuel filter is clean. Check fuel pump pressure. Adjust carburetor for optimal performance. |
Note: One customer reported needing to adjust the carburetor's plastic adjustment tab for correct fuel flow. If experiencing similar issues, careful adjustment may be necessary.
8. Specifikace
This kit is designed to meet or exceed OEM specifications for the listed EZGO golf cart models.
- Materiál: Aluminum alloy (carburetor), high-grade rubber (hoses, gaskets)
- Kompatibilita motoru: EZGO 295cc Robin 4-cycle engines
- Zahrnuté komponenty: Carburetor, Fuel Pump, Fuel Filter, Fuel Tubing, Hose Clamps, Mount Gaskets

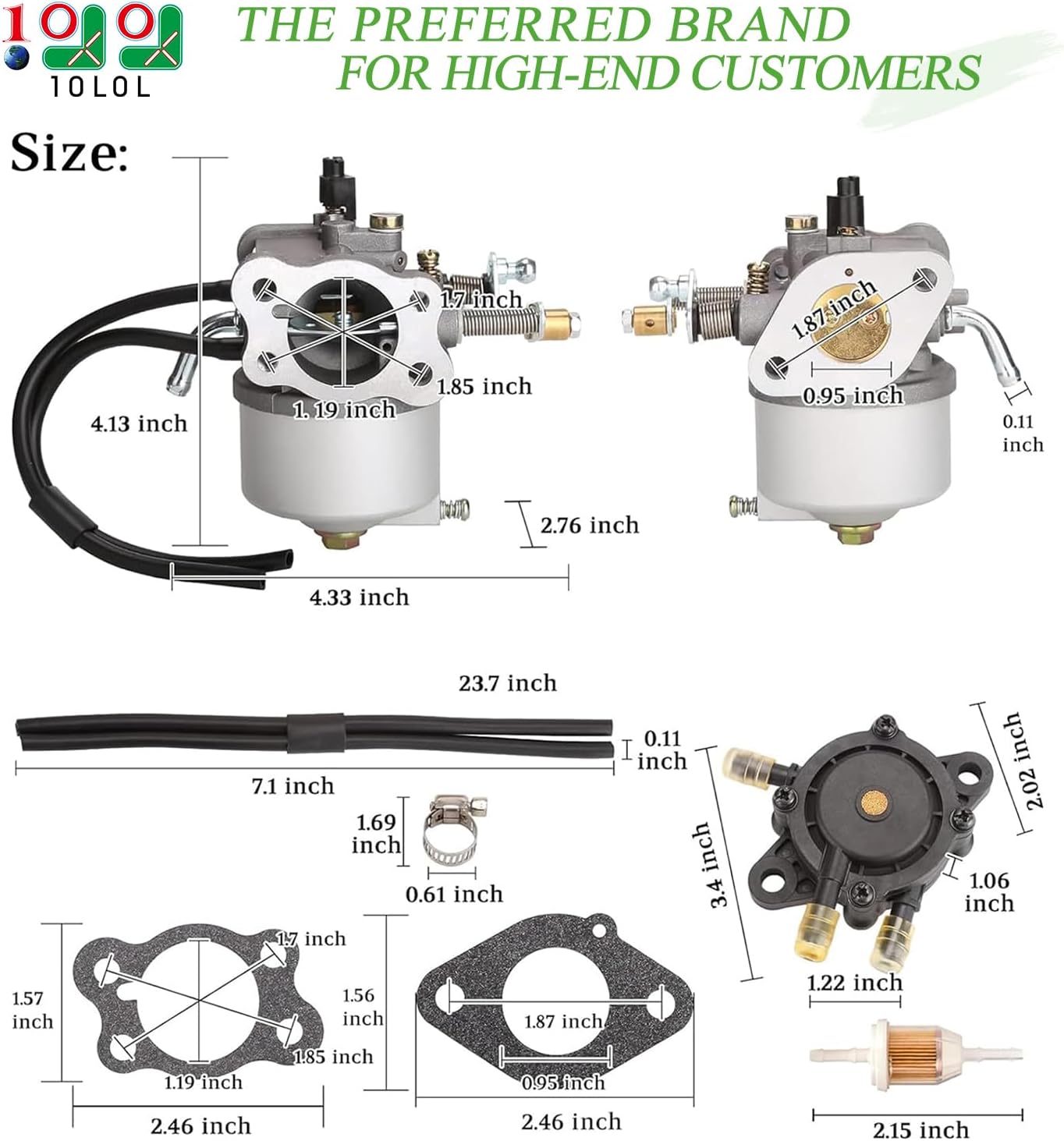

Image 8.1: Dimensional diagram of the carburetor and fuel pump kit components, providing measurements for various parts.
