Rakstore EGS002 Pure Sine Wave Inverter Drive Board User Manual

1. Úvod

The Rakstore EGS002 is a specialized drive board designed for pure sine wave DC-AC inverters. It utilizes the EG8010 digital pure sine wave inverter chip and the IR2110 driver chip to generate a stable, high-quality pure sine wave output. This board is suitable for DIY inverter projects and repairs, providing a reliable control core for converting DC power to AC power with minimal harmonic distortion.

2. Bezpečnostní informace

Please read and understand all safety instructions before installing or operating the EGS002 drive board. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Elektrické nebezpečí: This board operates with electrical voltages. Always disconnect power before making any connections or adjustments.
• Profesionální instalace: Installation should be performed by qualified personnel familiar with electronic circuits and inverter systems.
• Správné uzemnění: Ensure all components of your inverter system are properly grounded to prevent electrical shock.
• Větrání: Ensure adequate ventilation for the entire inverter system to prevent overheating, especially for power MOSFETs and transformers driven by this board.
• Kompatibilita komponent: Use only compatible components (MOSFETs, transformers, capacitors) with this drive board.
• Vyhněte se zkratům: Prevent short circuits during installation and operation.

3. Konec produktuview

The EGS002 board is a compact and efficient solution for generating pure sine wave AC output. It integrates essential control and drive functionalities onto a single PCB.

Klíčové vlastnosti:

• 5V single power supply operation.
• Fixed frequency output options: 50Hz or 60Hz pure sine wave.
• Adjustable frequency options: 0-100Hz or 0-400Hz pure sine wave.
• External 12MHz crystal oscillator for precise timing.
• PWM carrier frequency of 23.4KHz.
• Integrated EG8010 and IR2110 chips.

Board Components and Dimensions:

Obrázek 1: Nahoře view of the EGS002 drive board showing key components and overall dimensions. The board measures approximately 61.9mm in length and 32.7mm in width.

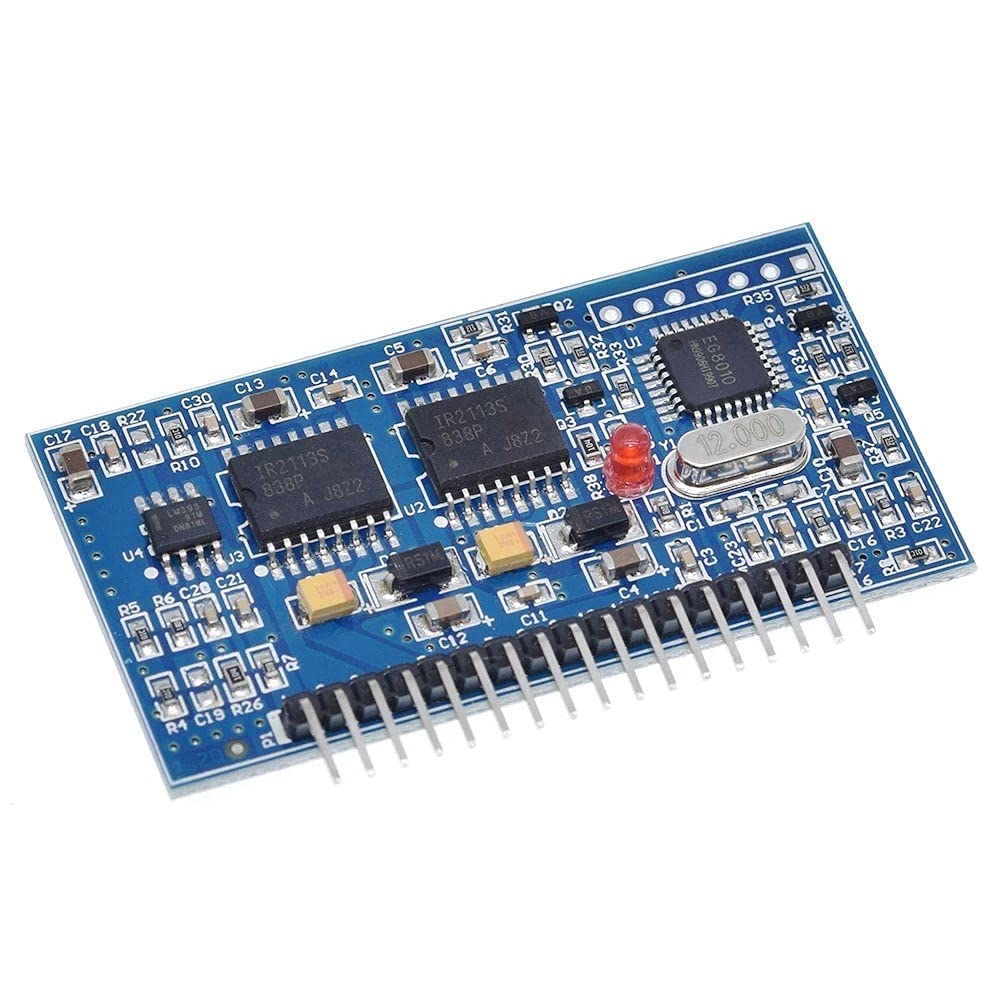

Obrázek 2: Detailní záběr shora view of the EGS002 board, highlighting the EG8010 chip, IR2110 driver ICs, and the 12MHz crystal oscillator.

4. Nastavení a instalace

Proper connection of the EGS002 board is crucial for its functionality and the safety of your inverter system. Refer to the pinout diagram below for correct wiring.

Pinout Diagram and Connections:

Obrázek 3: Spodní část view of the EGS002 board showing the labeled pin headers for various connections.

The board features multiple pin headers (JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8) for input power, feedback, fan control, and LCD display connections. The main output pins (1LO, 1HO, 2LO, 2HO) are for driving external MOSFETs in a full-bridge configuration.

• Napájení: Connect a stable 5V DC power supply to the designated +5V and GND pins.
• MOSFET Drivers: Connect the 1LO, 1HO, 2LO, 2HO pins to the gate drivers of your external power MOSFETs. Ensure proper isolation and dead-time settings if not handled by the IR2110.
• Feedback (IFB, UFB): These pins are for current and voltage feedback from the inverter output, allowing the EG8010 to regulate the sine wave.
• Fan Control (FANCTR): Connect a fan control circuit here if your inverter requires active cooling.
• LCD Display (LECDEN, LECDCL, LECDDI): These pins are for connecting an optional LCD display to monitor inverter status.
• Frequency Selection Jumpers (JPx): Configure the jumpers (JP1-JP8) according to your desired output frequency (50Hz, 60Hz, or adjustable range). Consult the EG8010 datasheet for specific jumper configurations.

Note: Detailed wiring diagrams for a complete inverter system (including power stage, transformer, and filtering) are beyond the scope of this manual. Refer to the EG8010 datasheet and general inverter design principles for comprehensive system integration.

5. Návod k obsluze

Once the EGS002 drive board is correctly integrated into your inverter system, operation involves applying the DC input power and monitoring the AC output.

• Počáteční zapnutí: After verifying all connections, apply the 5V DC power to the EGS002 board. The board should initialize, and the EG8010 chip will begin generating the SPWM signals.
• Zapnutí systému: Apply the main DC input voltage to your inverter's power stage (e.g., battery bank). The EGS002 will drive the MOSFETs to produce the AC output.
• Výběr frekvence: The output frequency (50Hz, 60Hz, or adjustable) is set via jumpers during installation. Ensure this matches your application's requirements.
• Sledování: If an LCD display is connected, monitor the output voltage, current, and frequency. Otherwise, use external measurement tools.
• Aplikace zatížení: Gradually apply the AC load to the inverter output. Monitor for stable operation and ensure the inverter's power stage can handle the load.

6. Údržba

The EGS002 drive board is a robust electronic component, but proper maintenance can extend its lifespan and ensure reliable operation.

• Udržujte v čistotě: Periodically inspect the board for dust and debris. Use compressed air or a soft brush to gently clean the surface.
• Udržujte v suchu: Ensure the board is always kept in a dry environment. Moisture can cause short circuits and damage.
• Kontrola připojení: Regularly check all wiring connections for tightness and corrosion. Loose connections can lead to intermittent operation or damage.
• Podmínky prostředí: Provozujte desku v rámci specifikovaných teplotních a vlhkostních rozsahů.

7. Řešení problémů

If you encounter issues with your EGS002 drive board or the inverter system it controls, consider the following troubleshooting steps:

• Bez střídavého výstupu:
  • Verify the 5V DC power supply to the EGS002 board is stable and connected correctly.
  • Check all connections between the EGS002 and the MOSFET driver stage.
  • Ensure the main DC input to the inverter power stage is present and within the correct voltage rozsah.
  • Inspect MOSFETs for damage or overheating.
• Incorrect Output Frequency:
  • Review the jumper settings on the EGS002 board to ensure they match the desired frequency (50Hz, 60Hz, or adjustable range).
  • Check the 12MHz crystal oscillator for proper seating and functionality.
• Unstable or Distorted Sine Wave:
  • Check the feedback connections (IFB, UFB) for proper wiring and signal integrity.
  • Ensure the output filter components (inductors, capacitors) of your inverter are correctly sized and connected.
  • Verify the stability of the 5V power supply to the EGS002.
• Přehřívání:
  • This board itself generates minimal heat. If the board is hot, it may indicate a short circuit or a fault in connected components.
  • If the MOSFETs or transformer in your inverter system are overheating, ensure adequate heatsinking and ventilation.

8. Specifikace

9. Záruka a podpora

For warranty information and technical support regarding your Rakstore EGS002 Pure Sine Wave Inverter Drive Board, please contact your point of purchase or the manufacturer directly. Keep your purchase receipt as proof of purchase.

This manual provides general guidance. For advanced technical assistance or specific application questions, it is recommended to consult the official datasheets for the EG8010 and IR2110 chips, and seek advice from experienced electronics professionals.
