Luceco EFLDTT20B50 LED Dual-Head Work Light Tripod

Zavedení

Thank you for choosing the Luceco EFLDTT20B50 LED Dual-Head Work Light Tripod. This product is designed to provide reliable and efficient illumination for various work environments, including DIY projects and outdoor tasks. Its robust construction, adjustable features, and weather-resistant design ensure optimal performance. Please read this manual carefully before use to ensure safe and proper operation.

Bezpečnostní informace

Důležité bezpečnostní pokyny:

• Always ensure the work light is placed on a stable, level surface to prevent tipping.
• Nedívejte se přímo do LED světelného zdroje, když je rozsvícený, mohlo by to způsobit namáhání očí nebo jejich poškození.
• Keep the work light away from flammable materials. The light heads can become warm during extended use.
• Ensure the power cable is fully uncoiled before use to prevent overheating.
• Do not operate the work light if the cable or plug is damaged. Contact a qualified electrician for repairs.
• This product is rated IP65 for outdoor use, meaning it is protected against dust and low-pressure water jets. However, avoid submerging it in water.
• Před čištěním nebo jakoukoli údržbou vždy odpojte napájení.

Obsah balení

Ověřte, zda jsou přítomny všechny komponenty:

• 1x Luceco LED Dual-Head Work Light Tripod

Detailní view of the Luceco LED work light heads and tripod base, showing the individual components.

Nastavení

1. Rozložte stativ: Carefully extend the tripod legs until they are fully open and stable. Ensure the locking mechanisms are engaged.
2. Upravit výšku: Loosen the height adjustment knob on the central pole and extend the tripod to your desired height. Tighten the knob securely to lock it in place.
3. Position Light Heads: The two LED light heads are individually adjustable. Loosen the side knobs on each head to pivot them up, down, or rotate them 180 degrees horizontally. Tighten the knobs once the desired angle is achieved.

The tripod offers multi-positioning with adjustable height and independently rotating light heads for optimal light diffusion.

Návod k obsluze

1. Připojení k napájení: Plug the 3-meter H05RN-F power cable into a suitable 230V power outlet.
2. Zapnout/Vypnout: Each LED light head has an individual waterproof switch. Press the switch on each head to turn it on or off independently.
3. Nastavení osvětlení: Reposition the light heads as needed to direct the 5000K cool white light (3200lm total) to your work area. The 180° pivot allows for versatile lighting angles.

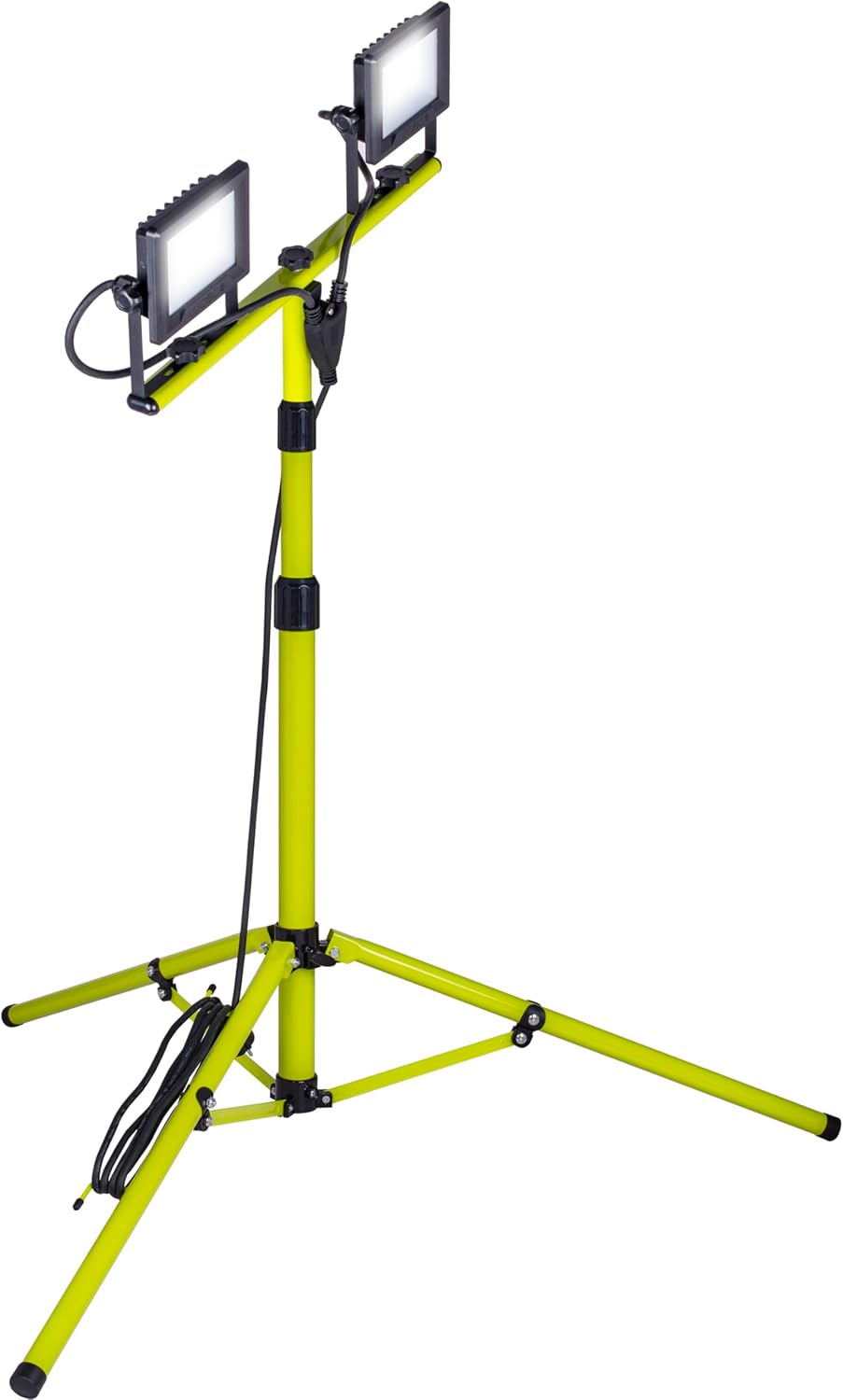

The Luceco LED Dual-Head Work Light Tripod providing bright, cool white illumination.

Údržba

• Čištění: Disconnect from power. Wipe the light heads and tripod with a soft, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
• Skladování: When not in use, fold the tripod legs for compact storage. Ensure the cable is neatly coiled to prevent damage.
• Inspekce: Regularly inspect the power cable, plug, and light heads for any signs of damage. Do not use if damaged.

The work light is designed for durability and can be used in various environments, including outdoor settings.

Odstraňování problémů

• Světlo se nerozsvítí:
  • Zkontrolujte, zda je napájecí kabel bezpečně zapojený do funkční zásuvky.
  • Ensure the individual switches on both light heads are in the 'ON' position.
  • Ověřte funkčnost zásuvky vyzkoušením s jiným spotřebičem.
• Blikání světla:
  • Ujistěte se, že je napájecí připojení stabilní a není uvolněné.
  • If flickering persists, discontinue use and contact customer support.

Specifikace

Záruka a podpora

This Luceco product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Luceco website. If you encounter any issues or require technical assistance, please contact Luceco customer support through their official channels.
