lightmaXX T-Bar Support Bar with TV Adapter for 4 Lights

Zavedení

This manual provides instructions for the safe and effective use of your lightmaXX T-Bar Support Bar. This accessory is designed to securely mount up to four lighting fixtures onto a compatible light stand, enhancing your stage or event lighting setup.

Bezpečnostní pokyny

• Před instalací a použitím si pečlivě přečtěte všechny pokyny.
• Ensure the light stand used with the T-Bar is stable and capable of supporting the combined weight of the T-Bar and all attached lighting fixtures.
• Do not exceed the maximum weight capacity of the T-Bar or the light stand.
• Always distribute the weight of lighting fixtures evenly across the T-Bar to maintain balance.
• Regularly inspect all connections and hardware for tightness and signs of wear.
• Keep the product away from children and unauthorized personnel during setup and operation.

Obsah balení

Zkontrolujte prosím, zda jsou v balení přítomny všechny komponenty:

• 1x lightmaXX T-Bar Support Bar (approx. 1200 x 30 x 30 mm)
• 4x M10 x 80 mm Screws

Nastavení a instalace

The lightmaXX T-Bar Support Bar is designed for easy attachment to a light stand equipped with a 28mm TV pin.

1. Prepare the Light Stand: Place your light stand on a flat, stable surface. Ensure it is fully extended and locked into position according to its own instructions.
2. Attach the T-Bar: Locate the TV adapter on the T-Bar. Carefully lower the T-Bar's TV adapter onto the 28mm TV pin of your light stand.
3. Secure the T-Bar: Use the locking mechanism on your light stand (not included with T-Bar) to firmly secure the T-Bar in place. Ensure there is no wobble.
4. Mount Lighting Fixtures: Attach your lighting fixtures to the designated mounting points on the T-Bar using the provided M10 x 80 mm screws. Ensure each fixture is securely fastened and tightened.
5. Kontrola stability: Before operation, gently test the stability of the entire setup. Adjust as necessary.

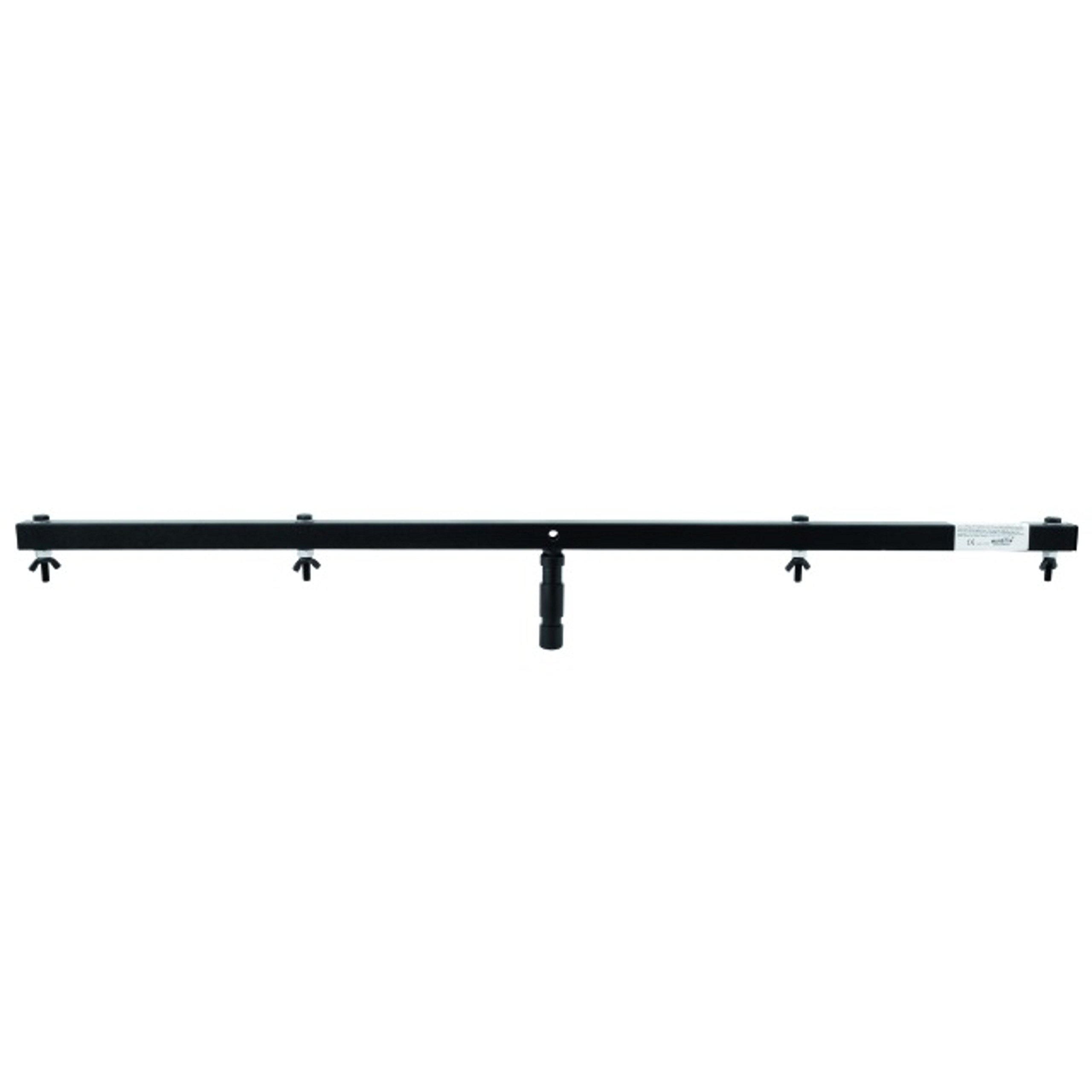

This image displays the lightmaXX T-Bar Support Bar, a black horizontal bar designed to attach to a light stand. It features four mounting points for lighting fixtures and a central TV adapter for connection to a stand.

Návod k obsluze

Once installed, the T-Bar provides a stable platform for your lighting fixtures. Follow these guidelines for safe operation:

• Always perform a visual inspection of the entire setup before each use to ensure all components are secure.
• Distribute the weight of your lighting fixtures as evenly as possible across the T-Bar to maintain optimal balance and prevent tipping.
• Do not attempt to move the light stand with the T-Bar and fixtures attached unless the stand is specifically designed for mobility with a loaded T-Bar.
• Avoid sudden impacts or excessive force on the T-Bar or attached fixtures.

Údržba

Proper maintenance will extend the life of your lightmaXX T-Bar Support Bar:

• Čištění: Clean the T-Bar with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish or material.
• Inspekce: Regularly inspect the T-Bar, mounting points, and screws for any signs of wear, corrosion, bending, or damage. Replace any damaged components immediately.
• Skladování: When not in use, store the T-Bar in a dry, clean, and protected environment to prevent damage and prolong its lifespan.

Odstraňování problémů

T-Bar feels unstable after setup:

Ensure the light stand is on a flat, level, and stable surface. Verify that the T-Bar is correctly seated on the TV pin and that the light stand's locking mechanism is fully engaged. Check that the weight of the lighting fixtures is evenly distributed and not exceeding the stand's or T-Bar's capacity.

Lighting fixtures cannot be securely attached:

Confirm that you are using the provided M10 x 80 mm screws. Ensure the mounting holes on your lighting fixtures are compatible with these screws. If your fixtures require different mounting hardware, you will need to source appropriate screws (not included with the T-Bar).

Specifikace

Záruka a podpora

lightmaXX offers a 3-year Music Store warranty for this product, ensuring peace of mind regarding its quality and performance.

Additionally, a 30-day money-back guarantee is provided. For personal customer service, warranty claims, or any support inquiries, please contact your retailer or lightmaXX directly through their official channels.
