Zavedení
This manual provides essential information for the proper use, maintenance, and care of your ARES 42067 120 Tooth Ratchet Set. This set includes 1/4-inch, 3/8-inch, and 1/2-inch drive ratchets, designed for durability and efficient operation in various mechanical tasks. Please read these instructions thoroughly before using the tools to ensure safe and effective performance.
Image: The ARES 42067 120 Tooth Ratchet Set, featuring 1/4-inch, 3/8-inch, and 1/2-inch drive ratchets neatly organized in a red and black foam storage tray.
Vlastnosti produktu
- 120 Tooth Ratcheting Mechanism: Provides a fine 3-degree swing arc, ideal for working in tight and confined spaces.
- Odolná konstrukce: Made from heat-treated chrome vanadium steel for superior strength and longevity.
- Oboustranný pohon: Easily change the drive direction with a thumb switch located on the back of the ratchet head.
- Ergonomická rukojeť: Contour forged handle designed for comfort and enhanced leverage during use.
- Professional Gear Structure: Features a gear-to-gear pawl design for increased durability and reliable performance.
- ANSI and ASME Standards: Meets and exceeds ANSI and ASME torque performance standards.
Image: The three ratchets from the ARES 120 Tooth Ratchet Set, highlighting that the set includes 3 ratchets and 1 reusable EVA foam storage tray, and meets ANSI performance standards.
Nastavení
- Rozbalení: Carefully remove the ratchet set from its packaging. Inspect each ratchet for any signs of damage.
- Skladování: The included EVA foam organizer is designed to keep your ratchets organized and protected in a toolbox drawer. Place the foam tray in a suitable drawer for easy access.
- Seznámení se: Before first use, familiarize yourself with each ratchet's size (1/4-inch, 3/8-inch, 1/2-inch drive) and the location of the direction switch.
Image: The ARES 120 Tooth Ratchet Set, stored in its foam tray within a red toolbox drawer, alongside a socket organizer.
Návod k obsluze
- Select the Correct Ratchet: Choose the appropriate drive size (1/4-inch, 3/8-inch, or 1/2-inch) for your socket or fastener.
- Připojit zásuvku: Firmly press the desired socket onto the square drive of the ratchet. Ensure it is securely seated.
- Nastavit směr: Use the thumb switch on the back of the ratchet head to select the desired direction for tightening or loosening. Push the switch to one side for clockwise rotation (tightening) and to the other for counter-clockwise rotation (loosening).
- Použitý točivý moment: Place the socket onto the fastener. Apply steady, controlled force to the ratchet handle. The 120-tooth mechanism allows for small, precise movements, requiring only a 3-degree swing arc.
- Práce ve stísněných prostorách: The fine-tooth design and ergonomic handle are particularly beneficial in confined areas, allowing for effective operation where larger ratchets may not fit.
Obrázek: Detailní záběr view of an ARES ratchet head, showing the thumb switch for easy direction change and the ergonomic contour forged handle.
Video: This video demonstrates the features and use of the ARES 120 Tooth Ratchet Set, including its 3-degree swing arc, ergonomic handle, and the smooth action of the thumb switch for changing direction. It also shows the ratchets being used in an engine bay and stored in their foam organizer.
Údržba
- Čištění: After each use, wipe down the ratchets with a clean cloth to remove dirt, grease, and debris. For stubborn grime, a mild degreaser can be used, followed by a thorough drying.
- Mazání: Periodically apply a small amount of light machine oil to the ratcheting mechanism to ensure smooth operation and prevent corrosion. Avoid over-lubricating.
- Skladování: Always store the ratchets in their foam organizer or a clean, dry environment to protect them from moisture and damage.
- Inspekce: Regularly inspect the ratchets for any signs of wear, damage, or loose components. Do not use damaged tools.
Odstraňování problémů
If you encounter issues with your ARES 120 Tooth Ratchet Set, consider the following:
- Zasekávání ráčnového mechanismu: This may be due to accumulated dirt or lack of lubrication. Clean the mechanism thoroughly and apply a small amount of light machine oil.
- Obtížnost při změně směru: Ensure the thumb switch is free of debris and operates smoothly. Clean and lubricate if necessary.
- Socket Not Holding Securely: Check if the square drive or the socket is worn or damaged. Replace damaged components. Ensure the socket is fully seated.
For persistent issues or concerns, refer to the Warranty and Support section for contact information.
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | 42067 |
| Zahrnuté velikosti disků | 1/4-inch, 3/8-inch, 1/2-inch |
| Počet zubů | 120 zubů |
| Swing Arc | 3 stupňů |
| Materiál | Heat-treated Chrome Vanadium Steel |
| Dokončit | Leštěný |
| 1/4-inch Ratchet Length | 5 palců |
| 3/8-inch Ratchet Length | 8 palců |
| 1/2-inch Ratchet Length | 9.75 palců |
| Dodržování | Meets and exceeds ANSI and ASME torque performance standards |
| Hmotnost položky | 2.4 liber (za sadu) |
| UPC | 840129904083 |

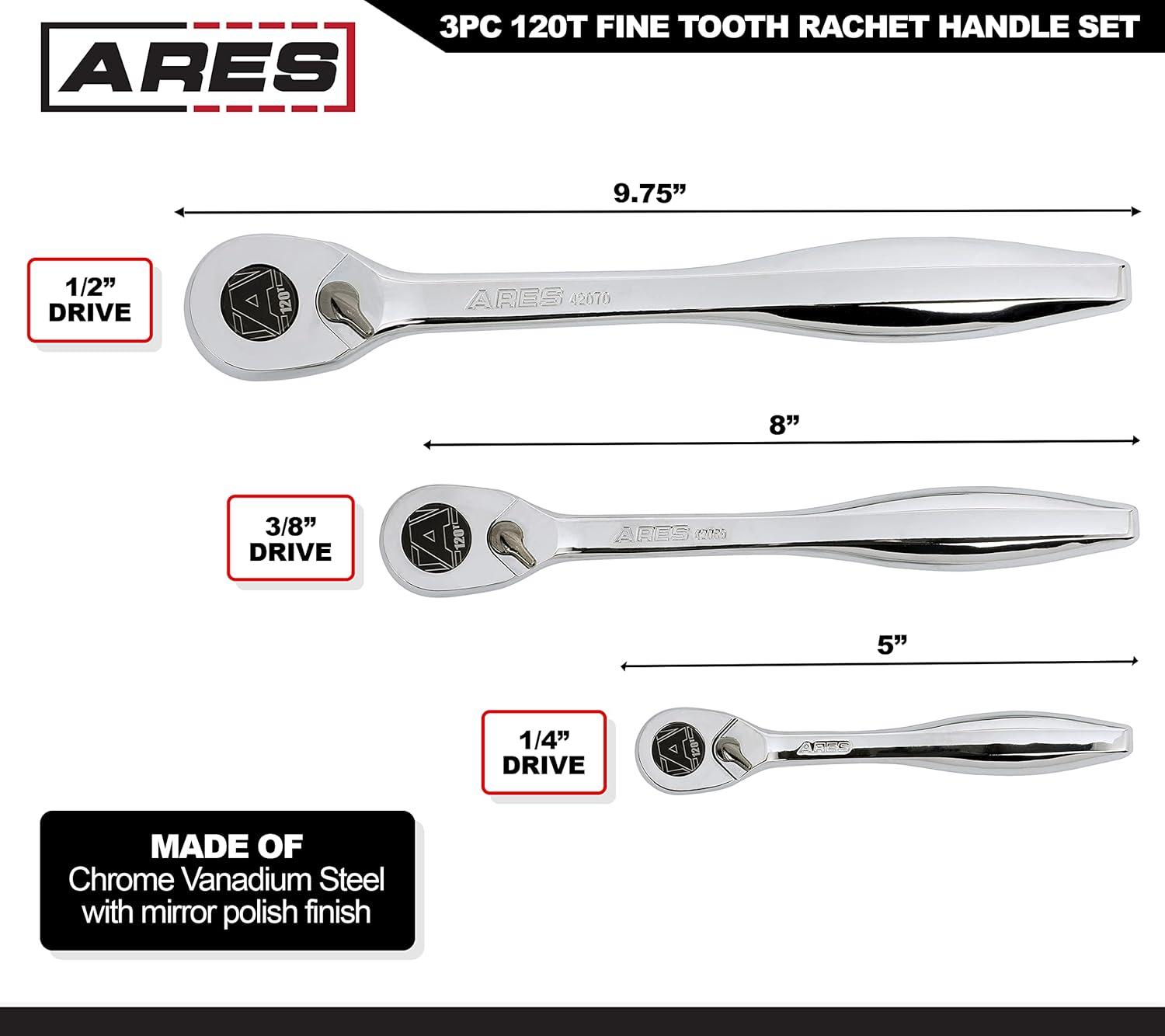

Image: An illustration showing the lengths of the 1/4-inch (5 inches), 3/8-inch (8 inches), and 1/2-inch (9.75 inches) drive ratchets from the ARES 120 Tooth Ratchet Set.
Záruka a podpora
The ARES 42067 120 Tooth Ratchet Set is backed by a Performance Assurance Limited Lifetime Warranty. This warranty covers defects in material and workmanship under normal use.
If you experience any issues with your ARES 120 Tooth Ratchet Set, please contact ARES customer service for assistance with troubleshooting, parts, replacement, or refund. Contact information can typically be found on the manufacturer's webna webu nebo prostřednictvím vašeho nákupního místa.
Image: The ARES Performance Assurance Limited Lifetime Warranty logo, indicating the product's warranty coverage.
