Axglo V2 Golf Cart Instruction Manual

Konec produktuview

Experience ultimate convenience with the Axglo V2 Golf Push Cart, designed for effortless navigation and stability. The 360° swivel front wheel ensures smooth turns on any terrain, while the dual braking system provides maximum safety. With a lightweight yet durable aluminum frame, this comfortable push cart combines functionality and performance for an enhanced golfing experience.

The V2 Golf Cart is engineered for ease of use and durability, making it an ideal companion for your rounds. Its thoughtful design integrates essential features for a seamless and enjoyable golf experience.

Klíčové vlastnosti:

• Compact & Foldable for Easy Storage: Designed with a one-step folding system, this golf push cart collapses quickly for easy transport and storage. The quick-release rear wheels further enhance portability, making it ideal for golfers who need a lightweight and space-saving solution.
• 360° Swivel Front Wheel for Smooth Mobility: Featuring a fully rotating front wheel, the V2 Golf Cart provides excellent maneuverability on all terrains. Its sturdy yet flexible design ensures stability while allowing golfers to make precise turns with minimal effort, enhancing their overall course experience.
• Dual Braking System for Maximum Control: Equipped with an easy-to-use hand brake and a dual braking mechanism, this unique golf push cart ensures smooth stopping power on slopes and rough terrains. The brakes engage and release easily, offering superior control and stability for a safer golfing experience.
• Spacious Storage & Universal Bag Holder: Includes two large storage compartments for golf accessories, a dedicated scorecard holder, and secure straps to fit most golf bags. The durable frame keeps your essentials organized, ensuring you have easy access to everything needed for a seamless round.
• Adjustable Handles & Convenient Holders: Ergonomically designed handles provide customizable height settings for optimal comfort. Integrated cup and umbrella holders ensure quick access to beverages and sun or rain protection, allowing you to stay focused on your game without disruptions.
• Universal Golf Bag Holder with Secure Straps: The strong, adjustable bag straps ensure a secure fit for most golf bags, preventing shifting during movement. Whether using a standard or large tour bag, this premium push cart keeps it stable throughout your game, providing a reliable and secure hold.

Figure 1: Axglo V2 Golf Cart, fully assembled.

Průvodce nastavením

The Axglo V2 Golf Cart features a convenient one-step folding system for quick and easy setup. Follow these steps to prepare your cart for use:

1. Rozložení vozíku: Locate the main latch on the cart's frame. Release this latch to allow the cart to unfold. Gently pull the handle upwards until the frame locks into its upright position. Ensure all locking mechanisms are securely engaged.
2. Nastavení rukojeti: The handle height is adjustable for personalized comfort. Locate the adjustment mechanism near the handle. Release it, set the handle to your desired height, and then secure the mechanism firmly.
3. Attaching Wheels (if detached): If your wheels are not pre-installed, align the wheel axle with the corresponding slot on the cart frame. Push firmly until you hear a click, indicating the wheel is securely locked in place. Repeat for all wheels.
4. Securing Your Golf Bag: Place your golf bag onto the cart's bag holder brackets. Utilize the adjustable straps provided to firmly secure your golf bag to the cart, preventing any movement during your round.

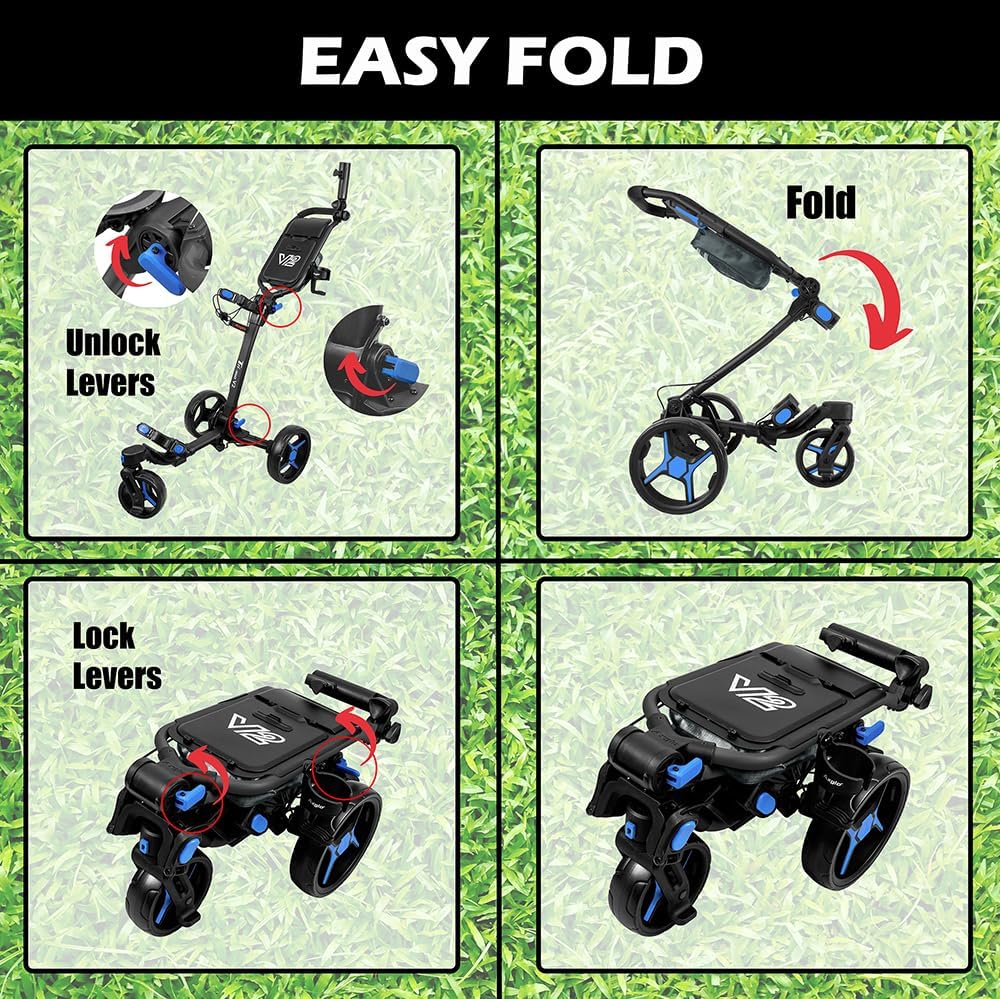

Figure 2: Visual guide for the easy folding and unfolding of the cart.

Figure 3: Attaching the quick-release wheels.

Návod k obsluze

Operating your Axglo V2 Golf Cart is straightforward, designed for maximum convenience on the course.

• Provoz ruční brzdy: The cart is equipped with a hand brake located near the handle. To engage the brake, simply pull the lever. To release, push the lever. This hand brake provides reliable stopping power, especially on inclines, and is more convenient than traditional foot brakes.
• 360° Swivel Front Wheel: The front wheel offers full 360-degree rotation, allowing for effortless steering and maneuverability around the course. For straight-line tracking on uneven terrain or long stretches, you can lock the front wheel in a fixed forward position using the designated lock button.
• Úložné prostory: The cart features multiple storage options. The main console includes a deep storage pocket, ideal for extra golf balls, snacks, or other larger items. A separate, smaller compartment is perfect for a phone, keys, or a scorecard, and features magnetic closures to keep items secure.
• Cup and Umbrella Holders: Integrated holders are provided for your convenience. The cup holder is designed to securely hold beverages, while the umbrella holder keeps you prepared for changing weather conditions.

Figure 4: Key operational features of the Axglo V2 Golf Cart.

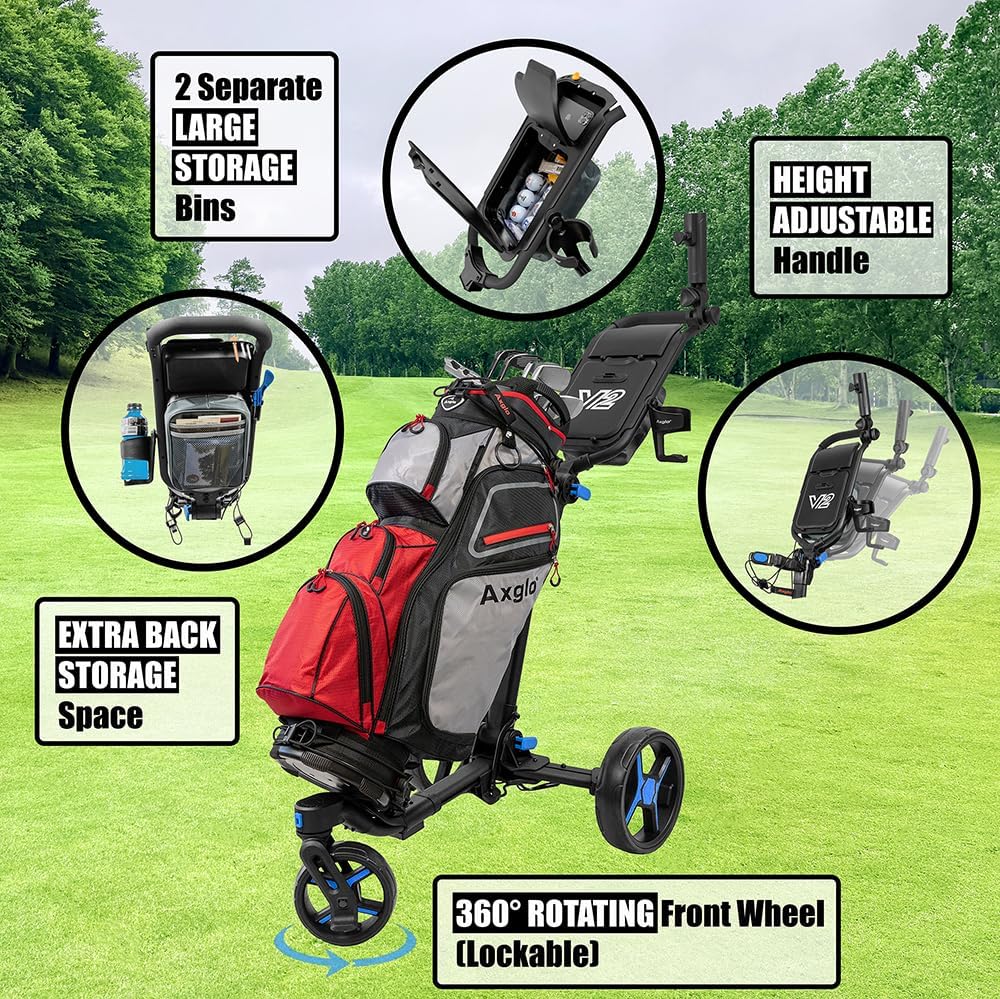

Obrázek 5: Detailní view of the storage compartments and adjustable handle.

Figure 6: Scorecard and beverage holder for convenient access.

Údržba

Regular maintenance will ensure the longevity and optimal performance of your Axglo V2 Golf Cart.

• Čištění: After each use, especially in wet or muddy conditions, wipe down the cart's frame and wheels with a damp hadříkem k odstranění nečistot a nečistot. Vyhněte se používání agresivních chemikálií, které by mohly poškodit povrch.
• Kontrola kol: Periodically check the wheels for any signs of wear, damage, or debris accumulation. Ensure they rotate freely and the quick-release mechanisms are functioning correctly.
• Kontrola brzdového systému: Regularly test the hand brake to ensure it engages and releases smoothly and effectively. If you notice any stiffness or reduced braking power, inspect the brake cable for kinks or damage.
• Skladování: Store the golf cart in a dry, cool place away from direct sunlight when not in use. Ensure it is folded compactly to save space and protect it from environmental elements.

Odstraňování problémů

This section addresses common issues you might encounter with your Axglo V2 Golf Cart.

• Brake Not Engaging/Releasing Properly: If the hand brake feels loose or does not hold the cart securely, check the brake cable for any obstructions or damage. Ensure the cable is properly seated in its housing. If the issue persists, the cable may need adjustment or replacement.
• Golf Bag Does Not Fit Securely: The V2 Golf Cart is designed to accommodate most golf bags. If your bag feels unstable, ensure the adjustable bag straps are tightened appropriately around your bag. Adjust the upper and lower bag holder brackets to best fit the shape and size of your golf bag.
• Front Wheel Not Swiveling Smoothly: Check the front wheel for any debris (grass, dirt, etc.) that might be obstructing its rotation. Clean the wheel and its housing thoroughly. Ensure the swivel lock mechanism is disengaged if you desire free rotation.
• Obtížnost skládání/rozkládání: Ensure all latches and release buttons are fully disengaged before attempting to fold or unfold the cart. Do not force the mechanism. Check for any obstructions in the folding joints.

For issues not covered here, or if problems persist, please contact Axglo customer support.

Specifikace

Figure 7: Dimensions and weight of the Axglo V2 Golf Cart.

Záruka a podpora

For detailed warranty information regarding your Axglo V2 Golf Cart, please refer to the warranty card included with your purchase or visit the official Axglo webZáruční podmínky se mohou lišit.

Should you require technical assistance, have questions about product features, or need to inquire about replacement parts, please contact Axglo customer support directly. Contact information can typically be found on the manufacturer's webwebu nebo na obalu vašeho produktu.

Axglo Customer Service: Please visit the Axglo official webweb s nejaktuálnějšími kontaktními údaji a zdroji podpory.
